3X Vector Network Analyzer Test Board Kit for Network Analysis Test Board Demo Board

3X Vector Network Analyzer Test Board Kit for Network Analysis Test Board Demo Board Description

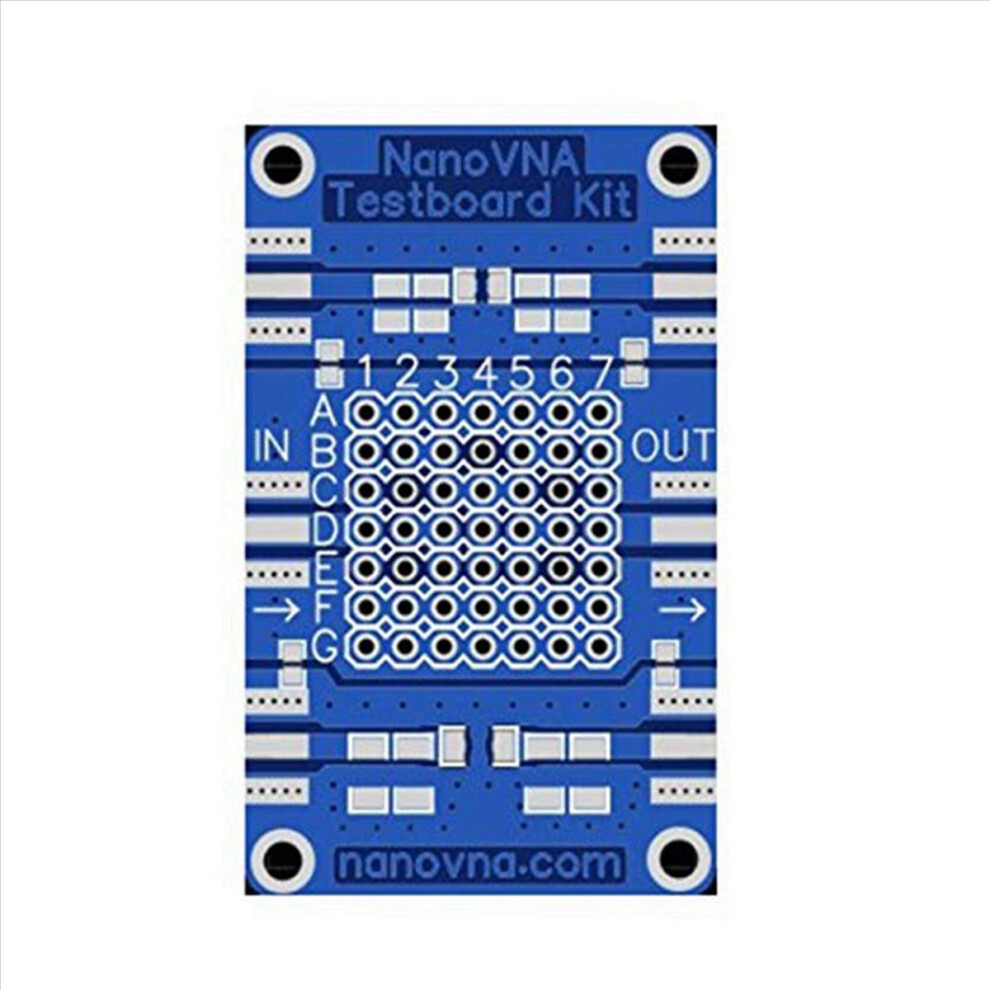

This test board contains a plug-in test circuit suitable for VNWA Testboard, and a set of 0805 and 1206 patch test circuits are added.
Suitable Model: This test board kit is used for -H -H4 -F series vector network analyzer user-friendly measurement plug-ins and SMT devices.
DIY kit,stable performance, high accuracy, high sensitivity.Made of fine quality material, has a long service life.
Please Note: Due to the SMT circuit cannot fully consider all kinds of test situations, some parts of the test may need to be cut over. Please that you have sufficient hands-on capabilities.

Material:plastic
colour:blue

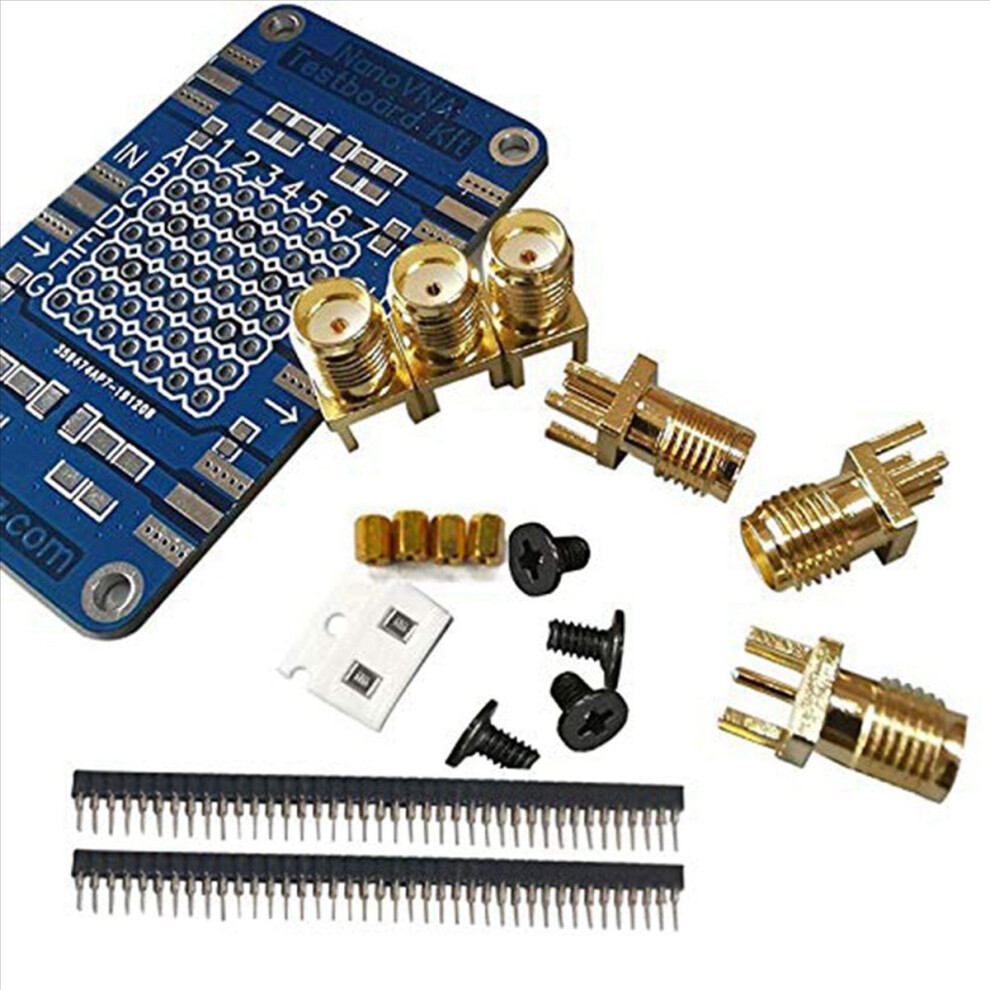

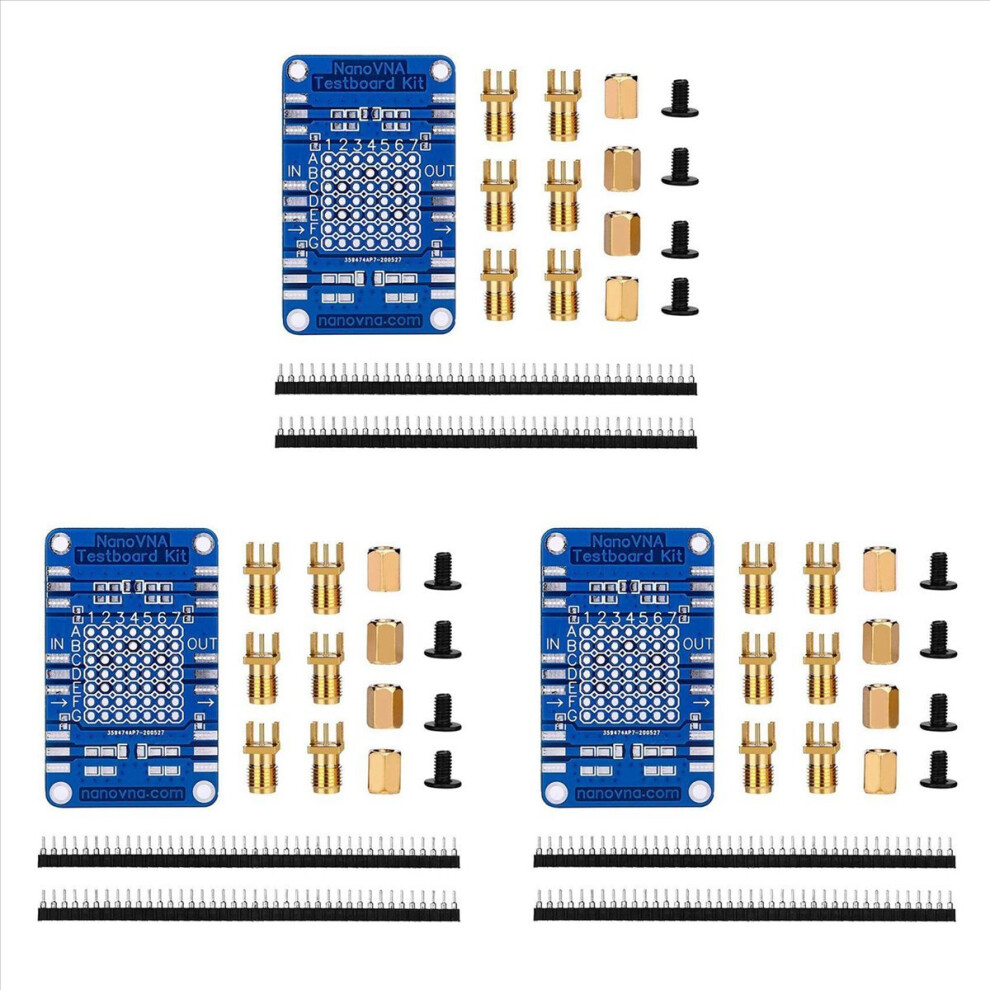

Package Contents:
3 * Testboard Main Board
18 * SMA Female Head
12 * 6mm Copper Stud
12 * M2.5 Screw
6 * 40pin Round Row Seat
6 * 0805 49R9 Calibration Resistance

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
