4 PCS 100 Degree Camera Module 1MP OV9732 1280x720 USB Free Driver

4 PCS 100 Degree Camera Module 1MP OV9732 1280x720 USB Free Driver Description

4 PCS 100 Degree Camera Module 1MP OV9732 1280x720 USB Free Driver Description

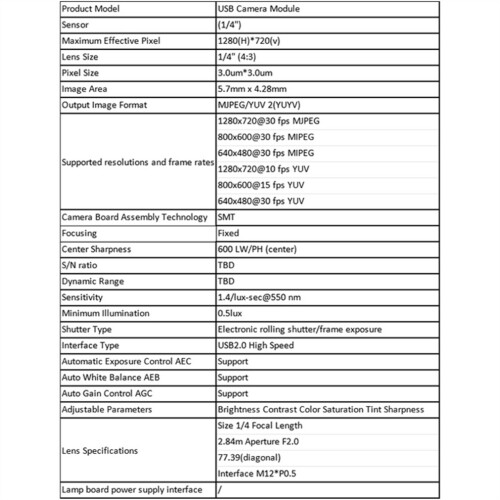

1. Photosensitive film: (1/4 inch)
2. Highest effective pixel size: 1280 (H) x 720 (M)
3. Lens size: 1/4 inch (4:3)
4. Pixel size: 3.0µm x 3.0µm
5. Image area: 5.7 mm x 4.28 mm
Output image format: MPEG/YUV2 (YUYV)
Supported resolutions and frame rates:
1280 x 720 30 fps MJPEG
1280 x 720 10 fps Yuv
800 x 600 30 fps MJPEG
800 x 600 15 fps Yuv
640 x 480 30 fps MJPEG
640 x 480 30 fps Yuv
Camera board mounting technology: SMT
Focus: Fixed
Center definition: 600 LW/PH (center)
Signal-to-noise ratio: TBD
Dynamic range: TBD
Sensitivity: 1.4 V/Lux-sec. 550 nm
Minimum illumination: 0.5 lux
Shutter type: Electronic roller shutter / Single-frame exposure
Interface type: USB 2.0 High Speed
Automatic exposure control (AEC): supported
Automatic white balance (AEB): supported
Automatic gain control (AGC): supported
Adjustable parameters: Brightness/Contrast/Colour saturation/Hue clarity/Gamma/White balance/Backlight contrast/Exposure
Lens specifications:
Size: 1/4 inch
Focal length: 2.84 m
Aperture: F2.0
Diagonal: 77.3 mm
Interface: M12 x P0.5
Color: as shown
Material: PC
Package Contents:

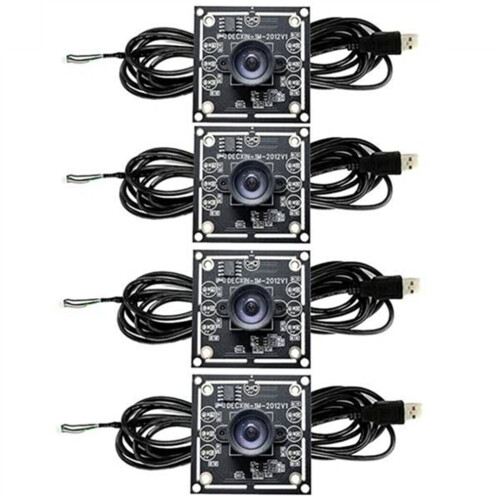

4 x 100 Degrees OV9732 Camera Module
4 x 2 Meter USB Cable
Only the above package contents, other products are not included.
Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the actual product. The allowable measurement error is +/- 1-3 cm.
