4 pieces W1209 Digital Temperature Controller Module Electronic Temperature Control Module Switch with Acrylic Housing

4 pieces W1209 Digital Temperature Controller Module Electronic Temperature Control Module Switch with Acrylic Housing Description

4 Pieces W1209 Digital Temperature Controller Module Electronic Temperature Control Module Switch with Acrylic Housing Description
Digital temperature controller with 3-digit LED display, extremely bright, 100% complete machine patch, wave soldering, stable performance, good consistency
Temperature measuring range: -50-110. The control accuracy is 0.1 degrees Celsius. Has passed stability, consistency, and reliability tests
Embedded CPU chip (MCU), intelligent, lower power consumption. Automatic power set memory (EEPROM memory unit integrated into the MCU).

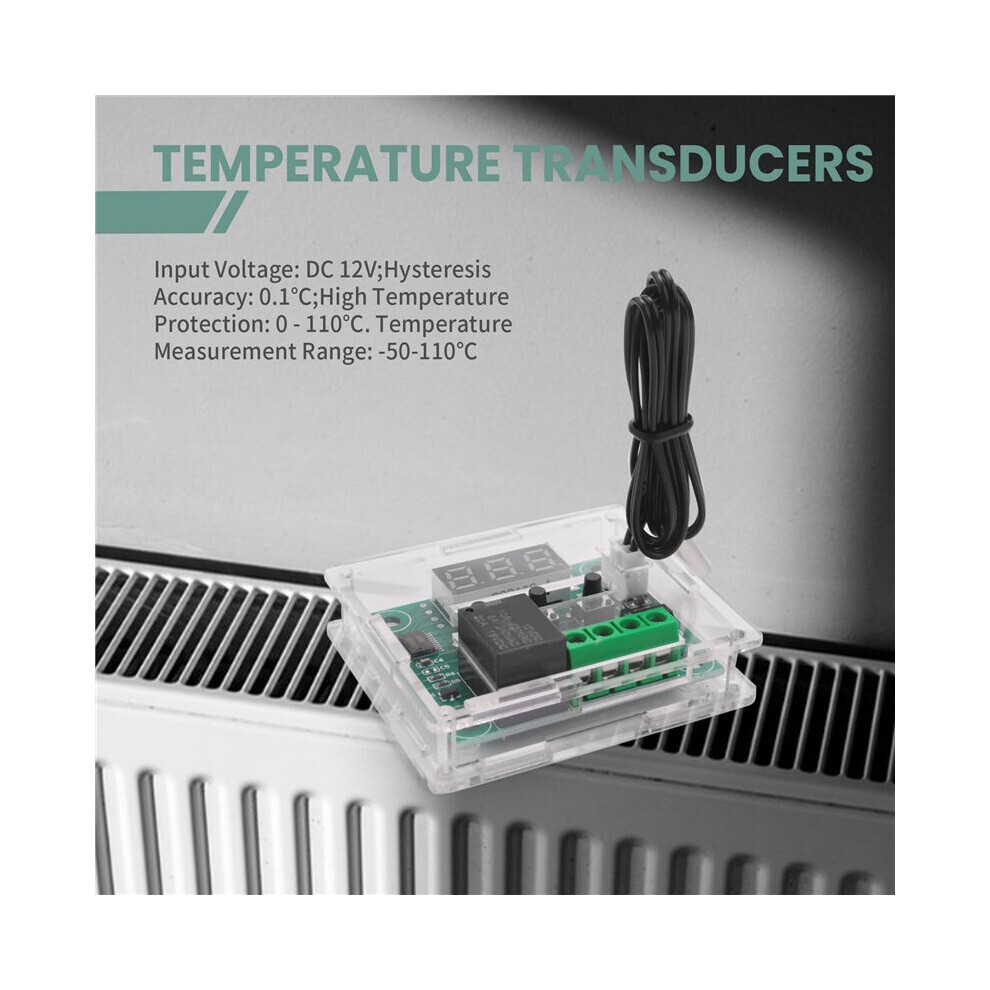

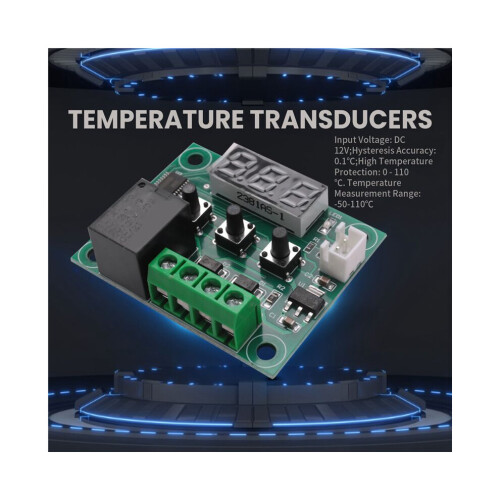

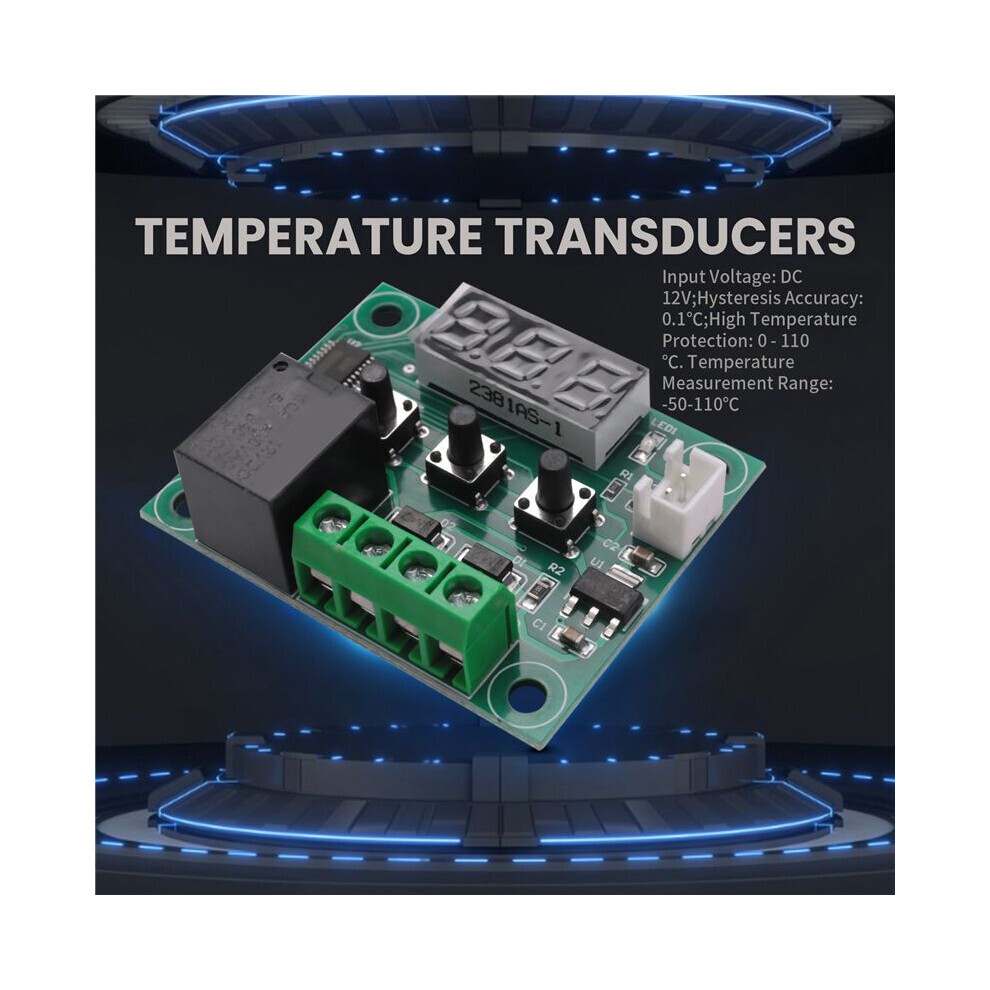

Technical specifications: Update rate: 0.5 s; Input voltage: 12 V; Hysteresis accuracy: 0.1 C; High temperature protection: 0 - 110C.
Measuring input: NTC (10K 0.5%) waterproof sensor; Measuring output: 10A relay; Resolution: When the temperature is 0.1C, the resolution is -9.9 ~ 99.9, the other temperature segment is 1C; Static current: Less than 35 mA, current draw: Less than 65 mA
Function setting description:
Long press the "SET" button to access the main menu settings, and
press "+" or "-" to switch between P0 and P6.
P0: Cooling / Heating; Range: C / H; Default: C
P1: Hysteresis setting; Range: 0.1-15; Default: 2
P2: Highest setting limit; Range: 110; Default: 110
P3: Lowest setting limit; Range: -50; Default: -50
P4: Temperature correction; Range: -7 ~ 7 ; Default: 0
P5: Start time delay; Range: 0-10 minutes; Default: 0
P6: High temperature alarm; Range: 0-110; Standard: Off
Color: Green + Transparent
Material: Acrylic + Electronic Components
Size: 48mm x 40mm x 14mm

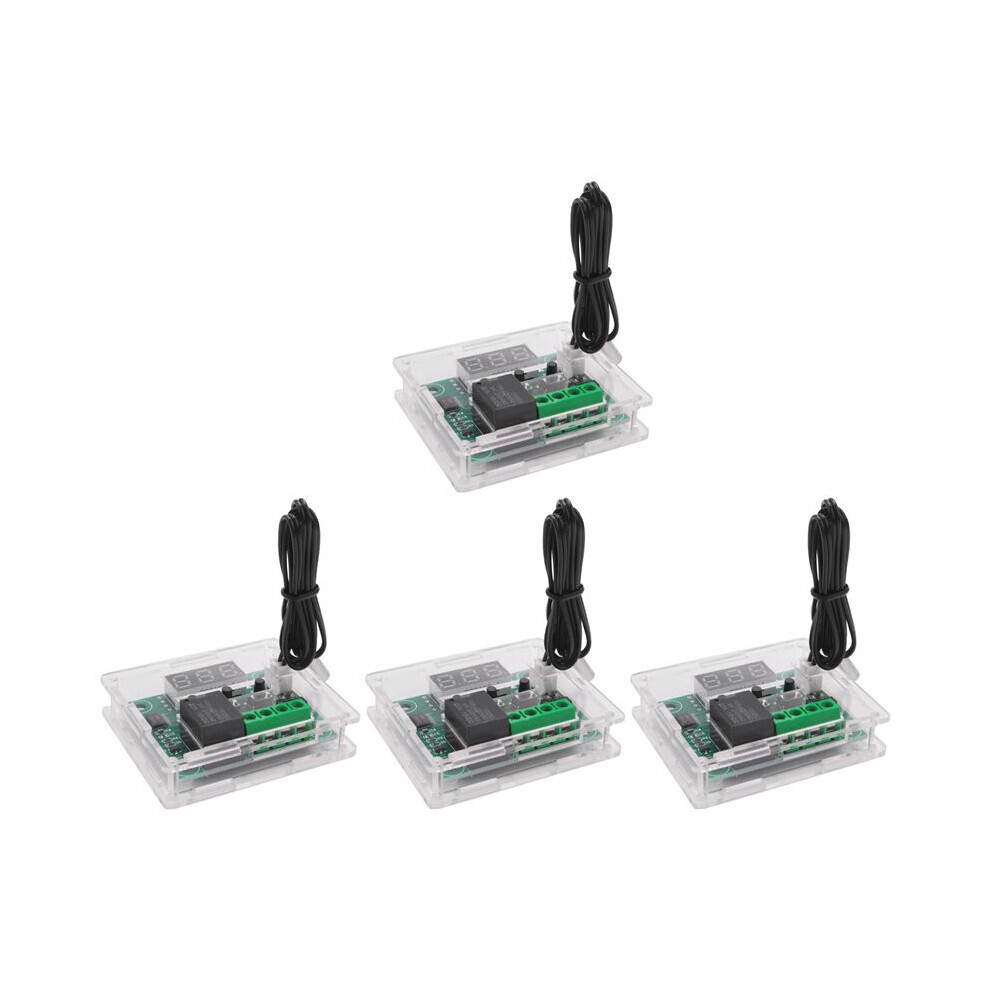

Package Contents:
4 * W1209 12V Digital Temperature Control Board
4 * Acrylic Box
Tips: If the temperature controller is off, press and hold "-" or "+" to restore factory settings.
