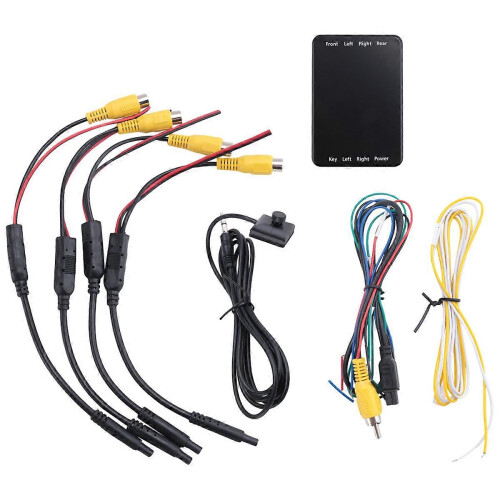

4-way camera switching system, 360 view, control box for front, rear and reversing cameras

4-way camera switching system, 360 view, control box for front, rear and reversing cameras Description

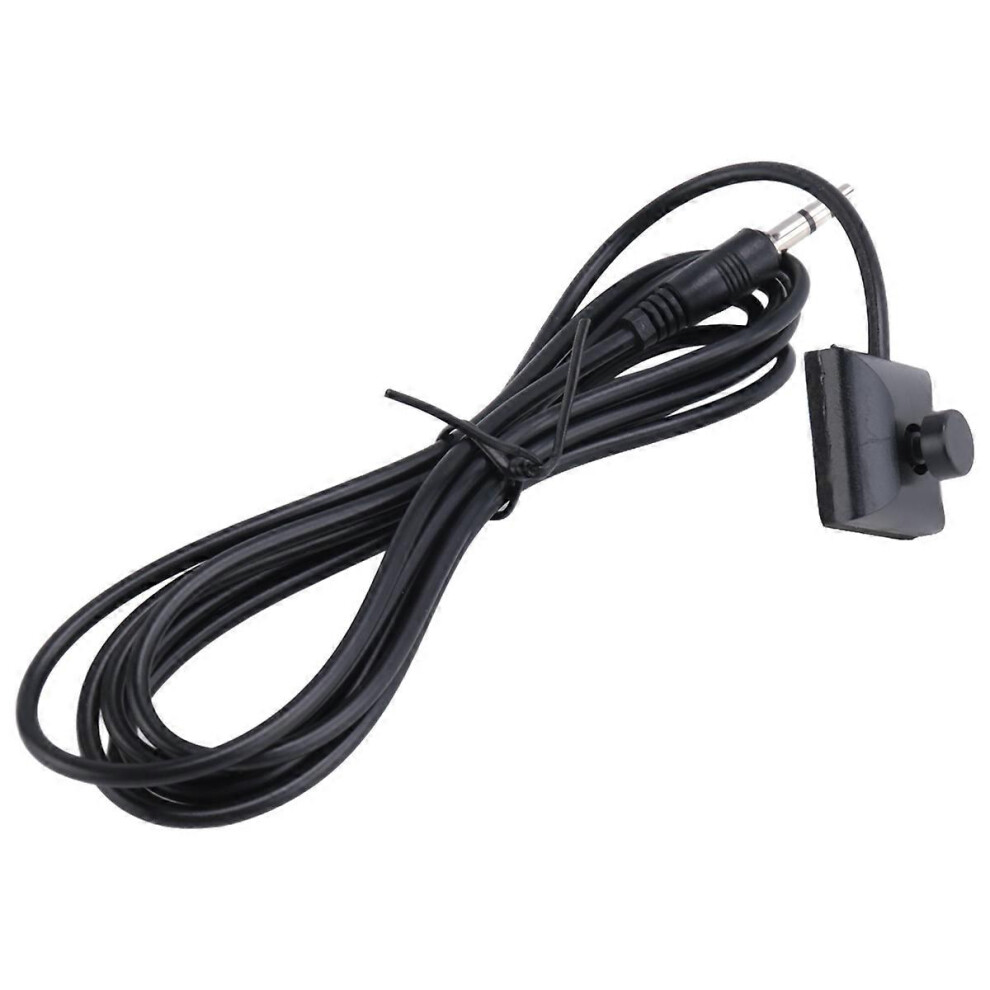

① Automatic panoramic view on startup: When the engine is started, the system successively activates the vehicle display and all surrounding cameras for 10 seconds, then turns off. ② Automatic rear view: When reverse gear is engaged (without turning the steering wheel), the system activates the display and rear camera until reverse gear is disengaged, then switches to the front camera and turns off after 10 seconds. ③ Front view mode: The system starts in front view mode by default. ④ Front view controlled by a button (included): Press and hold the control button for 2 seconds to keep the display and front camera continuously active, unless you turn them off. To turn off the front view, press and hold the control button again for 2 seconds. ⑤ Side view mode: Press and hold the control button for less than 1 second to switch to side view mode. ⑥ When you activate the turn signal, the system activates the screen and the side camera (the left/right side camera is controlled by the corresponding turn signal). The screen and camera turn off 1.5 seconds after the steering wheel is turned off. ⑦ Press the control button again for less than one second to return to front view mode. ⑧ Display priority: Right view > Left view > Rear view > Front view ⑨ Button functions: - Press for less than one second: Side view mode / Front view mode - Press for 2 seconds (in front view mode): Front view always active / Front view deactivated ⑩ Color: Black ⑪ Material: ABS ⑫ Package contents: - 1 x Control unit - 7 x Cables - 1 x English user manual ⑬ Only the above-mentioned package contents are included; other products are not included. ⑭ Note: The color of the item in the photos may slightly differ from the actual color due to shooting conditions and your monitor settings. A margin of error of +/- 1 to 3 cm is possible.
