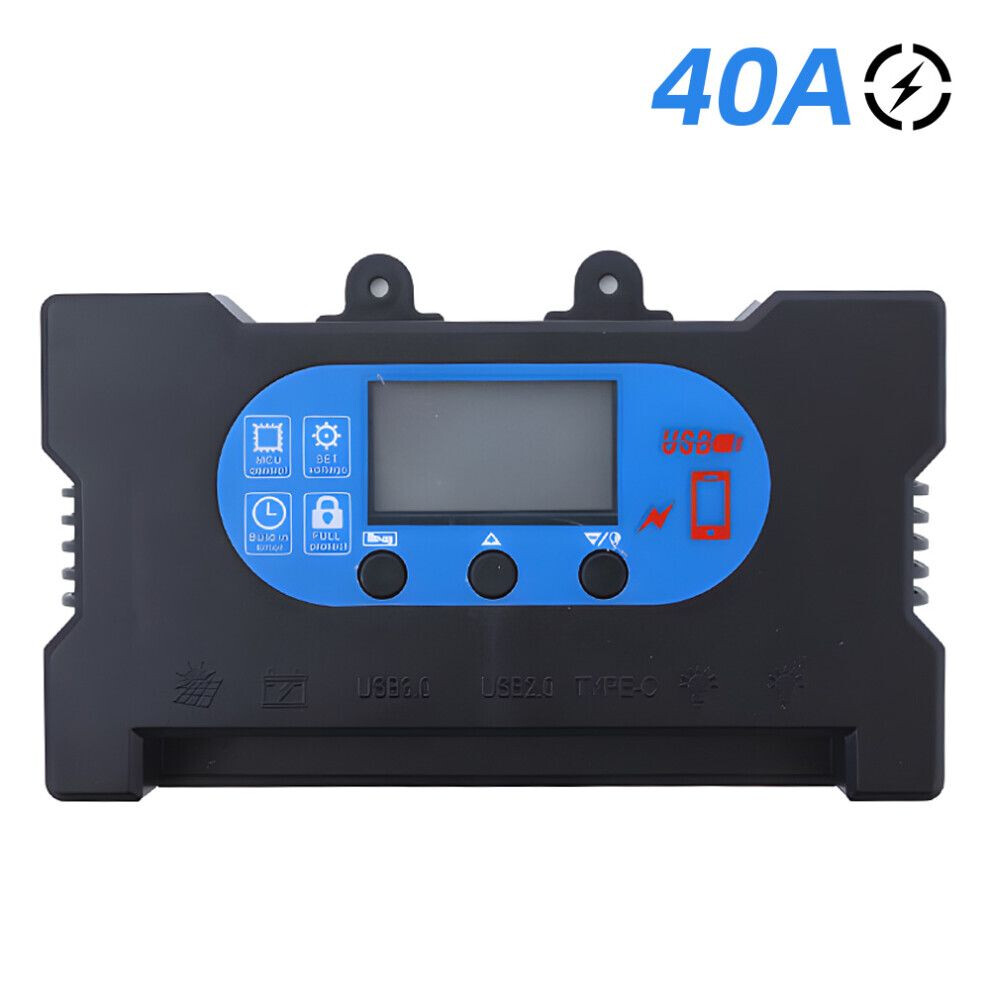

40A 12V/24V Solar Charge Controller with OLED, Dual USB & Type-C, Compact Black

40A 12V/24V Solar Charge Controller with OLED, Dual USB & Type-C, Compact Black Description

40A 12V/24V Solar Charge Controller with OLED, Dual USB & Type-C, Compact Black Description

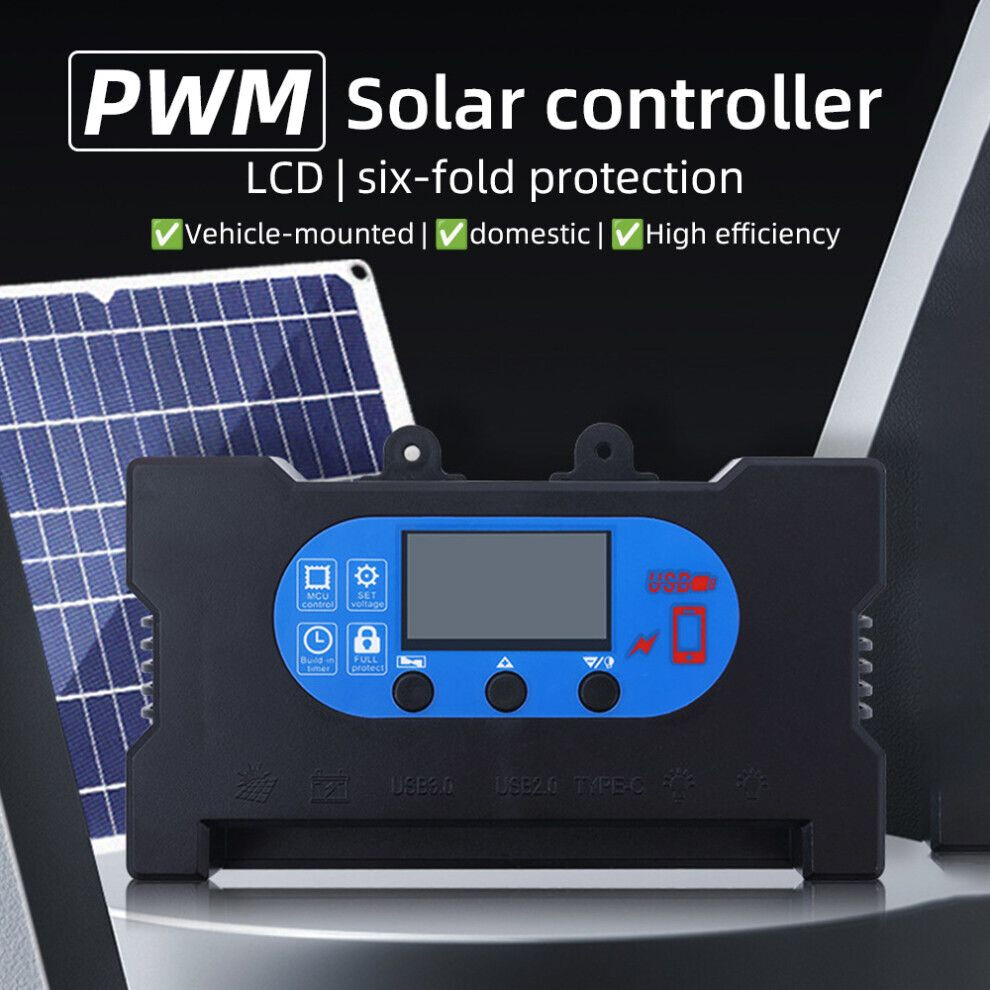

40A Solar Charge Controller 12V/24V Solar Panel Intelligent Regulator with Dual USB / Type-C Ports OLED Display PWM Solar Panel Charge Controller
Features:

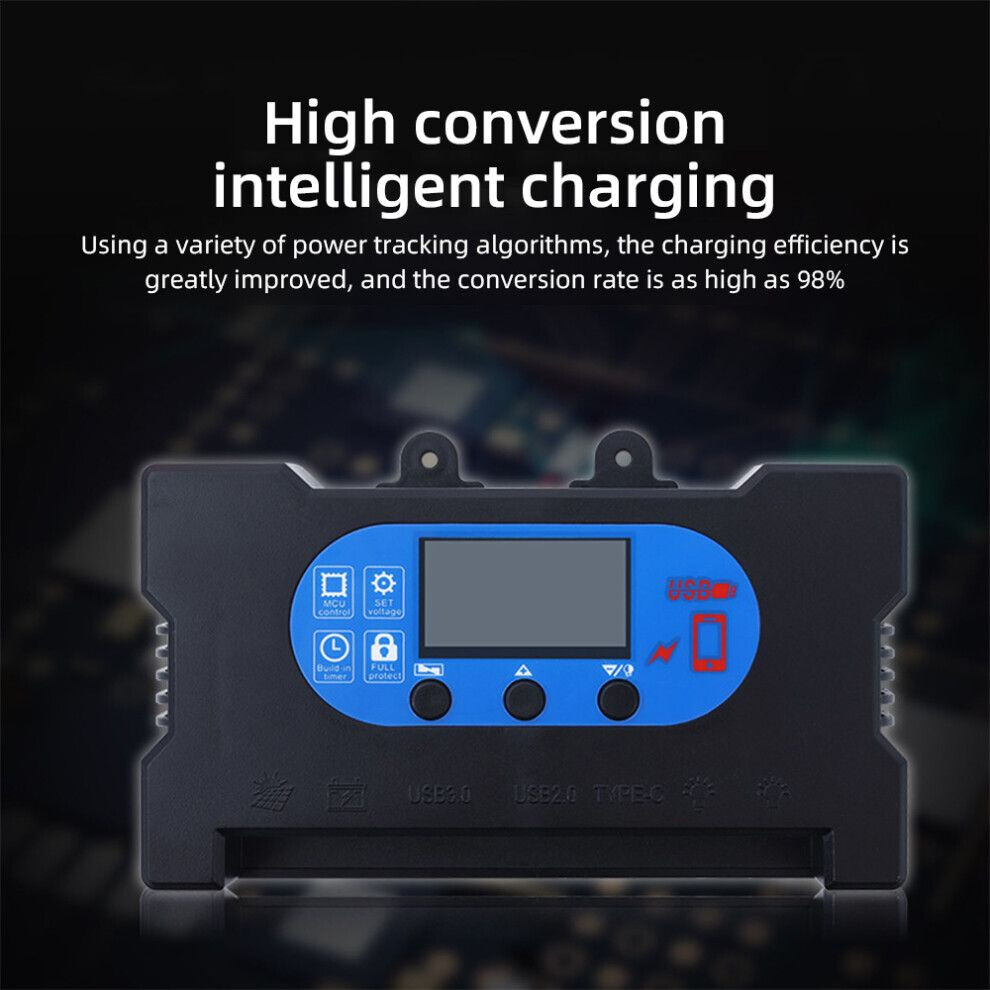

【High Conversion Rate】: This solar charge controller features a high conversion rate of up to 98%, ensuring efficient energy conversion from solar panels to batteries. It maximizes the utilization of solar power and helps save electricity costs.

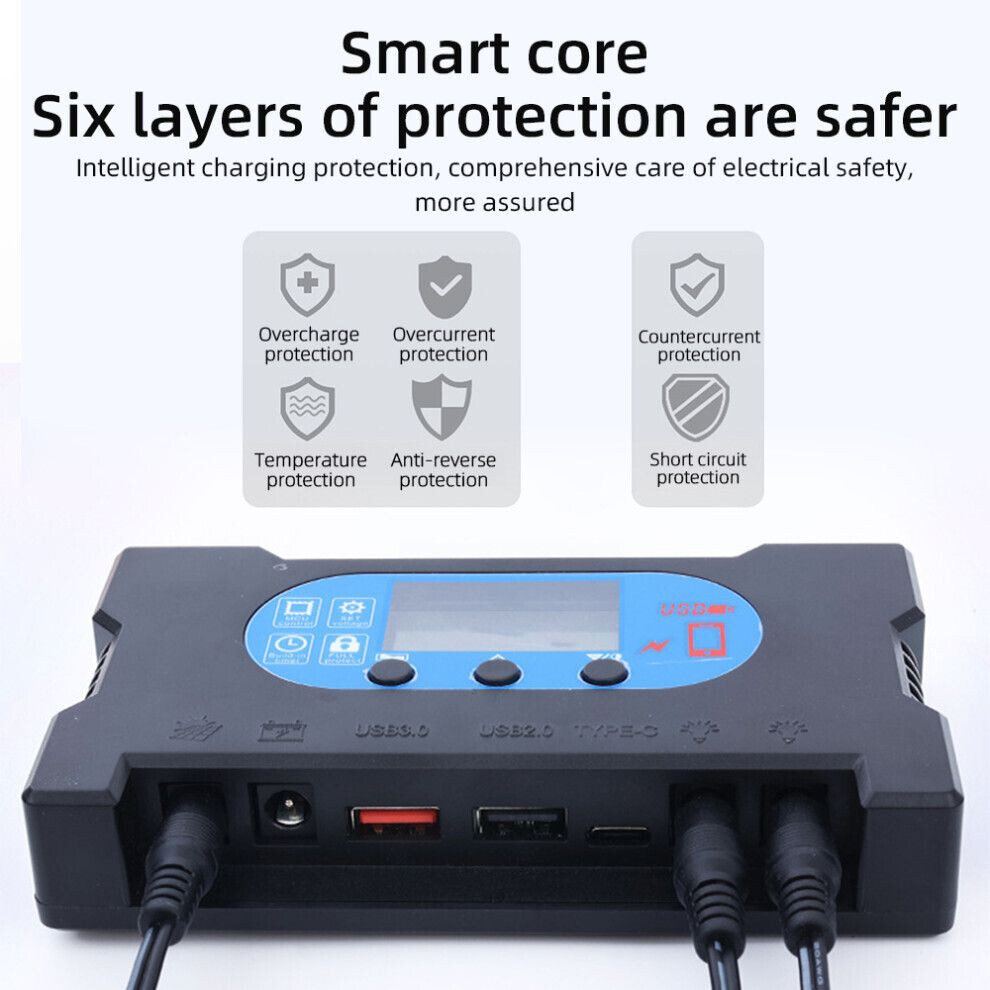

【Comprehensive conservation】: Equipped with multiple conservation functions in charge controller, including overcharge, overcurrent, temperature, reverse current, short circuit, and reverse connection conservation. Effectively safeguards your solar panel system and prolongs its lifespan.
【Versatile Compatibility】: Designed to work with both 12V and 24V systems, this solar controller automatically adapts to different voltage settings. It is compatible with various solar panel types and battery types of 10-12V, providing flexibility for different applications.
【User-friendly Interface】: The OLED high-definition display screen of solar panel controller provides clear and intuitive information about the charging status, battery voltage, and other relevant data. Users can easily monitor and manage their solar power system.
【Multiple Outputs】: This solar panel charge controller offers diverse outputs, including solar panel input, battery input, USB ports, Type-C output, and two lamp outputs. It supports the charging and discharging control of solar panels, making it suitable for various off-grid solar applications.
Specification:
Product material: ABS
Product size: 13 x 7.2 x 2.5cm / 5.12 x 2.83 x 0.98in
Product weight: 0.075kg / 0.17lb
Product color: Black, Orange (Optional)
Charging efficiency: 98%
Rated charging current: 30A, 40A (Optional)
System voltage: 12V/24V automatic recognition
Maximum photovoltaic voltage: 12V system23V/24V system46V
Boost charging voltage: 14.6V
Float charging voltage: b1/14.4V, b2/14.2V, b3/14.6V (adjustable range: 13V-15V) 13.7, (default value, adjustable range: 12.7V-15V)
Discharge cut-off voltage: 10.7V (default value, adjustable range: 9V-11.3V)
Discharge recovery voltage: 10.7V (default value, adjustable range: 9V-11.3V)
Solar panel input: 12-36V
Battery input: 10-12V
Controller output: USB2.0: 5V/2.5A, USB3.0: 5V/2.5A, 9V/2A, 12V/1.5A (QC4+/QC4/QC3.0/QC2.0), Type-C: 5V/3A
Bulb DC output: 12V
Standby current: 10mA
Working temperature: -35 - 60C / -95 - 140F
Note:
The float charging voltage, discharge cut-off voltage, and discharge recovery voltage only correspond to the 12V system. If using a 24V system, please multiply by 2.
Packing List:
1 x Charge Controller
