4K H.264 H.265 Network Video Decoder -Compatible HD 1080P Decoder USB Decoding RTMP RTSP UDP Decoder EU PLUG

4K H.264 H.265 Network Video Decoder -Compatible HD 1080P Decoder USB Decoding RTMP RTSP UDP Decoder EU PLUG Description

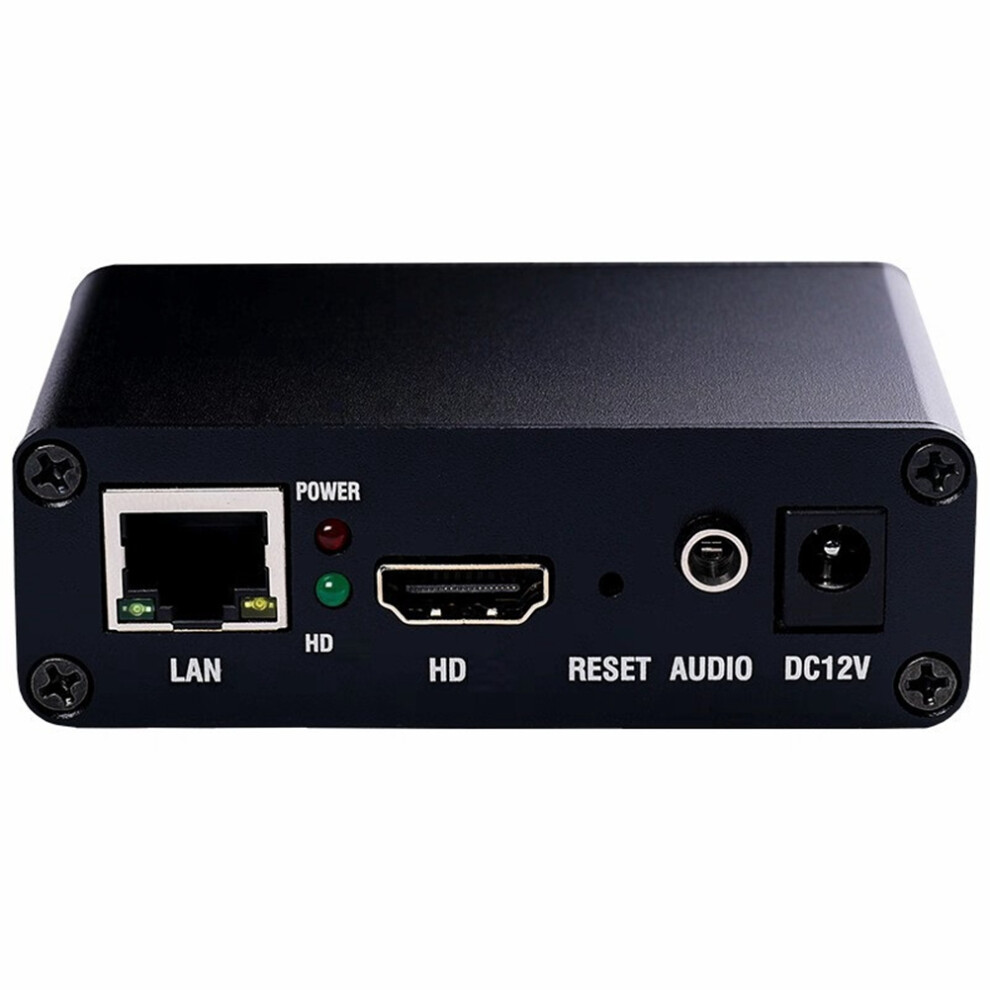

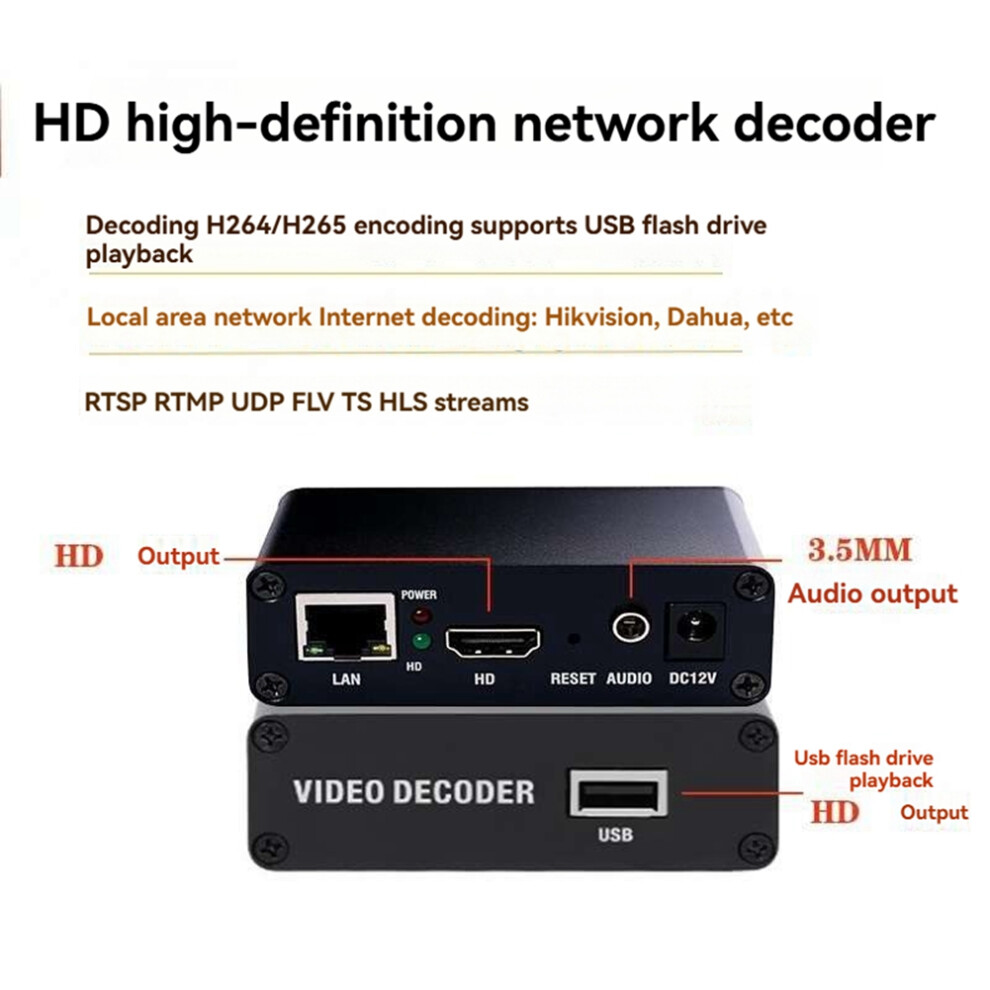

Output one -compatible signal and one 3.5mm audio signal
Decoding video formats H.265/H.264, audio formats AAC, AC3, MP3, MP2, etc
Supports decoding with the highest possible 4K@30fps stream, or decode 4 channels of to 1080P@30fps stream at the same
Decoding multiple streaming protocols:HTTP/HLS/FLV/RTSP/RTMP/RTMPS/SRT/UDT/RTP/PTE
Decode all IP cameras of ONVIF protocol, such as for Dahua, for Haikang, for Xiongmai, etc.
NOTE:
It is only a video Decoder, not an Encoder.

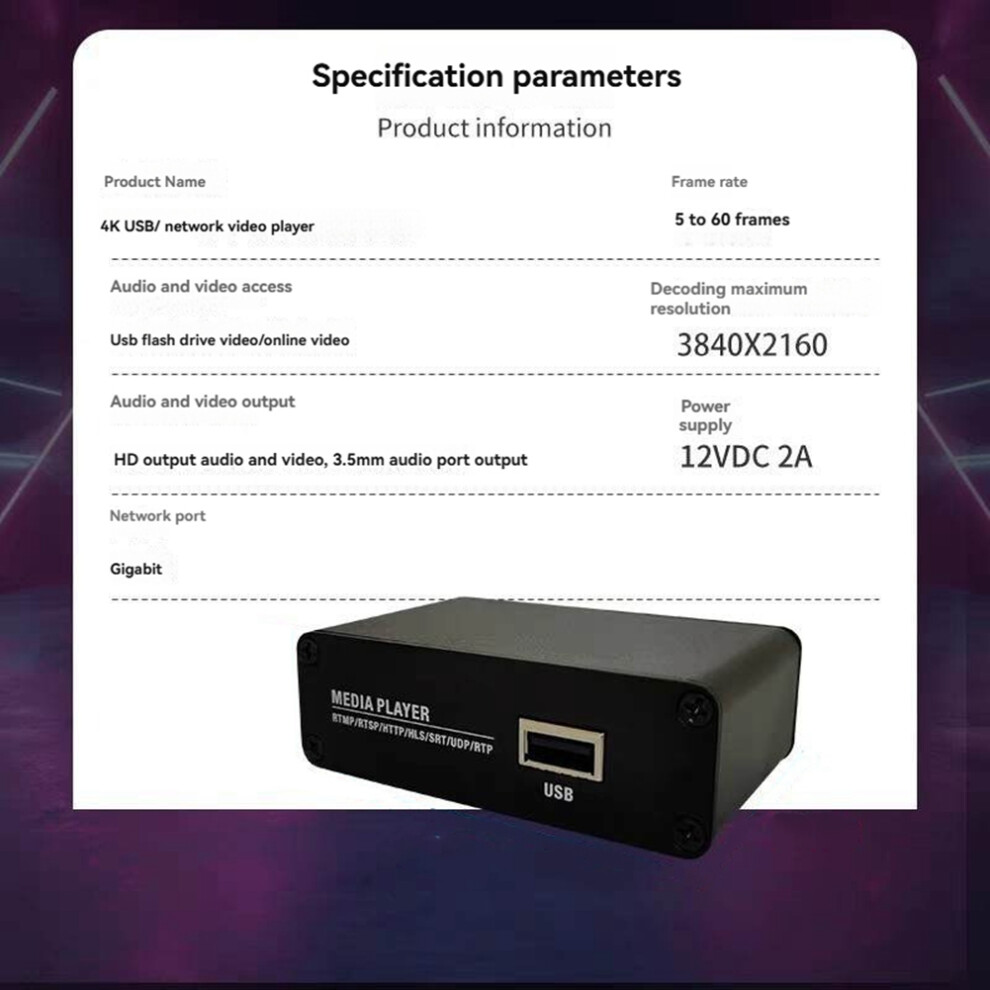

Specification:
Protocol:
Standard protocol: RTSP/HTTP TS/HTTP FLV/HTTP HLS/RTMP/UDP/SRT
Private protocol: HTTP PTE
Video decoding:
Type: H.265/H.264
Frame rate: 1-60
Bitrate (kbit): 32-32000
Resolution: Max.Support 2160P at30
Channels: 1-4
Audio decoding:
Type: G711A/G711U/AAC+/AAC++/MP2/MP3
Channels: Single Channel/Dual Channel
Sampling Rate: 8000/11250/22500/44100/48000
Channels: 1
Video output:
-compatible: 1080P at 60/1080P at 50/1080P30/1080P25/720P60/720P50/576P50/480P60
Color: Brightness, contrast, hue, saturation, volume adjustable
Audio output:
-compatible: 48KHz dual channel output
3.5MM: Dual channel output
Enable: Enable/Disable
General options:
Configuration management: Configuration management via WEB
Power supply: 12V/, 2A
Power:
