5-part speech playback module with support for Micro-SD cards

5-part speech playback module with support for Micro-SD cards Description

5-piece speech playback module with Micro SD card support Description

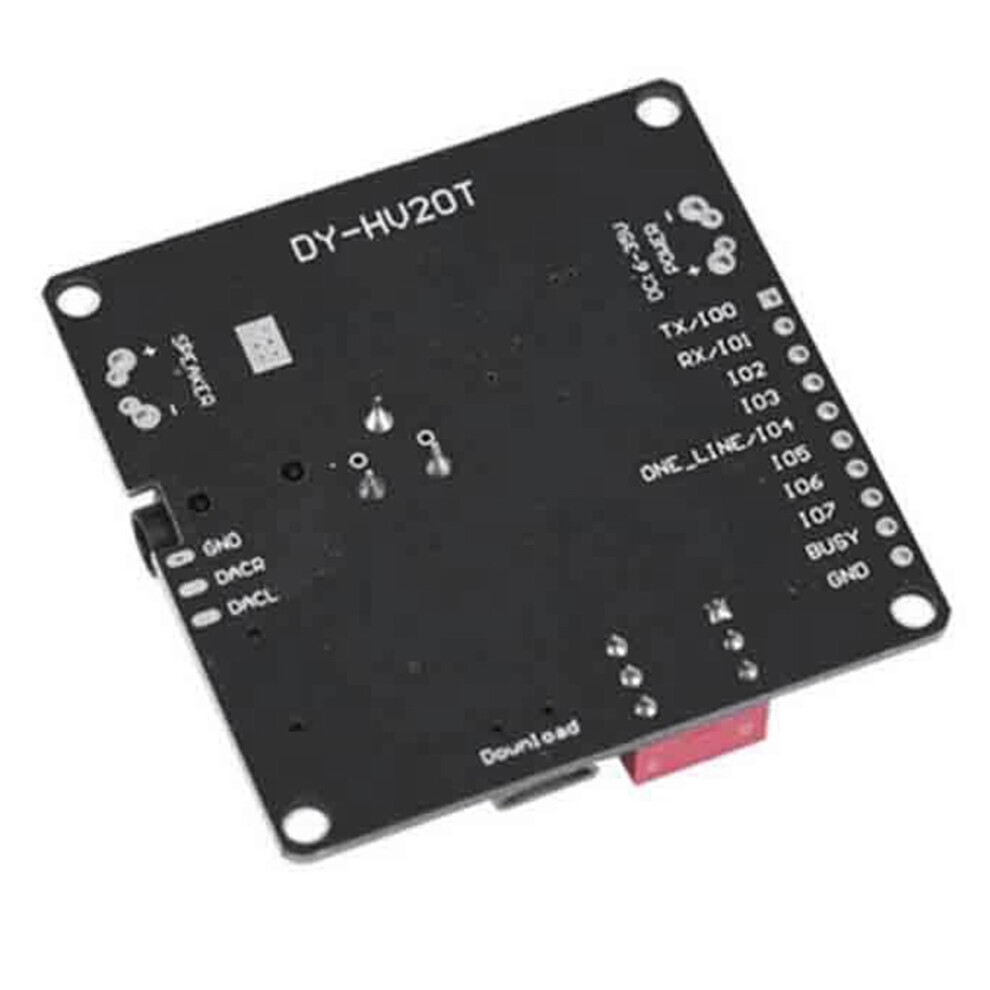

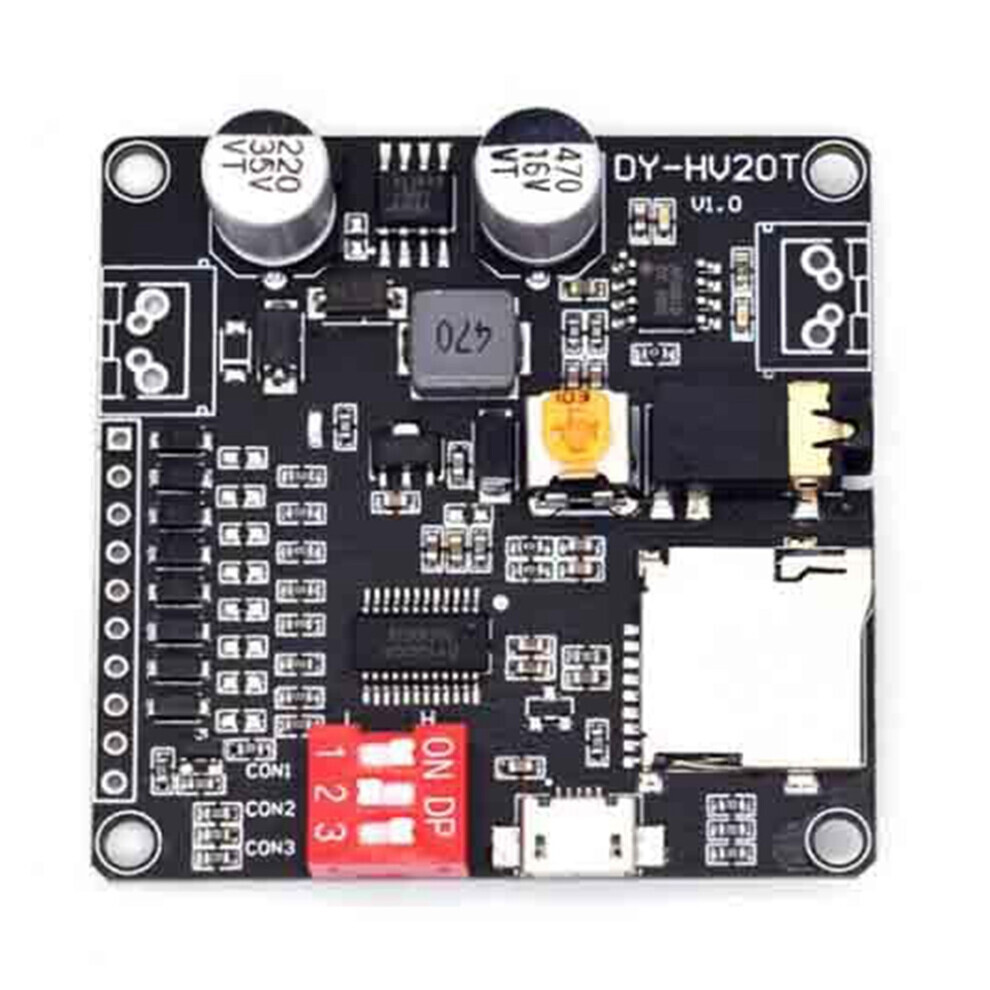

DY-HV20T is an intelligent speech playback module with integrated IO segment trigger, UART serial port control, ONE_line single-bus serial port control, standard MP3 and 7 other operating modes, simple DIP switch settings;
Onboard 20W Class D power amplifier; Supports MP3 and WAV decoding formats, supports up to 32GB TF cards, and can be connected to a computer via a USB data cable to update audio files from TF memory.
DY-HV20T Industrial-Grade Speech Playback Module:
Wideband Power Supply: DC: 6-35V
High Output Power: 20W Class-D Power Amplifier
TF Card Storage: Supports 32GB Memory Card
8-Channel I/O, Single or Combined Playback Control
UART Serial Port Controls Playback
OneLine Single-Bus Playback Control
8-Way I/O Design, ESD Protection
Supports 32GB TF Card Storage
Audio Files Directly via USB Copy
Seven trigger modes are available for DIP switches
Integrated 20W Class-D power amplifier
Integrated volume control
One-to-one I/O trigger playback
UART controls playback
Single-bus control playback
Color: Black
Material: Plastic
Due to different batches, there may be differences in appearance and printed text, which do not affect use.
Package Contents:
5 * Speech Playback Module
Only the above package contents, other products are not included.
Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the original. The permissible measurement error is +/- 1-3 cm.
