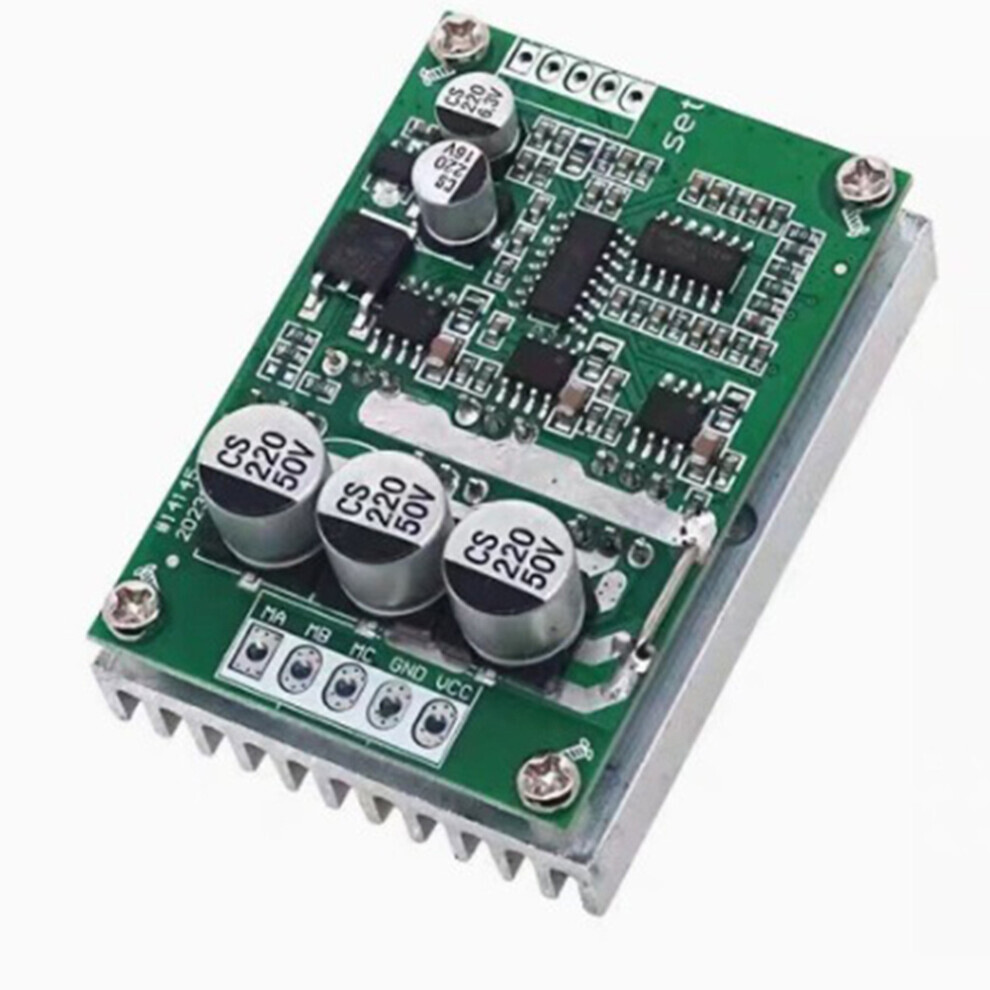

500W 15A DC12-36V Brushless Hall-effect Motor Driver Board

500W 15A DC12-36V Brushless Hall-effect Motor Driver Board Description

500W 15A DC12-36V Brushless Hall-Free Motor Driver Board Description
High-performance brushless Hall-free drive with a wide voltage range of 12-36V, a maximum current of 15A, and a maximum power of 500W. Most motors have been tested for good compatibility; however, a few motors may not be fully compatible. Therefore, be sure to test compatibility yourself. It is best to use an adjustable current limiting mode to check if the actual no-load current is abnormal, to prevent the high power from burning out at unusual times.
Supports positive and reverse switching, and the potentiometer is for speed control. In general, the potentiometer can be used for 10-50 K, or it can also be used for speed control with a 5 V PWM signal. It is strictly forbidden to connect the positive and negative terminals of the input voltage incorrectly. The three-phase UVW output must not be short-circuited or burnt out. It is equipped with an 18 mm thick heat sink. The use of the high power setting depends on the actual heating load. In case of intense heating, a fan should be added for forced cooling. There is no socket or cable on the unit, and it must be soldered using a separate electric soldering iron. The forward/reverse switch and speed control potentiometer must be prepared by the user. The soldering iron must be properly grounded to avoid inductive damage. Color variations between different production batches do not affect functionality. Color: As pictured. Material: Plastic + Metal. Package Contents: 1 x Brushless Driver Board. Only the above package contents are included; other products are not included. Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the actual color. The allowable measurement error is +/- 1-3 cm. [OnBuy.com]
