6inch E-Ink Screen Bare Screen E-Paper for /STM32

6inch E-Ink Screen Bare Screen E-Paper for /STM32 Description

No backlight, keeps displaying last content for a long time even when power down
Low power consumption, basically power is only required for refreshing
Standard FOR 40PIN GPIO extension header, supports for series boards

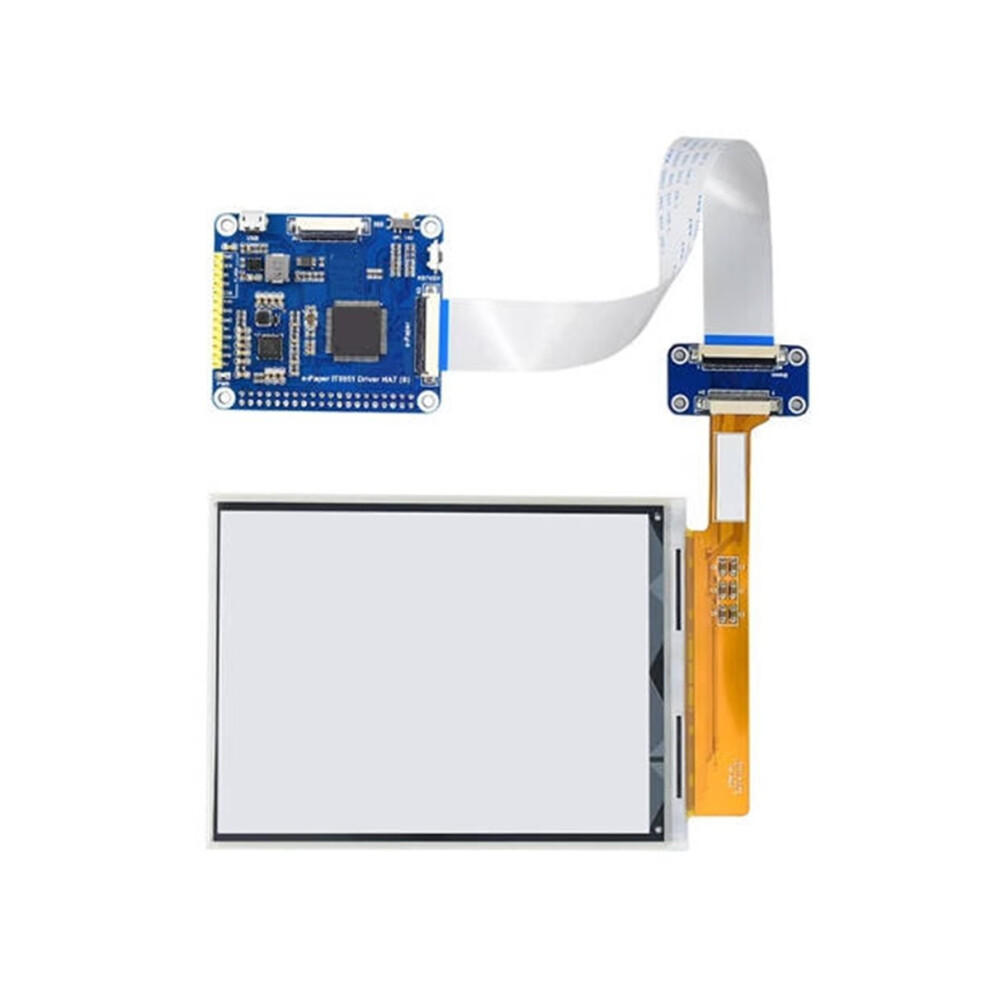

USB/SPI/I80 interface, for connecting with host boards like for /Nucleo, etc.

Overview:

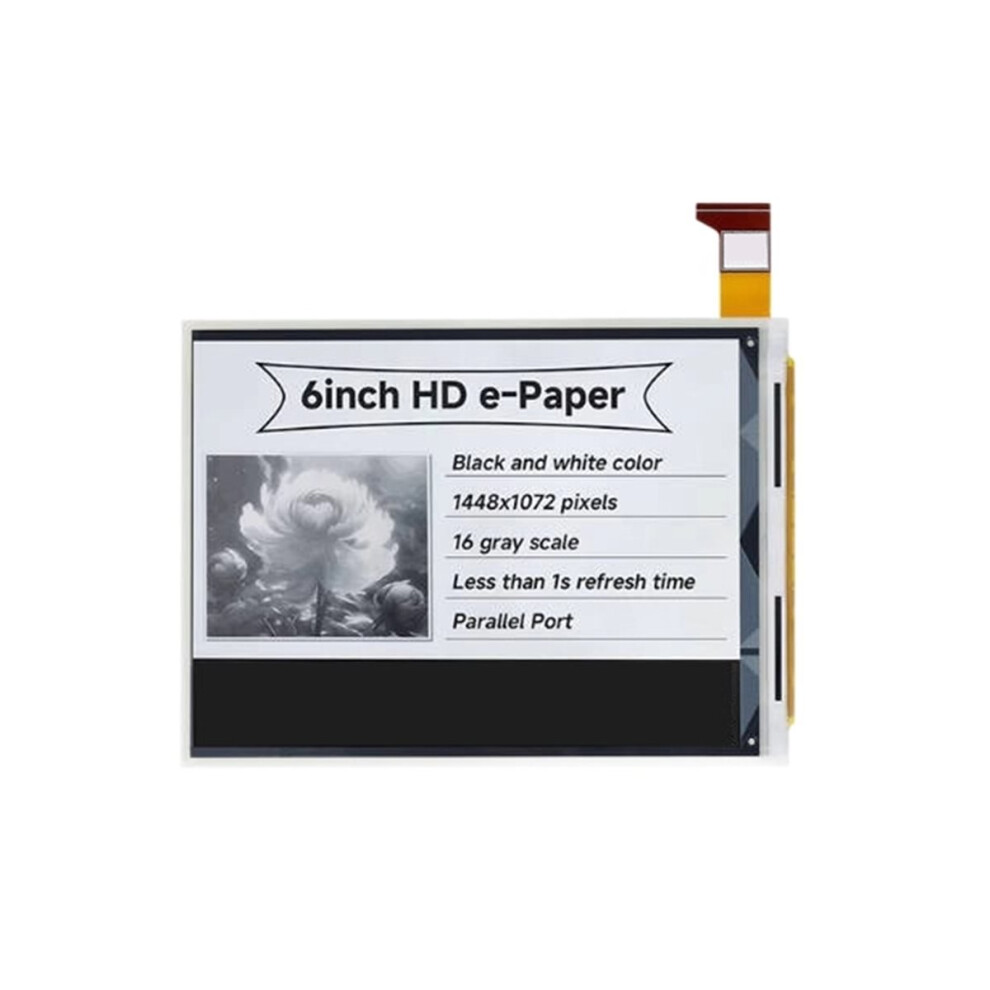

This is an E-Ink display for , 6inch, 1448x1072 high definition, with embedded controller IT8951, communicating via USB/SPI/I80 interface, supports partial refresh.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Specifications:
Operating voltage: 5V
Interface: USB/SPI/I80
Outline dimension: 138.4mm x 101.8mm x 1.01mm
Display size: 122.4mm x 90.6mm
Dot pitch: 0.0845mm x 0.0845mm
Resolution: 1448 x 1072
Display color: black, white
Gray scale: 2-16 (1-4 bit)
Full refresh time:Less than 1s
Total refresh power: 0.88W(typ.)
Total standby power: 0.3W(typ.)
Viewing angle: 170
Color:As Shown
Material:ABS+LCD

Package Contents:
1 * E-ink Screen

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
