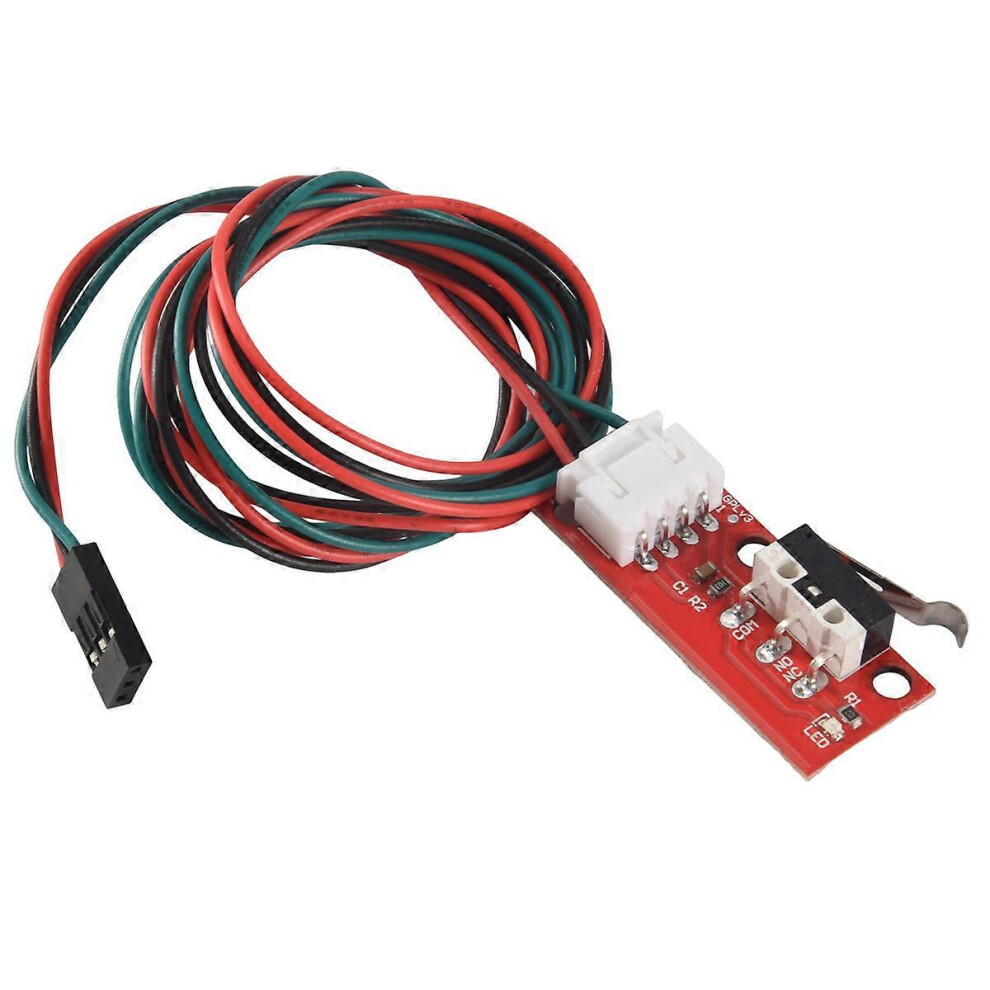

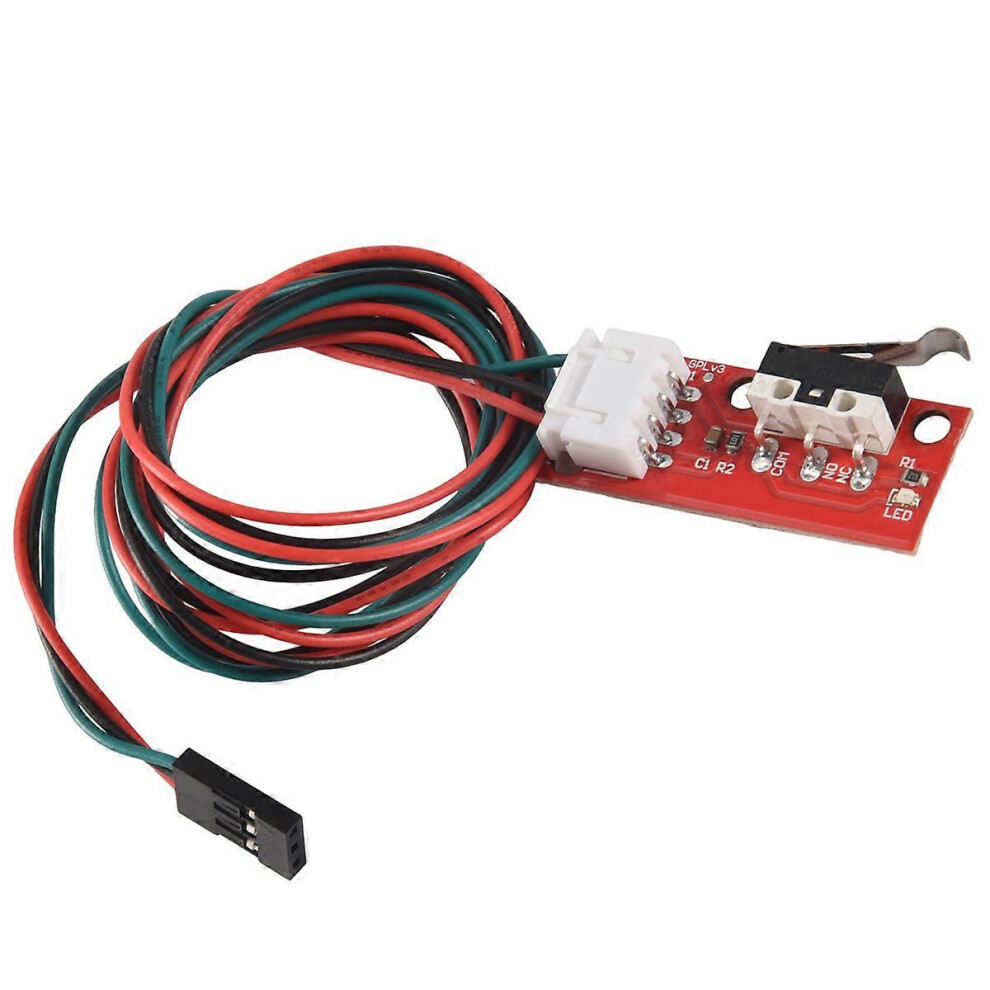

6pcs Mechanical Endstop Limit Switch Pressure Switch Module compatible with 3D Printers Makerbot, Prusa, Mendel, Reprap

6pcs Mechanical Endstop Limit Switch Pressure Switch Module compatible with 3D Printers Makerbot, Prusa, Mendel, Reprap Description

①Mechanical endstop limit switch set, suitable for RepRap 3D printers or CNC tools, supported by RepRap electronics, RMAPS 1.4 and other common RepRap boards.
②Connecting cable, 70 cm long and 22AWG, with a thick inner copper core that can withstand 2A current and 300V voltage. The maximum insulation temperature of the insulating layer is up to 80 degrees.
③One-piece connector design, easy to install, difficult to break, convenient to plug in or unplug.
④Connection: Red wire to VCC (ramps +), Black wire to GND (ramps -), Green wire to SIGNAL (ramps s)
⑤Common 1A 125V AC limit switch with high general applicability, can be used as switching terminal elements for RepRap 3D printers, CNC machines, Arduino/Mega, etc. systems.
⑥Product Name: 3D Printer Mechanical Endstop Limit Switch
⑦Cable Length: 70cm
⑧Switch Size: 32x10mm
⑨Color: Color as shown
⑩Material: Plastic

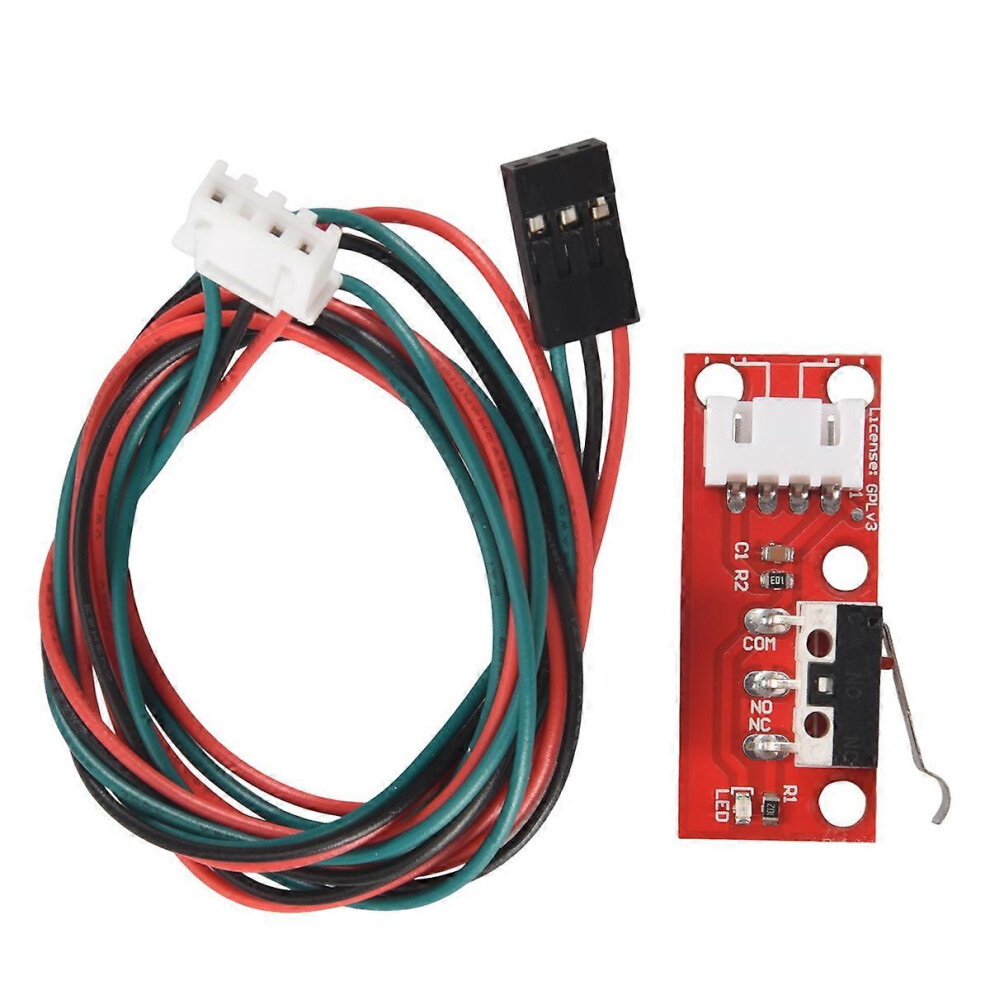

⑪Package Contents:
6 * Mechanical Endstop Limit Switch

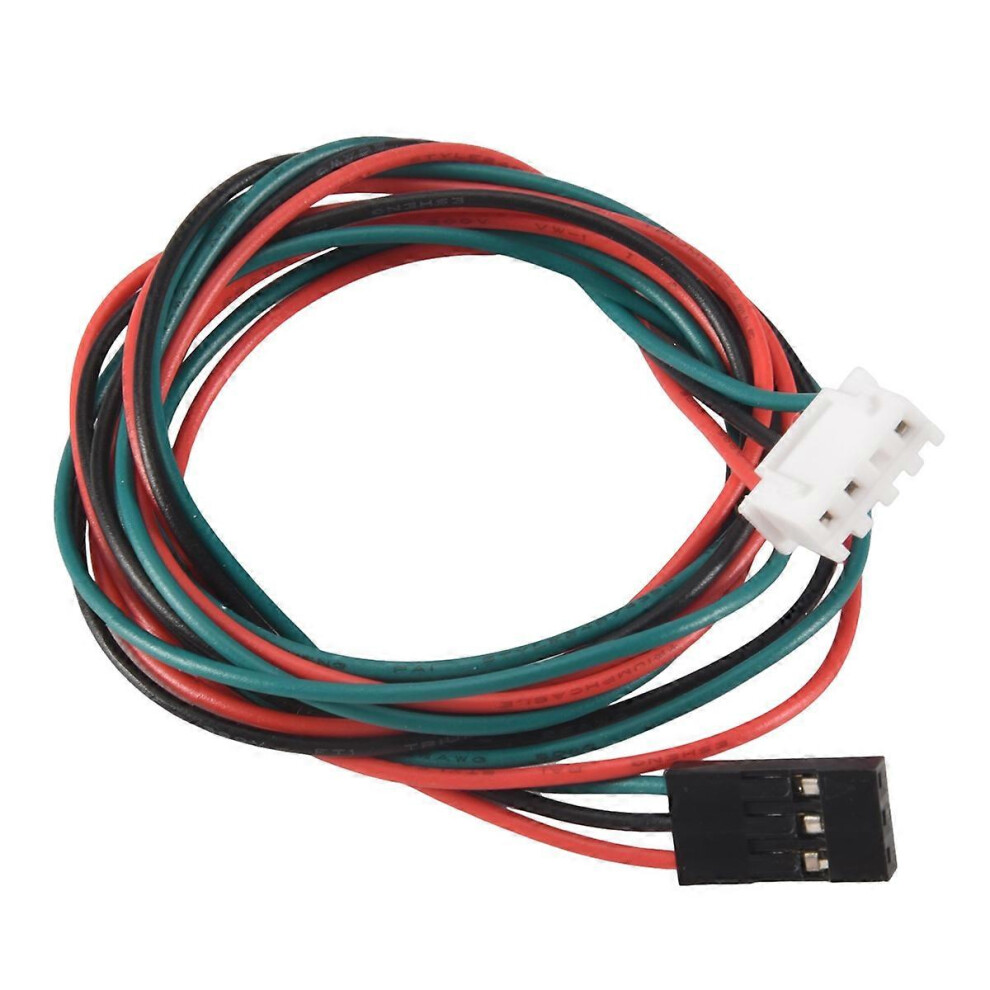

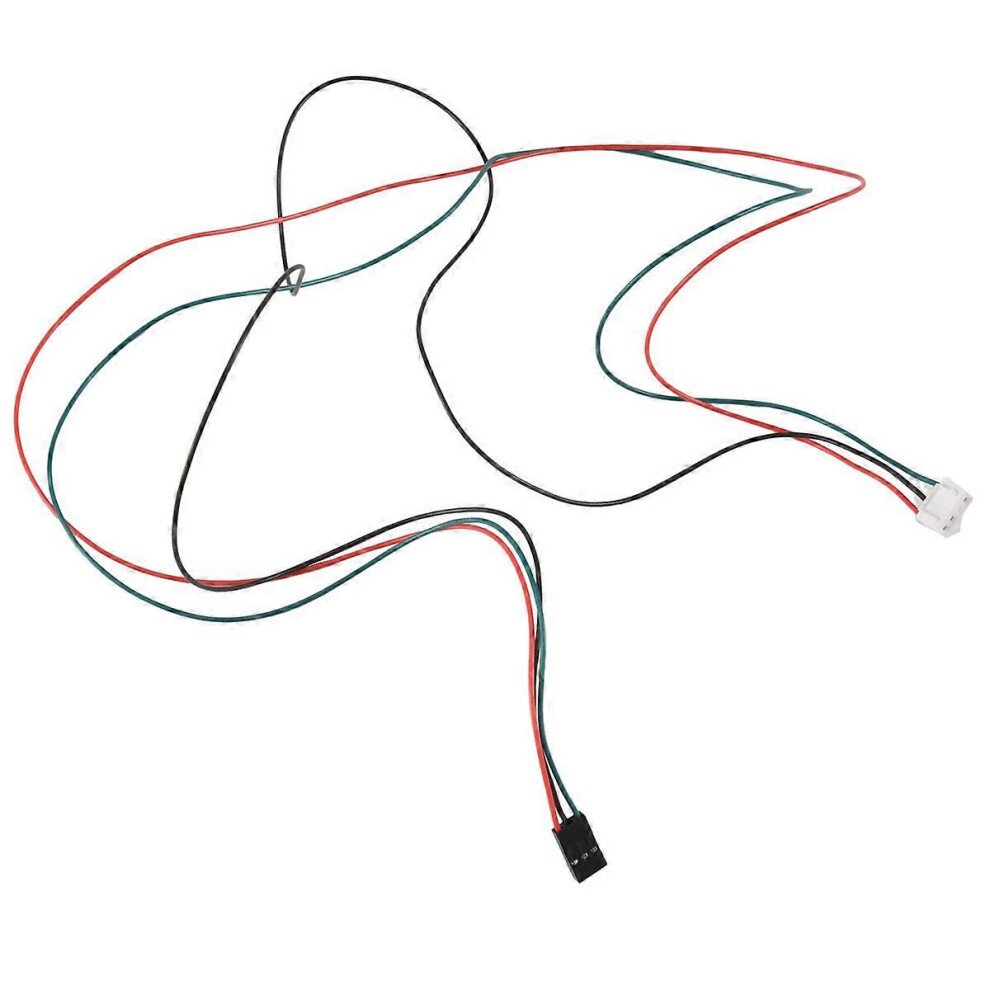

6 * 3-Pin 70cm Connection Cable
⑫ Only the above package contents, other products are not included.
⑬ Note: Light shooting and different displays may cause the color of the item in the picture to be slightly different from the real thing. The allowable measurement error is +/- 1-3cm.
