7-inch 1024 x 600 LCD Screen Driver Board Description

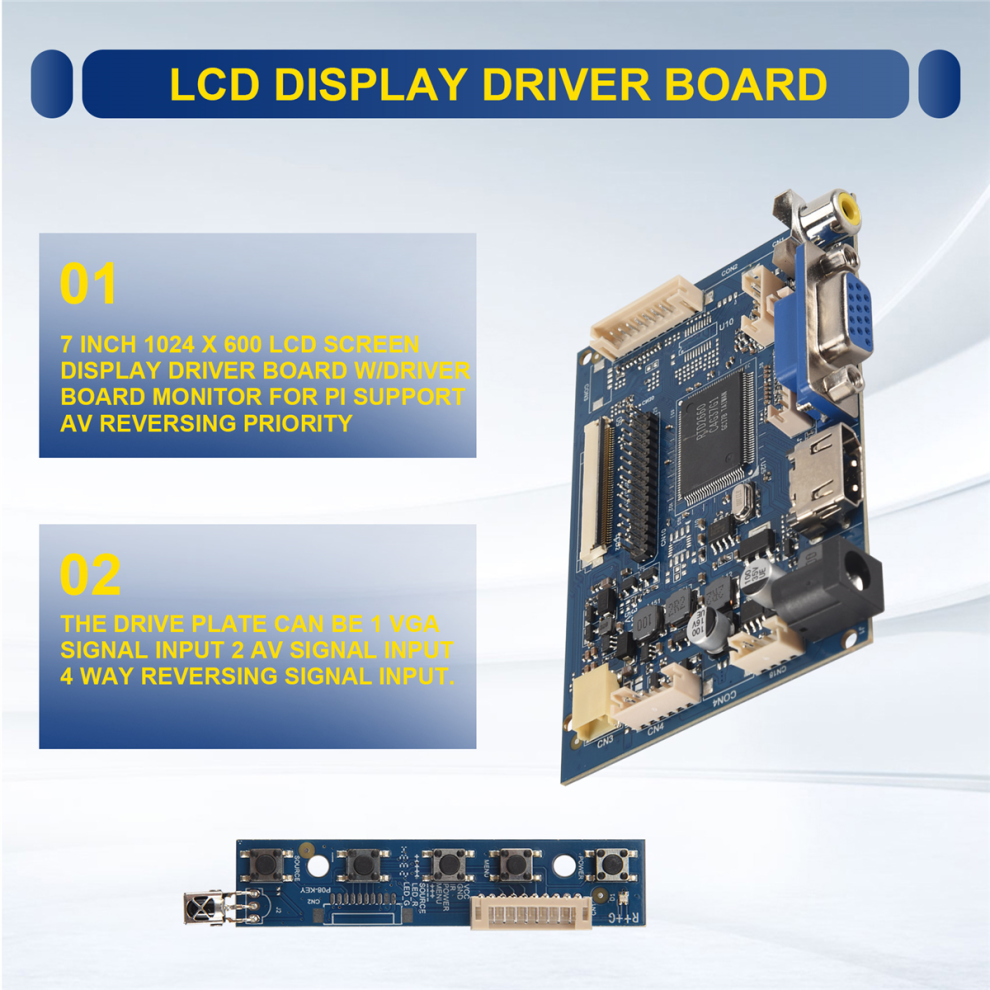

The board can have 1 VGA signal input, 2 AV signal inputs, and 4 inverse signal inputs.
It supports wide voltage input and can operate between 5V and 24V under normal conditions. The standard 6-pin backlight interface can be connected to the high-pressure board. The driver board integrates the LCD screen's LED backlight. The standard LVDS signal output can support single 8", single 6", dual 6", dual 8", and other standard LVDS LCD screen signals, but only supports screen power supply for 3.3V LCD screens. It features a standard keypad interface and supports dual-color LED display and TTL signal output. The VGA 2AV LCD board works for LCD screens with an LVDS interface. It has a 50-pin TTL connector for 7" to 10.1" LCD screens. Input power supply: 12 VDC, more than 2 A
In standby mode when no input signal
Standby mode less than 1 W
Video input: VGA AV1 AV2
Reverse: Supports automatic switching to AV2 when the ACC connection is at 12 V
OSD: Brightness, contrast, automatic language, etc.
Color: Blue
Material: PCB

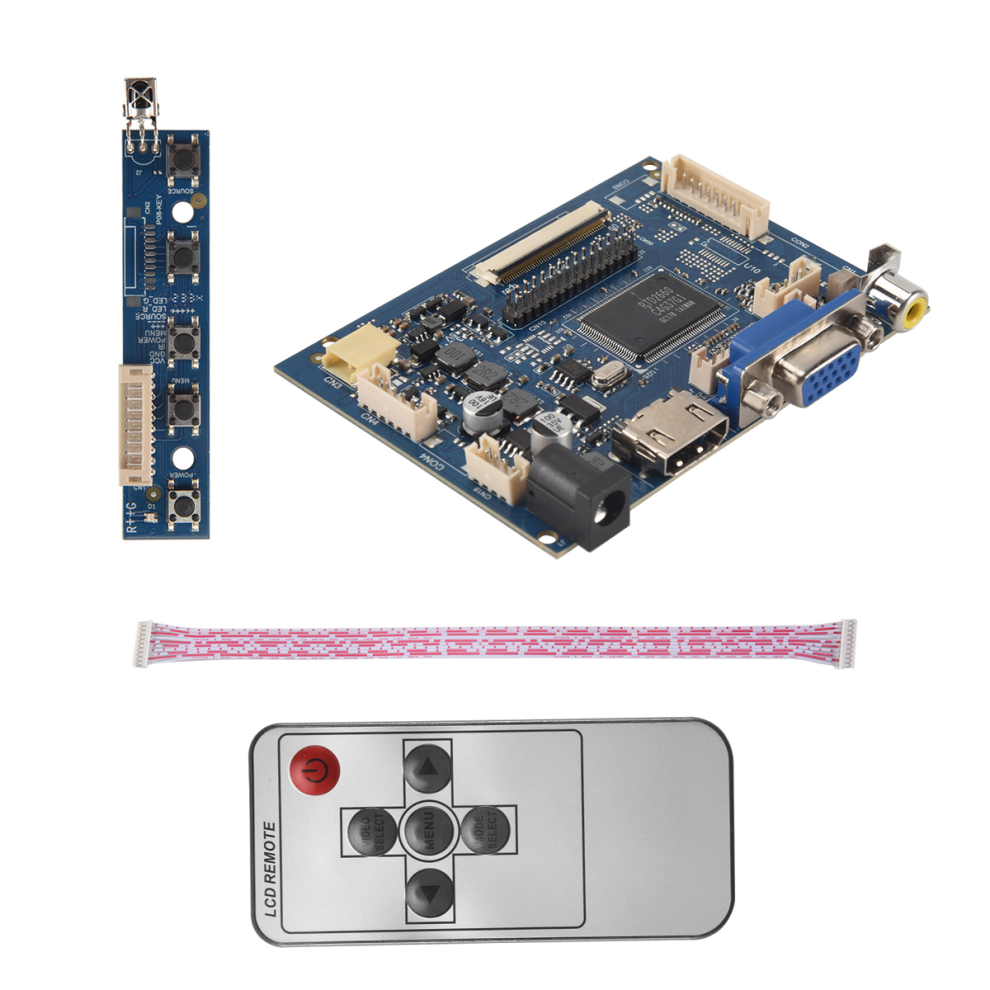

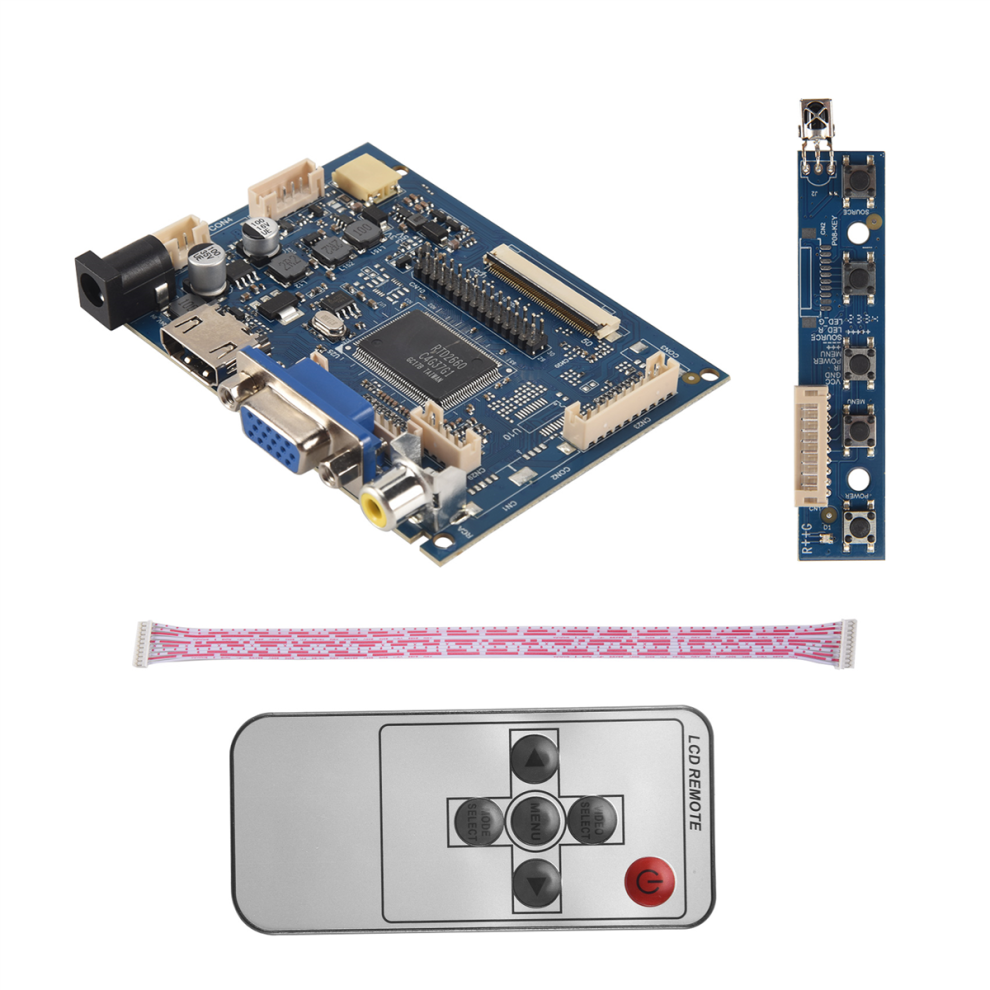

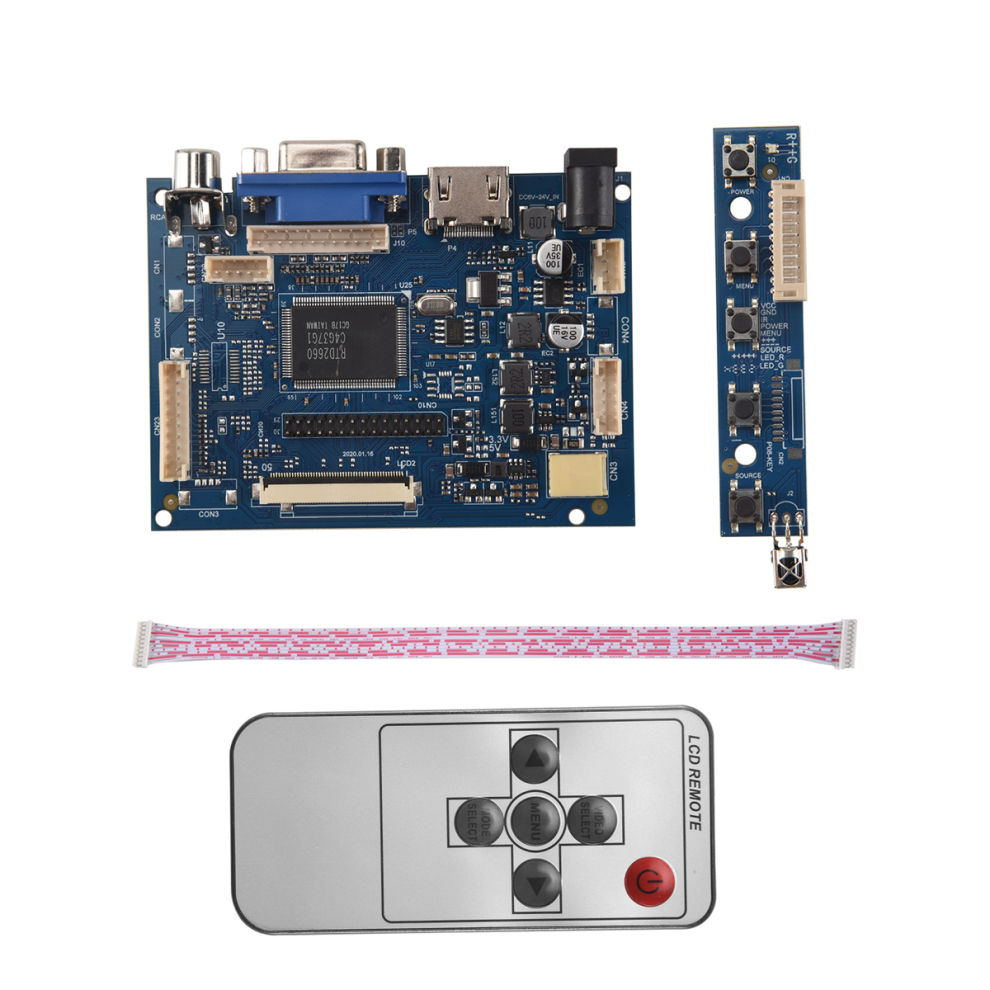

Package Contents:
1 * Drive board
1 * Button
1 * Remote control (without CR2025 battery)
Only the above package contents, other products are not included.
Note: Light and different displays may cause the color of the item in the picture to be slightly different from the real thing. The allowable measurement error is +/- 1-3 cm.
