7 Inch Capacitive Touch Screen ESP32 S3 with Board LVGL Programming Development CAN RS485 I2C Peripheral Interface

7 Inch Capacitive Touch Screen ESP32 S3 with Board LVGL Programming Development CAN RS485 I2C Peripheral Interface Description

1. ESP32-S3-Touch-LCD-7 is a microcontroller development board that supports 2.4GHz WiFi and BLE 5. It integrates large-capacity Flash and PSRAM, and has an onboard 7-inch capacitive touch screen, which can smoothly run GUI interface programs such as LVGL; combined with a variety of peripheral interfaces, it can quickly develop HMI and other applications of ESP32-S3.
2. Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, clocked at up to 240MHz, supports 2.4 GHz Wi-Fi (802.11 b/g) and Bluetooth5 (LE), onboard antenna
3. Built-in 512KB and 384KB ROM, stacked 8MB Flash and 8MB PSRAM, onboard 7-inch capacitive touch screen, 800x480 resolution, 65K color

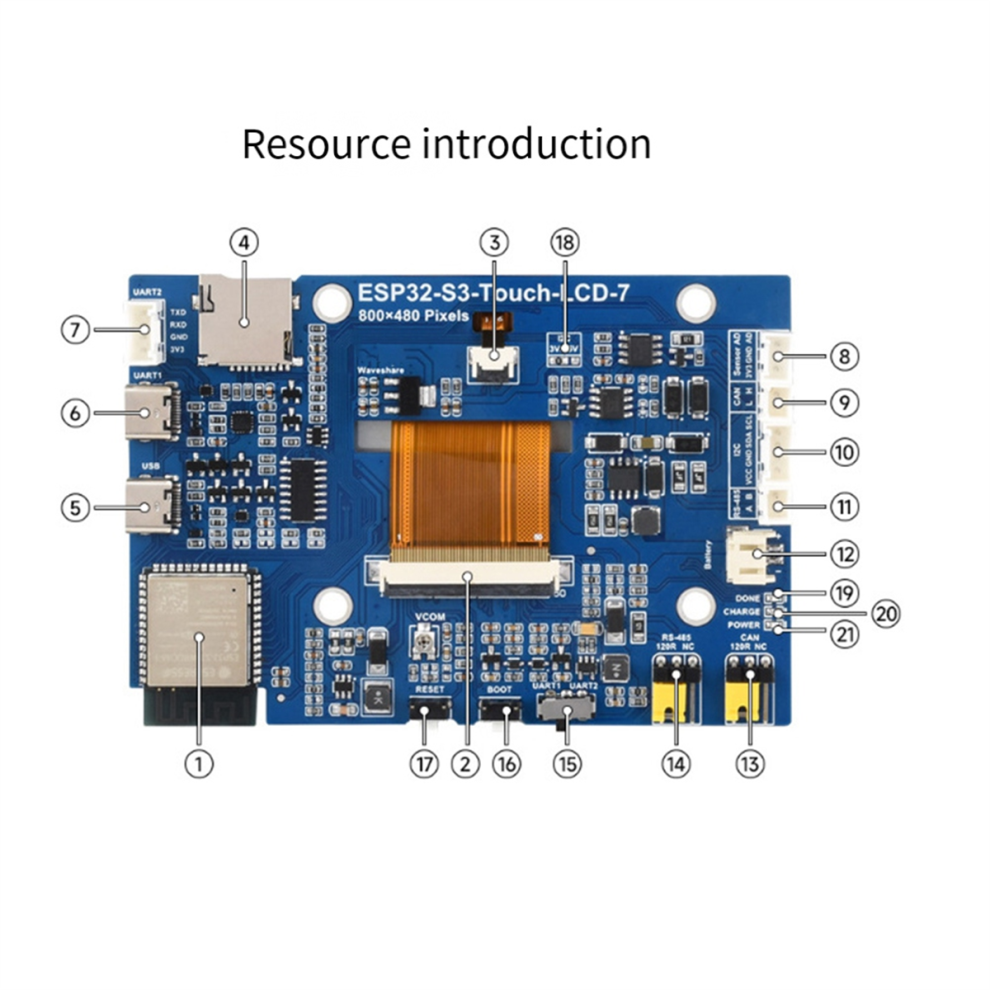

4. Support I2C interface to control capacitive touch, 5-point touch, support interrupt, onboard CAN, RS485, I2C interface and Micro-SD card holder, etc., integrated full-speed USB serial port
5. Support precise control such as flexible clock and setting of module power supply to achieve multi-scenario low power consumption mode

Model: ESP32-S3 7-inch capacitive touch screen
Note:
Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Not Affect The Use
Light Reflection And Different Displays May Cause The Color Of The Item In The Picture A Little Different From The Real Thing.
Colour:As Shown
Material:ABS

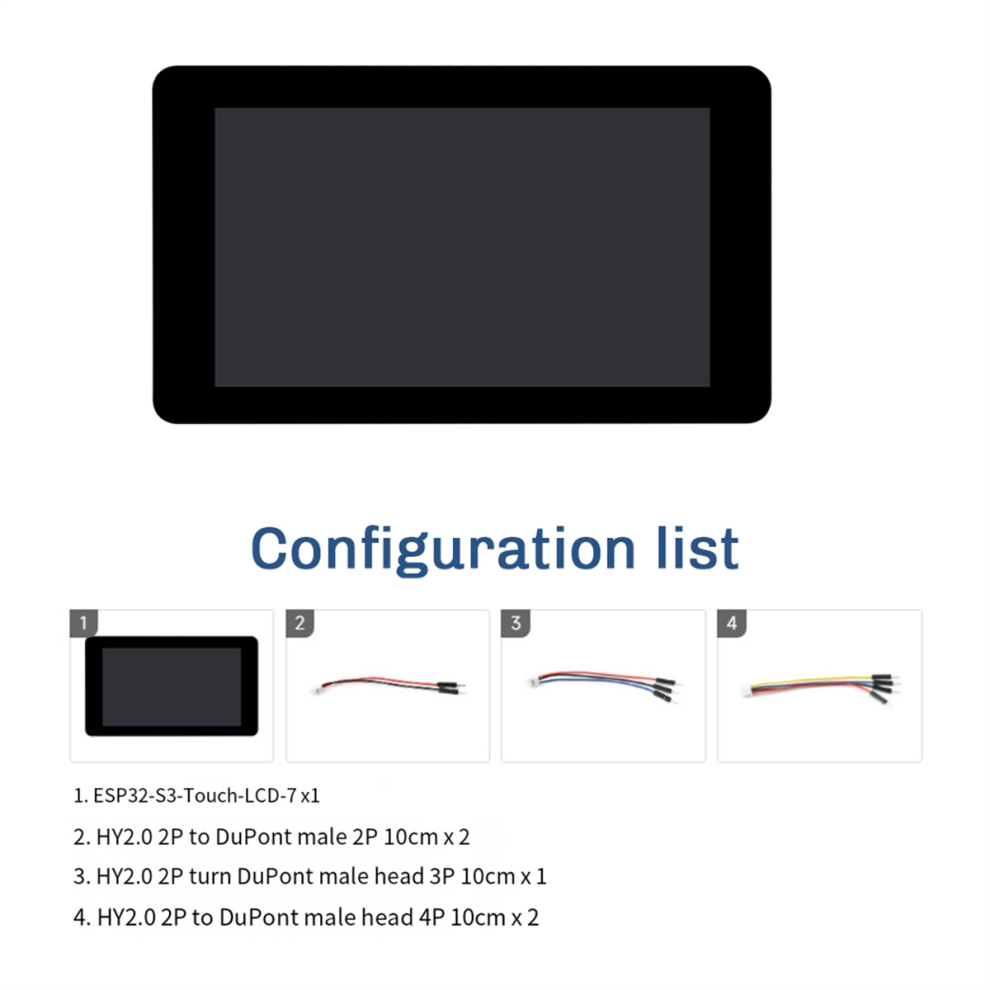

Package Contents:
1x Capacitive touch screen
2x HY2.0 2P to male cable (2P 10cm)
1x HY2.0 2P to male cable (3P 10cm)
2x HY2.0 2P to male cable (4P 10cm)

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
