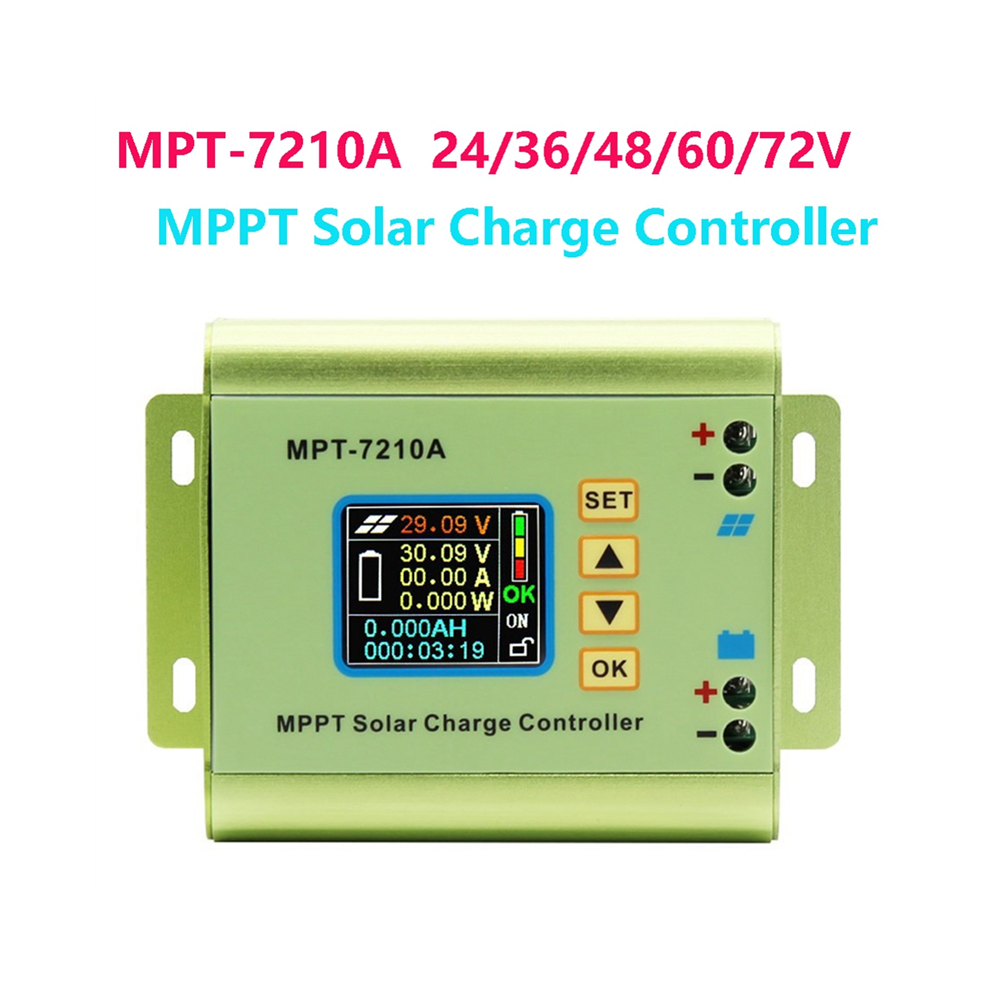

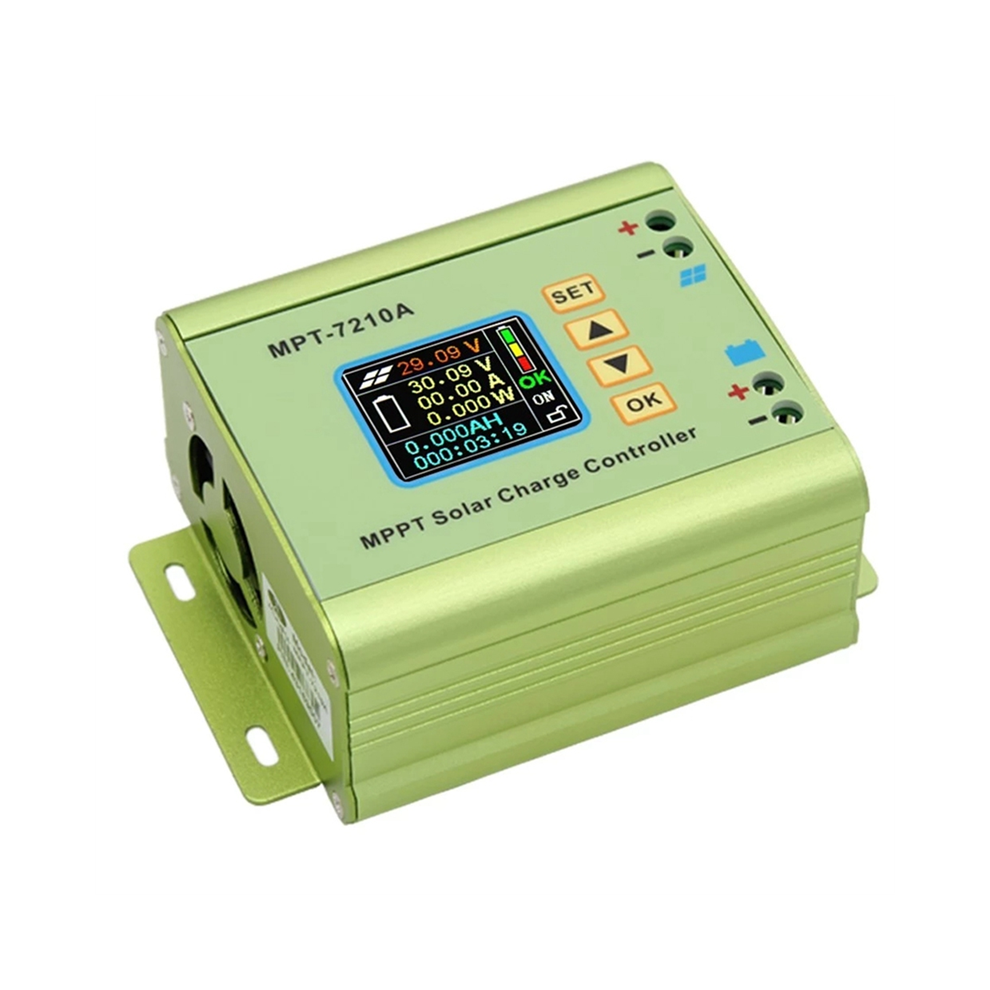

-7210A MPPT solar charge controller 24V/36V/48V/60V/72V

-7210A MPPT solar charge controller 24V/36V/48V/60V/72V Description

-7210A MPPT Solar Charge Controller 24V/36V/48V/60V/72V Description
Compatible with 24V/36V/48V/60V/72V battery pack systems; output voltage and current can be adjusted as needed.
Innovative MPPT technology and high tracking efficiency improve energy production.
High-speed and high-performance design, ideal for solar charging applications.

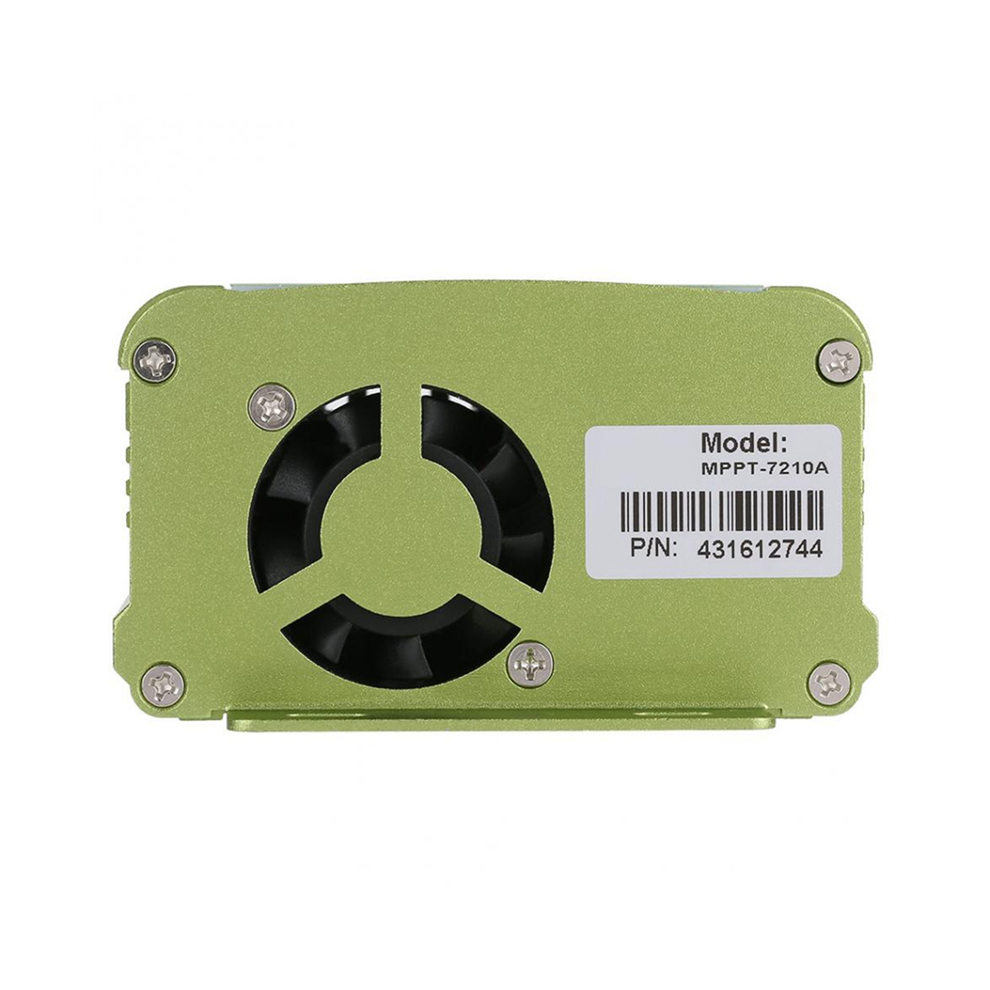

Excellent heat dissipation: Uses advanced fan temperature control technology for rapid heat control.
Metal housing for use.
Easy operation: LCD screen displays current, amperage, power, charging time, etc.
Operating modes: Selectable MPPT and DC-DC (MPPT for photovoltaic panel applications and DC-DC for boost power supply). Charging options: Suitable for lithium batteries and accumulators. 20 integrated data groups for user configuration and saving. Max. Output power is 600 W, suitable for 100 W - 600 W solar panels.
Reverse polarity protection: MOS reverse polarity protection circuit at the input and output ends for effective protection of the controller and battery.
Overload protection: The controller automatically shuts off the circuit in case of overload.
Model: -7210A
Display: 160 x 128 TFT color LCD display
Input voltage: DC 12-60 V
Output current: 0-10 A adjustable
Output power: 0-600 W
Operating mode: MPPT, DC-DC
Output voltage: DC 15-90 V, adjustable for 24 V/36 V/48 V/60 V/72 V
Color: Green
Material: Metal
Package Contents:
1 x MPPT Solar Charge Controller
1 x User Manual (English)
Only the above package contents, other products are not included.
Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the actual color. The allowable measurement error is +/- 1-3 cm.
