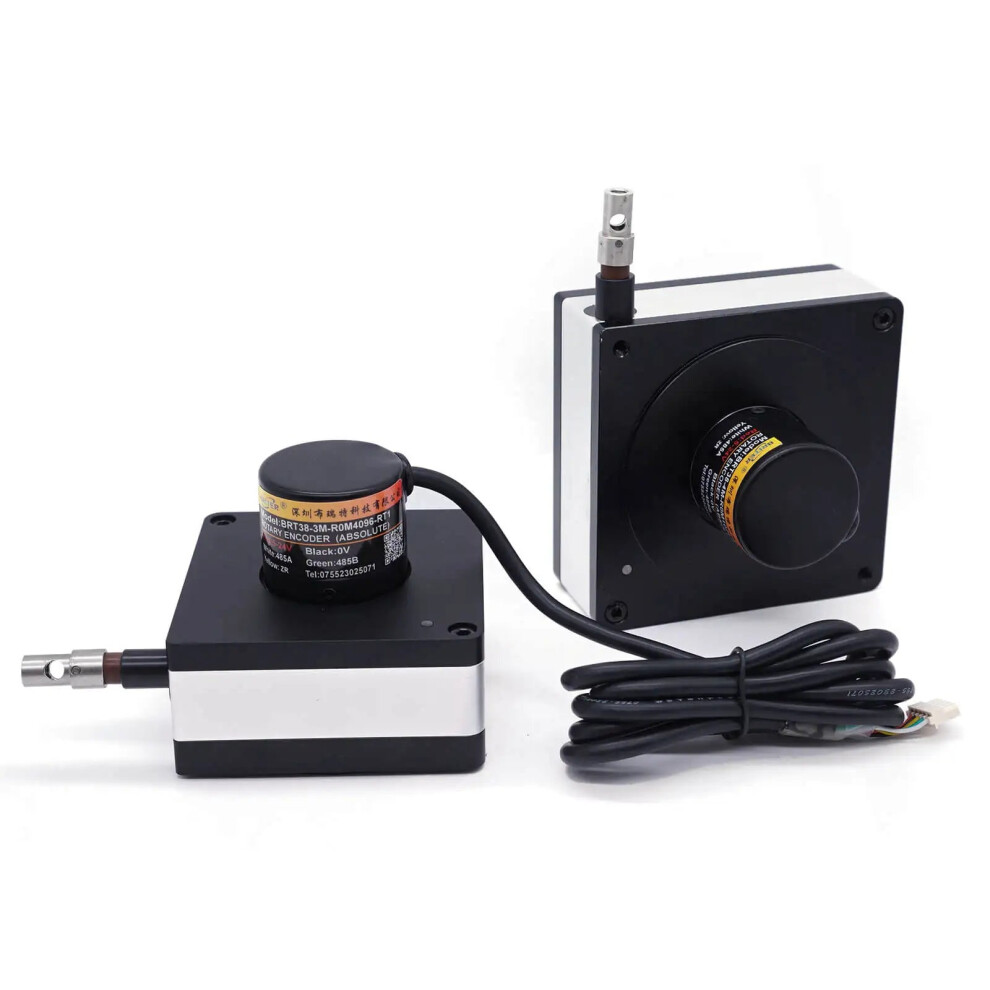

7m Range Linear Pull Wire Displacement Sensor with SSI Analog Encoder Interface

7m Range Linear Pull Wire Displacement Sensor with SSI Analog Encoder Interface Description

- Measurement Range: 7 meters, providing precise displacement measurement over a substantial distance - Housing Material: Durable aluminum alloy for robustness and reliable performance in various environments - Wire Specification: Stainless steel wire with nylon coating, 0.8 mm diameter, capable of withstanding approximately 330 N breaking force - Maximum Pull-Out Speed: Supports wire pull-out speeds up to 1 m/s for dynamic applications - Connectivity Options: Multiple interface support including SSI, Canopen, RS485 Modbus RTU, RS232, and Analog for versatile integration - Operating Voltage: 5 to 30 volts, suitable for a wide range of power supply conditions - Operating Temperature Range: -40C to +85C, ensuring reliable operation in harsh environments - Protection Ratings: IP54, IP68, and Ex for enhanced durability and environmental resistance - Accuracy and Repeatability: High precision with cable transducer linearity of 0.5% FS and repeatability of 0.3% FS - Cycle Life: Approximately 500,000 cycles at 25C, supporting long-term use - Installation Options: Available with either a male connector or cable connection for easy setup - Title: 7m Range Linear Pull Wire Displacement Sensor with SSI Analog Encoder Interface Specifications & Features: - Precise displacement measurement over 7 meters - Rugged aluminum alloy housing for durability - Stainless steel wire with nylon coating, 0.8 mm diameter - Capable of withstanding 330 N breaking force and 1 m/s pull-out speed - Multiple connectivity interfaces including SSI, Canopen, RS485, RS232, and Analog - Wide operating voltage and temperature ranges for versatile applications - High environmental protection with IP54, IP68, and Ex ratings - Excellent accuracy and repeatability for reliable measurements - Long cycle life of approximately 500,000 cycles at standard temperature - Flexible installation options with connector or cable connection For more information, visit www.briterencoder.com or contact [email protected]
