-8000H Seafood Machine Temperature Control 220V

-8000H Seafood Machine Temperature Control 220V Description

-8000H Seafood Machine Temperature Control 220V Description

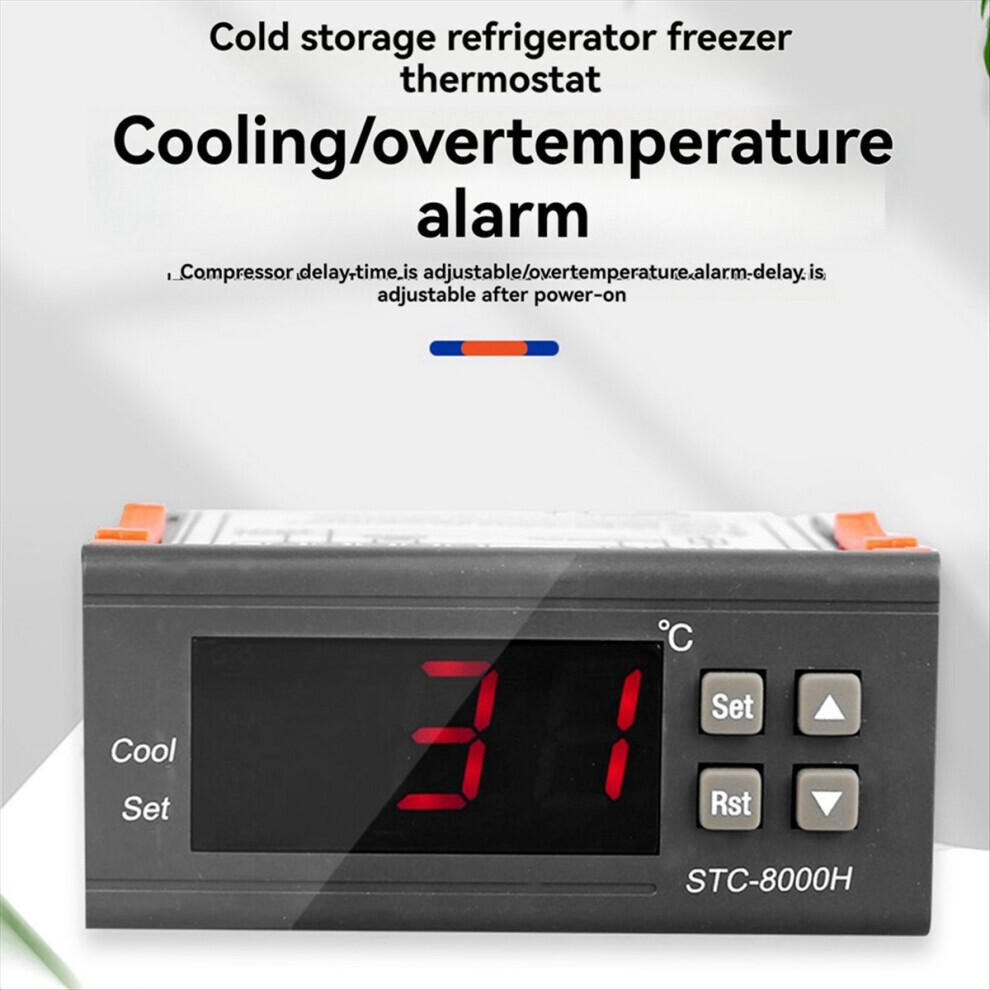

-8000H is a universal single-sensor thermostat with cold and over-temperature alarm functions.
The compressor delay is adjustable, and the over-temperature alarm delay after power-on is also adjustable.
It is suitable for refrigerators, refrigerated trucks, and other refrigeration applications.
Dimensions:
Mounting hole size: 71 x 29 (mm)
Front panel size: 75 x 34.5 (mm)
Sensor: 2 meters (including probe)
Product size: 75 x 34.5 x 85 (mm)
Technical Parameters:
Power Consumption: less than or equal to 3 W
Power Supply: 220 VAC + 10% - 15%, 50/60 Hz
Temperature Control Range: -40C - 50C
Temperature Measuring Range: -50C - 99C
Accuracy: -50C - 70C, 1C, 2C other
Resolution: 1C
Cold Output Contact Capacity: 10/277 VAC, can drive a single-phase compressor with less than 1/2 HP
Sensor:
Sensor Error Delay Time: 0.1 min
Operating Temperature: 0C - 60C
Security Level: IP65
Operating Humidity: 20 - 859% (no condensation)
Storage temperature: -30C - 75C
Color: as shown
Material: Plastic
Type: -8000H English version 220V
Package contents:
1 x -8000H thermostat
Only the above package contents, other products are not included.
Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the actual color. The allowable measurement error is +/- 1-3 cm.
