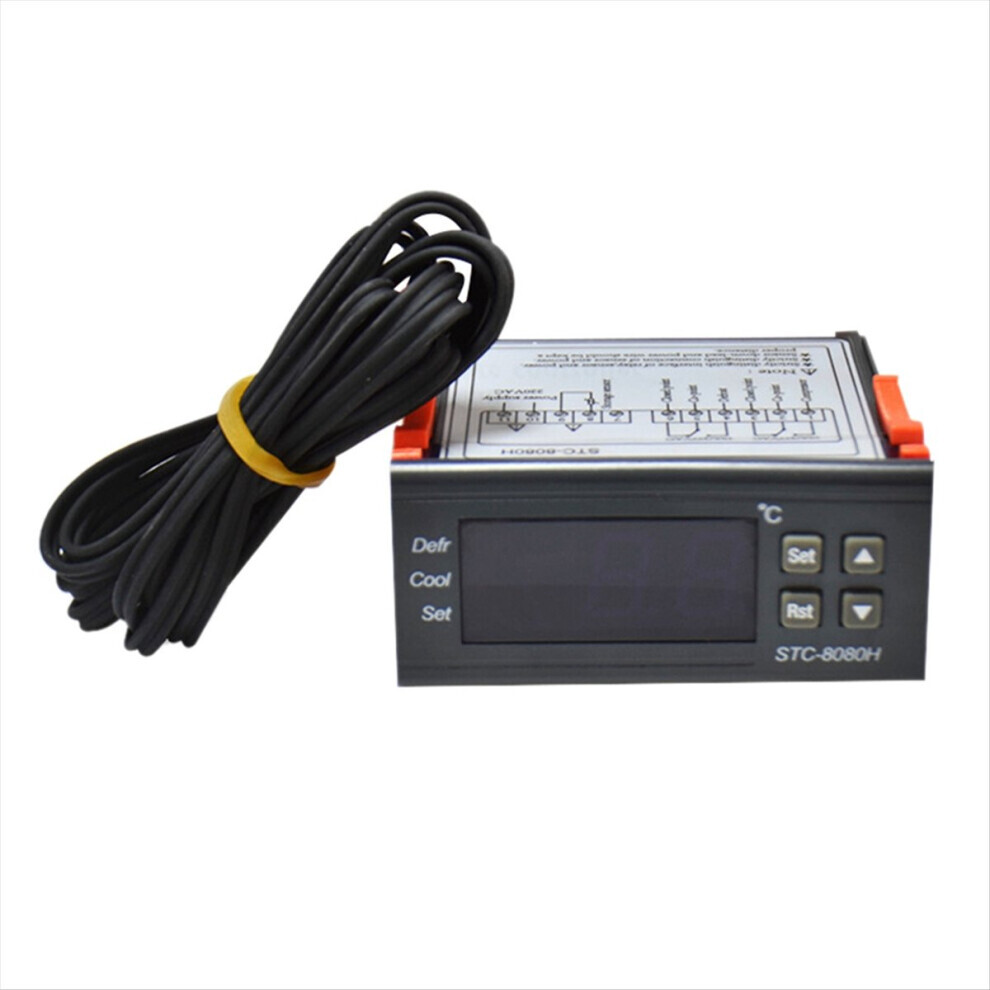

-8080H Refrigerator Temperature Controller

-8080H Refrigerator Temperature Controller Description

-8080H Refrigerator Temperature Controller Description
1. Intelligent temperature controller, cooling/heating -50~99
2. Intelligent temperature sensor -8080H, versatile application.
3. Suitable for sheet metal ovens/high-temperature channels/UV curing machines/high-temperature equipment/foil welding machines.
4. Suitable for vegetable farming, storage, household freezers, cold storage, poultry farming, water tanks, refrigerators, industrial coolers, boilers, steam cookers, industrial equipment and other temperature-controlled systems.
5. The 8080H is a universal temperature controller with a single sensor and functions such as cooling, defrosting, and over-temperature alarm. The compressor protection delay is adjustable, and the over-temperature alarm can be set after power-on. Suitable for the refrigeration industry, e.g., for refrigerators and refrigerated trucks. Main functions: Temperature measurement, display, and control; adjustable defrost cycle and time; over-temperature alarm; delayed compressor start protection; proportional start and shutdown in case of sensor failure. Standard sizes: 1. Front panel dimensions: Length 75 x Width 34.5 (mm)
2. Installation opening dimensions: Length 71 x Width 29 (mm)
3. Overall machine dimensions: Length 75 x Width 34.5 x Depth 85 (mm)
4. Sensor cable length: 2 meters (including probe length)
Technical specifications:
1. Power supply: 220 VAC +10%/-15%, 50/60 Hz
2. 3. Temperature measuring range: -50C to 99C. 4. Temperature control range: -40C to 50C. 5. Temperature resolution: 1C. 6. Temperature measuring accuracy: 1C from 50C to 70C. The rest: 2C. 7. Cooling output contact capacity: 10 A/277 V AC. 8. Defrost output contact capacity: 10 A/277 V AC. 9. Sensor failure delay: 1 minute. 10. Sensor type: Sensor. 11. Front panel protection rating: IP64. 12. Operating temperature: 0C to 60C. 13. Operating temperature: 20% to 85% (non-condensing). Storage temperature: -30C to 75C. Color: Black
16. Material: ABS
Package Contents:
1 x Temperature Controller
Only the above package contents are included; other products are not included.
Note: Light reflections and different displays may cause the color of the item in the picture to differ slightly from the actual product. The allowable measurement error is +/- 1-3 cm.
