(89)Electric Bicycle Modification Accessories Lcd-sw900 Lcd Meter Data Display 24-72v

(89)Electric Bicycle Modification Accessories Lcd-sw900 Lcd Meter Data Display 24-72v Description

Description

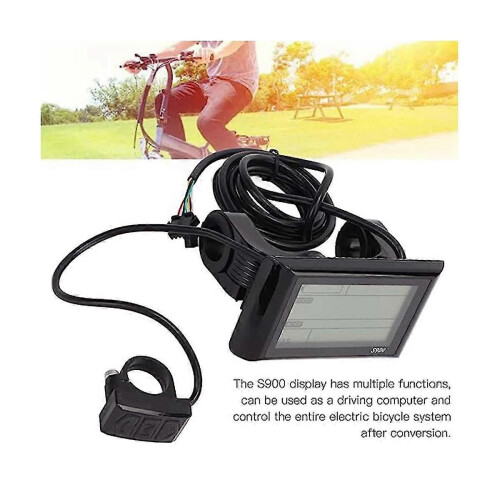

Multifunctional S900 Display: The S900 display has multiple functions and can be used as a trip computer after conversion to control the entire electric bicycle system.
Reflect battery power: Compatible with 24V, 36V, 48V voltage, truly reflect battery power, in real time, and cruising range.
Data Presentation: While riding, the product will display a lot of useful data about your bike

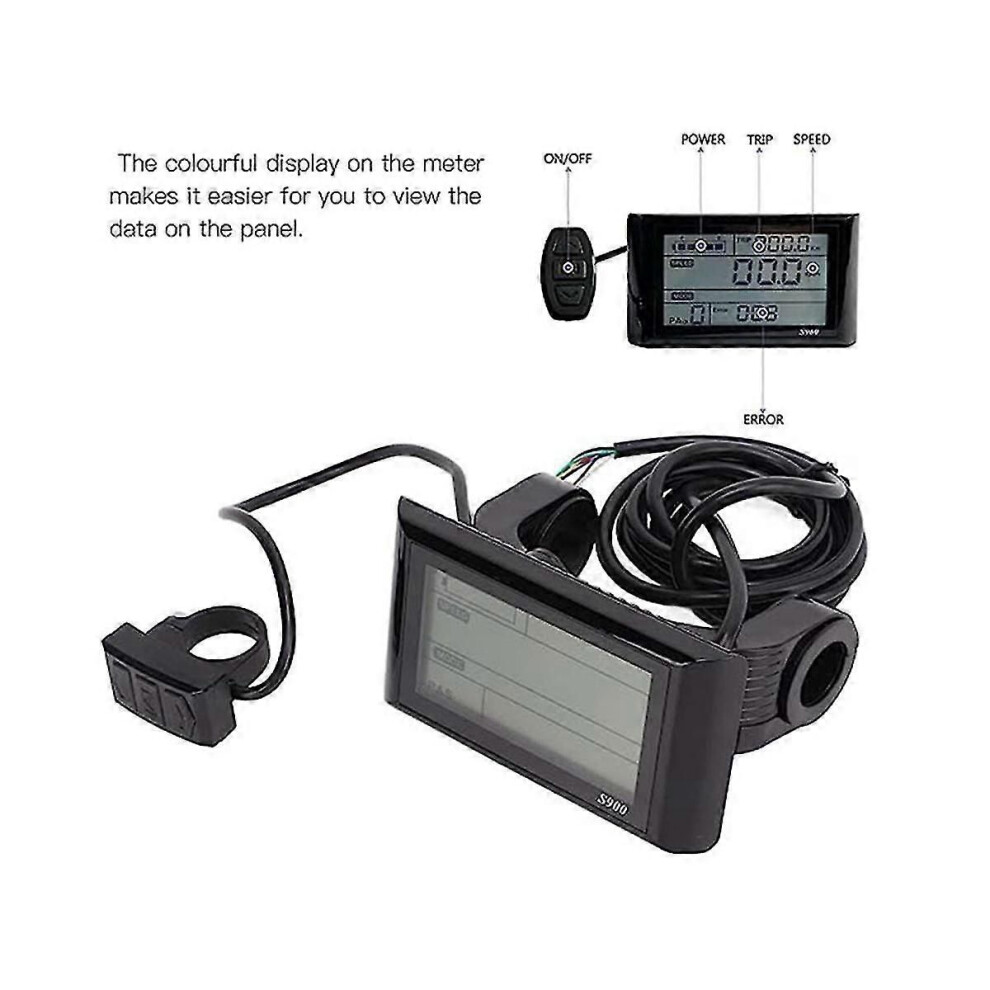

With PAS installed, the display allows the driver to choose the level of support they want. Gauges easier to display data on panels.
Wiring instructions:
1. Instructions for wiring the controller connector:
Red:gauge power cable
Blue:Controller power control cable
Black:earth cable of the gauge.
Green:counter data reception line
Yellow:meter data transfer line
2. Extend the headlight function: brown line (headlight positive), white line (headlight negative)
User manual:the display counter socket connected to the meter interface of the controller can meet the function.
Item type:electric bike display
Weight:.270 g/9.5 oz
Applicable handlebar mounting diameter:.22.2mm/0.9inches.
Voltage:36V 48V

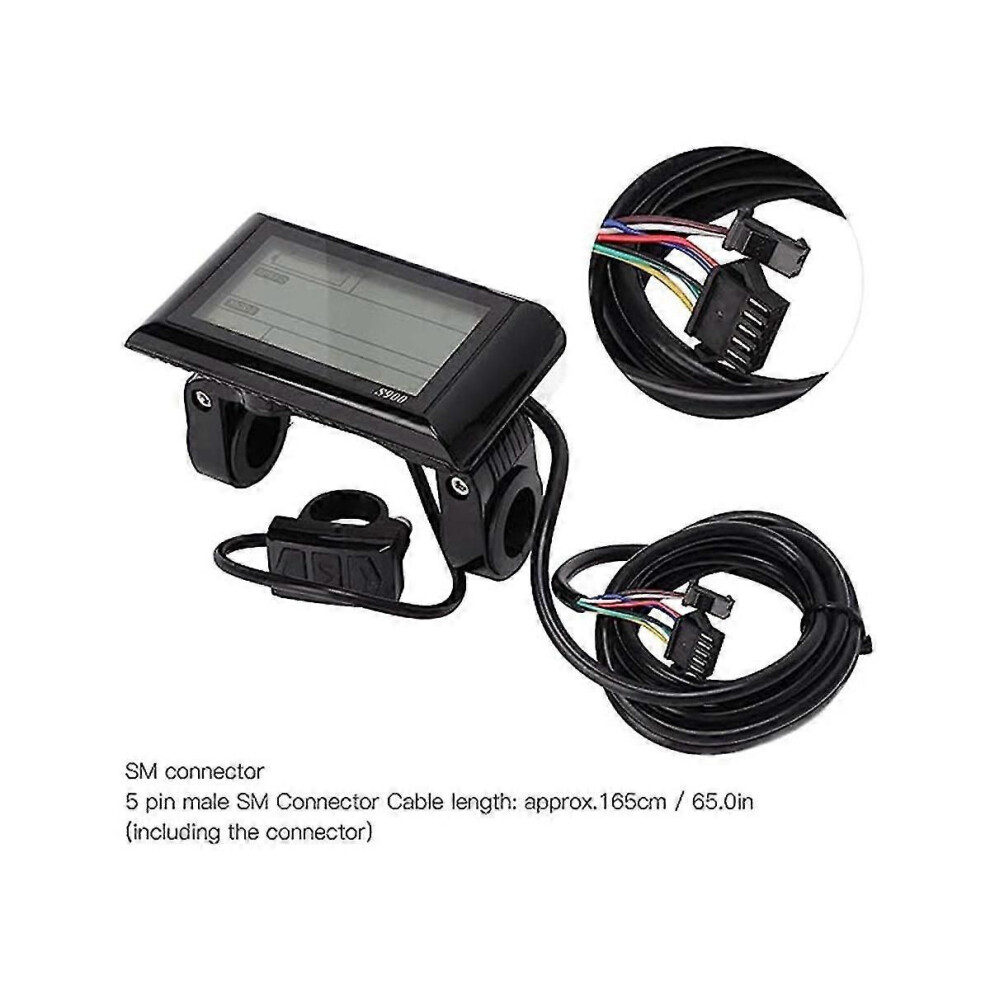

Female 5 Pin SM Waterproof Female
Application:suitable for JN controller and suitable for Pasion Electric Bicycle Motor Kit
Function description:
1. Display functions: speed display, gear indicator, power indicator, error warning, total mileage, single mileage, headlight display, single driving time display.
2. Control and setting functions: power switch control, headlight switch control, 6 km/h inch control, wheel diameter adjustment, maximum speed setting, automatic , backlight brightness adjustment, voltage level adjustment, PAS connection.
3. Communication protocol: UART
Colour:Black
Material:ABS
Size:11x6.1x5 cm,cable length .165 cm/65.0 inches
Package Contents:
1 * LCD instrument
1 * English manual
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
