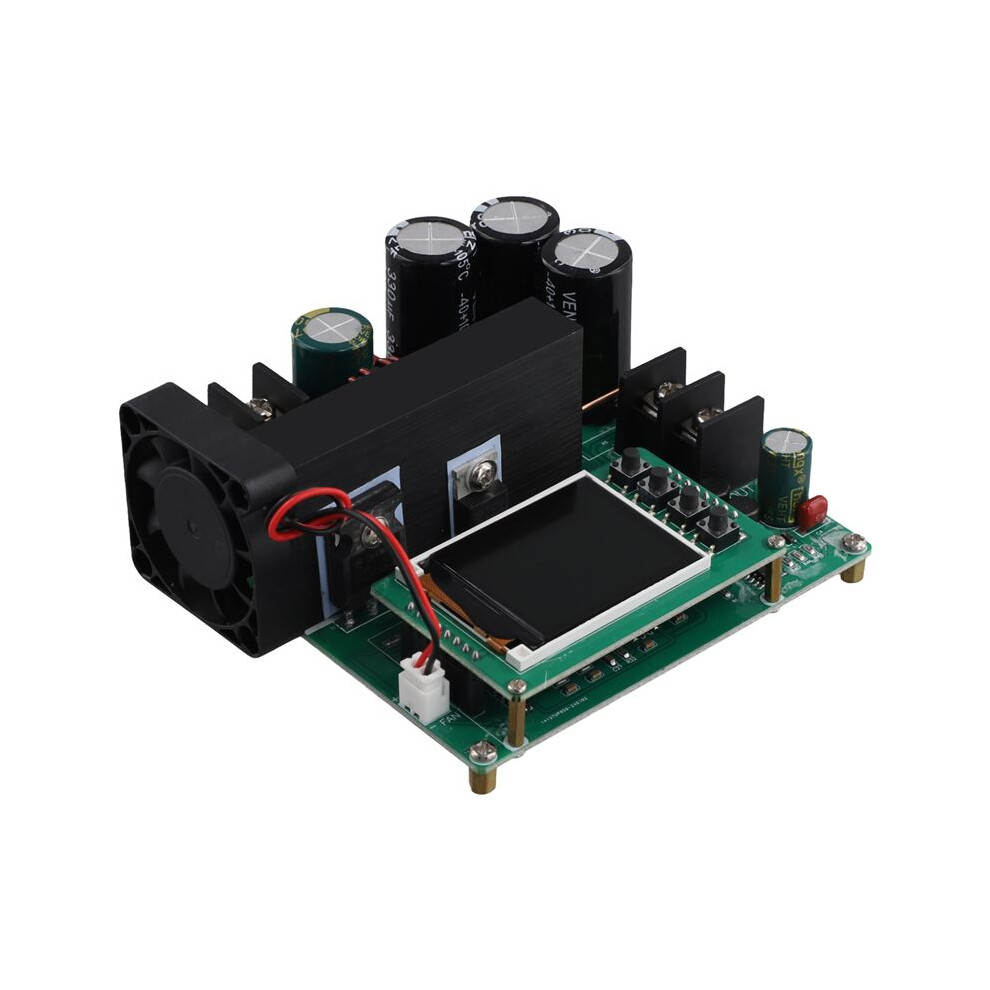

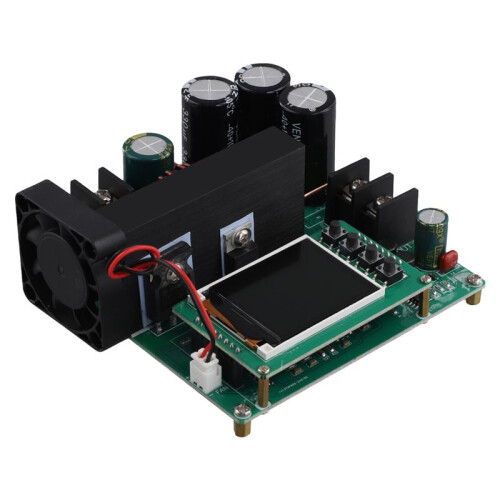

900W Boost Converter Current Constant Voltage Module DC9-60V Input DC10-120V Output Voltage Transformer Regulator

900W Boost Converter Current Constant Voltage Module DC9-60V Input DC10-120V Output Voltage Transformer Regulator Description

1.Constant current and constant voltage design, this boost converter has DC9-60V input and DC10-120V output voltage, 85% high conversion efficiency and with the max current of 15A.
2.1.77 inch TFT digital display screen, clearly displays real- output voltage, real- output current, real- output power, trigger mode, input voltage, etc.When the input is turned , the output end has power output all the , and the voltage is equal to the real- output voltage displayed in the interface.
3.Two kinds of power- program trigger modes design, AUTO mode: power- boosting program runs automatically; power- boosting program does not run; long press "SET" button for 6 seconds to the trigger mode.
4.Multi-parameter setting, support voltage setting, current setting, data group setting, double click "SET" button to enter parameter setting mode.
5.Support call the data group, click "+"or "-"to data group, only call, not starts boost.Starts/Stop running the boosting program, click "ok"button in OFF state to run the program, the output voltage will rise to the set voltage. Click "ok" to stop the program in the state, and the output voltage will drop to the input voltage.

Input voltage (U-IN): DC9V-60V
Input current: 0-15A
Output voltage (U-OUT): 10V-120V
Output current: 0-15A
Conversion efficiency:85%
Operating frequency: 150KHZ
Short circuit protection: 20A fuse (non-self-recovery)
Operating temperature: -40-85
Heat dissipation mode: active heat dissipation, connected to the input fan continuous operation
Voltage adjustment display: 009.0V-120.0V
Current adjustment display: 00.01A-15.00A
Output ripple: less than equal 50mV
Storage group: 10 groups
Standby power consumption: less than 150mA (measured when input 12 V)
Colour:green
