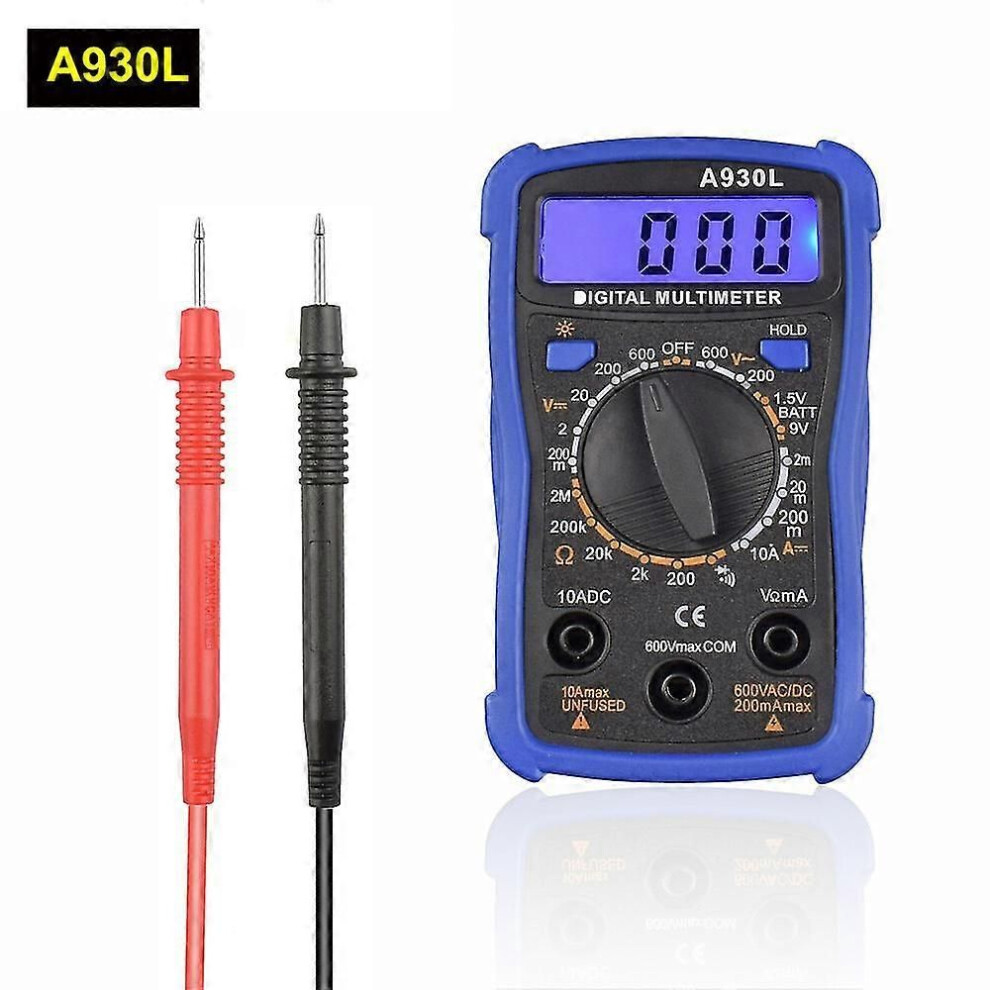

(A930L374)Electrical Instrument Lcd Digital Display Multimeter Ac/dc Ammeter Voltmeter Ohm Clamp Meter

(A930L374)Electrical Instrument Lcd Digital Display Multimeter Ac/dc Ammeter Voltmeter Ohm Clamp Meter Description

Description

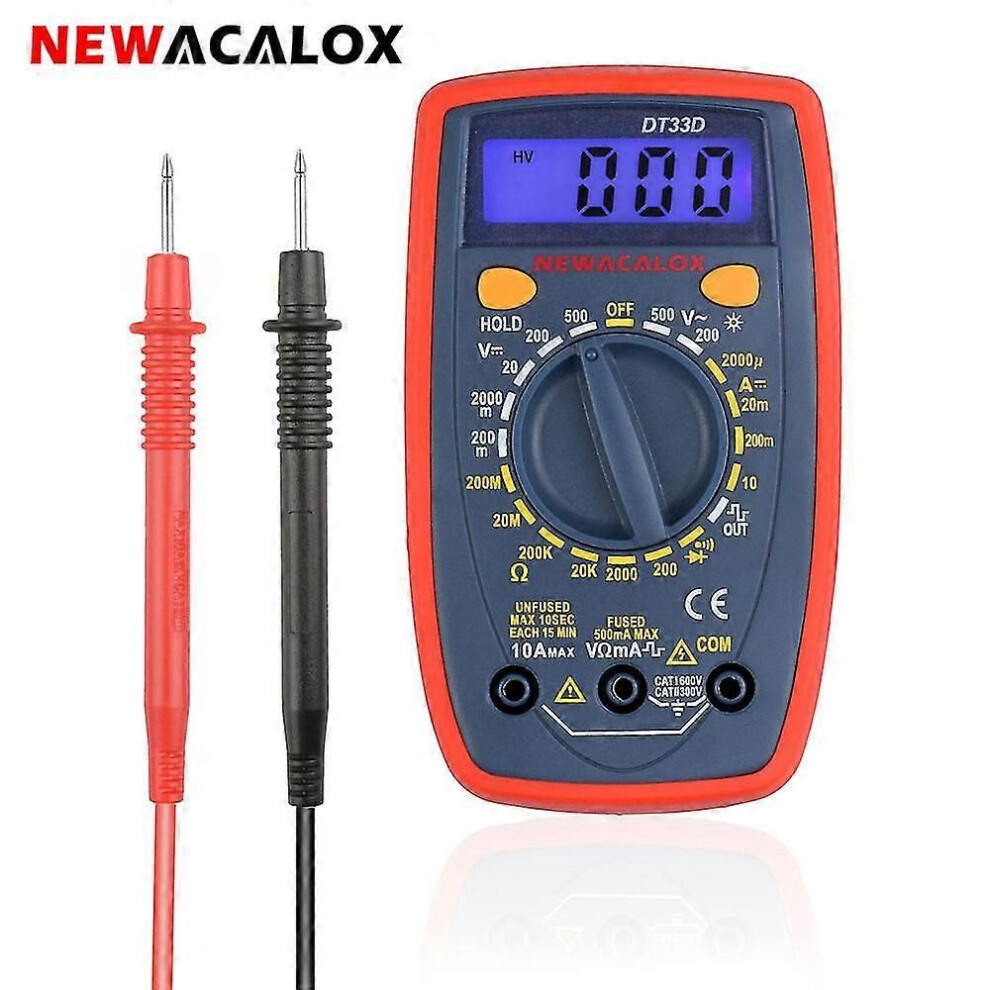

NEWACALOX Electrical Instrument LCD Digital Display Multimeter AC/DC Ammeter Voltmeter Ohm Clamp Meter Tester Tool
Product description:
The DT33 series digital multimeter is a practical tool for electricians, hobbyists, and general household use.
It is easy to operate and features many different functions for measuring current, voltage, and resistance, as well as continuity, transistor, and diode testing.
It can be used to diagnose, aemble, and repair circuitry and wiring. Other features include a low battery indicator, continuity buzzer, and overload protection.
Specifications:
- LCD size:49*17mm
- Sampling speed:2 times per second.
- Over-load indication:1is displayed
-Operating Environment:0 - 40, at
-Storage Environment:-10-50,at
-Power:9V NEDA 1604 or 6F22
-Product size:130*73*37mm
-Product net weight:145g (including battery)
Measurement rangesAccuracy
-DC Voltage:
200mV (0.5% of rdg+3D)
2000mV/20V/200V (0.8% of rdg+5D)
500V (1% of rdg+5D)
-AC Voltage:
200V/500V (2% of rdg+10D)
-DC Current:
200A/2000A/20mA (1.8% of rdg+2D)
200mA (2% of rdg+2D)
10A (2% of rdg+10D)
-Resistance:
200 (1% of rdg+10D)
2000/20K/200K (1% of rdg+4D)
20M (1% of rdg+10D)
200M [5%*(rdg-10)+10dgts]
It can not measure capacitance
Features:
1.Accurately measures current, voltage, resistance, and so on.
2.Back light LCD with large digits for visibility in dimly lit areas
3.Includes 2 pieces test leads, protective case and bag
4.Portable - compact, easy to carry,can be used at anytime, anywhere
5.Displays results quickly with 2-3 readings per second update speed
6,With a bracket, you can erect an angle to facilitate reading
7,100% brand new and high quality.
8,Easy to operate, accurate readings, full-featured,use battery powered.
Package includes:
1x Digital Multimeter
2 x Test Leads (length:79CM)
1x Protective case
1x Bag
1x Users Manual
( Not include battery )
