Active small magnetic loop antenna, broadband 50K-500MHz shortwave

Active small magnetic loop antenna, broadband 50K-500MHz shortwave Description

Active Small Magnetic Loop Antenna Broadband 50k-500MHz Shortwave Description
1. Improved Performance: This compact active small magnetic loop antenna delivers optimal results. With a frequency range of 50 kHz to 500 MHz, it offers excellent reception for a wide variety of signals.
2. High-Quality Components: Although the active shortwave radio loop antenna does not include a 12V linear power supply, it is recommended to purchase a high-quality power supply separately. This ensures optimal performance and maximum antenna performance.

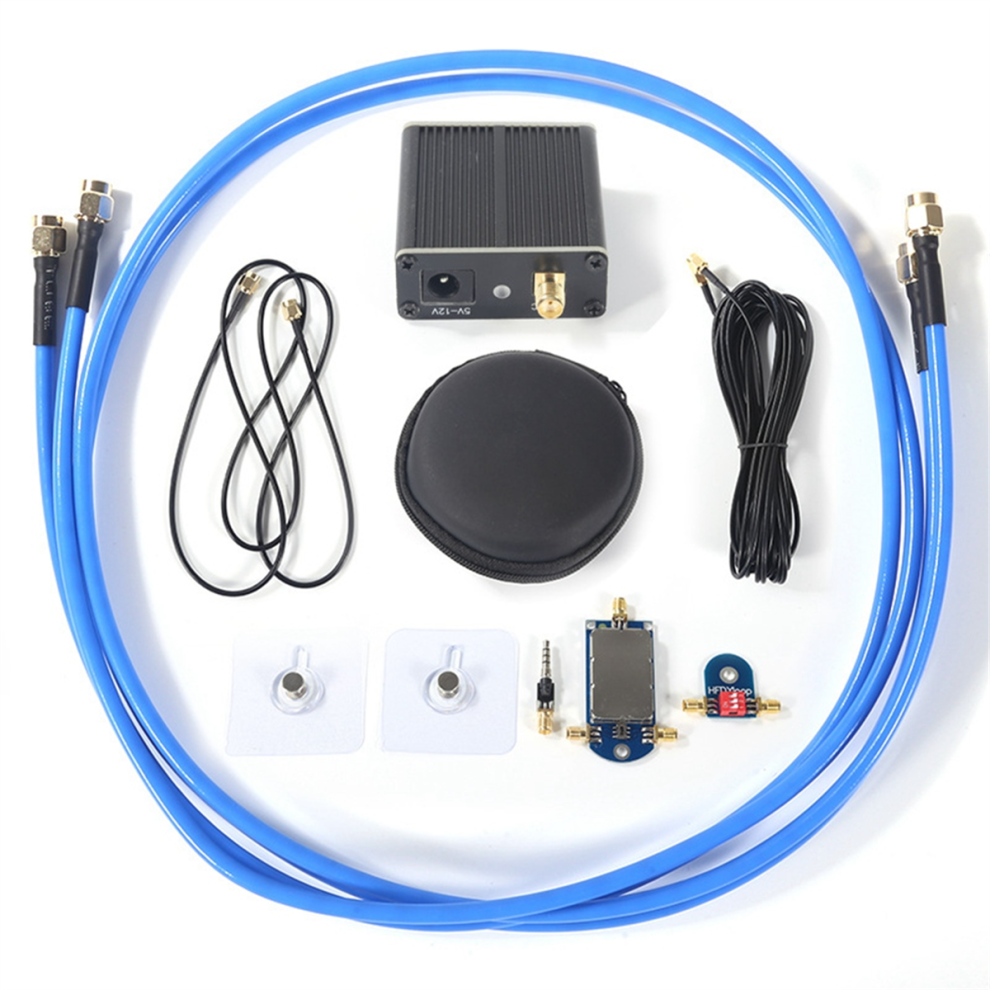

3. Versatile Design: The full-band antenna consists of an upper jumper board, a small loop amplifier board, a small loop coil, a lead wire, and a 12V linear power supply. The upper jumper board and the small loop feature switchable amplifier boards, allowing for various configurations to suit your needs.
4. Improved Signal Gain: The loop within the active small magnetic loop antenna structure provides twice the voltage gain of a normal loop, thus improving signal reception. The shielded loop effectively reduces interference from surrounding electrical fields such as static discharges. The unshielded loop offers a simplified structure.
5. Easy Installation and Modification: The active small magnetic loop antenna can be easily replaced with thicker wires, simplifying size changes. The uncomplicated structure and convenient installation process are user-friendly and accessible to everyone.
Receive frequency range: 50 kHz to 500 MHz
Gain: 17 dB at 10 MHz
Output noise: -125 dBm (10 MHz, = 100 Hz)
P1 dB: +15.5 dBm at 10 MHz
OIP3: +38 dBm at 10 MHz
Supply voltage: 9 V to 12 V
Supply current: 130 mA to 150 mA
Antenna interface: SMA (M)
Output connector: SMA (F)
Small ring coaxial cable model: RG402
Small ring coaxial cable loss: 0.145 dB/m
The print/appearance Color varies from batch to batch, but its use may be affected. The actual product may have color differences due to different lighting conditions or displays.
Color: Photo color
Material: PCB + Plastic + Metal
Package includes:
1 x Frame Antenna Kit
Only the above package contents, other products are not included.
Note: Light reflections and different displays may cause the color of the item in the picture to differ slightly from the actual product. The allowable measurement error is +/- 1-3 cm.
