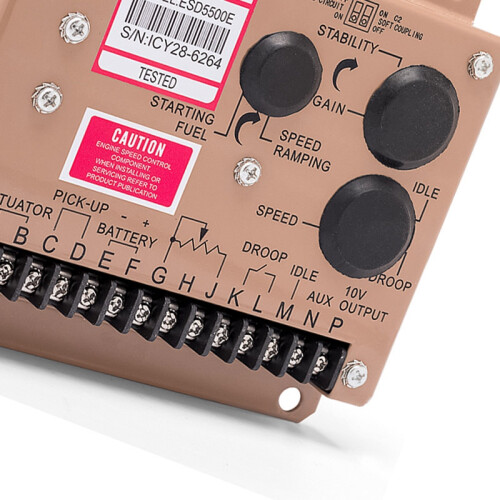

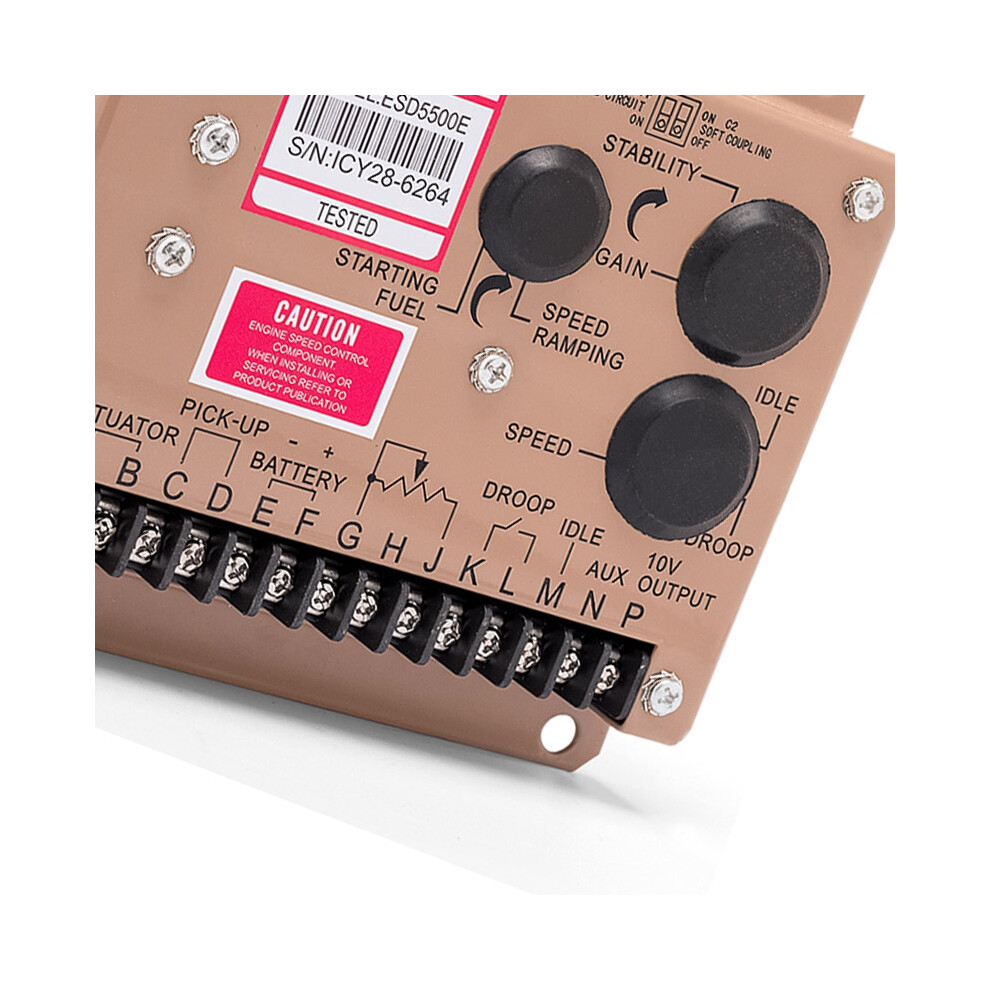

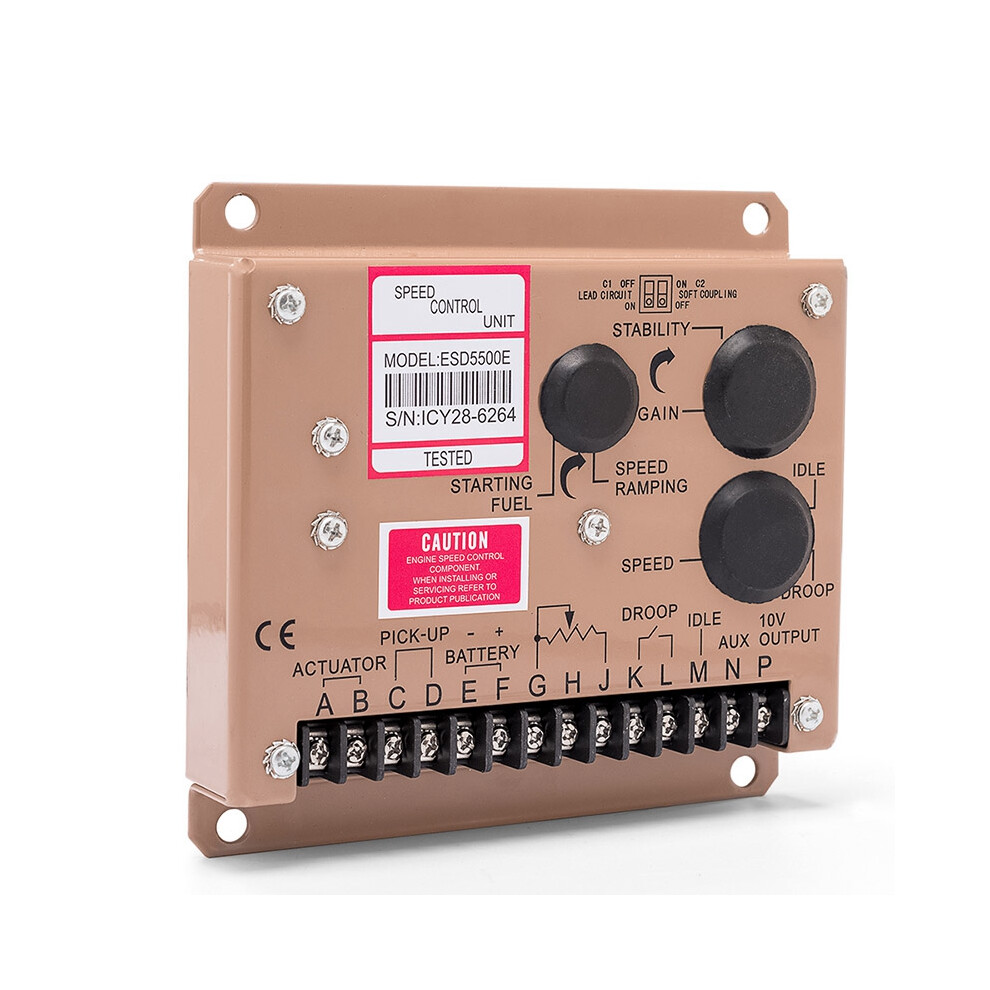

Actuator ADC120 Generator Governor 1Set 3034572 Pickup Sensor ESD5500E Speed Controller-12V

Actuator ADC120 Generator Governor 1Set 3034572 Pickup Sensor ESD5500E Speed Controller-12V Description

Model Number: ADC120+ESD5500+3034572
good universal performance,,stability.
PERFORMANCE:
Available Torque Max1.0Lb-ft(1.4Nm)
Maximum Operating Shaft Angular Travel 25+/- 1degree CW/CCW
ENVIROMENTAL:
Temperature Range -54 to 95
Relative Humidity up to 100%
All finishes proof and corrosion resistant
PHISICAL:
Weight 2.3 kg
Mounting Any position, electrical connector at the top preferred
RELIABILITY:
Vibration up to 20G @50-500 Hz
Testing 100% Tested
MATING HARDWARE
Connector Supplied With Actuator
Lever LE1500-2
Rod End Bearings(to attach a 12#20 HD linkage rod to lever) BR100(Right Hand)
BR101(Left Hand)
Wiring Harness ADC120 4ft. Harness supplied with actuator, other length Actuator
colour:Photo Color
Voltage:12V
Material:metal
Package Contents:

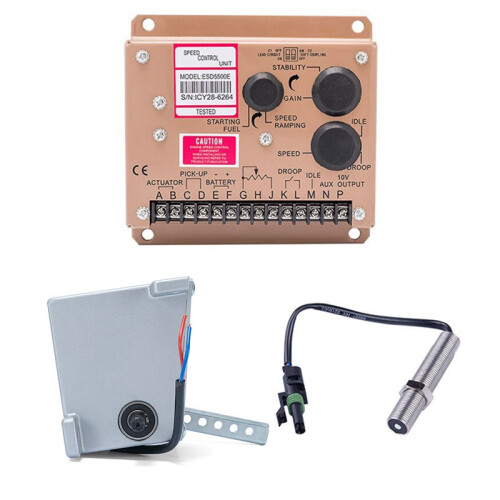

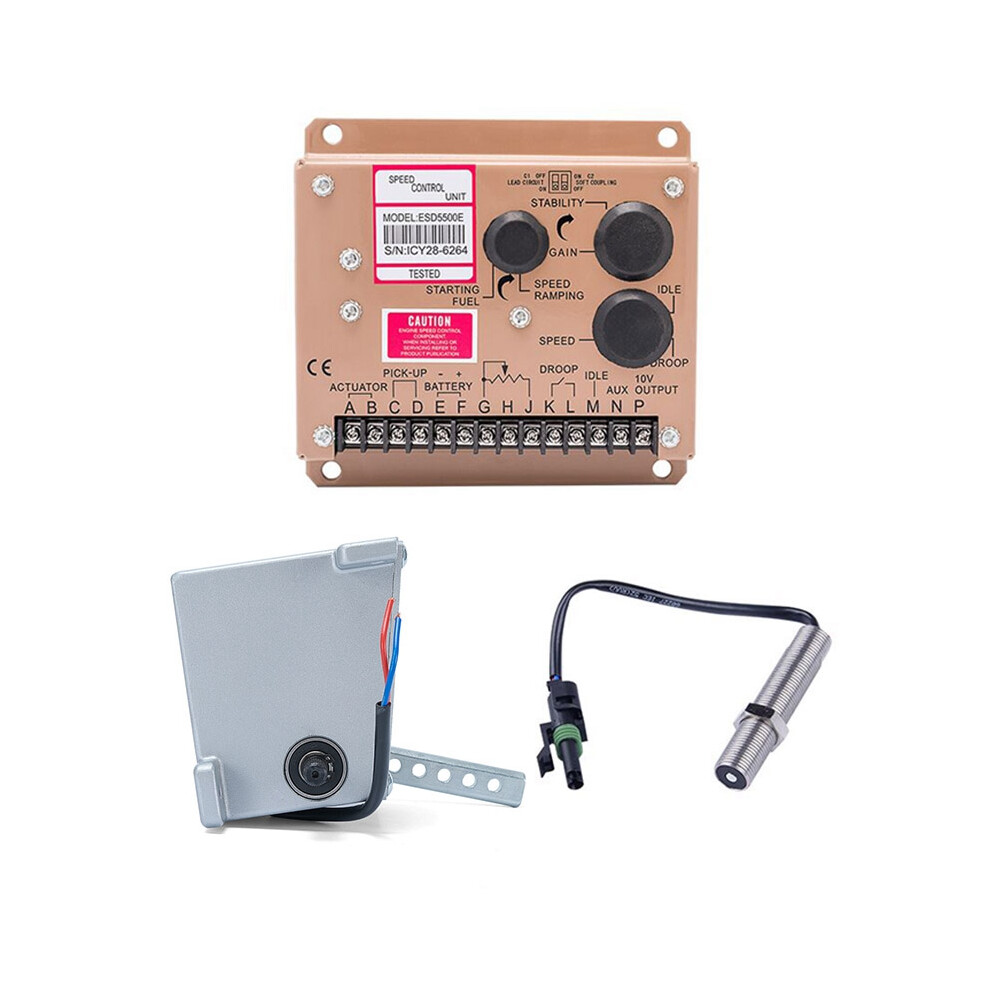

1*set ADC120 actuator +3034572 pickup sensor +ESD5500E speed controller
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
