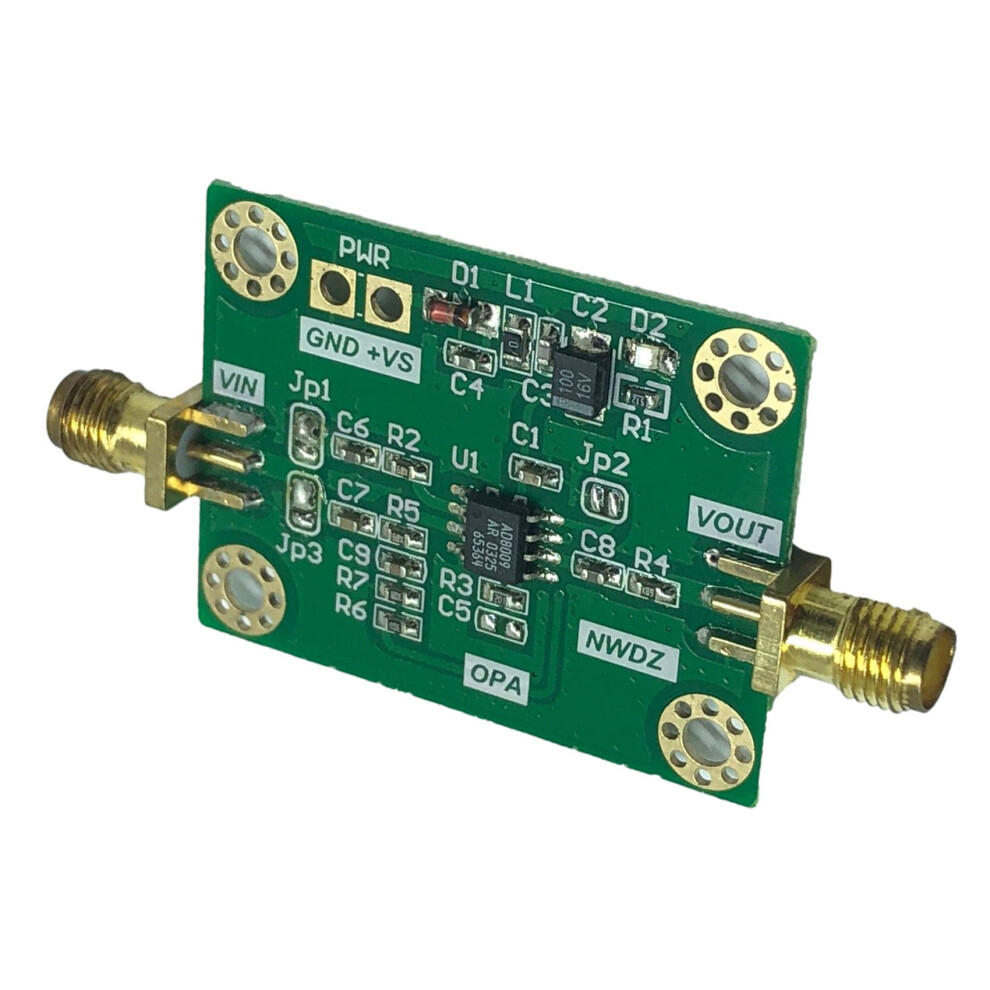

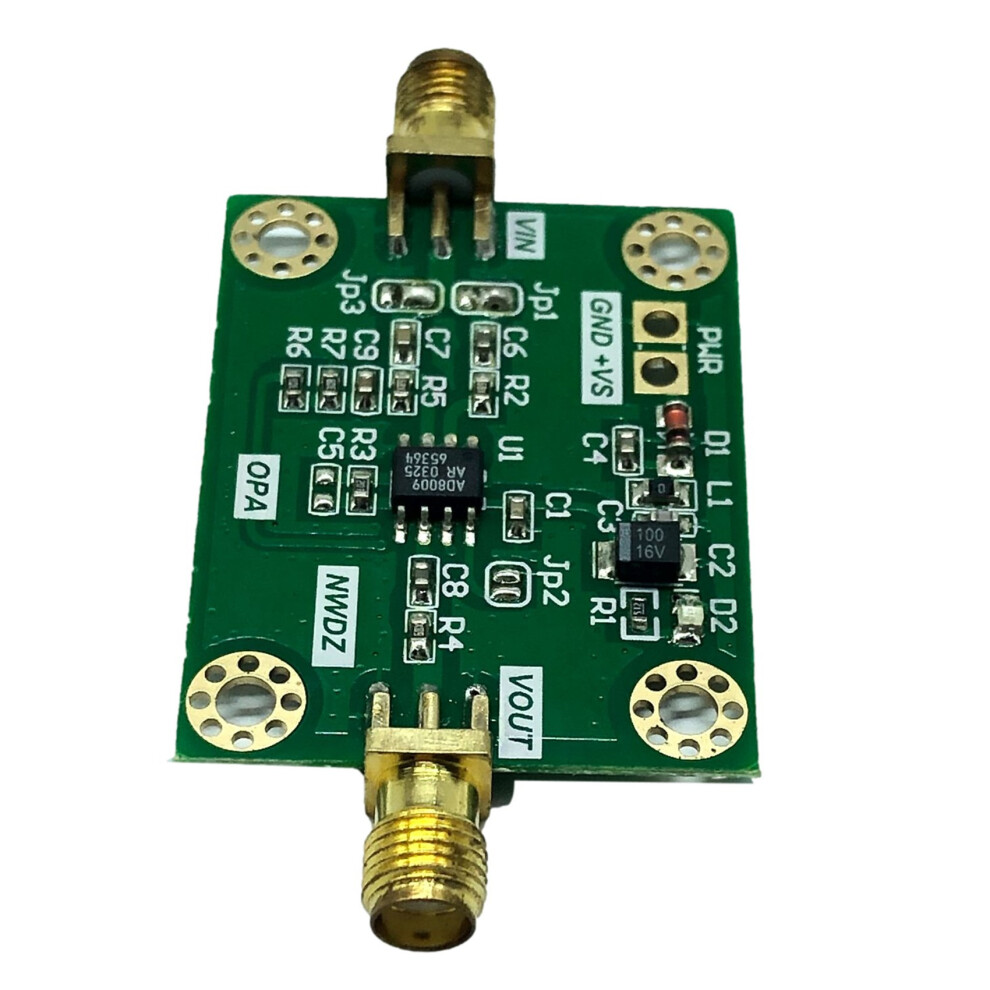

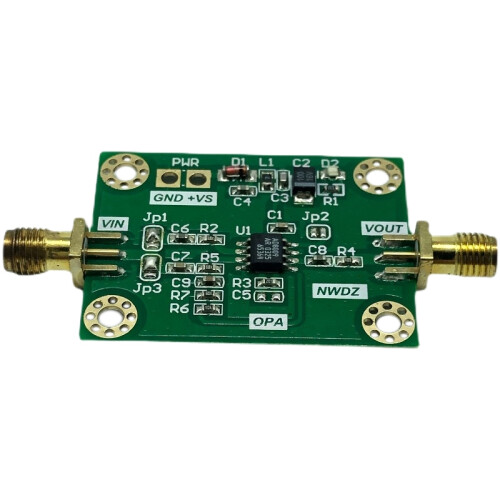

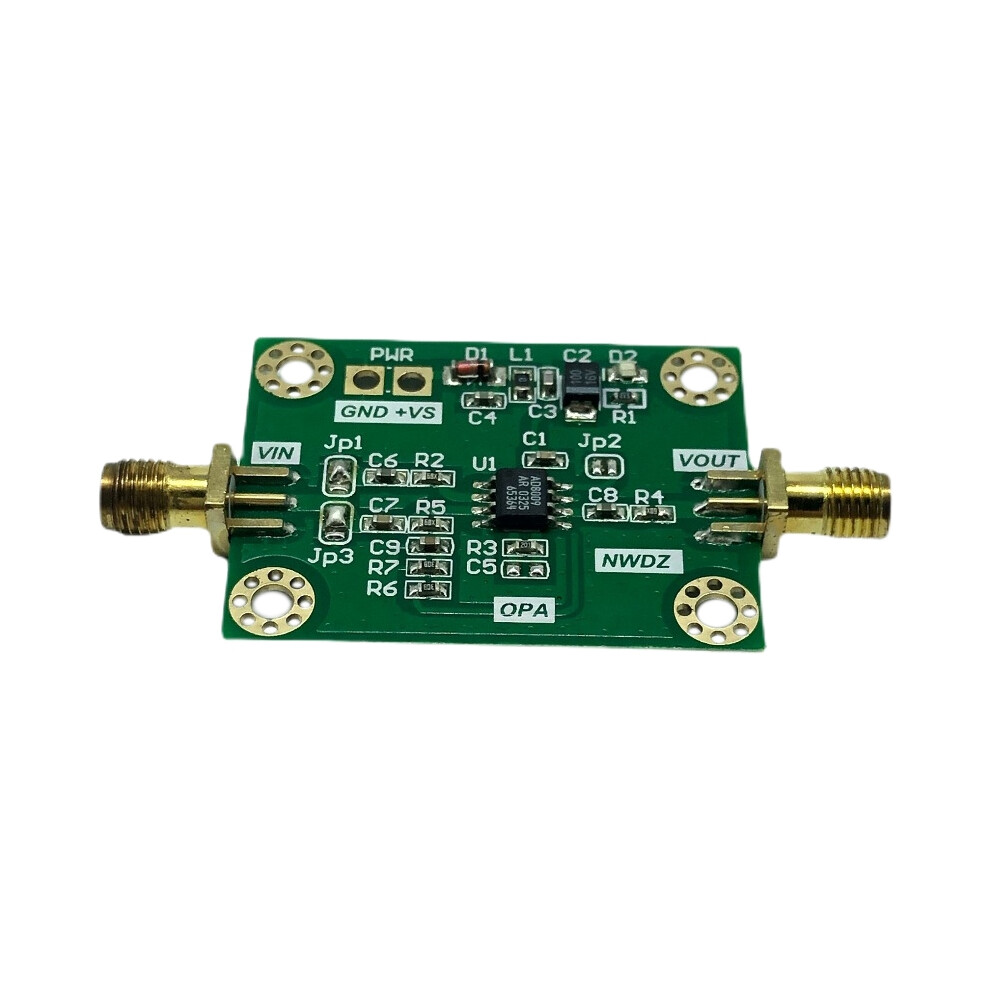

AD8009 RF Module Current Feedback Amplification 1GHz 5500V/Us Low Distortion High Current Pulse Amplification
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 127,000 Trustpilot reviews and an 'Excellent' rating
€4.05
€4.85
16% off!
+€9.04 Delivery
1%
What is instant Cashback?
Learn More
All prices include VAT.
Interest-free payment options available
See full product description & details
Delivery: Standard (€9.04) | Mon 6th - Sat 11th Jul
Sold by: IRL Shopping Center
Returns: 30 days
180-day payment protection
Most Popular in Circuit Board Connectors
Description & Details
Summary
- 1.Ultra-High Speed Swing Rate: 5500V/Μs (4V Step, G = +2)
- 2.Rise Time: 545 PS (2V Step, G = +2) large Signal Bandwidth 440 MHz,G = +2 320 MHz,G = +10 Small Signal Bandwidth (-3 DB) 1 GHz,G = +1 700 MHz,G = +2 0.1%
- 3. Power Supply Voltage: +5V to ± 5 V ICC,
- 4.IDD: 14 Ma (Typical) Application Pulse Amplifier Intermediate Frequency/RF Gain Stage/Amplifier High Resolution Video Graphics High Speed Instrumentation CCD Imaging Amplifier
- Frequency Converter
AD8009 RF Module Current Feedback Amplification 1GHz 5500V/Us Low Distortion High Current Pulse Amplification Description
1.Ultra-High Speed Swing Rate: 5500V/Μs (4V Step, G = +2)
2.Rise : 545 PS (2V Step, G = +2) large Signal Bandwidth 440 MHz,G = +2 320 MHz,G = +10 Small Signal Bandwidth (-3 DB) 1 GHz,G = +1 700 MHz,G = +2 0.1%
3. Power Supply Voltage: +5V to 5 V ICC,
4.IDD: 14 Ma (Typical) Application Pulse Amplifier Intermediate Frequency/RF Gain Stage/Amplifier High Resolution Video High Speed Instrumentation CCD Imaging Amplifier
Establishment : 10 Ns (2V Step, G = +2) Low Distortion and Stray Free Dynamic Range (SFDR) in Wide Broadband Range-66 JDBC (20 MHz, Second Harmonic) -75 JDBC (20 MHz, Third Harmonic) Three Layer Intermodulation Cut-off Point (3ip) 26 DBm (70 MHz,G = +10) Good Video Specification 0.1 DB Gain Flatness to 75 MHz 0.01% Differential Gain Error, RL = 150Ω 0.01 Differential Phase Error, rl = 150 Ω High Output Drive 175 MA Output Load Drive Current 10 DBm and SFDR Is-38 5C (70 MHz,G = +10) Power Supply
Material:PCB
colour:green
Package Contents:
1 x Ad8009 Module
Details
| OPC | PRJFJT8 |
|---|---|
| Codes | 6031470032028 (EAN) |
Product Data
| Height | 2cm |
|---|---|
| Width | 6cm |
| Length | 8cm |
| Weight | 0.008kg |
| Colour | green |
| Material | PCB |
