Adjustable Shock Level Tuning Syringe Fork Oil Tool Gauge 150ml

Adjustable Shock Level Tuning Syringe Fork Oil Tool Gauge 150ml Description

Adjustable Shock Level Tuning Syringe Fork Oil Tool Gauge 150ml Description
Fork Oil Tool Gauge Suspension Level Tuning Syringe Shock Adjuster Ruler
Description:
This is a fork oil syringe tool kit, including a 60ml syringe, a 150mm ruler, 5 ties and 2 soft hoses, which is well-equipped and very convenient. It can be used to add or remove oils from engines, transmissions, turbos, differentials, and so on. It's really a well equipped and practical tool kit.
Features:
1. 60ml/2oz syringe with adjustable tie and clear scale for repeat readings.
2. All measurements in metric and standard, very precise and reliable.
3. Comes with stainless steel 150mm / 6inch ruler for setting oil height, very convenient.
4. Two hoses can be set to oil level to cut down at any length.
5. Used to add or remove oils from engines,transmissions,turbos,differentials,and so on.
Specifications:
Material: Plastic + stainless steel
Color: White
Syringe Capacity: 60ml
Syringe Size (un-pull out): 15 x 2.9cm / 6" x 1.14"
Syringe Size (pull out): 24.2 x 2.9cm / 9.53" x 1.14"
Ruler Length: 150mm / 6"
Package Weight: 66g
Quantity: 1 set (9 pcs)
Setting Fork Oil Levels:
1. Install the house with the tie adjuster to the syringe.
2. Get your fork oil height from your manual in mm or inches.
3. Using the ruler (metric on one side inches on the other) measure from the end of the soft hose to the zip tie. Slide the zip tie up or down the line to get your measurement. With the zip tie set on the fork tube you can remove oil. When it sucks air your level is set.
4. You can also use the other blue line which you can cut to any length for a faster setup for one bike or measurement.
5. On the metric side of the ruler 9 equals 90mm which is the same as 9cm.
Adding and Removing Oil:
1. You can adjust the tie on the syringe for repeat readings. With the small blue hose you can add oil through the air bleeder holes on some forks.
2. Don' t limit this to just forks, uses this to add or remove oils from engines, transmissions, differentials, and so on. If you overfill just remove the extra with your syringe.
3. ml or cc are the same,10cc equals 10ml.

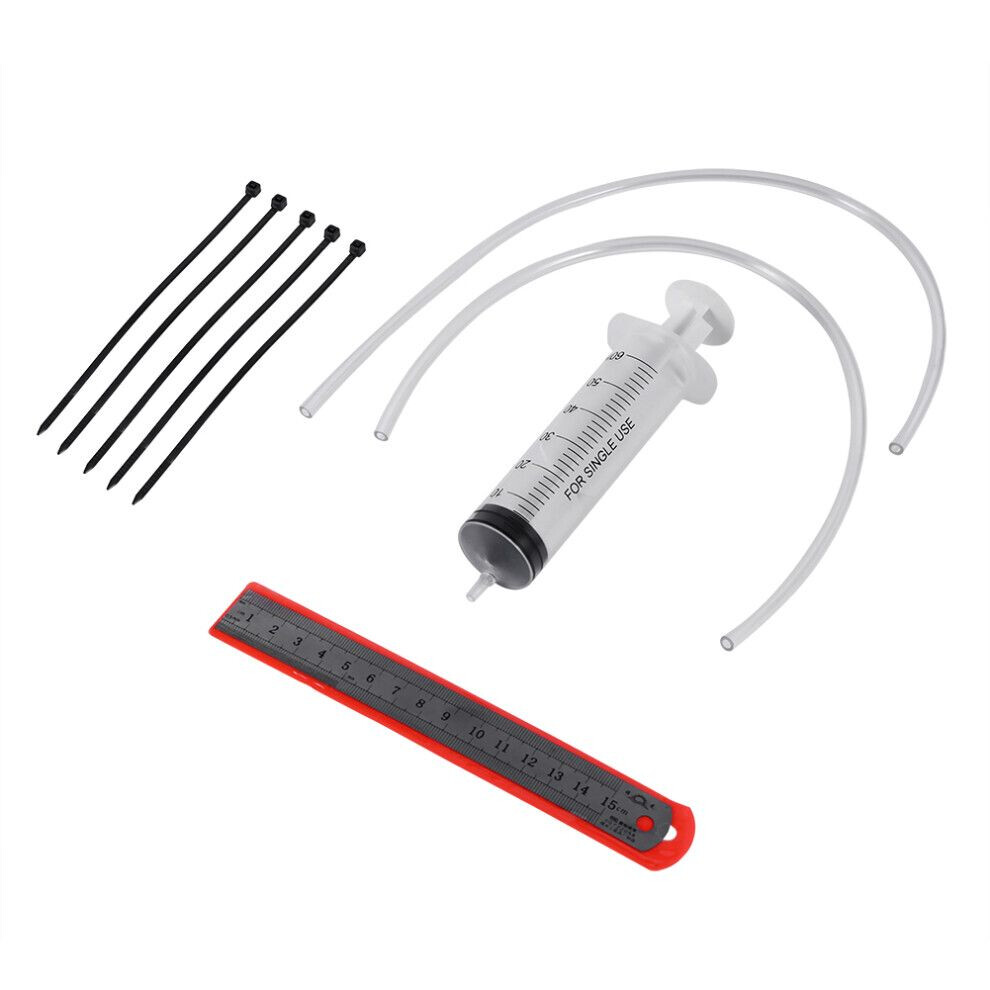

Package Included:
1 x 60ml Syringe
1 x 150mm Ruler
5 x Ties

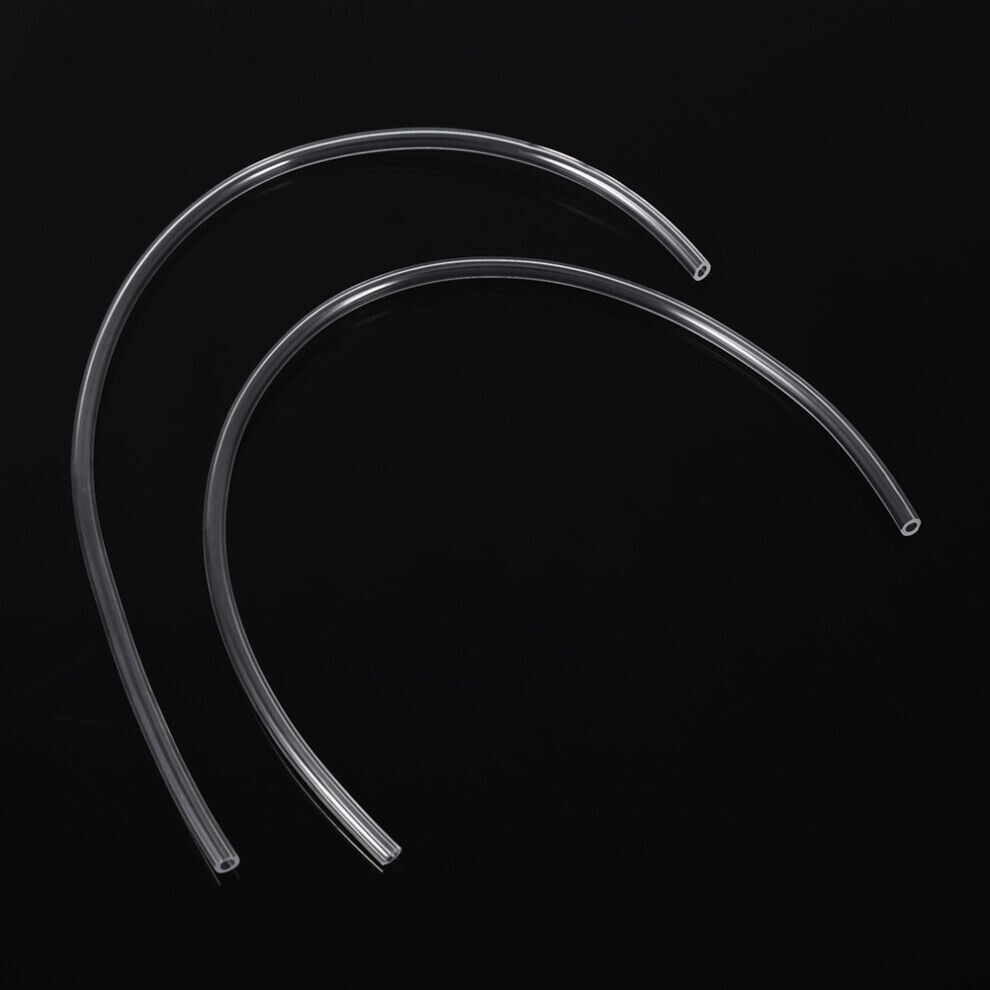

2 x Soft Hoses
Note:
1. Please allow 1-3cm error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
