AI stereo depth camera module for RDK X5 stereo depth camera module

AI stereo depth camera module for RDK X5 stereo depth camera module Description

AI Stereo Depth Camera Module for RDK X5 Stereo Depth Camera Module Description

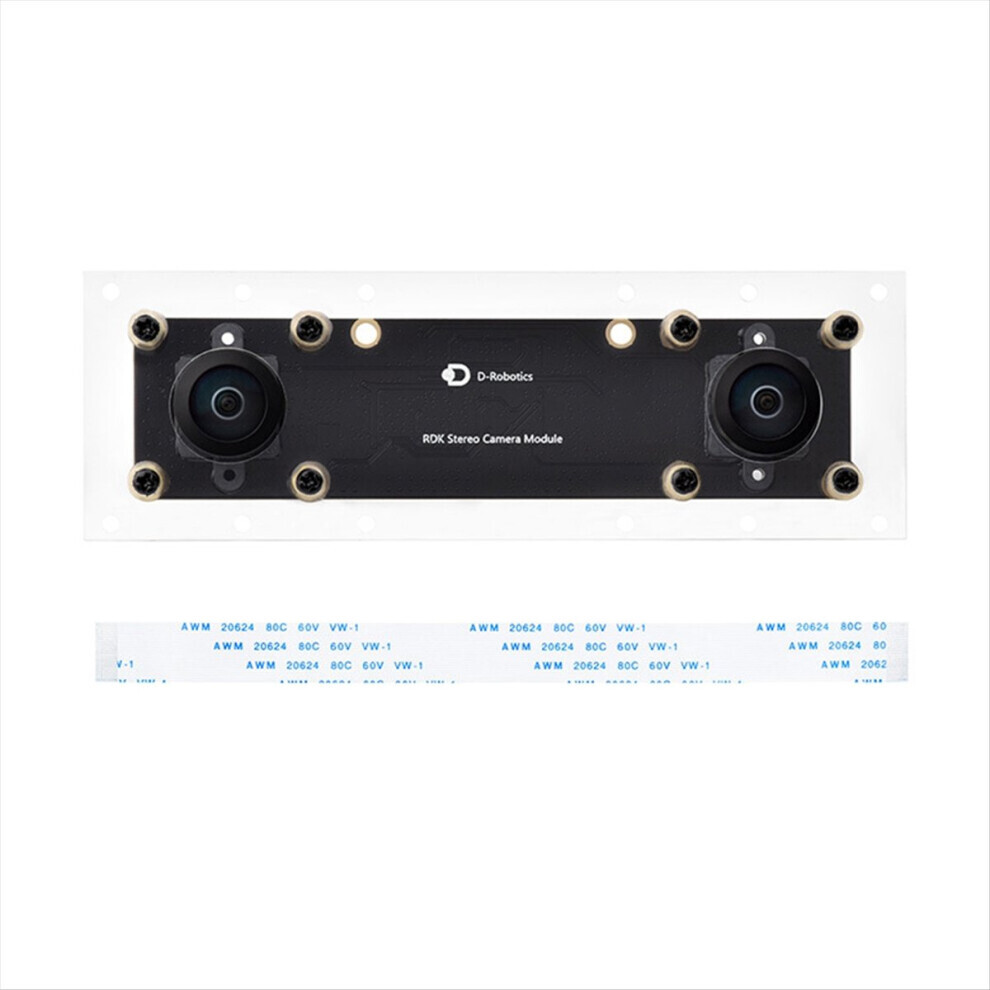

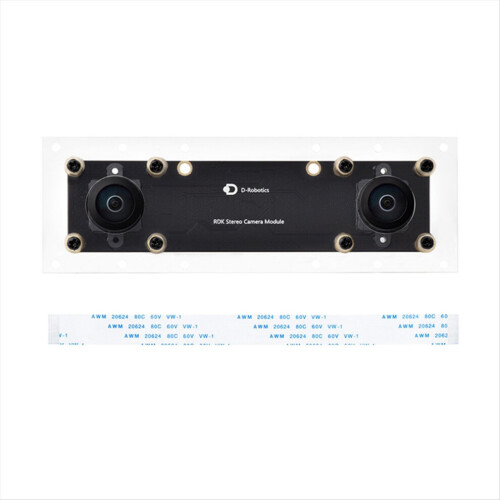

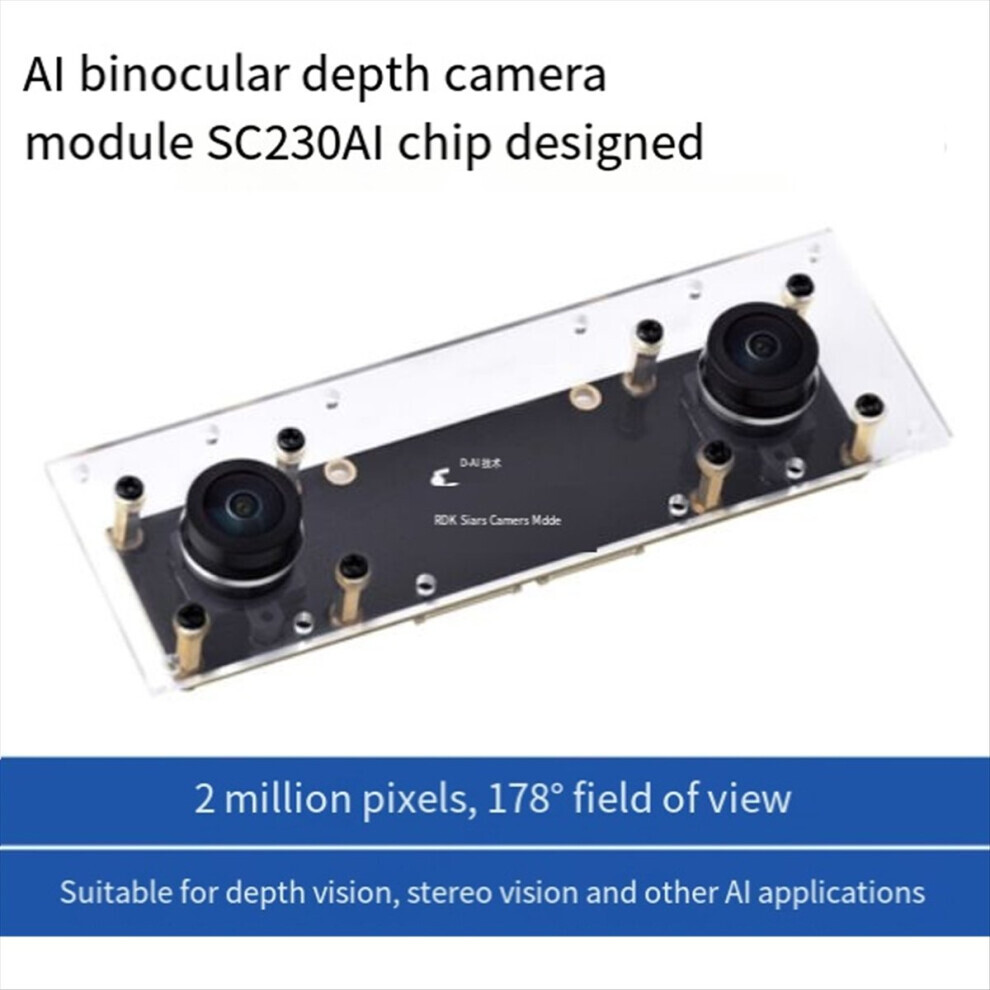

The D-Robotics RDK Stereo Camera is a binocular depth camera designed for RDK X5. It uses two 2-megapixel color cameras and is equipped with a dual 22-pin MIPI interface output. An optimized binocular depth algorithm and BPU calculation logic achieve efficient depth perception, and rendering of the algorithm result with rviz2 is supported on the PC. With the SC230AI chip and SmartSens SmartClarity-2 technology, it offers excellent day and night image effects (an additional fill light is required for night photography). The integrated dual 2-megapixel cameras provide a 178 ultra-wide-angle field of view. Combined with optimized algorithms and BPU acceleration, efficient depth calculation is achieved. Suitable for AI vision applications such as depth and Stereo vision.
Supports RDK X5 development board.
Pixels: 2 million.
Light-sensitive chip: SC230AI.
Light-sensitive element size: 1/2.8 in.
Aperture (F): 2.2
Resolution: 1920 x 1080 (per channel)
Length (): 2.28 mm
Field of view (FOV): 178 (down) 150 (horizontal) 80 (vertical)
Distortion: Less than -30%
Length: 70 mm
RESETB control: Low effective
I2C address: 0x300x32
Ioline: 0x50
Synchronization: Supports hardware synchronization
Application scenarios: Suitable for AI vision applications such as deep vision and stereo vision
Due to different batches, there may be differences in product appearance and printed text, which do not affect use
Color: As shown
Material: PCB

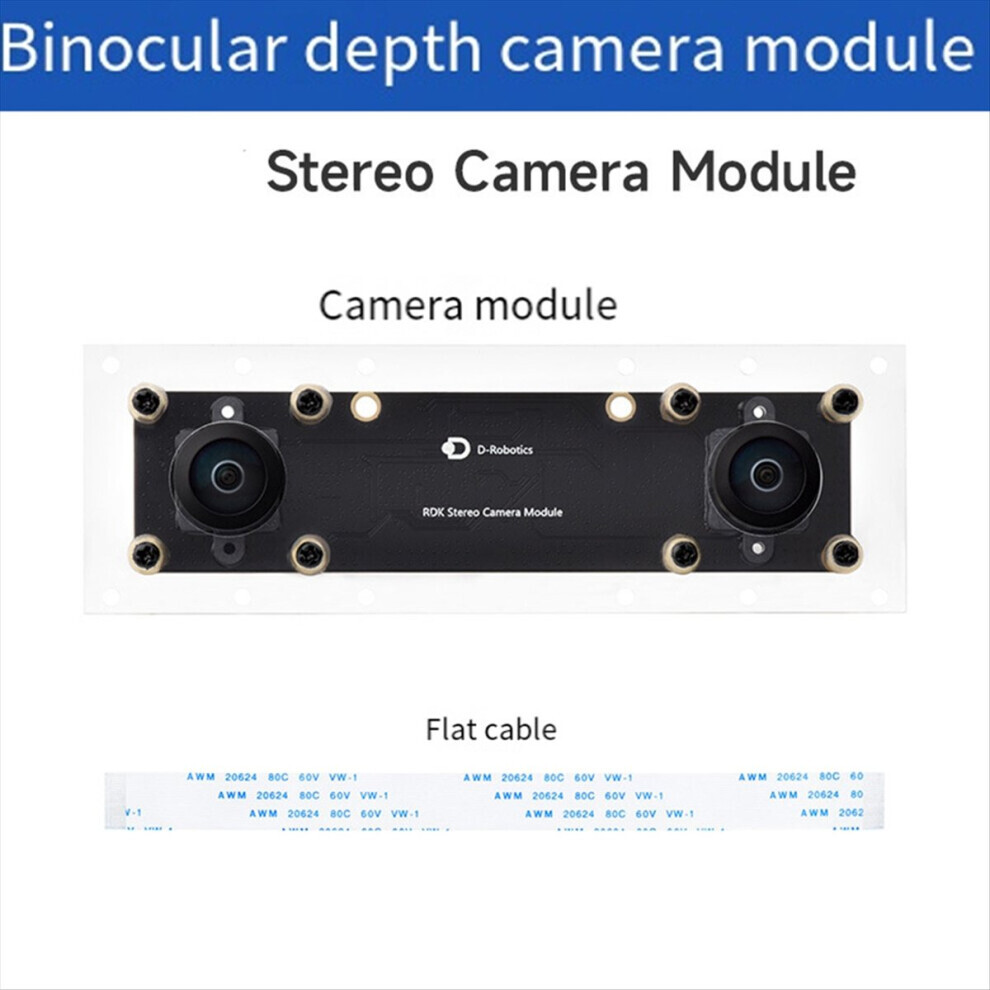

Package contents:
1 * Camera module
Only the above package contents, other products are not included.
Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the actual color. The allowable measurement error is +/- 1-3 cm.
