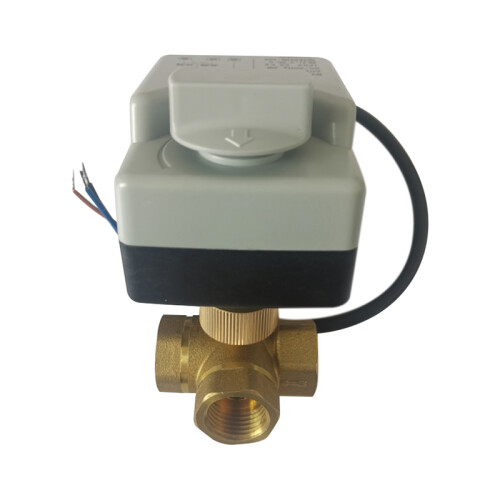

Air Conditioning Electric Actuator Ball Valve AC220V DN15 Three-Way Three-Wire Two-Control

Air Conditioning Electric Actuator Ball Valve AC220V DN15 Three-Way Three-Wire Two-Control Description

Application: This brass electric ball valve is suitable for shutdown control in air-conditioning fan coil system and heating system. It consists of a ball valve and an actuator. The actuator is driven by a synchronous motor and integrated limit contacts. When the power and action are stable, the valve can be fully opened or fully closed.
Power mode: off/on for 25 seconds
Manual mode: the button and rotate
The electric ball valve is made of brass and is .

Connector type: DN15
Voltage: AC220V 50 / 60Hz
Power: Max 6 W
Medium: water, air, oil
Operation mode: motor and hand (with manual switch function)
Maximum working pressure: 1.6 MPa / 232psi
Life: 100,000 times
Ambient temperature: -15-50C
Signal temperature: -5C 100C
Protection level: IP 50
Material:Brass + plastic
colour:Gray+white

Package Contents:
1 x electric actuator ball valve

Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
