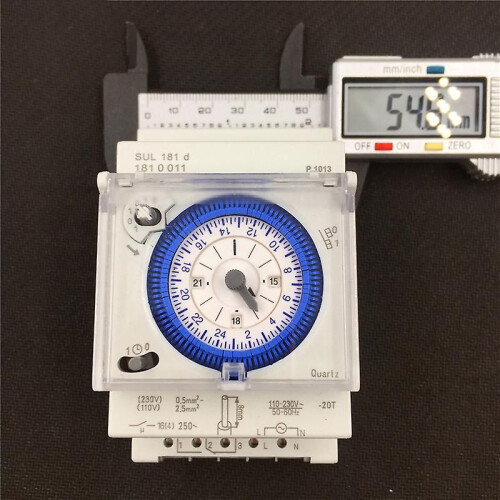

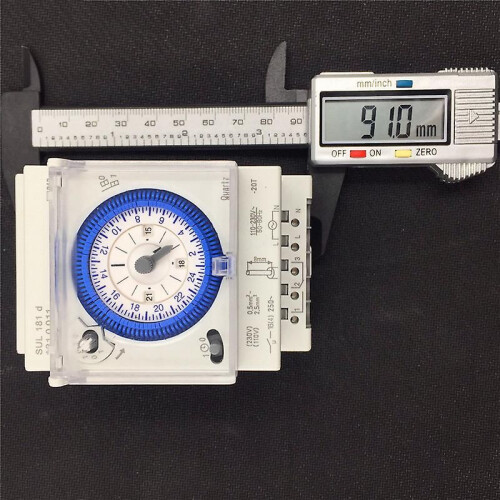

Analog mechanical timer 110-220 V, programmable 24 hours/day, setting in 15 minute increments.

Analog mechanical timer 110-220 V, programmable 24 hours/day, setting in 15 minute increments. Description

Product range: control range / industrial / complete / street lighting / lighting / agricultural / industrial control / domestic / household appliances
Electrical life: (under load) more than 100,000; Mechanical life: (DC) = 10 or more; Mechanical life: (AC) = 10 or more
Insulation voltage: (between coil and contact) less than 1000 VAC; Insulation voltage (between contacts): less than 1000 V AC
Contact resistance: less than 50 Ω
Temperature: -20 C to +55 C
Operating time: 24 h / Storage time: 150 / Minimum setting unit: 15 points / Time: 96

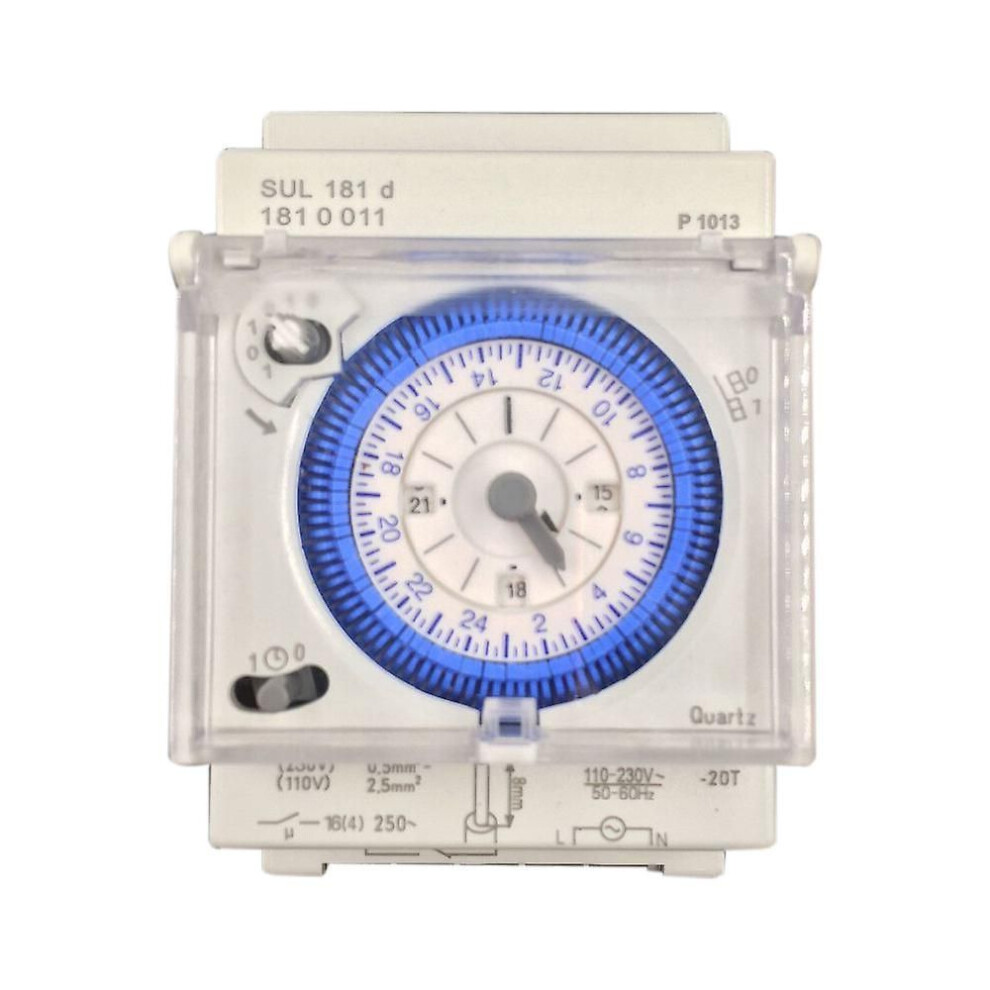

Model: SUL181D
Rated voltage: 250 V AC
Coil supply: 230 V AC
Rated current: 16 A
Coil power: 0.2 W
Contact switching current: 16 A
Contact switching voltage: 250 V AC
Protection: plastic type
Contact load: 16 A
Contact configuration: 1H
Frequency: 50 to 60 Hz
Number of contacts: 1
Autonomy: 24 hours

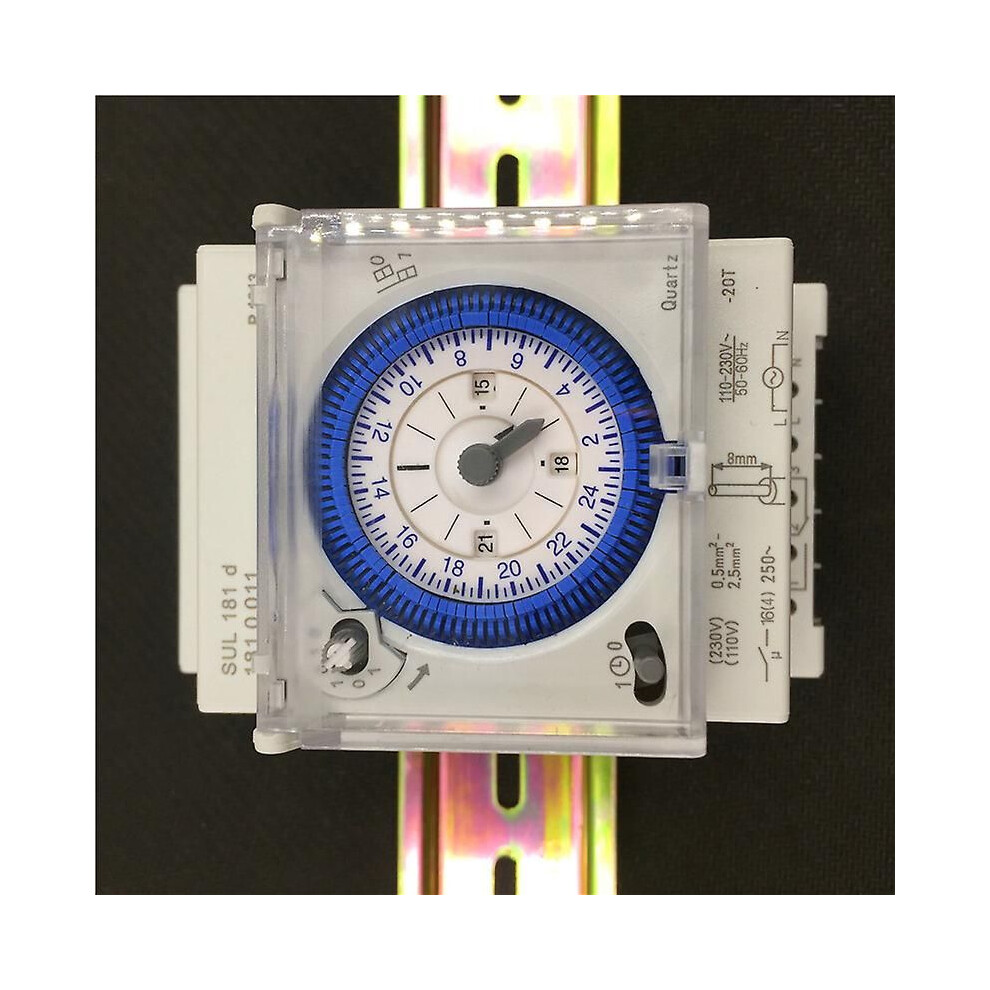

Installation: DIN rail
Terminal block: plug-in
Battery life: 4 hours
Power failure safe operating time: approximately 100 hours at 110 V
Contact capacity at 250 V AC, cos θ Diameter = 1: 16 A
Contact capacity at 250 V AC, cos θ Diameter = 0.6: 4 A
Minimum switching time: 15 minutes
Minimum setting range: 15 minutes
Time accuracy: less than 1 s/day (quartz)
Output contact: 1C x 1
Switching output: potential-free and phase-free
Number of switching segments: 96
Standby power consumption: 0.5 W
Indicator light: VDE
Housing and insulation material: high-temperature resistant and flame-retardant thermoplastic
Protection rating: IP 20
Safety level: II according to standard EN 60730-1
Operating temperature: -20 to +55 C
Color: White
Materials: ABS + electronic components
Package contents:
1 * Programmable switch
1 * User manual
Only the above-mentioned contents are included; other products are not included.
