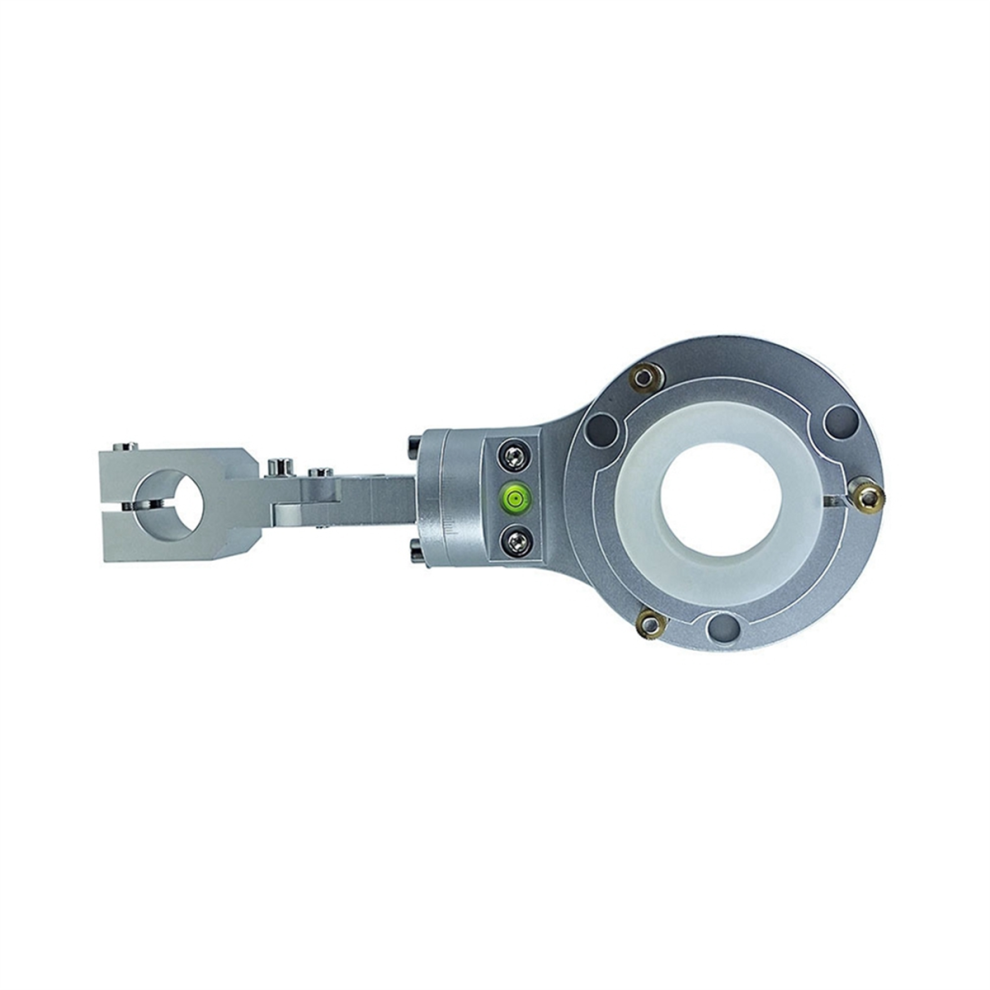

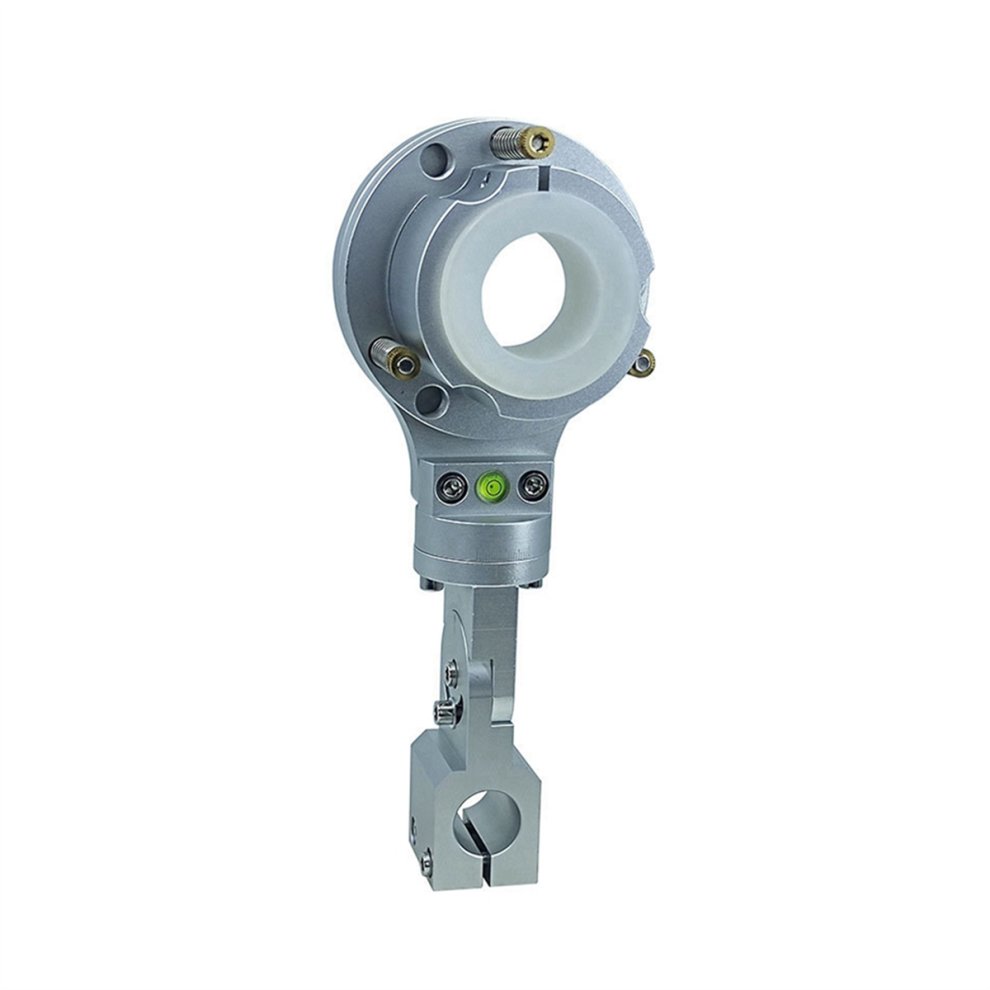

Anti-collision device for portable CNC flame plasma 25–40 mm

Anti-collision device for portable CNC flame plasma 25–40 mm Description

Anti-collision device for portable CNC flame plasma cutting machines 25-40 mm Description

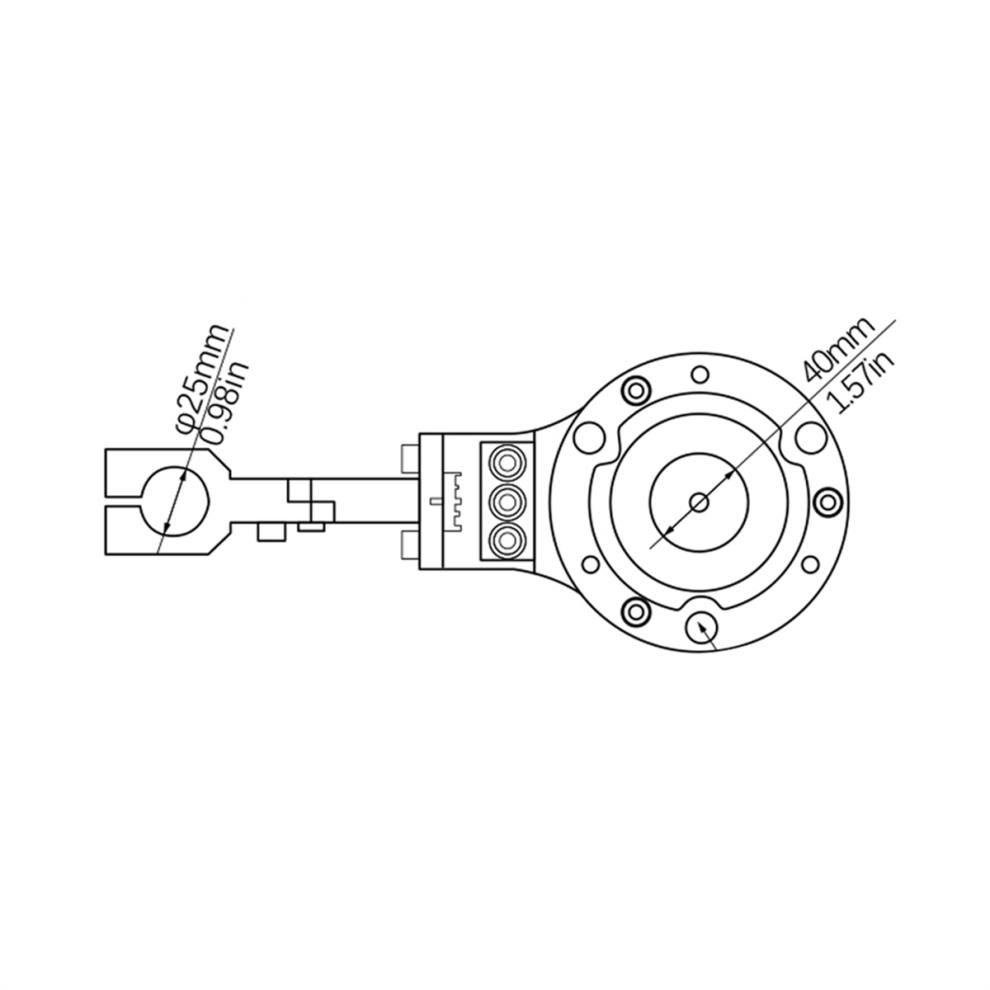

The cutting clamping plate and the fixing plate are constructed in layers and can swivel freely through 360 degrees. In the event of a collision, the cut is protected in all directions to prevent breakage. The positioning points and return springs, evenly spaced at 120-degree angles, can reset the error by 0-0.2 mm after a minor collision. Before and after the adjustment function, the spirit level and calibration work together; for example, when using the tool after a severe collision, operators can make the automatic adjustment. Designed for gantry-type CNC plasma cutting machines. Plasma cutting holder with universal adjustment and anti-collision function. Cutting tool diameter: 40 mm. Color: As shown. Material: Metal. Note: Please check as much as possible to ensure the item meets your requirements. Due to different batches, there may be differences in product appearance and printed text, which do not affect its use. Package Contents: 1 * Plasma Cutting Gripper. Package contents only; other products are not included. Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the actual color. The allowable measurement error is +/- 1-3 cm. [OnBuy.com]
