AOK20B Automatic Drain Filter Air Compressor Automatic Drain Valve Ball Drain Valve

AOK20B Automatic Drain Filter Air Compressor Automatic Drain Valve Ball Drain Valve Description

specification:

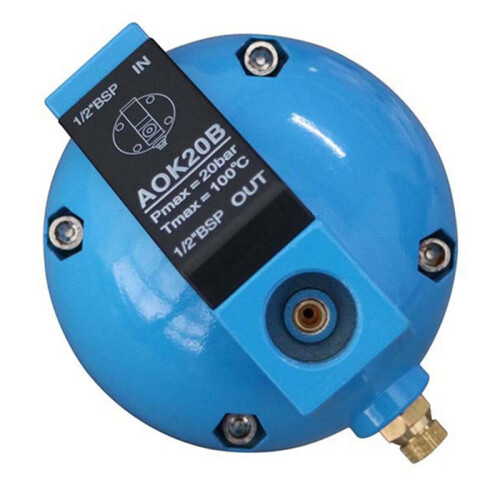

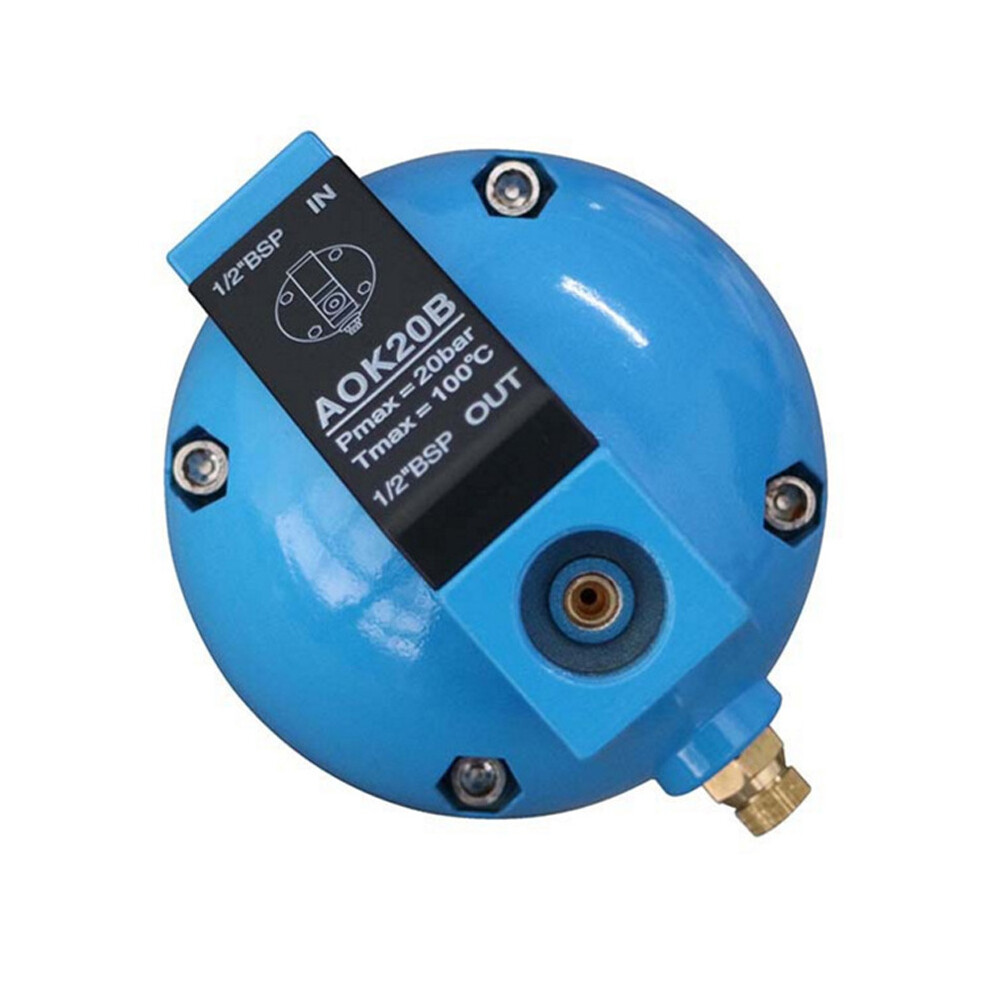

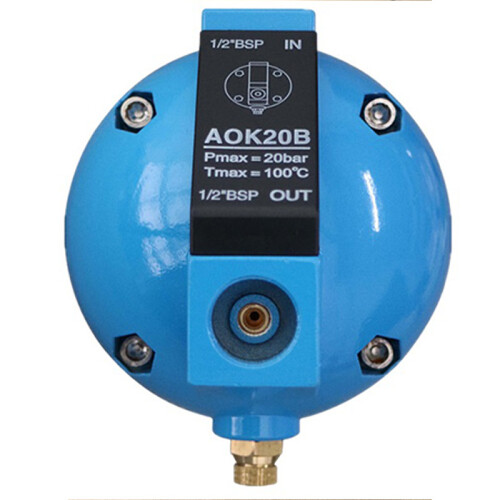

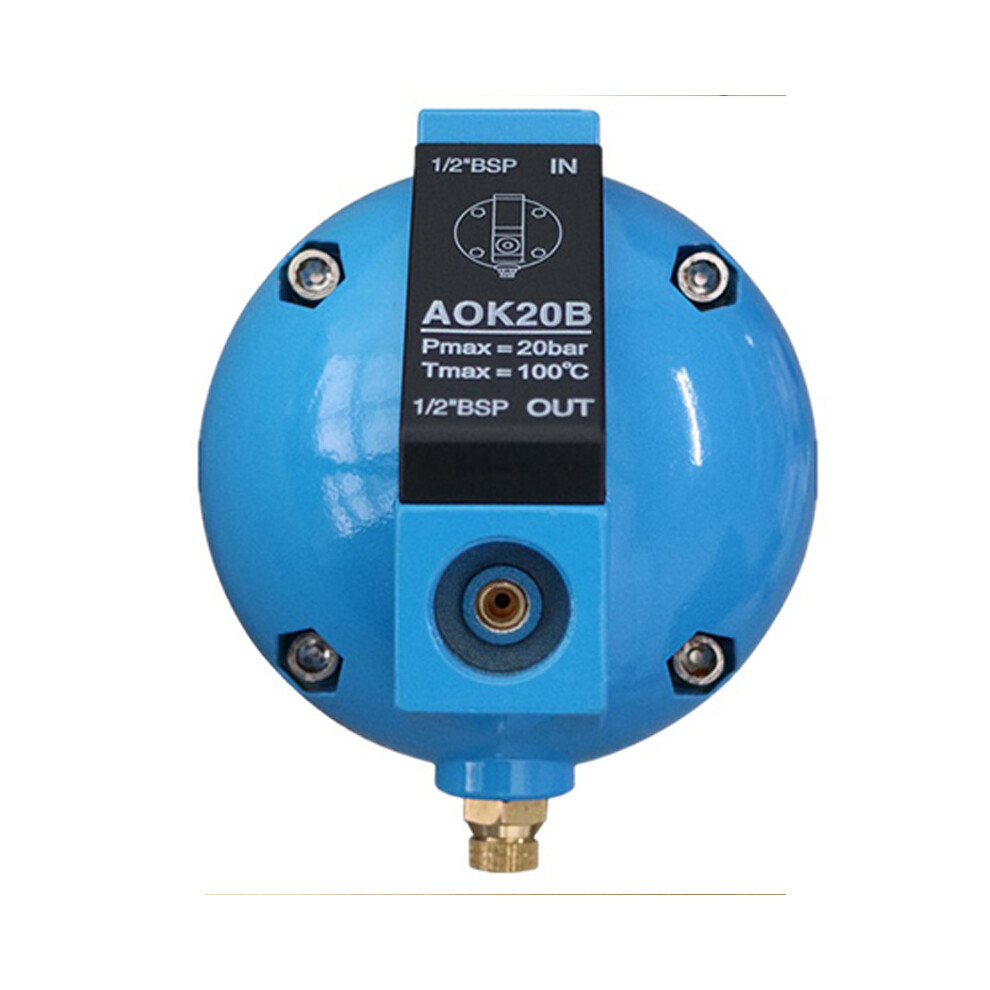

Model: AOK-20B
Material: Die-cast aluminum
color: blue

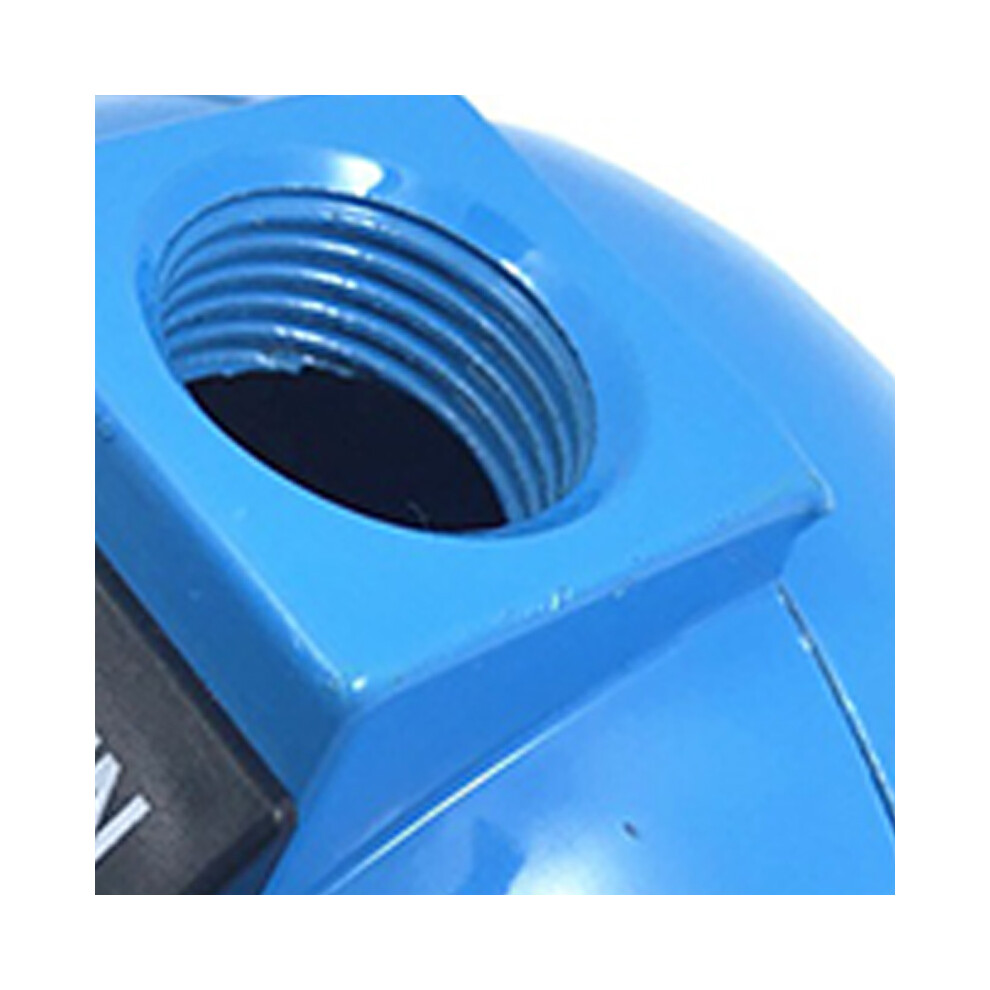

Liquid inlet interface: 1 / 2BSP
Outlet interface: 1 / 2BSP
Maximum working pressure: 16Bar
Maximum working temperature: 100
Maximum emission capacity: 400L / H
Features:
1.The structure of the AOK20B compressed air condensate automatic drain is significantly different from the traditional mechanical automatic drain, which is a continuous drip drain.

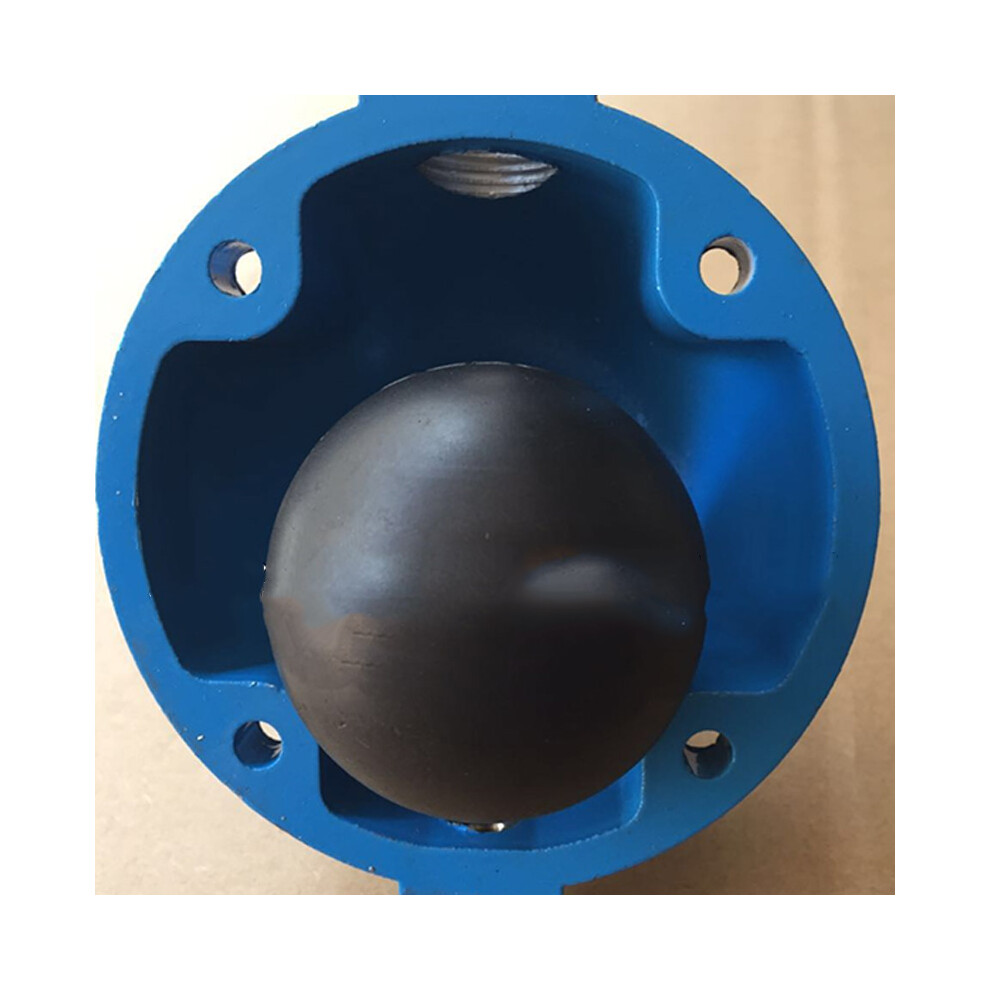

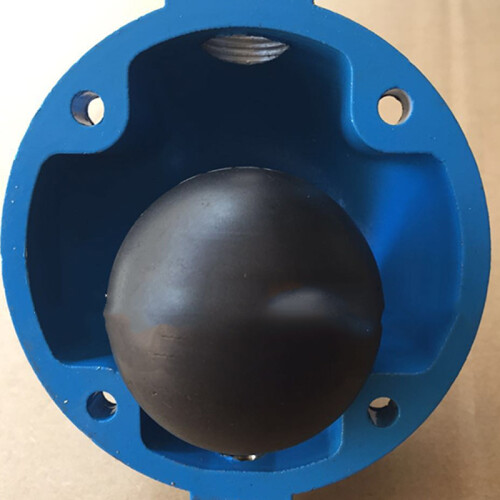

2. Compressed air condensate automatic drain is a pure mechanical automatic drain using a combination of die-cast aluminum shell, which is equipped with a stainless steel floating ball drainage system.

Package Contents:1 * Automatic drain valve

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
