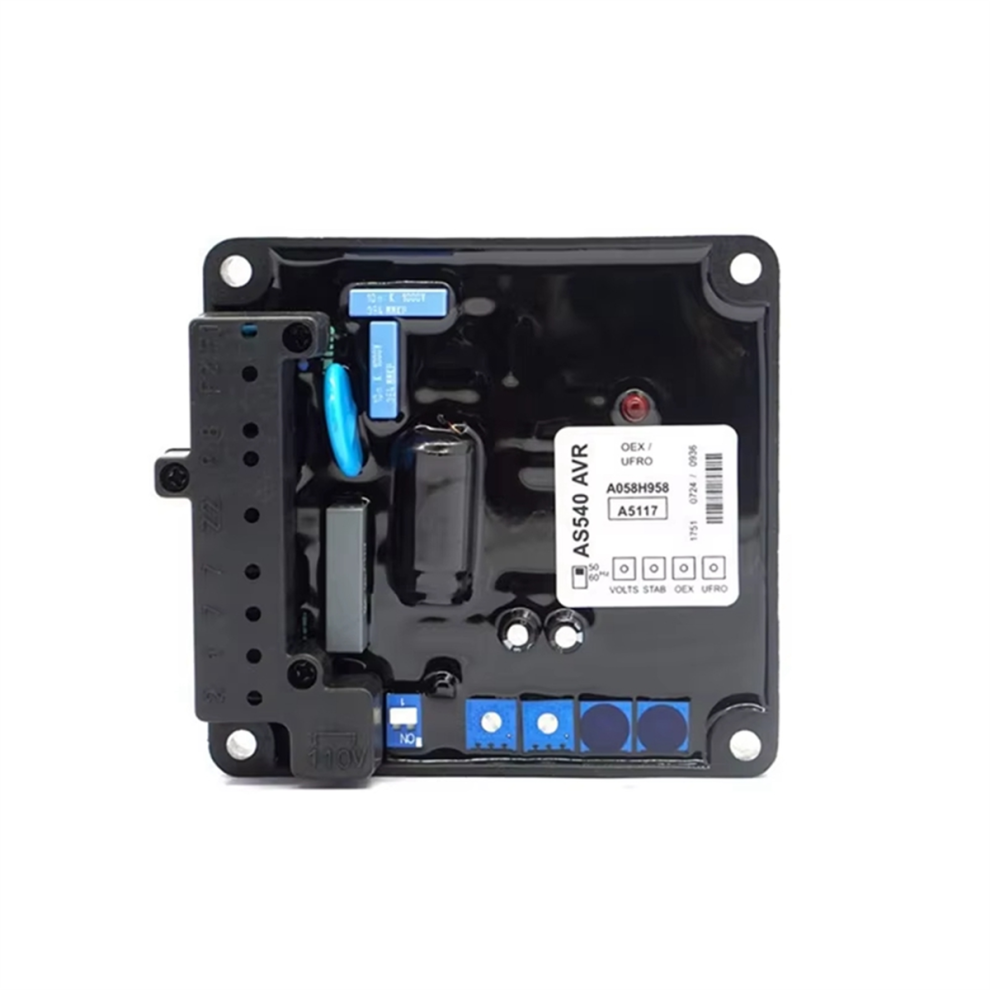

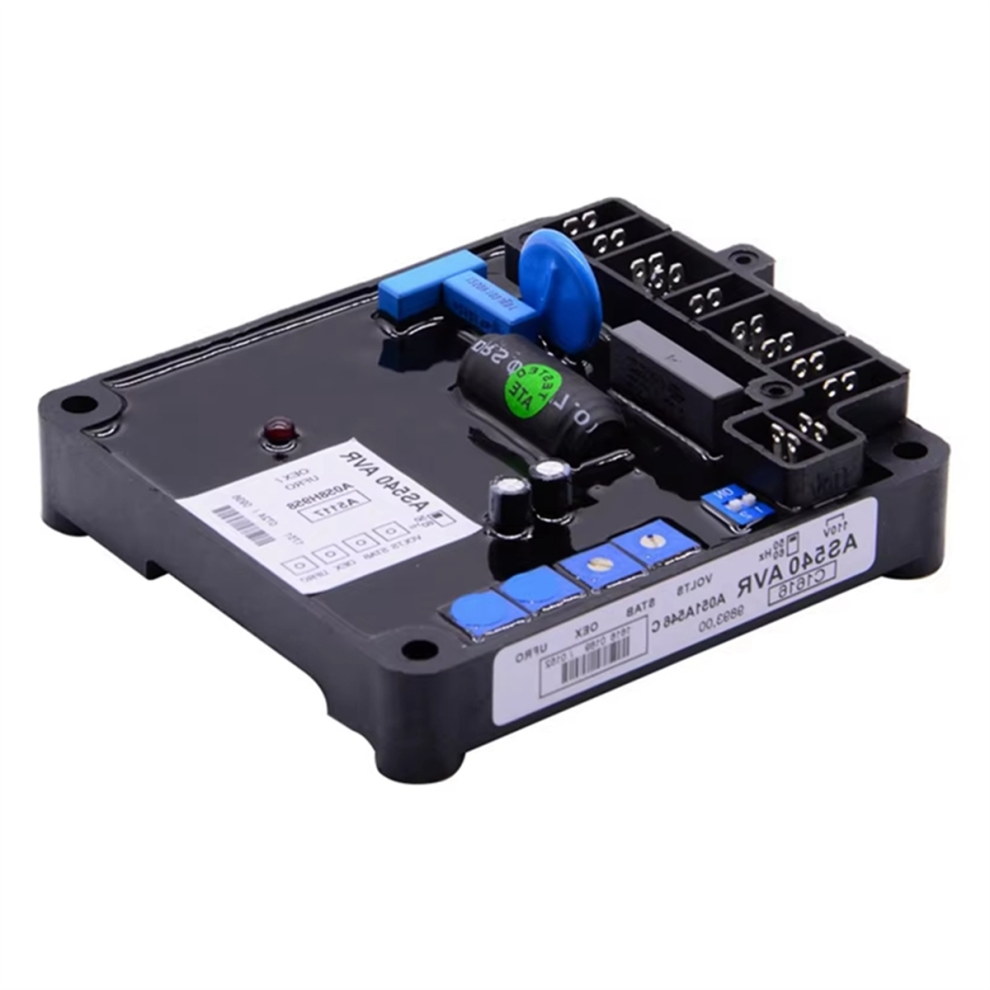

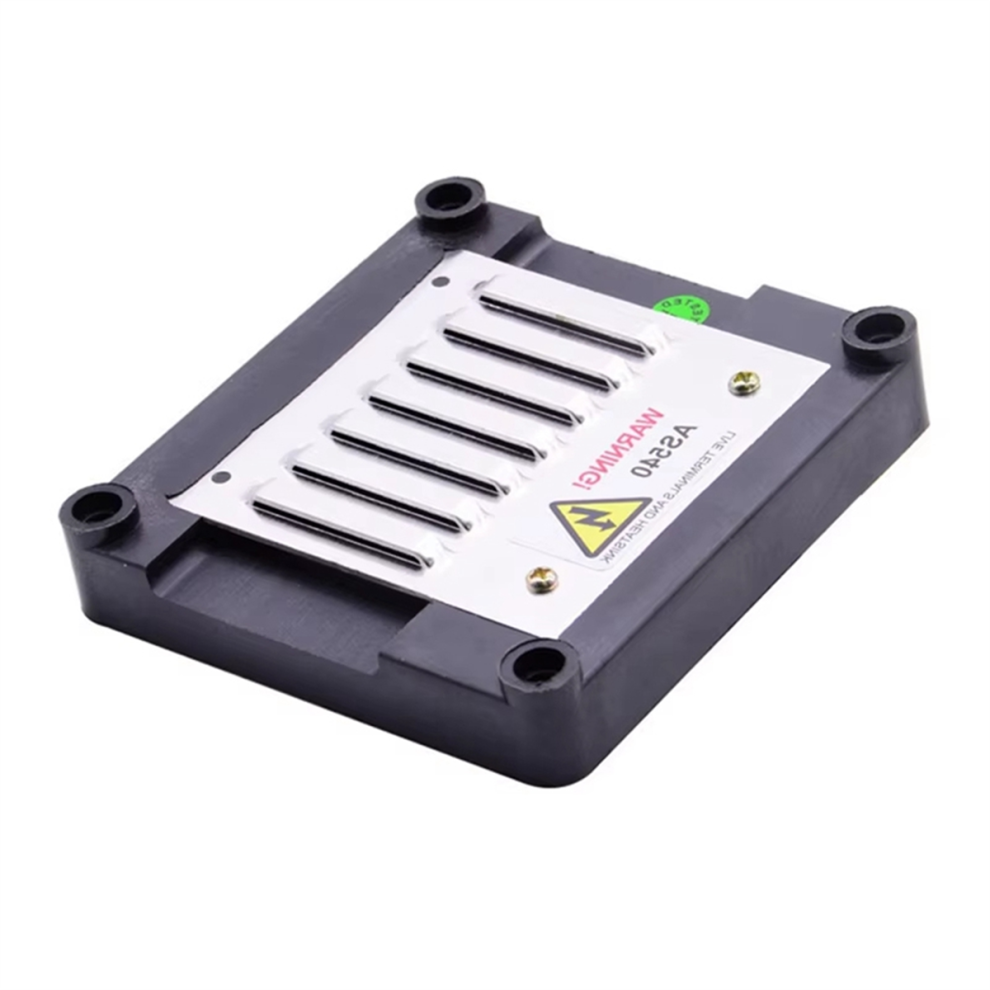

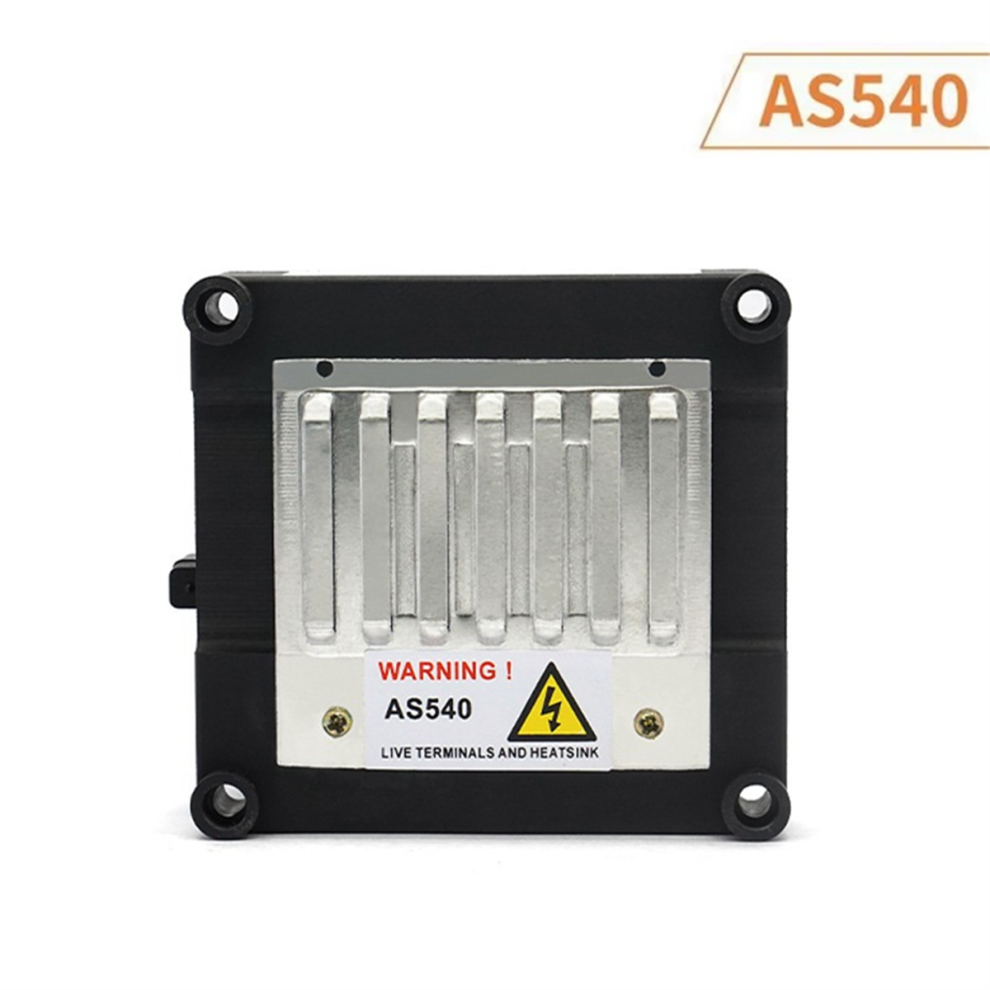

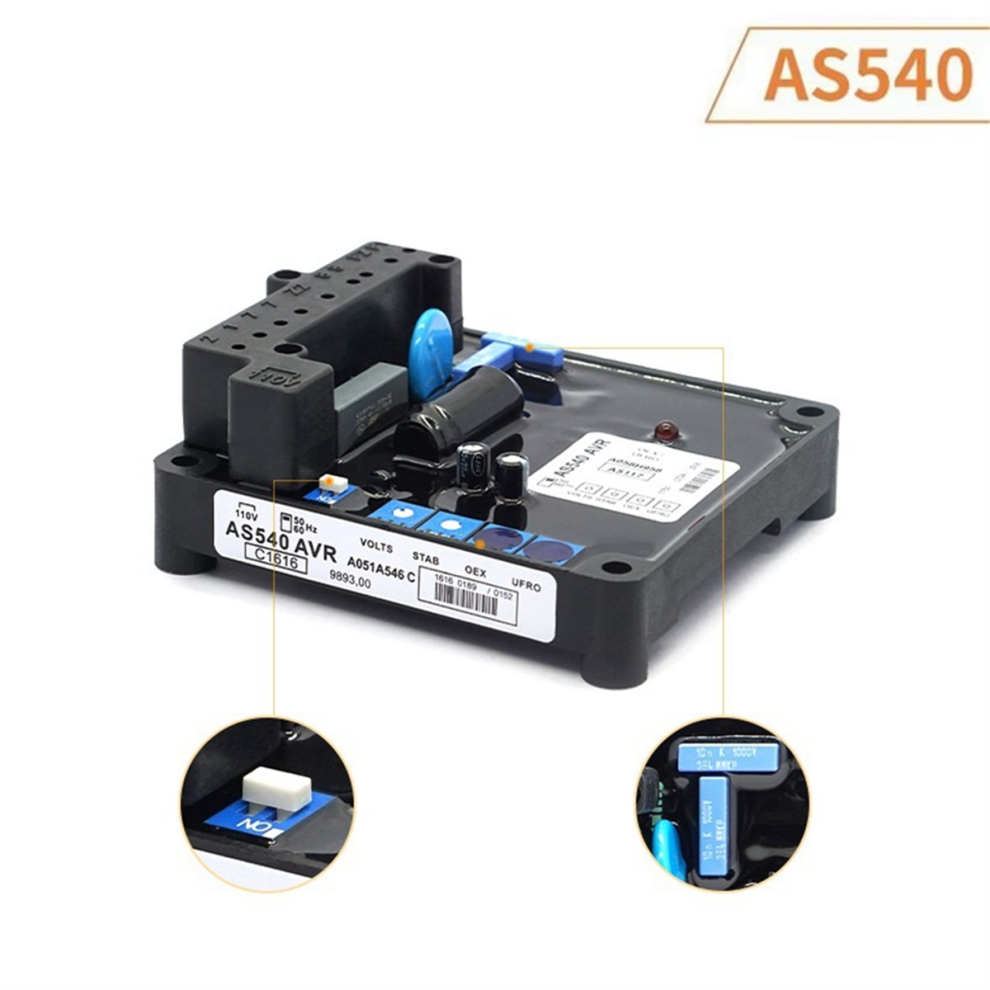

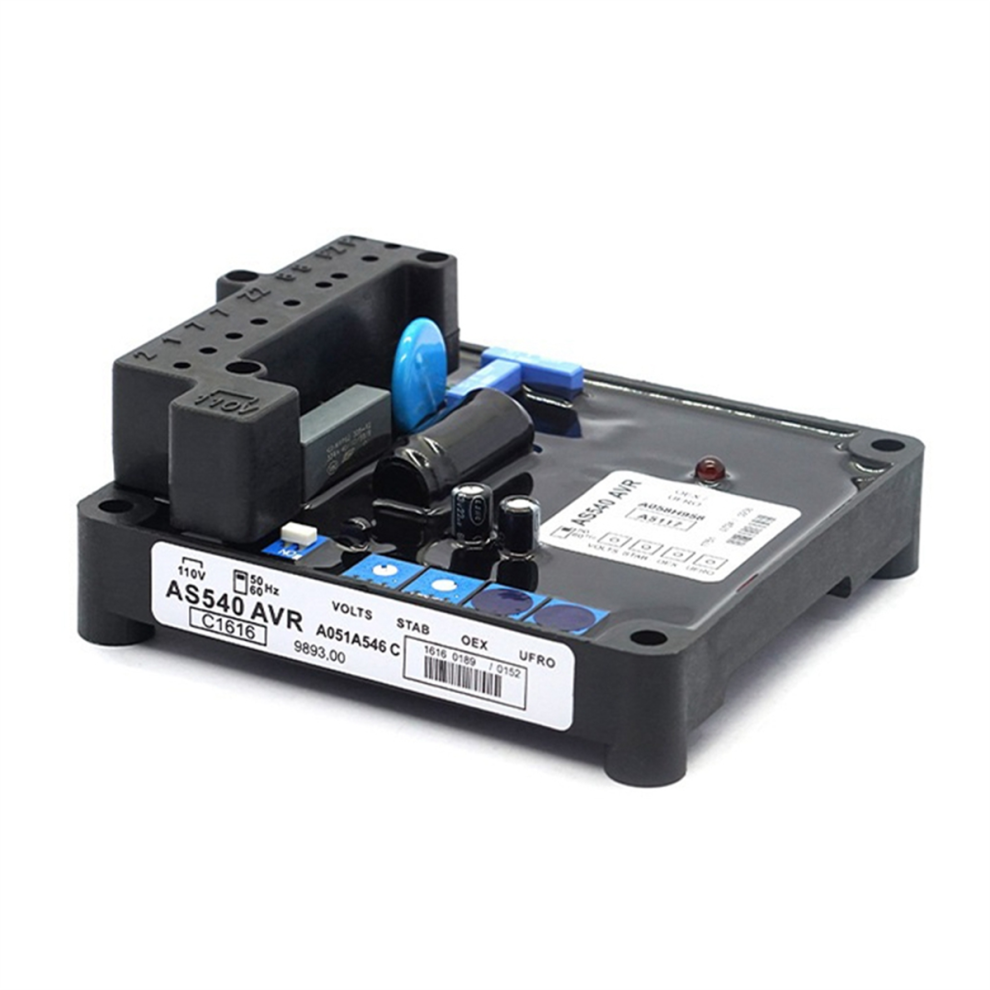

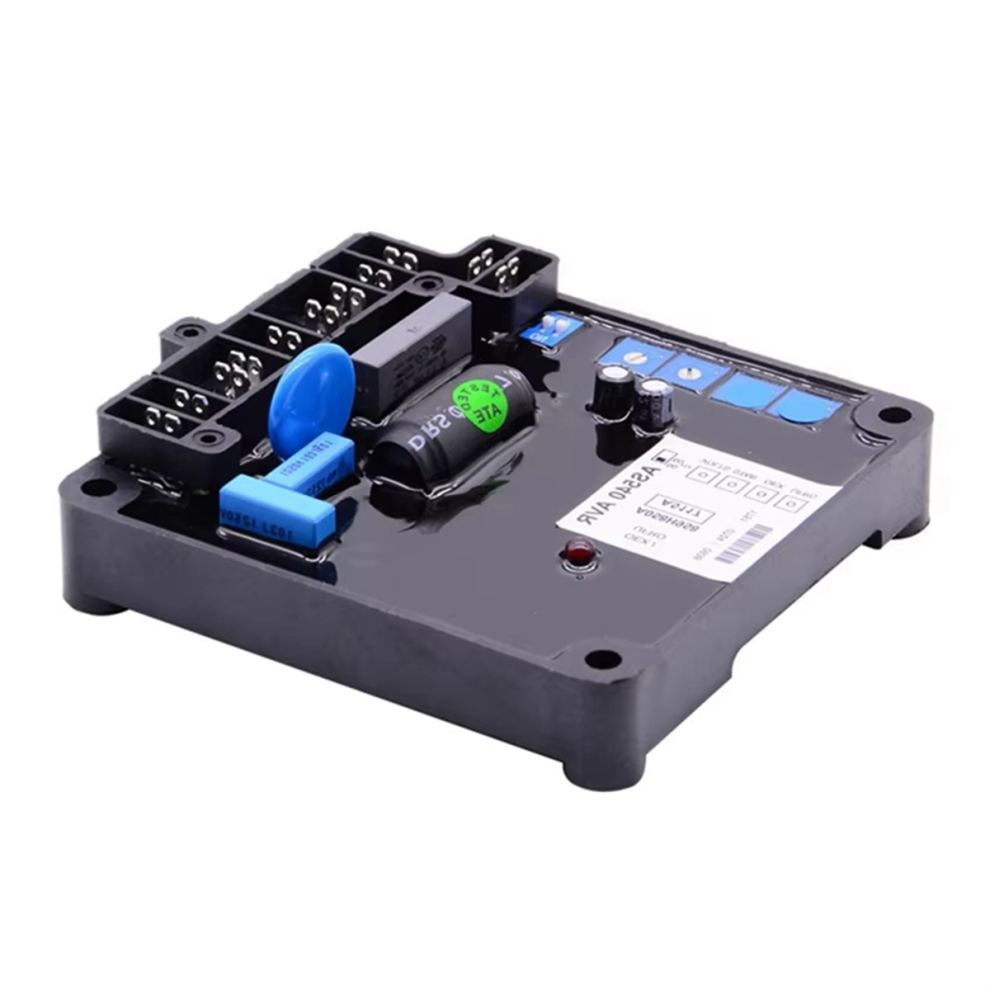

AS540 AVR Brushless Generator Automatic Voltage Re

AS540 AVR Brushless Generator Automatic Voltage Re Description

1. Adopted of high quality electronic components, and accuracy process, for the durability
2. High accuracy, the pressure regulation accuracy is less than 1%
3. Professional design, it can provide stable performance.
4. Suitable for S0/ (7.5KVA-62.5KVA) generator
5. With generator voltage regulation, over voltage , low , high voltage stability and adjustable voltage range

Sensing Input/Power input
95 VAC to 130 VAC 1 phase or 190 VAC to 265 VAC 1 phase
Magnetic field output
Voltage:Max. 82 Vdc @ 200 Vac input
Current:Continuous 4A, Transient 7.5A for 10 seconds
Pressure regulationg accuracy
Less than +/-%RMS with 4% engine governing
Model: AS540
Detection and Power Input: Voltage 120 (95-130) / 240 (190-265) VAC
Single-phase two-wire selection with jumper copper
Magnetic Field Output: Maximum 82V DC at 200VAC input
Current: 4A Continuous, non-continuous 10 seconds 7.5A
Pressure Regulation Accuracy: Less than 1%
Note:due to different production batches, the printing screen printing/appearance is different, which does not affect the use.
Colour:Black
Material:plastic+metal

Package Contents:
1 x automatic voltage regulator

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
