ASMC-04A Super Torque Digital Servo for Large Robot Manipulator Servo

ASMC-04A Super Torque Digital Servo for Large Robot Manipulator Servo Description

1. Digital steering gear, sensitive response, large stroke, zero blind zone
2. The power stabilization technology ensures that the steering gear continues to work. It is completely different from other steering gears that use fuse protection. This product stably control the steering gear to work within a safe torque. Never drop the connection.
3. Meet the requirements of mechanical designs
4. Application fields: medium and large robots, robotic arms and other high-power and high-torque control fields
5. Perfectly compatible with remote control systems such as for Futaba, JR, , Hitec, etc.

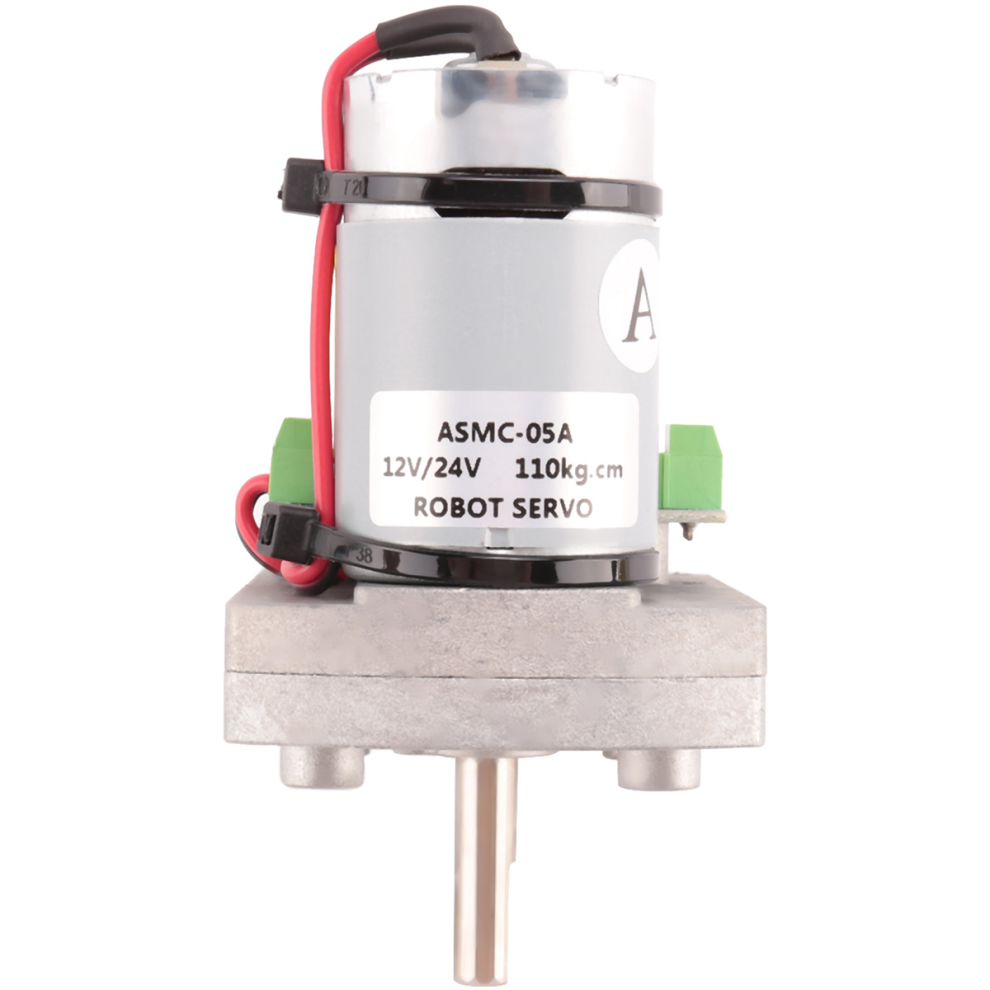

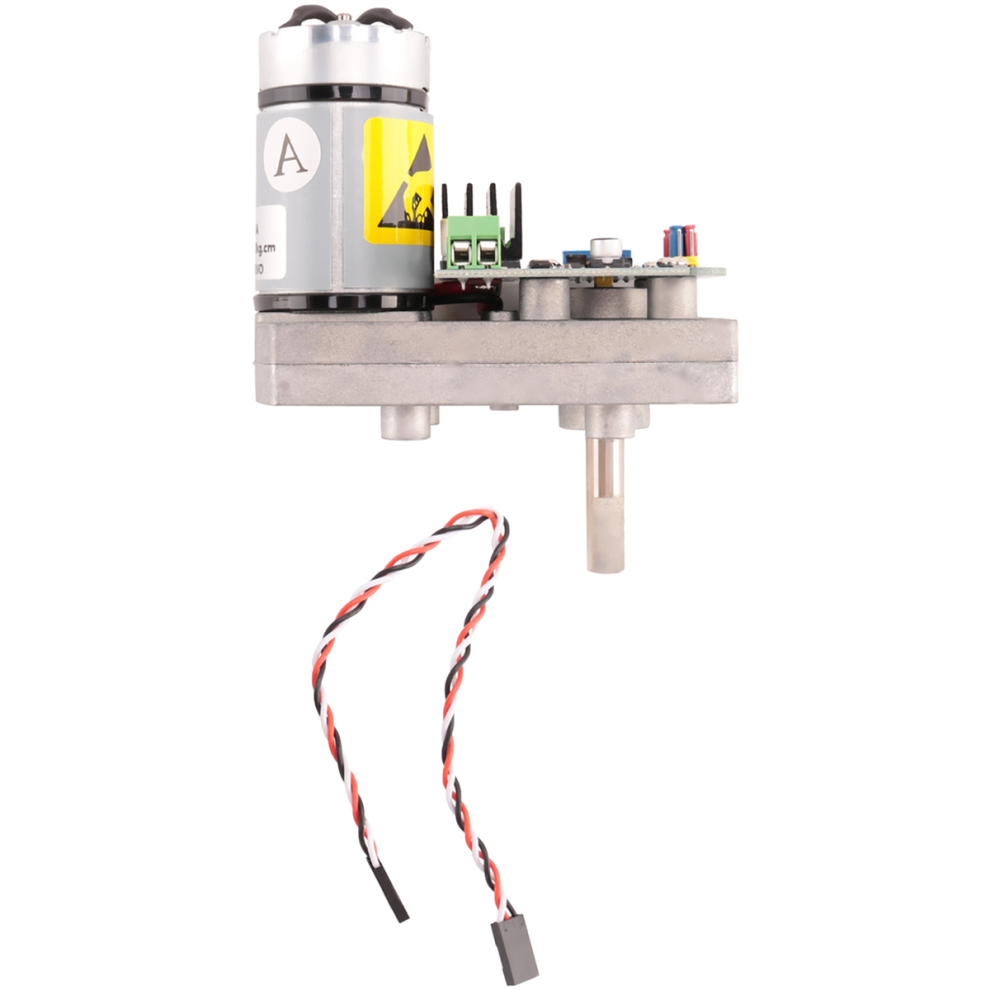

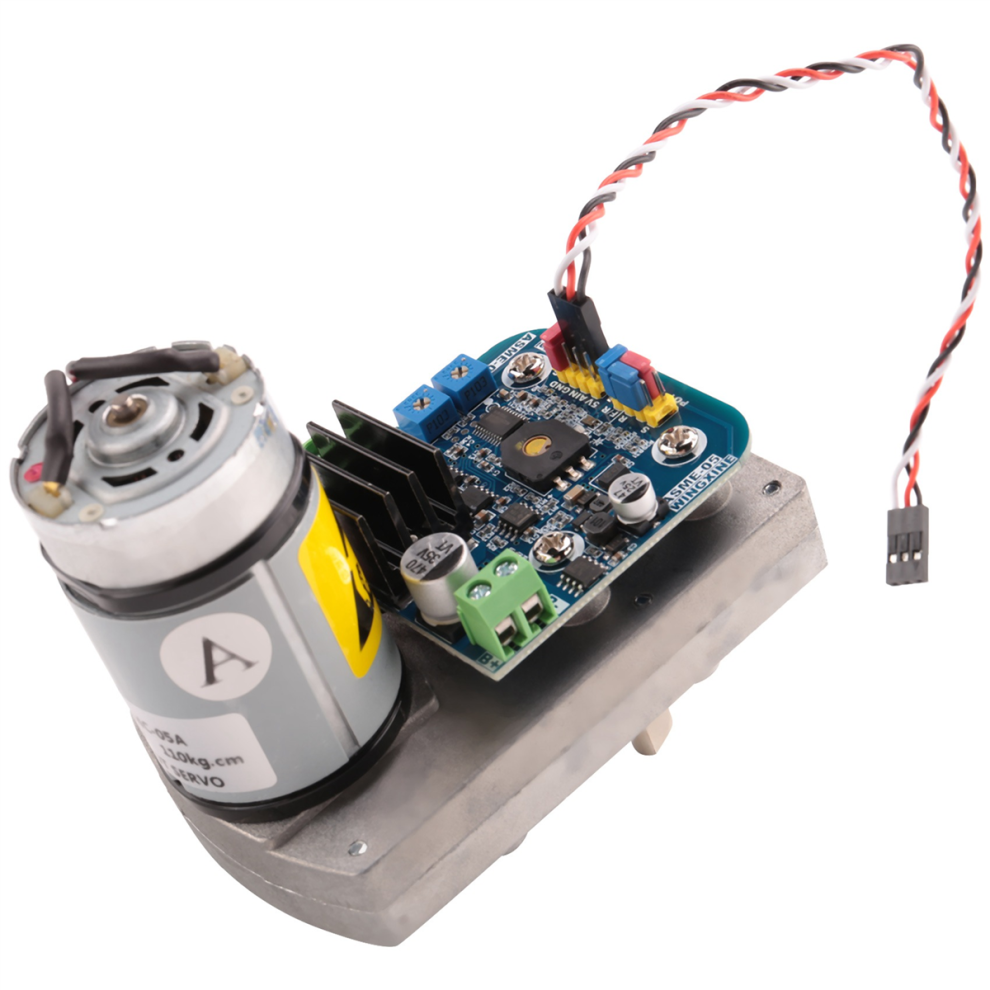

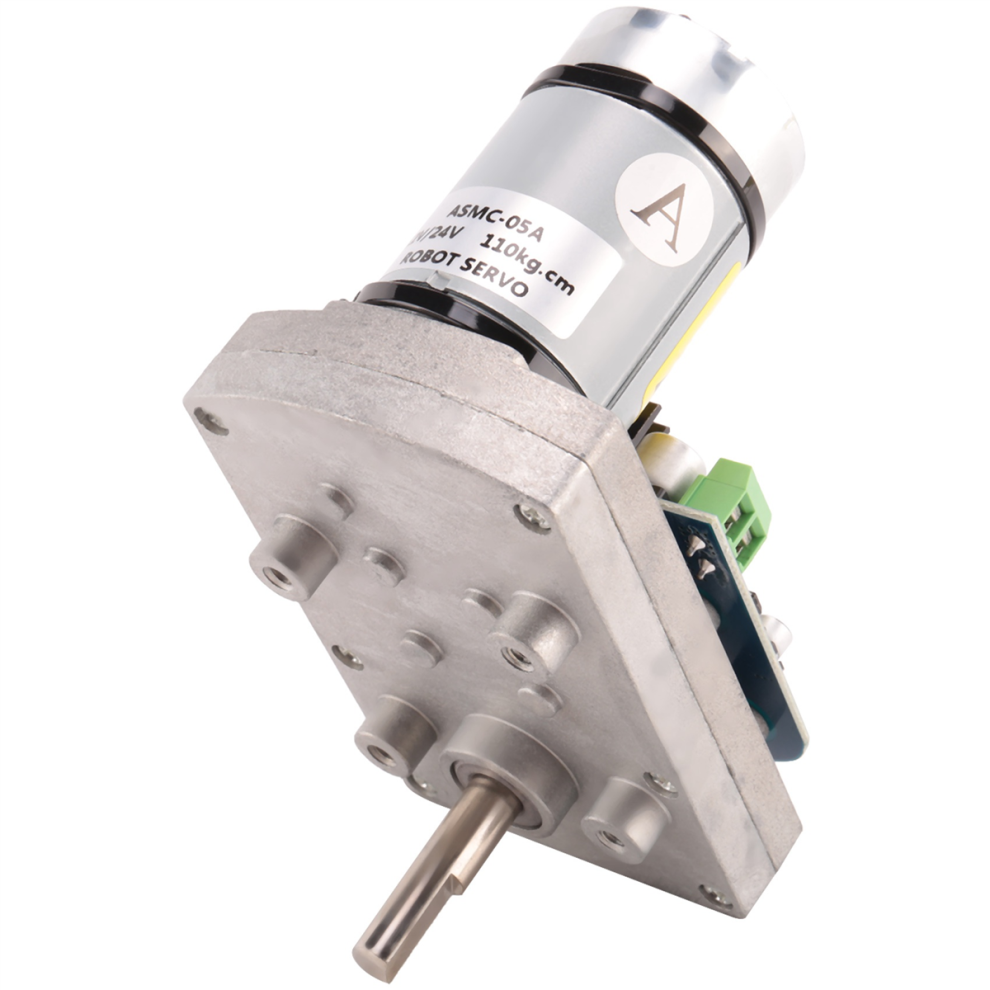

Product name: ASMC-04A Super Torque Digital Servo
Working voltage: 12V to 24V (DC) (this means that any voltage between 12V or 24V can be used)
No-load rotating current: less than 500mA
Maximum torque: 110kg.cm (24V) (actual measurement, not theoretically calculated value)
1078N.cm(24V) (actual measurement, not theoretically calculated value)
55kg.cm(12V) (actual measurement, not theoretical calculation value)
539N.cm(12V) (actual measurement, not theoretical calculation value)
Angular speed: 0.12s/60(0.12s is required to turn 60 degrees), at 24V;
0.24s/60(0.24s is required for 60rotation), at 12V;
Rotation angle: 300MAX, which means the maximum stroke is 300 (0 to 300 electronic limit is adjustable)
Input mode: pulse signal (remote control, multi-channel steering gear controller, single-chip microcomputer) or analog voltage signal (potentiometer)
Pulse signal input range: 0.5ms-2.5ms suitable for all "multi-channel steering gear controllers", "1ms-2ms model airplane remote control", "MCU programming", "", etc.;
Voltage signal input range: 0V to +5V
Control accuracy: 0.32
colour: blue
Material: PCB+metal
Size: 95.5x60.5x102.6mm

Package Contents:
1 x ASME-04A Servo

Only the above package content, other produc are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
