AT42QT1010 Standalone Momentary Capacitive Touch Sensor Breakout

AT42QT1010 Standalone Momentary Capacitive Touch Sensor Breakout Description

Standalone capacitive touch sensor module The AT42QT1010 is a standalone momentary capacitive touch sensor breakout module designed for easy integration into DIY electronics projects and industrial applications.
High sensitivity and reliability Featuring advanced capacitive sensing technology, this module offers reliable touch detection with minimal false triggers, ideal for touch-based control interfaces.
manufactured in Mainland China, ensuring quality and compatibility with standard electronic systems.

Description

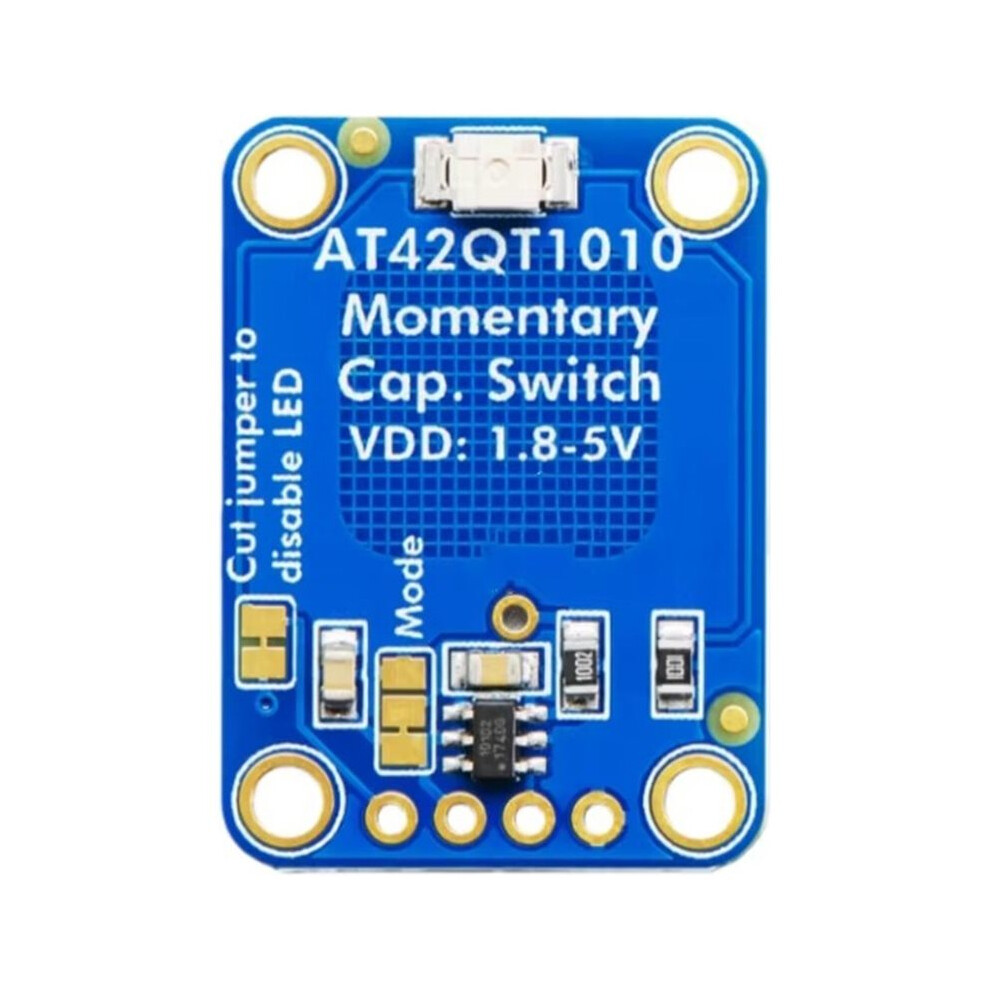

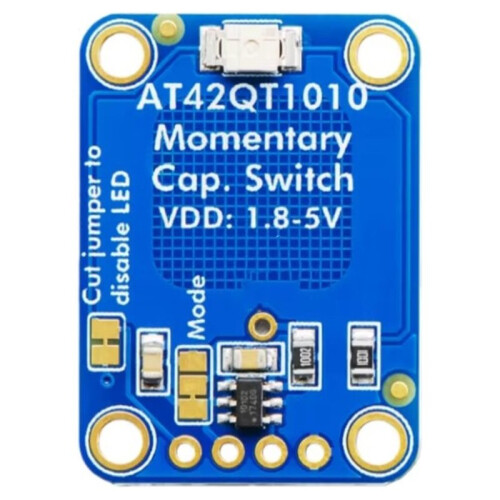

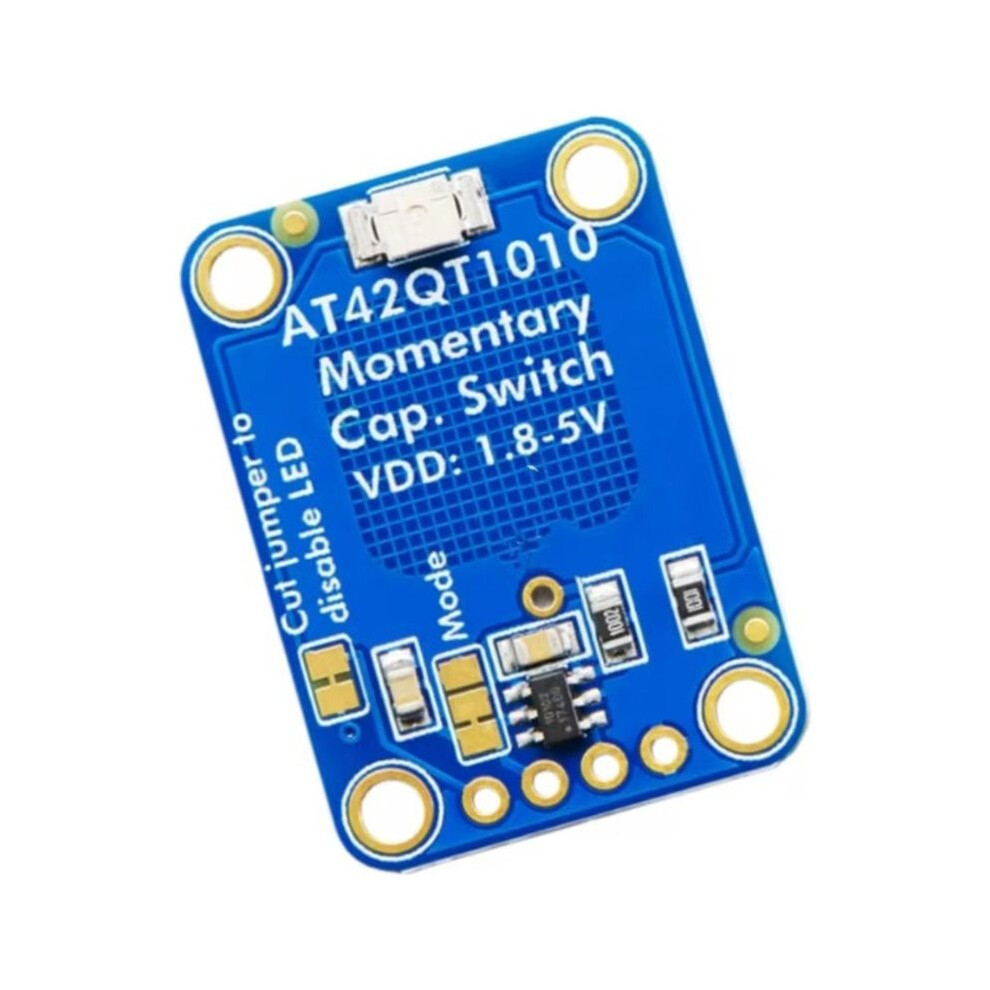

This breakout board is the simplest way to create a project with a single "momentary" capacitive touch sensor. No microcontroller is required here - just power with 1.8 to 5.5VDC and touch the pad to activate the sensor.

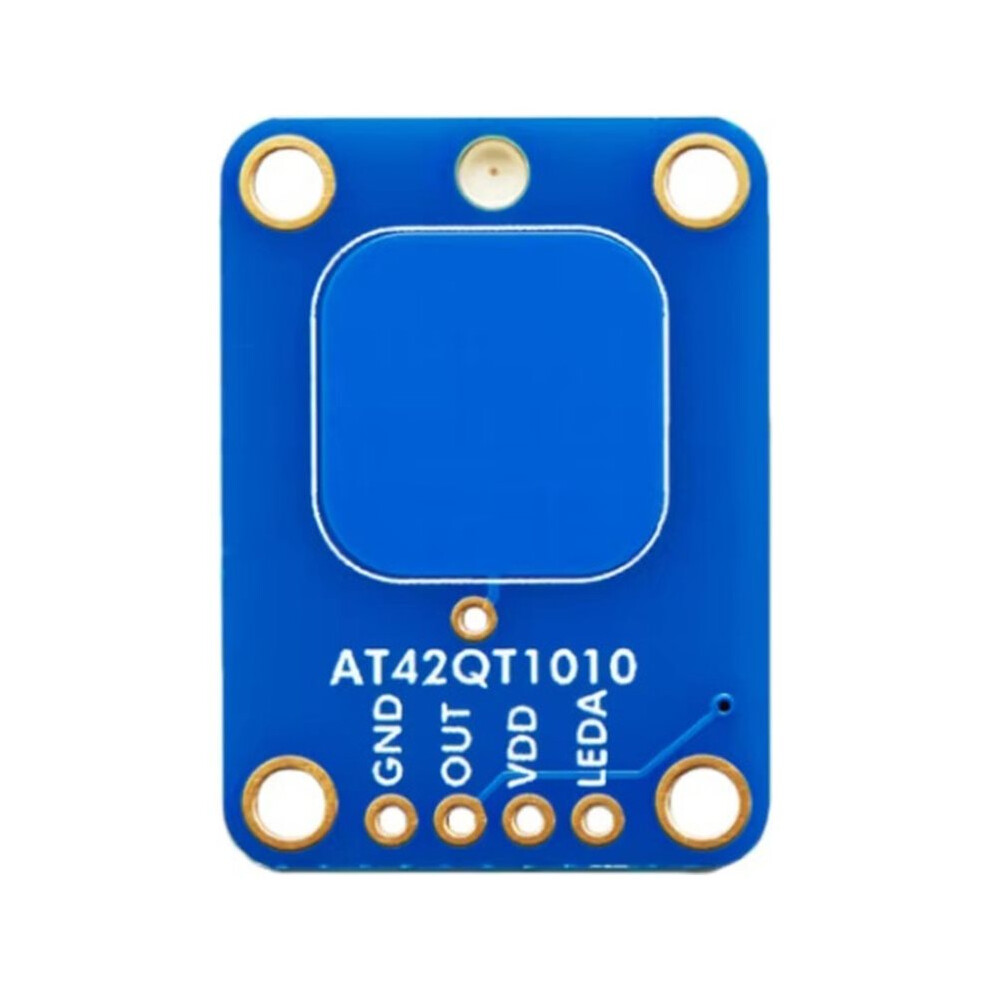

When a capacitive load is detected (e.g. a person touches the sensor-pad area) the red LED lights and the output pin goes high. You can also solder a wire to the middle pad and create your own capacitive pad if the built-in one isn't suited to your project.

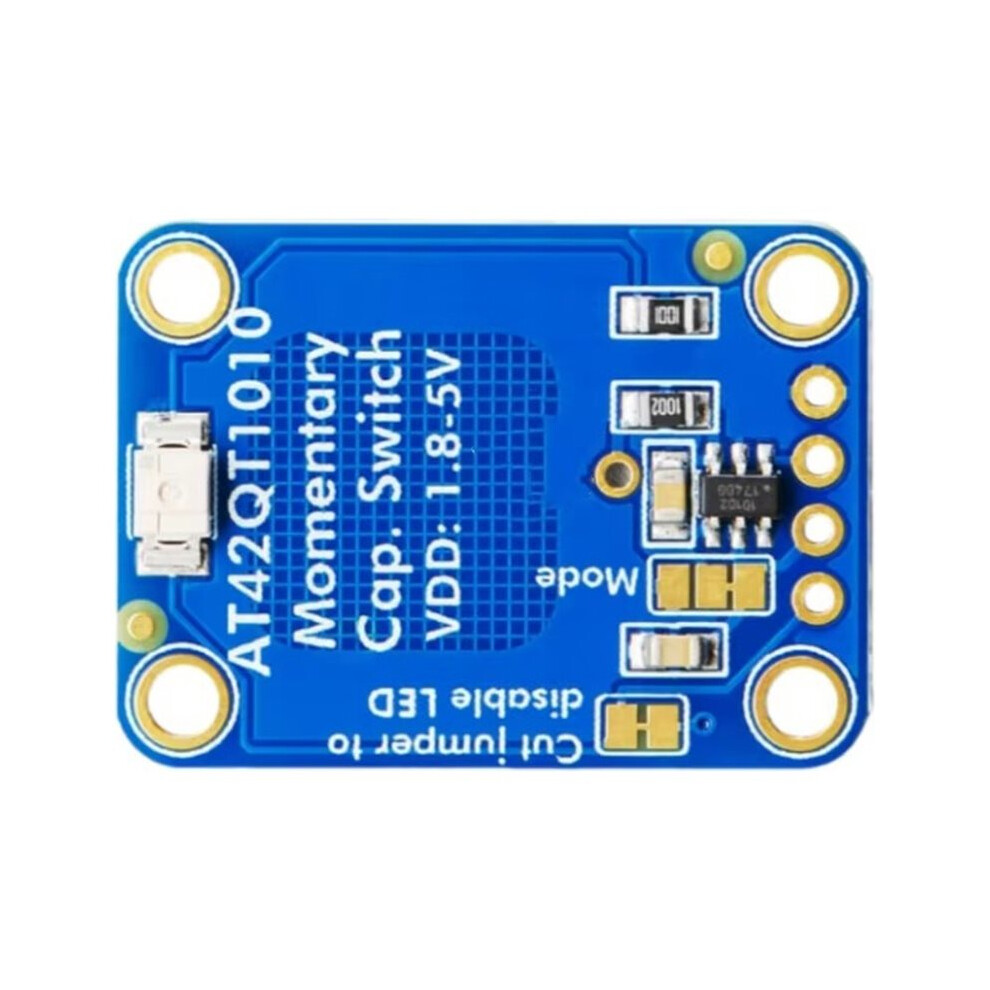

If you want to save power, the LED can be disconnected from the output pin (cut the trace between the jumper marked as such). We designed this breakout to have the more-responsive "fast mode" which draws about 0.5mA. If you need ultra-low (~50uA) power usage, the mode jumper can be cut one side & soldered closed the other to fix it into that mode. Check the datasheet for specific power usage measurements.

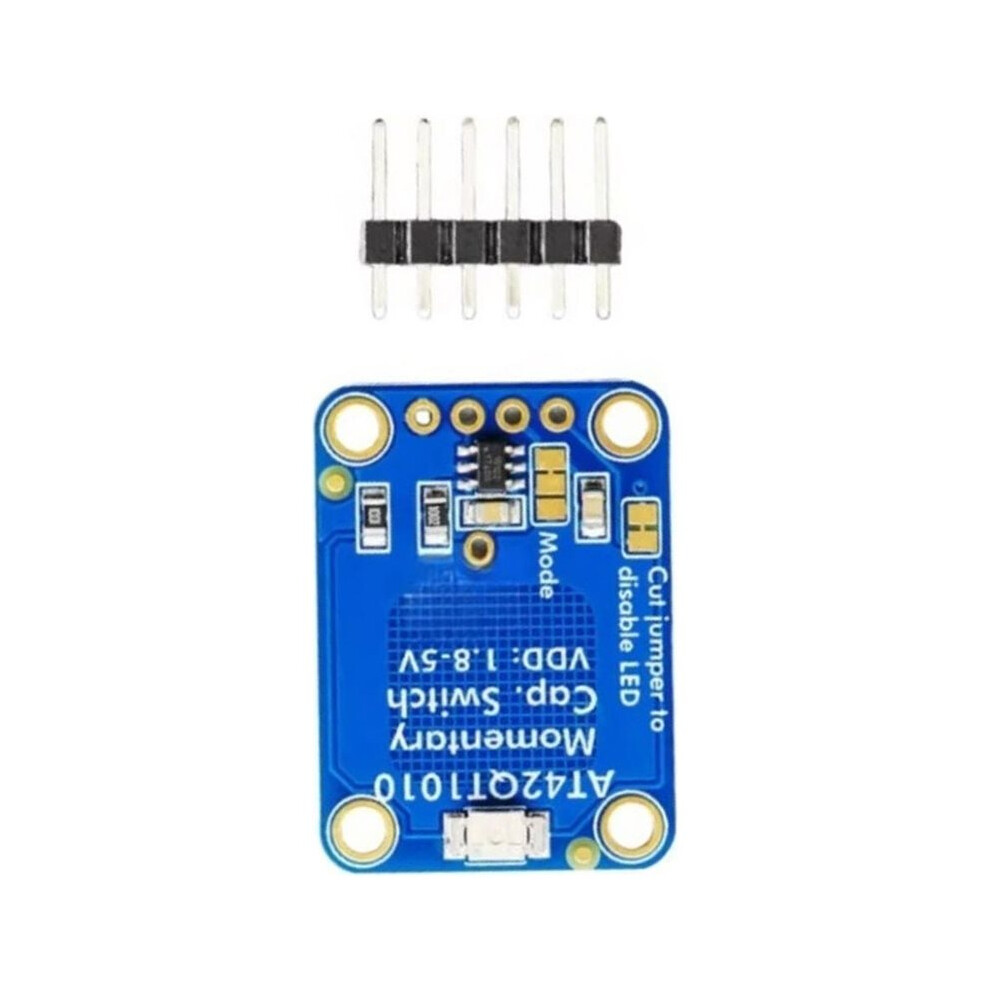

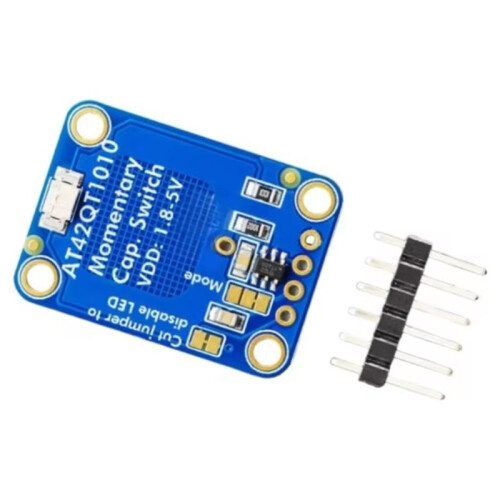

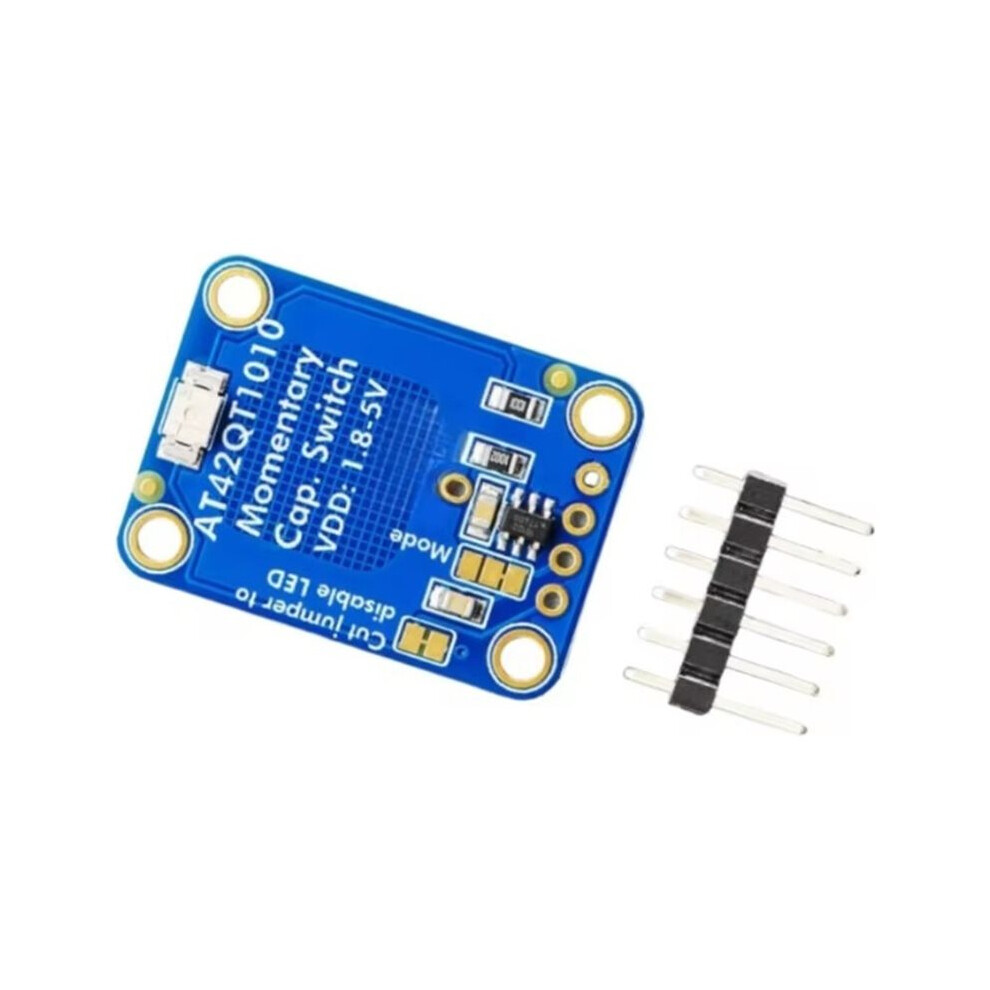

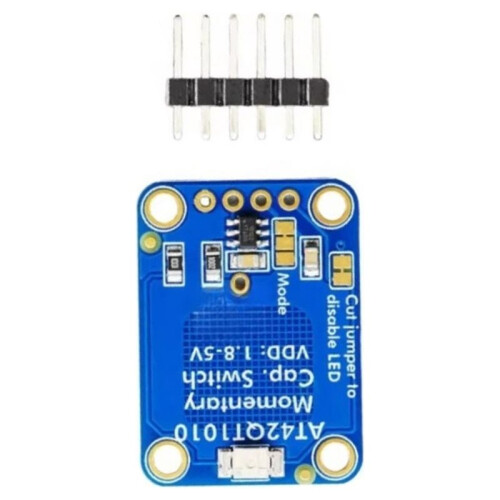

Comes with a fully assembled board, and a small stick of 0.1" header so you can solder and plug it into a breadboard. For additional contacts, we suggest using copper foil, then solder a wire that connects from the foil pad to the breakout.
Color: As Shown
Material: PC

Package Contents:
1*Breakout
1* Pin header
