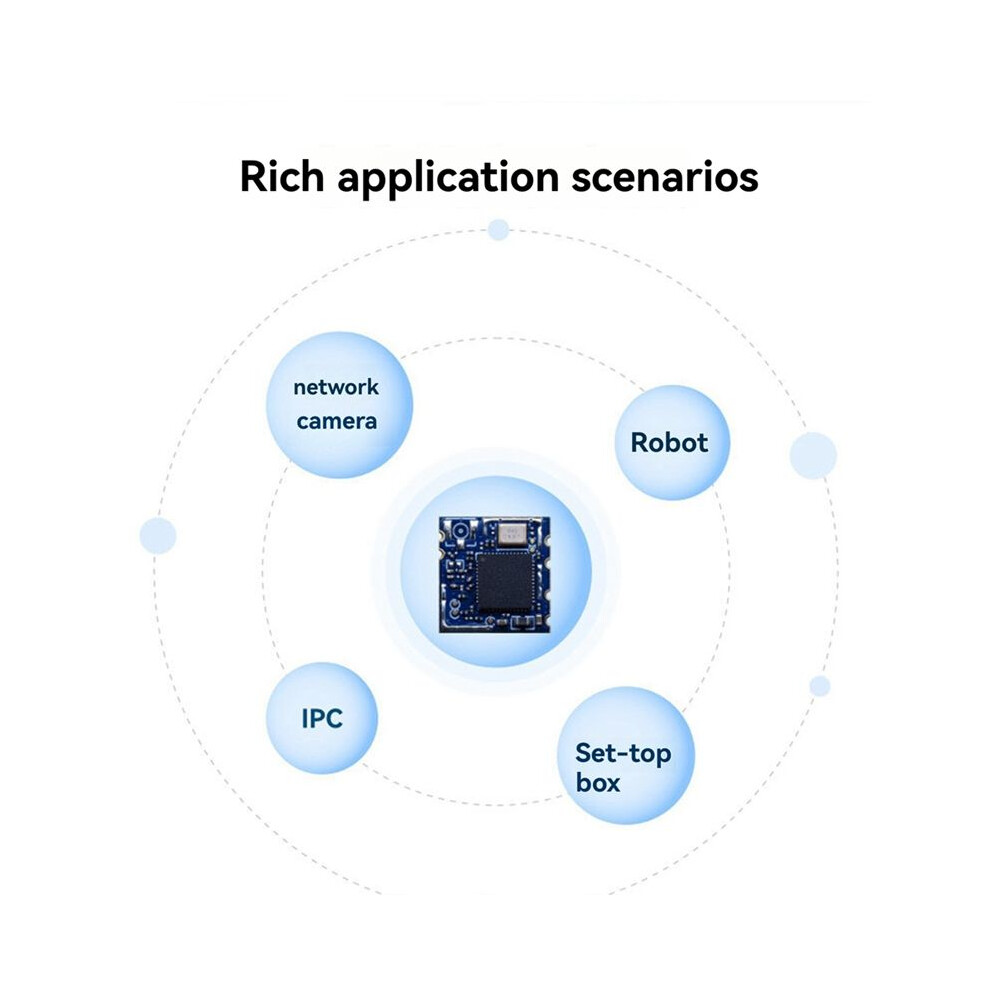

BL-M6555XU1 Dual-Band 5G Wireless Module Wifi Module BLE Distribution for Network Camera, Robot, IPC, Set-Top Box
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 137,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Standard (€3.50) | Fri 13th - Thu 19th Nov
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Summary
- 1. IntroductionBL-M6555XU1-M is a highly integrated Dual-band WLAN + BLE v5.0 Combo module.
- 2. It combines a 1T1R Dual-band WLAN subsystem and a BLE v5.0 subsystem.
- 3. This module compatible IEEE 802.11 a/b/g/n/ax standard and provides the maximum PHY rate up to 229Mbps, only supports BLE v5.0 mode.
- 4. It offering feature-rich wireless connectivity at high standards, and delivering reliable, cost-effective, high throughput from an extended distance.
- 5. Operating Frequency: 2.4-2.4835GHz or 5.15-5.85GHz;Compatible IEEE 802.11a/b/g/n/ax;Support 802.11ax 40MHz MCS9 up to 229Mbps;Support Bluetooth Low Energy v5.0;Host interface is USB2.0;Connect to the external antenna through MHF1/IPEX connector;3.3V±0.2V single power supply
BL-M6555XU1 Dual-Band 5G Wireless Module Wifi Module BLE Distribution for Network Camera, Robot, IPC, Set-Top Box Description

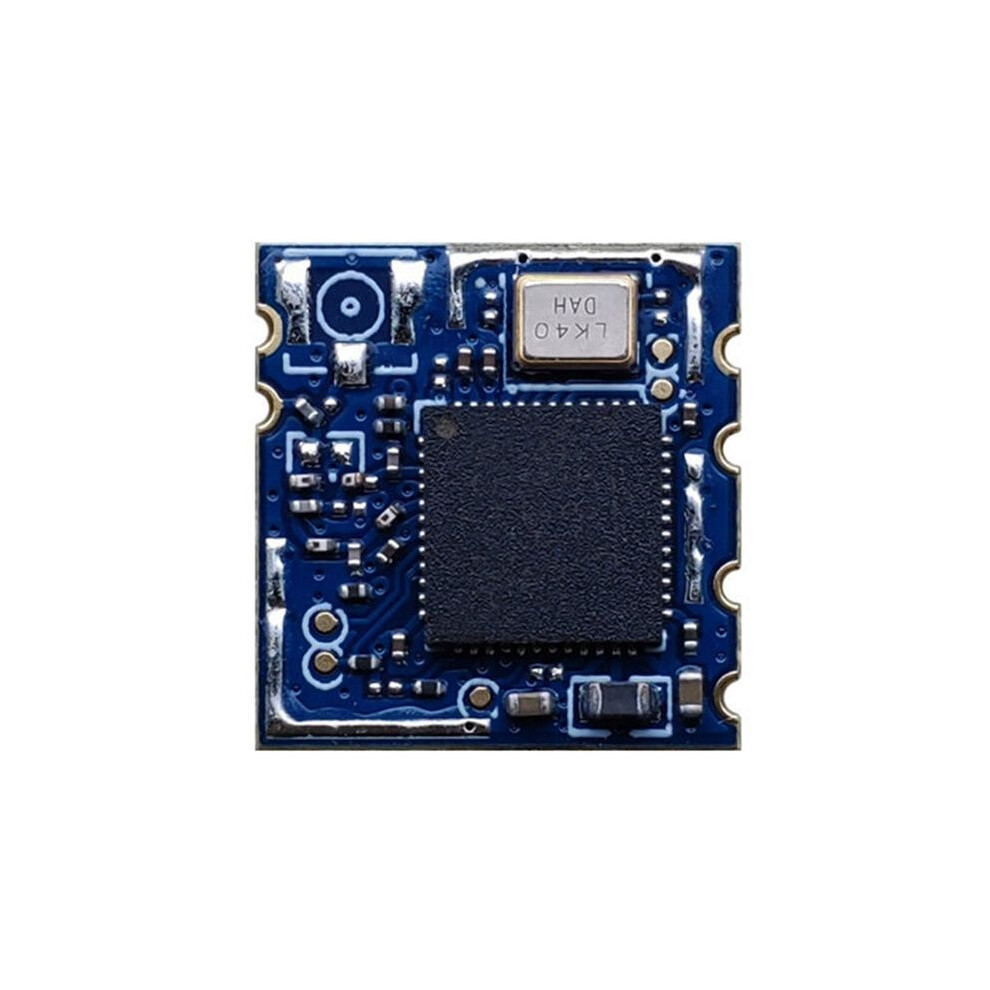

1. IntroductionBL-M6555XU1-M is a highly integrated Dual-band WLAN + BLE v5.0 Combo module.
2. It combines a 1T1R Dual-band WLAN subsystem and a BLE v5.0 subsystem.
3. This module compatible IEEE 802.11 a/b/g/n/ax standard and provides the maximum PHY rate to 229Mbps, only supports BLE v5.0 mode.
4. It offering feature-rich wireless connectivity at high standards, and delivering reliable, cost-effective, high throughput from an extended distance.
5. Operating Frequency: 2.4-2.4835GHz or 5.15-5.85GHz;Compatible IEEE 802.11a/b/g/n/ax;Support 802.11ax 40MHz MCS9 to 229Mbps;Support Low v5.0;Host interface is USB2.0;Connect to the external antenna through MHF1/IPEX connector;3.3V0.2V single power supply

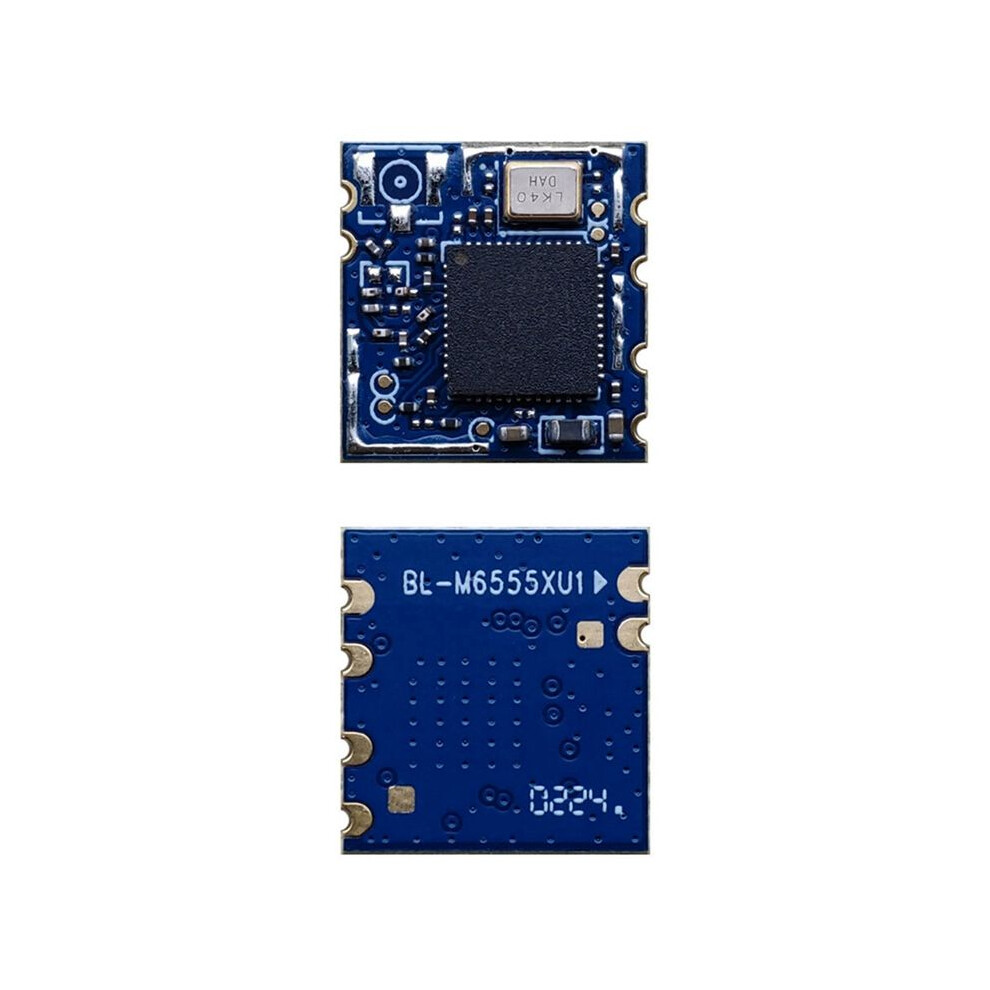

Module Name:BL-M6555XU1-M
Chipset:SV6555-M
WLAN Standards:IEEE802.11a/b/g/n/ax
BT Specification: Low v5.0
Host Interface:USB2.0 for WLAN &
Antenna:Connect to the external antenna through MHF1/IPEX connector
Power Supply: 3.30.2V@ 600 mA (Max)
Operation Temperature:-20 to +70
Operation Humidity:10% to 95% RH (Non-Condensing)
Due to different batches, there may be differences in product appearance and printed text, which will not affect use.
Colour:
Material:PCB
Package Contents:
1 * BL-M6555XU1 dual-band 5G wireless module
Details
| OPC | PYGZ6HH |
|---|---|
| Codes | 6031765753898 (EAN) |
| Product and Safety Information |
Product Data
| Height | 1cm |
|---|---|
| Width | 4cm |
| Length | 5cm |
| Weight | 0.002kg |
| Colour | Blue |
| Material | PCB |
