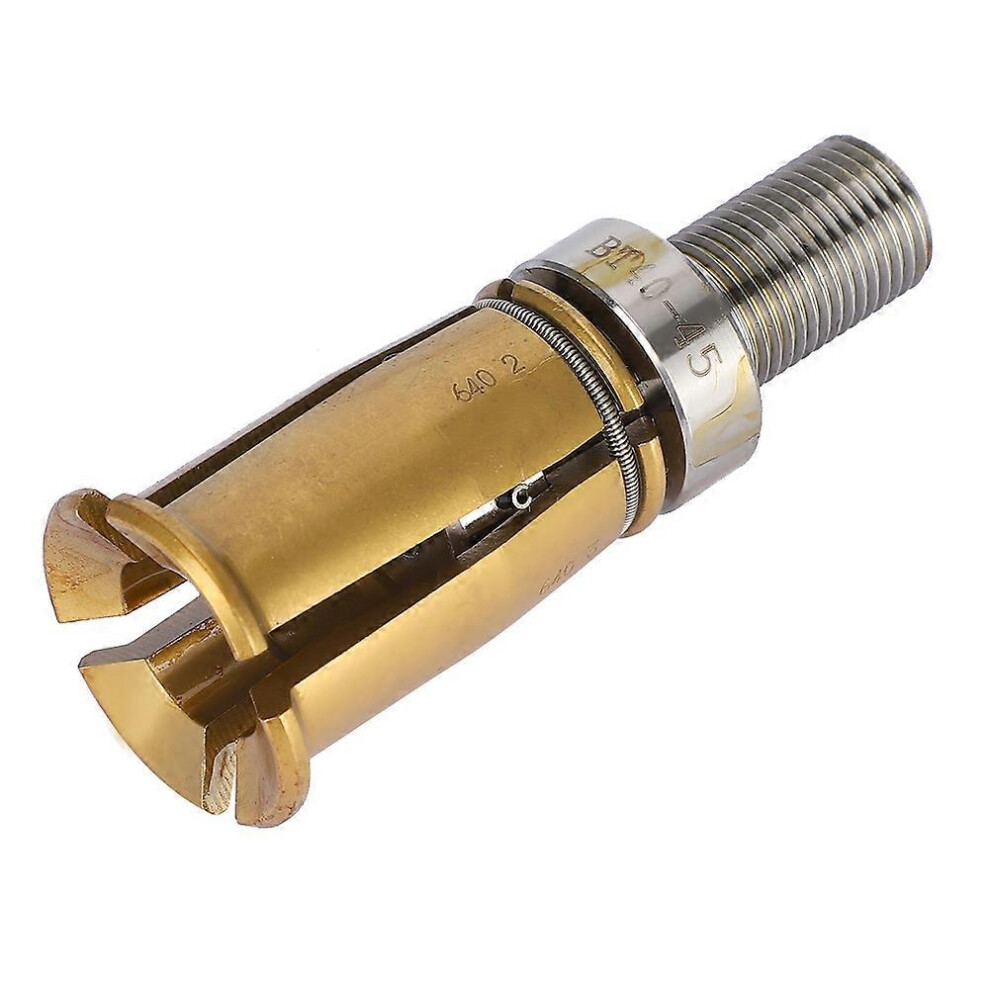

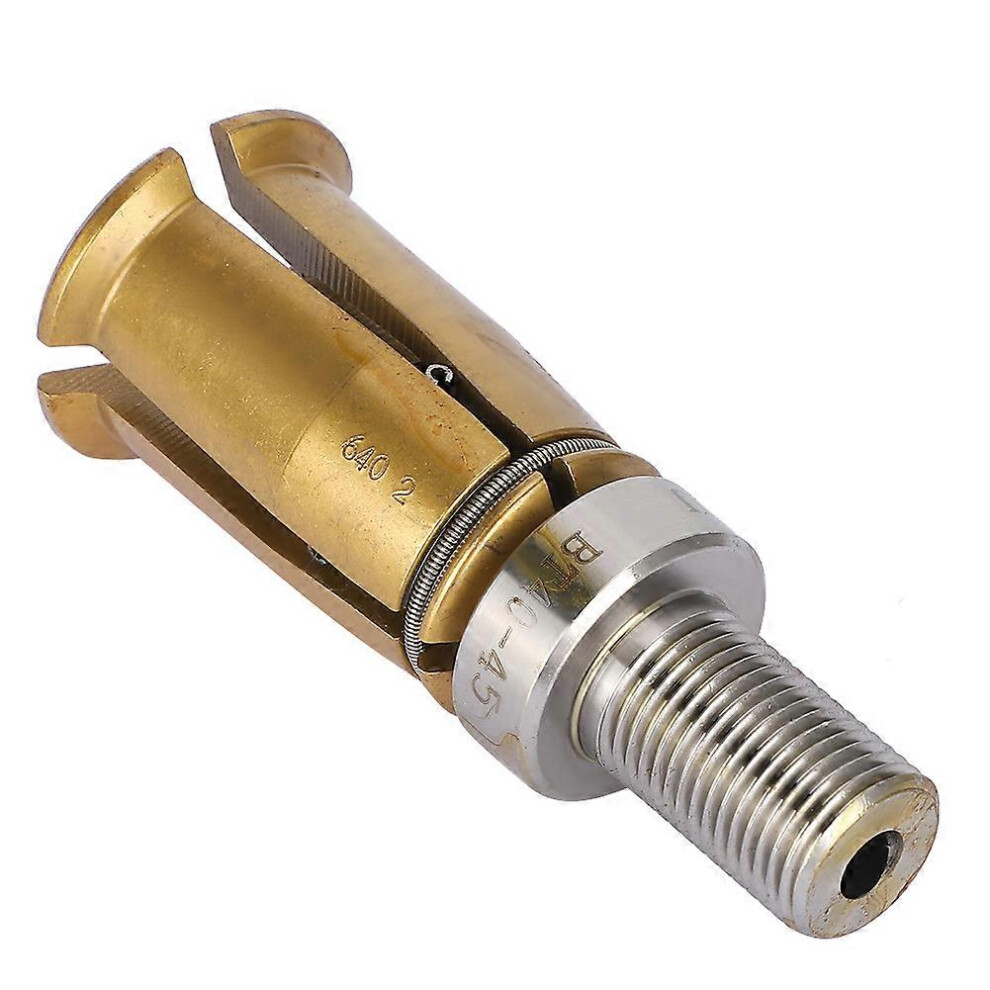

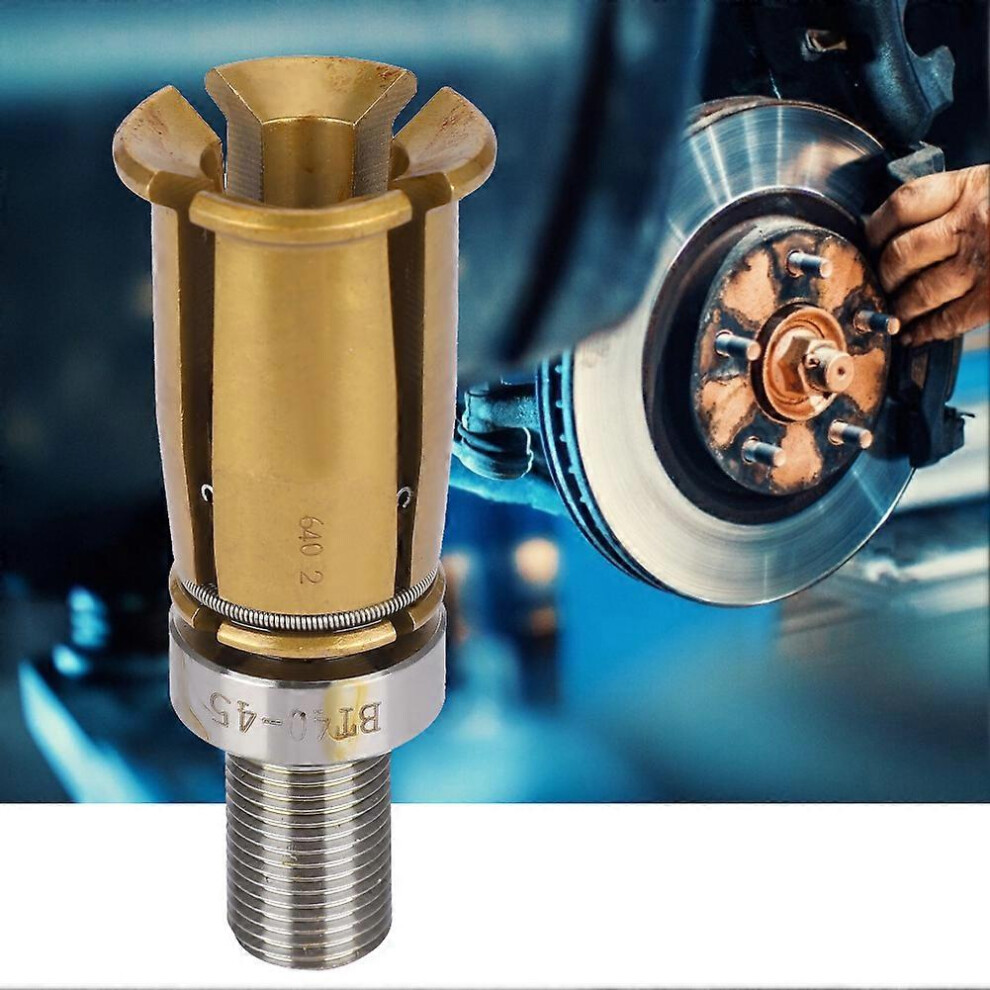

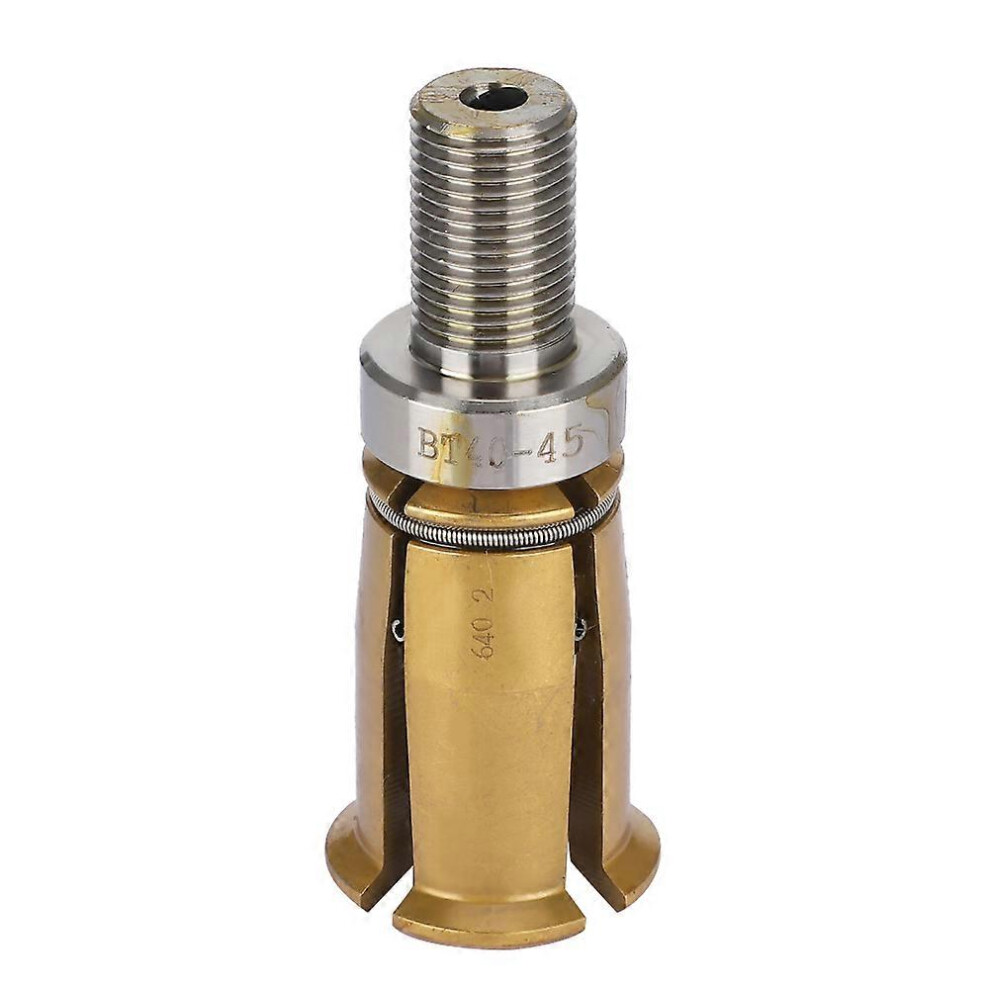

BT40-45 External Thread Pull Claw for Machining Center Spindle Automatic Tool Changer hwy

BT40-45 External Thread Pull Claw for Machining Center Spindle Automatic Tool Changer hwy Description

Item Type: Pull claw

Model: BT40-45

BT-40 spindle pulling claw,four-lobed claw for MAS403-1982 Bt /PT1 (45 )

Spindle Taper: 7:24

Rated Rate: 8000 (rpm)

Maximum Rate Temperature Rise: 300 ()

Dynamic Equilibrium: 3 (mg)

Maximum Rate Noise: 10 (db)

Taper Hole Oscillation: 0.002 mm /0.000079 in

Overall Length: Approx. 86mm /3.39in

Jaw Length: Approx. 50mm /1.97in

Flange Outer Diameter: Approx. 26mm /1.02in

External Thread: M approx. 16 x 1.5mm /0.63 x 0.06in

Equipped with Pull Studs: 45 for 45 externally threaded CNC spindle

1、Used for 45 degree external thread CNC spindle,the pull claw is easy to use in the practical life.

2、With position holding function,the spindle clamp is entitled with high performance according to strict rule.

3、Via special processing section,it can keep wear prevention,which practical and useful to use.

4、After many inspections before leaving the factory,the quality is guaranteed,you can use it with confidence.

5、Entitled with pratical adoptability,its high quality can keep its high performance for a long time.1 x Pull Claw
