CANable V2.0 Pro USB to CAN Protocol Analyzer Adapter, CAN 2.0 Serial Controller Supports CAN FD, Type-C Interface

CANable V2.0 Pro USB to CAN Protocol Analyzer Adapter, CAN 2.0 Serial Controller Supports CAN FD, Type-C Interface Description

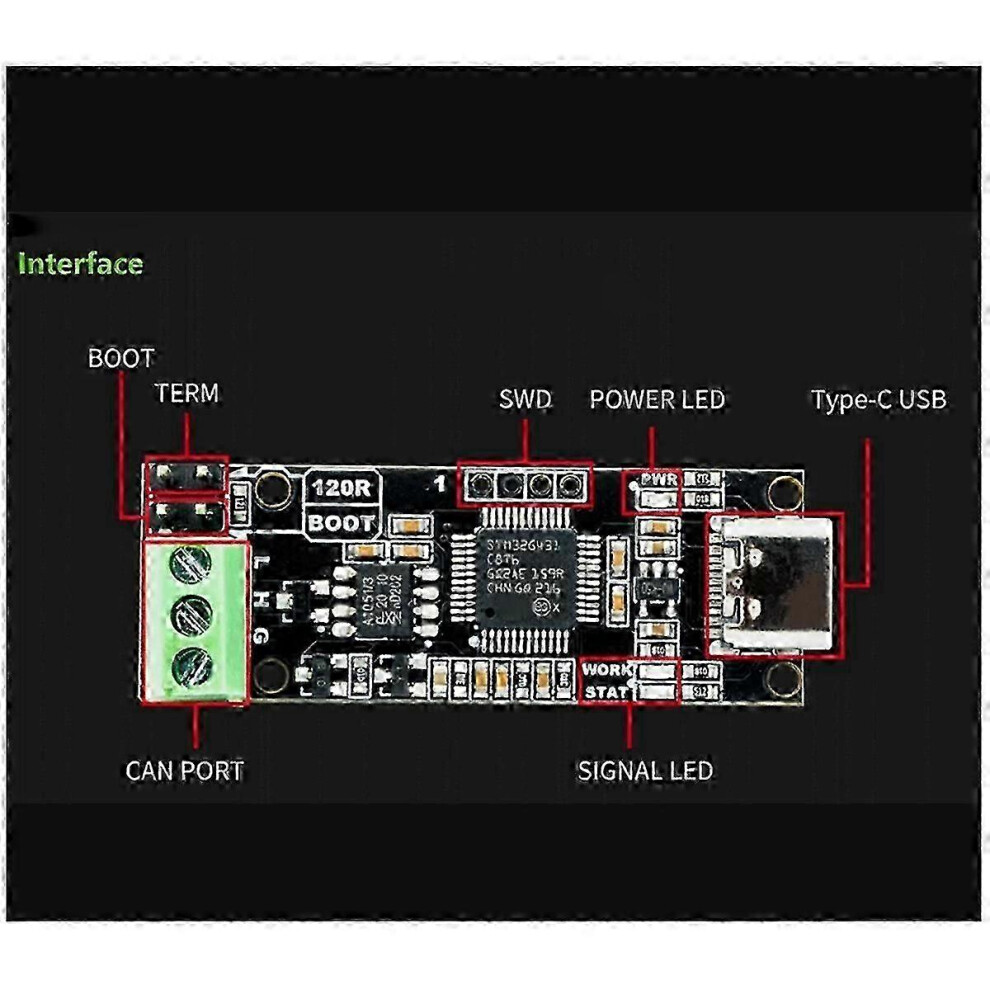

Product Details 1. Upgraded USB to CAN analyzer with support for CAN 2.0A, CAN 2.0B and CAN FD, suitable for industrial debugging and motor field applications 2. Strong anti-interference ability ensures stable operation even at high mission rates 3. Compatible with Linux as a native CAN interface when using candleLight firmware 4. Works with ARM-based embedded platforms including Raspberry Pi, Raspberry Pi Zero, ODROID and Beagle Bone for easy product integration 5. High-performance ARM Cortex-M4 STM32G431C8T6 processor with operating frequency up to 170MHz 6. Selective terminal resistor enable/disable via short-circuit cap for flexible configuration Specification 1. Material: ABS 2. Colour: As Shown 3. Analyzer Board Version: V2.0 / V2.0 Pro 4. Baud Rate: Up to 1M (standard), 2M/5M (CAN-FD test rate with sl can firmware) 5. Interface: Type-C USB 6. Compatible with: ARM-based embedded platforms, including Raspberry Pi, Raspberry Pi Zero, ODROID, Beagle Bone Package Contents 1. 1 x USB data cable 2. 1 x 3pin double Dupont cable 3. 1 x analyzer board Warm Tips 1. Light reflection and different displays may cause slight color difference between the product and pictures 2. Allow +/- 1-3cm measurement error due to manual measurement 3. Supports online firmware upgrade and DFU mode firmware upgrade 4. Schematic diagram, firmware, source code and host computer software are provided
