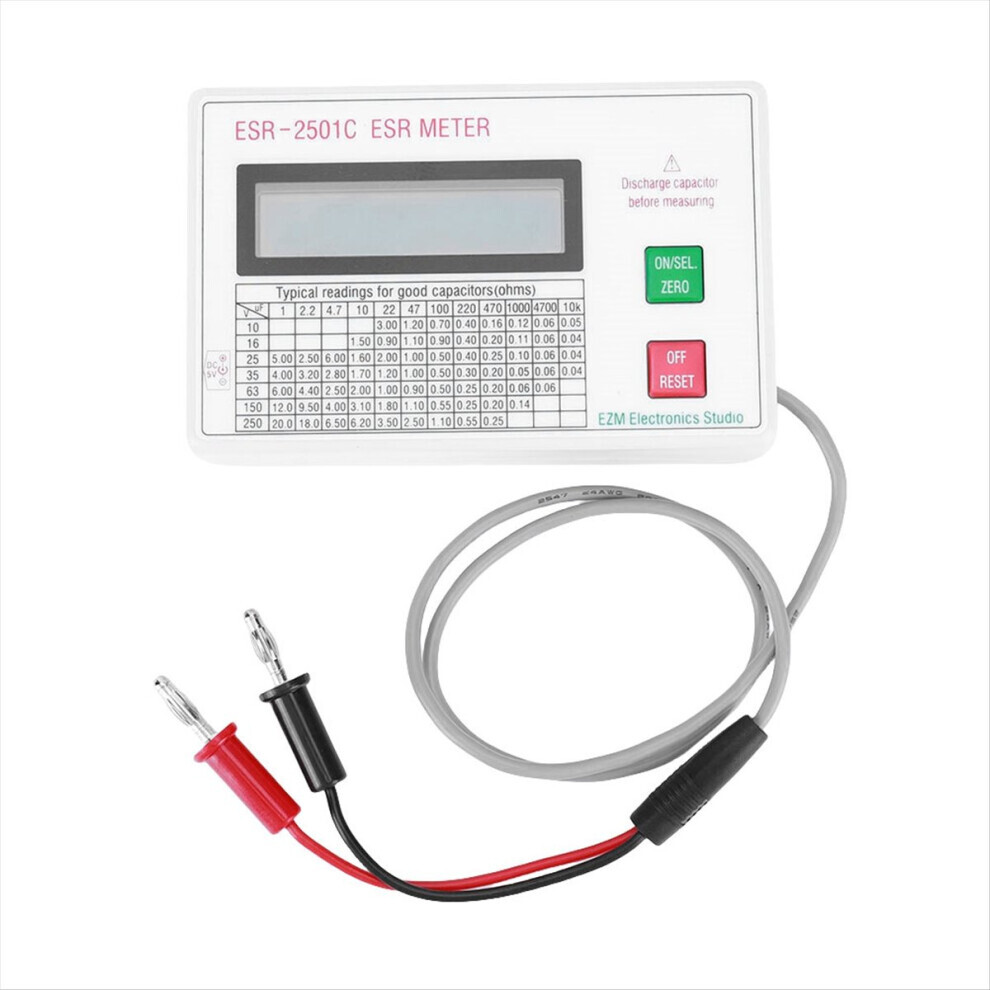

Capacitor tester, circuit test, capacitance meter

Capacitor tester, circuit test, capacitance meter Description

Capacitor Tester Circuit Test Capacitance Meter Description
1. High-Precision Measurement: The capacitor tester can accurately measure the capacitance of capacitors.
2. Wide Frequency Range: The tester can perform measurements at various frequencies up to 100 kHz.
3. Easy Operation: The capacitor tester features a user-friendly interface and control system, making operation simple and convenient.
4. Reliable Results: The circuit test capacitance meter delivers reliable and consistent measurement results, ensuring accurate analysis of capacitor performance.
5. Versatile Functionality: The capacitance meter for circuit testing offers additional functions such as capacitance measurement and temperature compensation, increasing its versatility for various testing requirements. 1. The measuring range is 0-25 Ω, divided into 0-5 Ω and 5-25 Ω, and switching is automatic. 2. Resolution: 0-5 Ω is 0.01 Ω, 5-25 Ω is 0.1 Ω. 3. Measurement Accuracy: 0-5 Ω 1.5% 0.01 Ω, 5-25 Ω 1.5% 0.1 Ω.
4. It measures the resistance of electrolytic capacitors and (DC resistance), switchable via the ON/OFF/ZERO button.
5. Short-circuit detection is synchronous, therefore the detected value corresponds to the actual value.
6. It can measure online and offline. The measuring current is 5 mA, the measuring frequency is the industry standard of 100 kHz.
7. Automatic zero point adjustment on power-up and automatic zero point adjustment when switching between modes. The LCD displays the value and the probe compensation value simultaneously, allowing users to conveniently set the time for maximum accuracy.
8. The input is overvoltage protected.
9. Manual and automatic power-off functions. Automatic power-off is performed intelligently. It automatically switches off if it is not used for approximately 5 minutes.
10. If the supply voltage is too low, a corresponding message will appear on the LCD screen and the device will automatically switch off after 10 seconds.
Note: The product is supplied without batteries. Slight differences in accessories do not affect use.
Color: White;
Material: Plastic

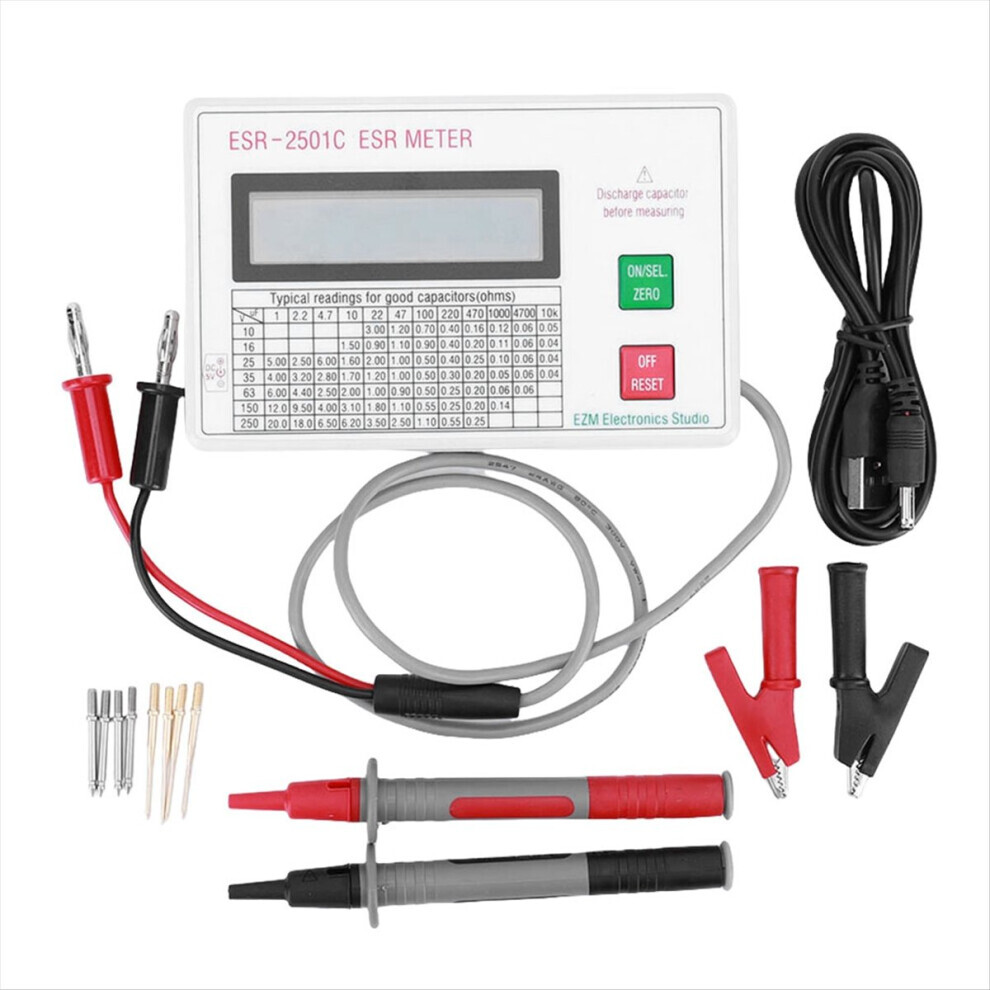

Package Contents:
1 x Tester Set
Only the above package contents, other products are not included.

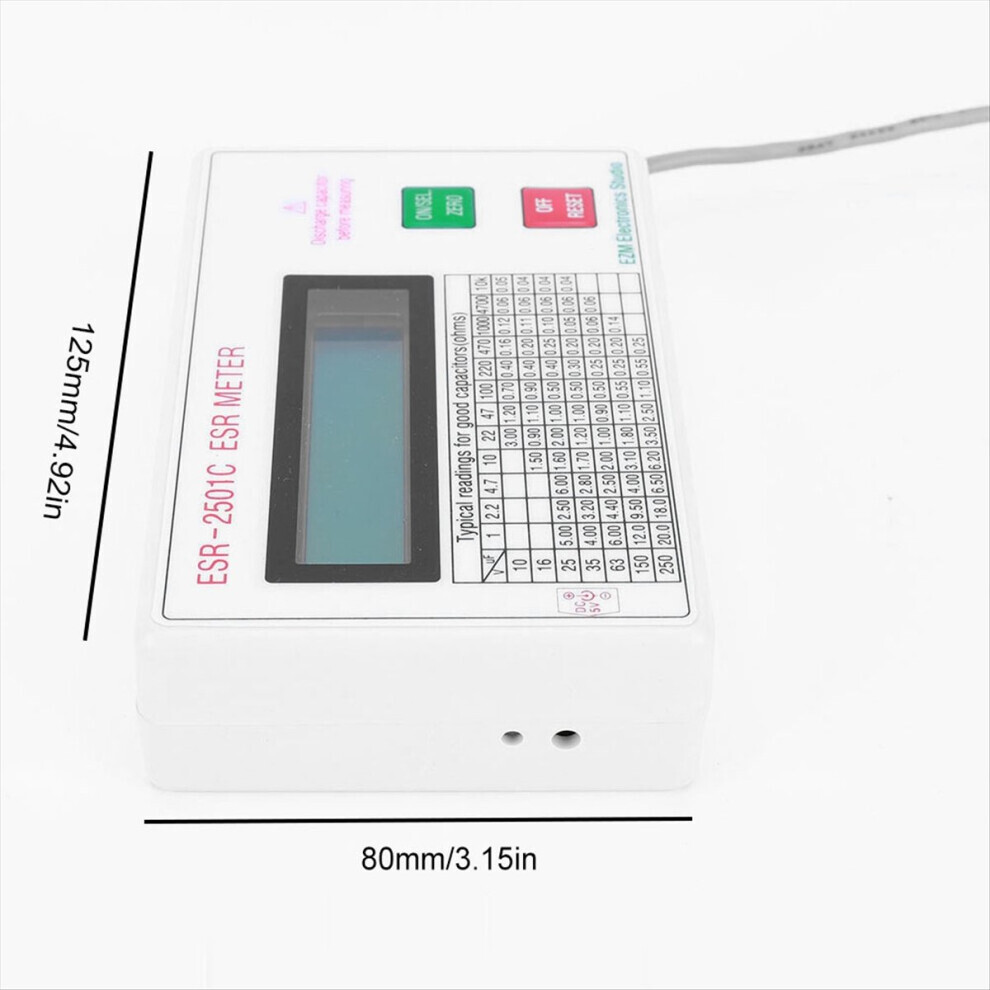

Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the actual product. The allowable measurement error is +/- 1-3 cm.
