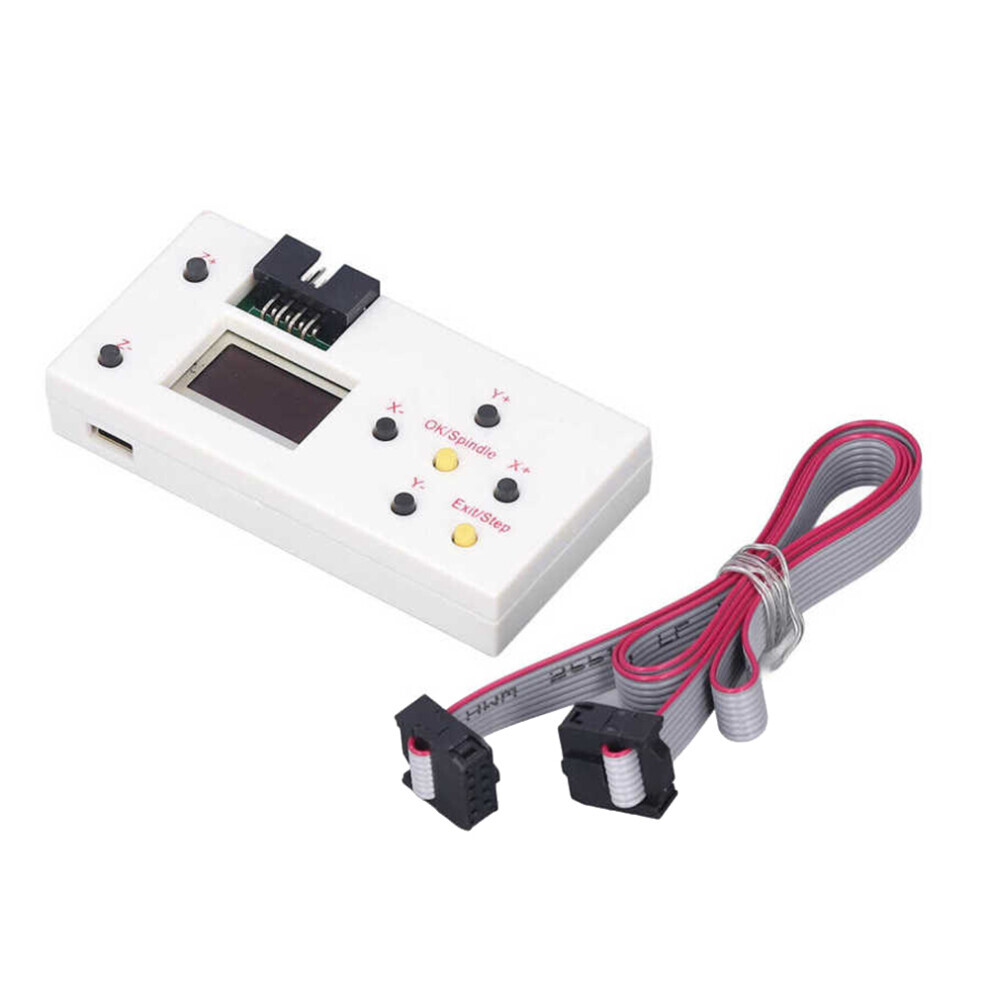

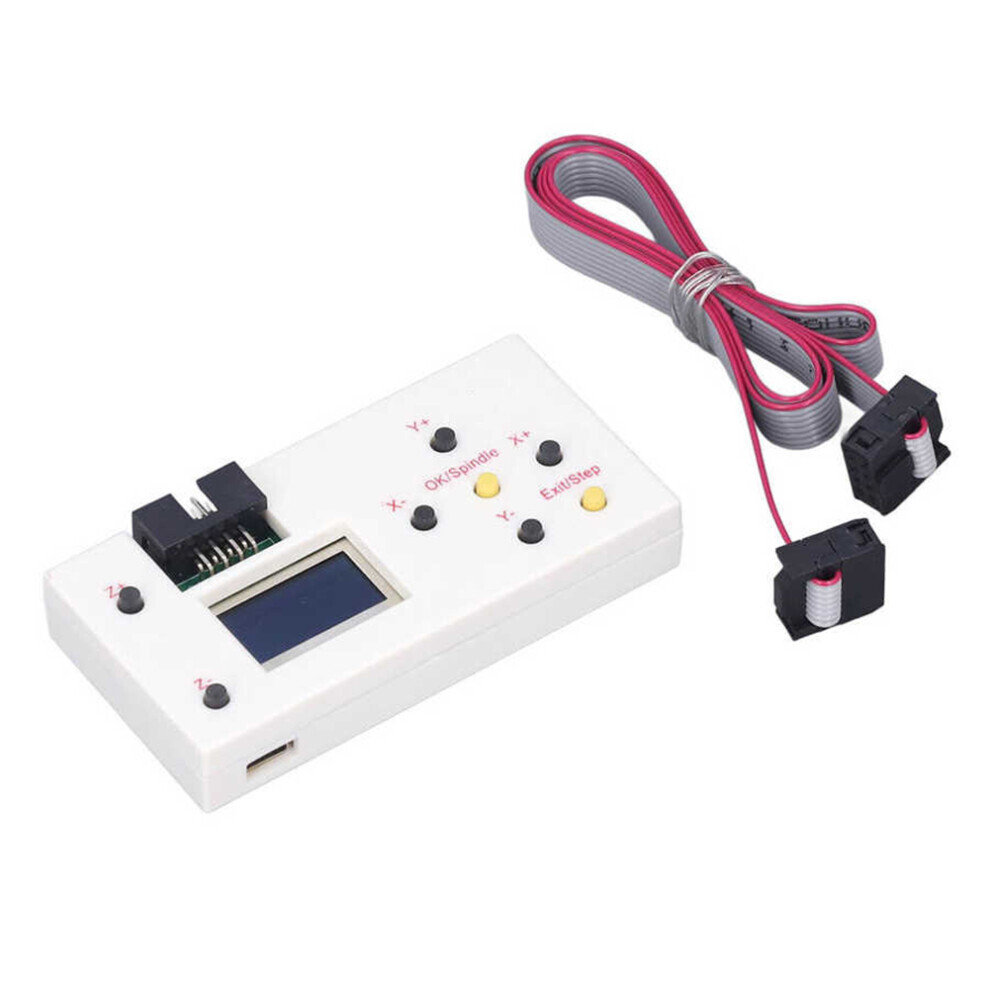

CNC Router Offline Control Module 3-Axis Engraving Machine Control Board for 3018 PRO 3018 CNC Controller

CNC Router Offline Control Module 3-Axis Engraving Machine Control Board for 3018 PRO 3018 CNC Controller Description

CNC Router Offline Control Module 3-Axis Engraving Machine Control Board for 3018 PRO 3018 CNC Controller Description
Feature: 1. Offline Control: With the offline controller module, you can control the CNC router without connecting to a computer, allowing the CNC router to be placed anywhere, such as in garages and workshops.
2. Manual Control: The position of the 3-axis can be manually adjusted as the starting point for engraving. The module can also manually control the spindle's on/off mode.
3. Easier Access: After placing the file on the memory card, the engraving file can be directly recognized. You can also connect the offline module to a computer via a micro-USB cable and save files directly.
4. Perfect compatibility: The offline module is perfectly compatible with 3018, 3018 PRO CNC milling cutters and other 3018PRO CNC milling cutters for general purposes.
5. Easier operation: Simply connect the offline module to the GRBL control board and you can then control the CNC milling machine with this module. Specifications: Color: White; Material: Plastic; Item Type: CNC Milling Machine Offline Control Module; Connection: USB, USB CH340; Software: GRBL Controller, Universal G-Code Sender; Input Voltage: 12-36V; Main Control Chip: For Atmel 328P; Stepper Motor Driver: A4988; Spindle Drive Chip: MOSFET, recommended 12-36V, within 10A; Spindle PWM Speed Control: Support
Stepper motor support: 12V, within 1.5A. It is recommended that the maximum current be less than 2A. Stepper motor 42, 57.
Laser engraving: Supported
Power interface: 5.5-2.5mm interface.
Package contents:
1 x CNC router offline control module
1 x FC 8P cable
1 x memory card
1 x memory card holder
