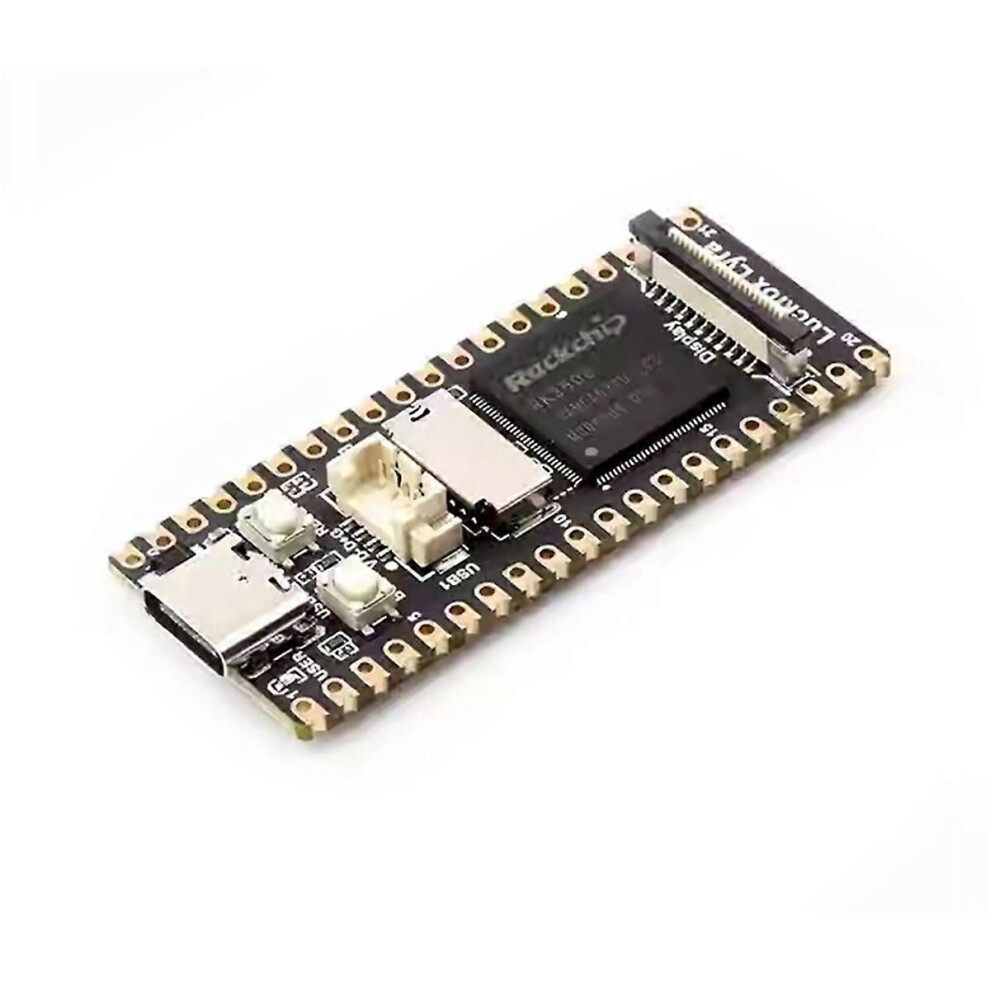

compatible with Luckfox Lyra B RK3506G2 Linux Development Board RK3506 Cortex-A7 Support MIPI/DSI Display

compatible with Luckfox Lyra B RK3506G2 Linux Development Board RK3506 Cortex-A7 Support MIPI/DSI Display Description

Tri-core ARM Cortex-A7 32-bit core, integrated VFP, supports single-precision and double-precision floating-point operations.
Built-in ARM Cortex-M0 MCU design, supports SMP and AMP configurations.
Built-in 128MB DDRL3, can meet the application requirements of multi-core operation.
The low-speed interface adopts Rockchip's Rockchip Matrix IO design, which allows rich multiplexing functions to share limited chip pins, making peripheral circuit adaptation more flexible.
Built-in audio and video codec, supports multiple audio input and output, and provides high-quality audio playback and recording functions.
Processor: Tri-core Arm Cortex-A7 (1.2Ghz) + Arm Cortex-M0
Memory: 128MB DDR3L
USB: USB OTG2.0 x 2
Screen interface: MIPI DSI 2-lane
GPIO: 24 Rockchip Matrix IO pins
The product appearance and printed words may vary depending on the batch, but this does not affect use.
Specification:welded/not welded
Colour:As Shown
Material:PCB
Package Contents:
1 * Development Board
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
