Constant Temperature Crystal Module OCXO 10MHz 20M 30M 80M

Constant Temperature Crystal Module OCXO 10MHz 20M 30M 80M Description

Constant Temperature Crystal Module OCXO 10MHz 20M 30M 80M Description

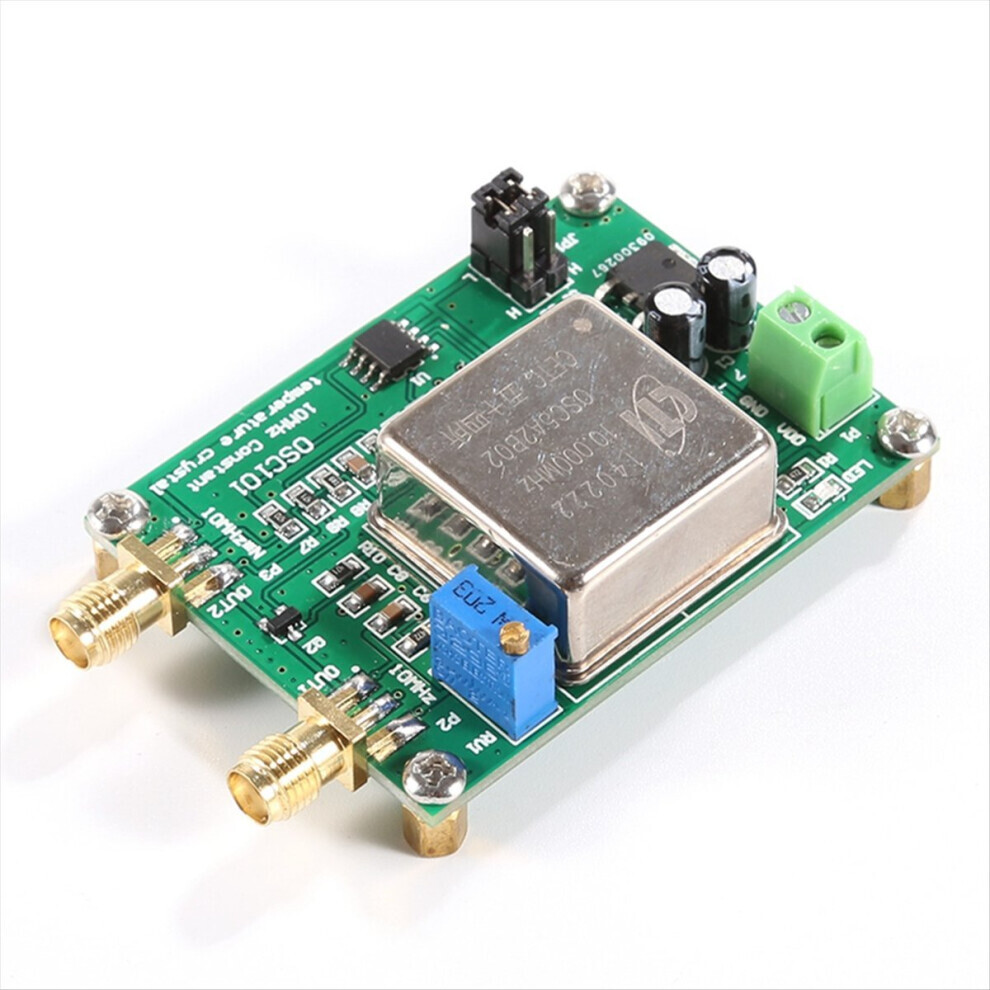

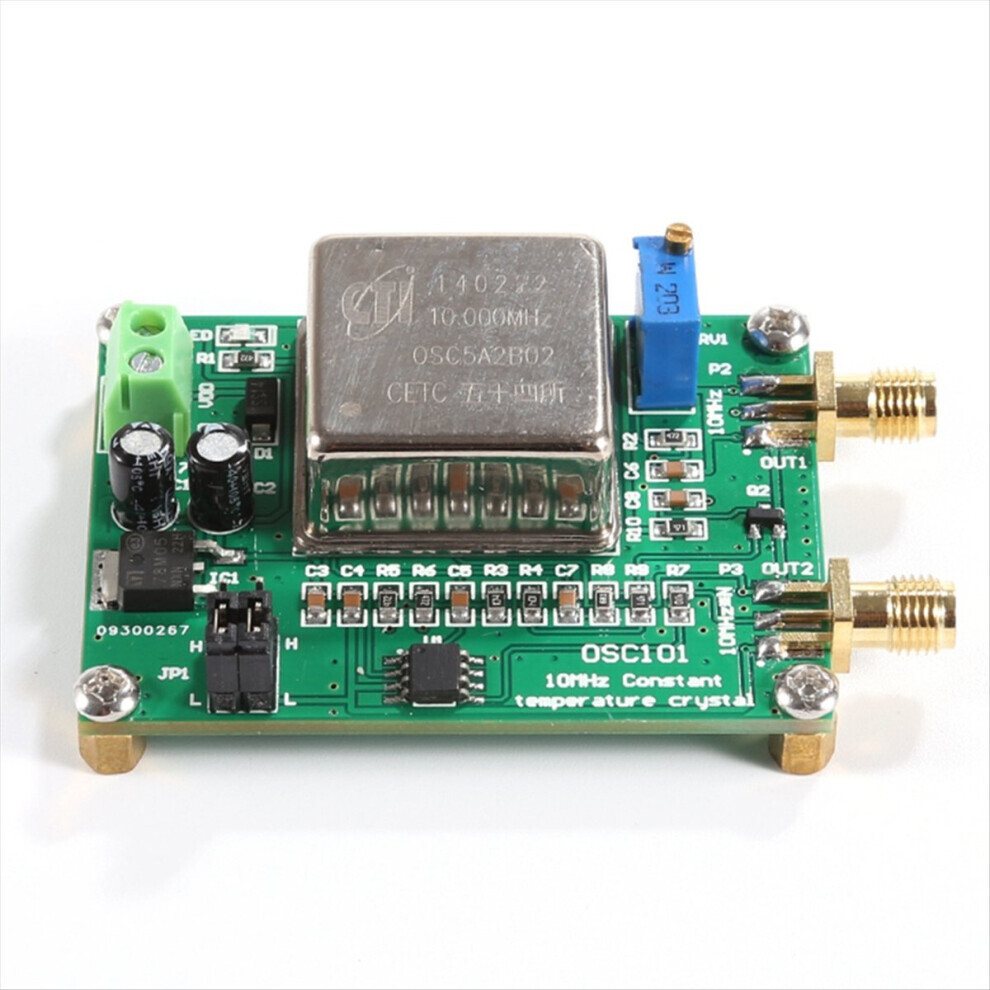

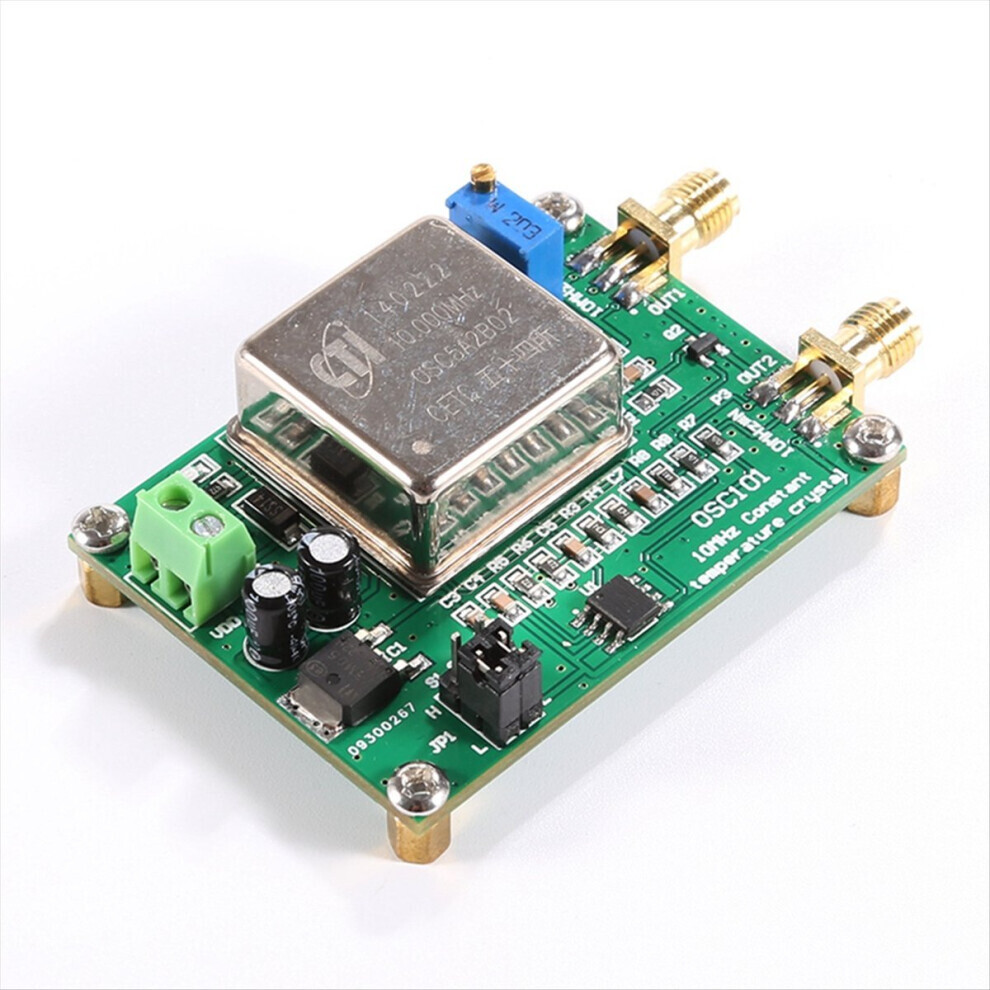

1. Constant temperature crystal module OCXO 10 MHz 20M 30M 80M frequency reference module
2. This module outputs the frequency accuracy of the 10 MHz signal (+/-200 ppb) and has two signal outputs, one of which is a standard 10 MHz signal.
3. The other is a 10 MHz multiplier signal. The multiplier signal has 9 selectable frequencies: 2X, 3X, 3.125X, 4X, 5X, 5.3125X, 6X, 6.25X, 8X.
4. The various multipliers are set via jumper pin JP1.
5. Correct the deviation of the 10 MHz output frequency (+/- 2.0 ppm) using potentiometer RV1.
1. P1: Current input interface; (7~9 V).
2. P2: 10 MHz signal output interface; (10 MHz amplitude: 3 Vpp) SMA interface
3. P3: N-frequency output interface of the 10 MHz signal; (N*10 MHz amplitude: 5 Vpp) SMA interface
4. RV1: Correct the deviation of the 10 MHz output frequency (+/- 2.0 ppm).
5.JP1 Jumper Needle Selection
S1=0,S0=0, OUT = 4X
S1=0,S0=M, OUT = 5.3125X
S1=0,S0=1, OUT = 5X
S1=M,S0=0, OUT = 6.25X
S1=M,S0=M, OUT = 2X
S1=M,S0=1, OUT = 3.125X
S1=1,S0=0, OUT = 6X
S1=1,S0=M, OUT = 3X
S1=1,S0=1, OUT = 8X
0 = connect directly to ground (L)
1 = connect directly to (H) Connect
M = Leave unconnected (floating)
Note:
Different batches may have differences in appearance, color, and printing, which do not affect use.
Color: as shown
Material: PCB
Package includes:
1 x Constant Temperature Crystal Module
Only the above package contents, other products are not included.
