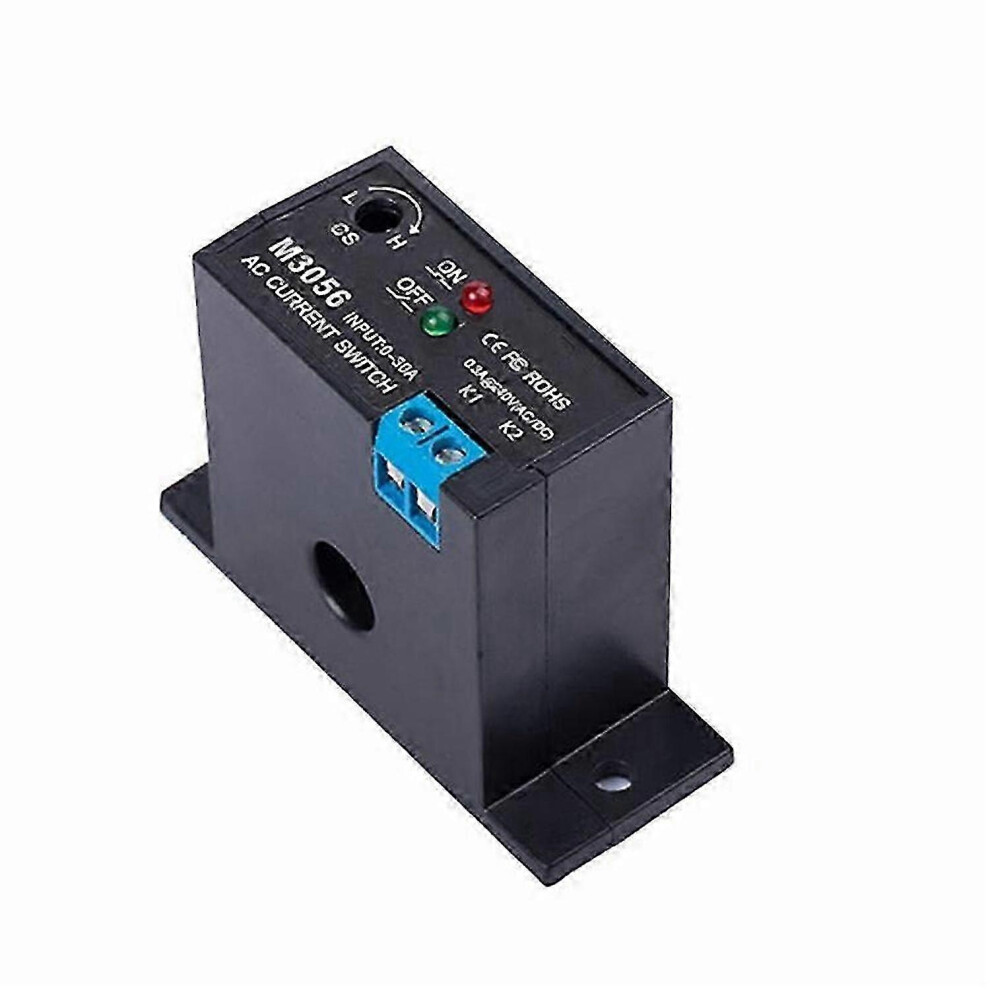

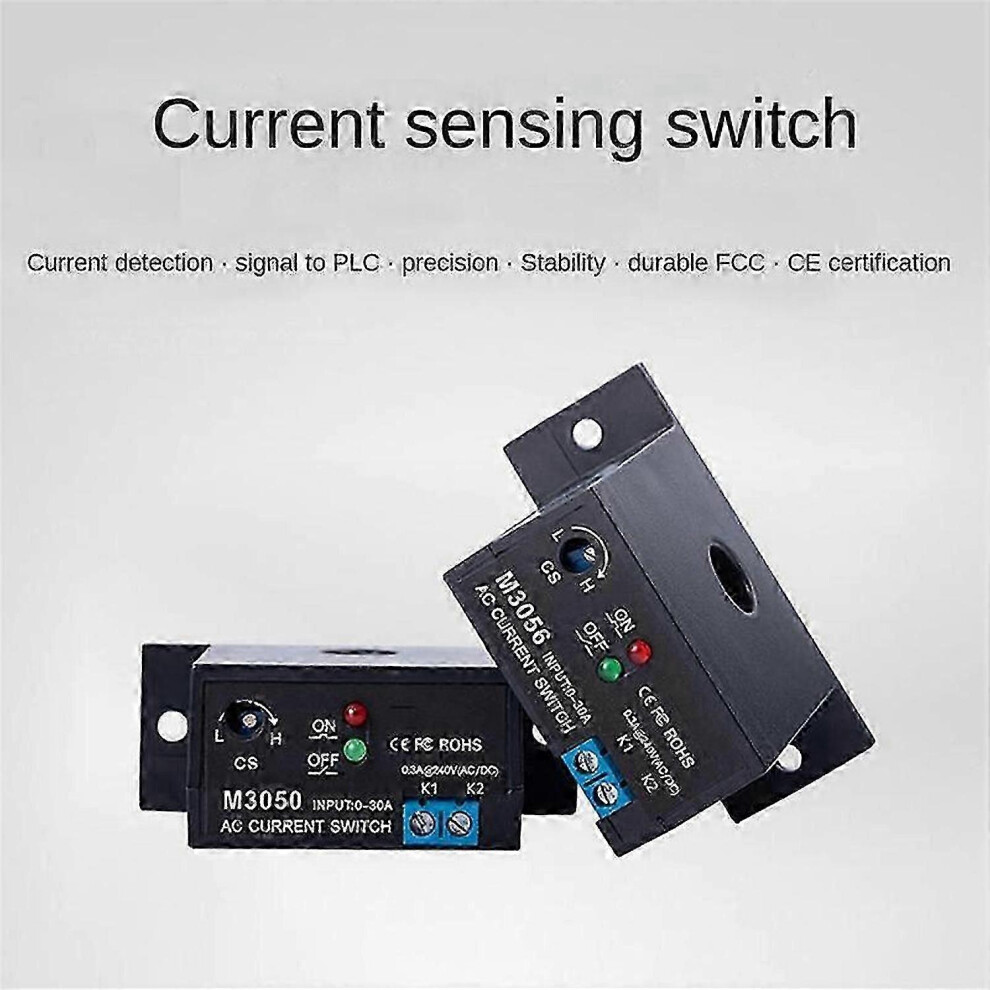

Current Sensing Switch Induction Relay AC Linkage Device ( NC M3056)

Current Sensing Switch Induction Relay AC Linkage Device ( NC M3056) Description

Mutual inductance current monitoring, security isolation of input and output, self powerThe range of the monitored current is up to 30A;the monitoring threshold is adjustable within 0.2-30A.Hysteresis is less than 1%. It can be used instrong magnetic environment.Non-contact electronic switch with fast reaction and unlimited number of on-and-off operations.The shell is made of environmentally-friendly flame-retardant PC material.
Monitoring current: 0.2-30A ACContact capacity: 0.3A@240V AC/DCThe diameter of the perforation line: 10MMDimensions: 65x25x47MMMaximum leakage value: 0.1MAMaximum overload capacity: 100%Operating temperature: -20-55CelsiusHysteresis: less than 1%Operating principle:Normally closed: M3056When the current of the perforation line exceeds the set value, the green light turn on and the output signal open ; when the current is below the set value, the red light turn on and the switchs close.Colour:As shownMaterial:plastic

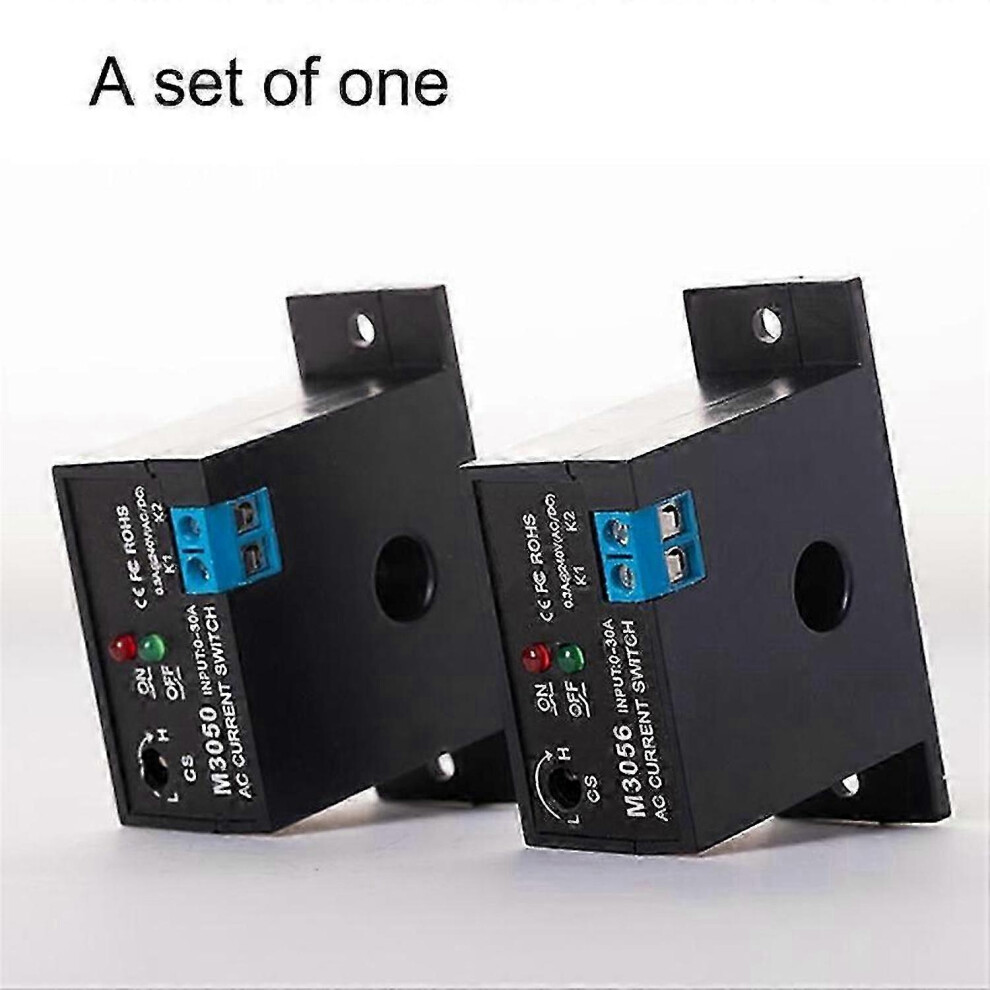

Package Contents:1 x Current detection switch induction relay
Only the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
