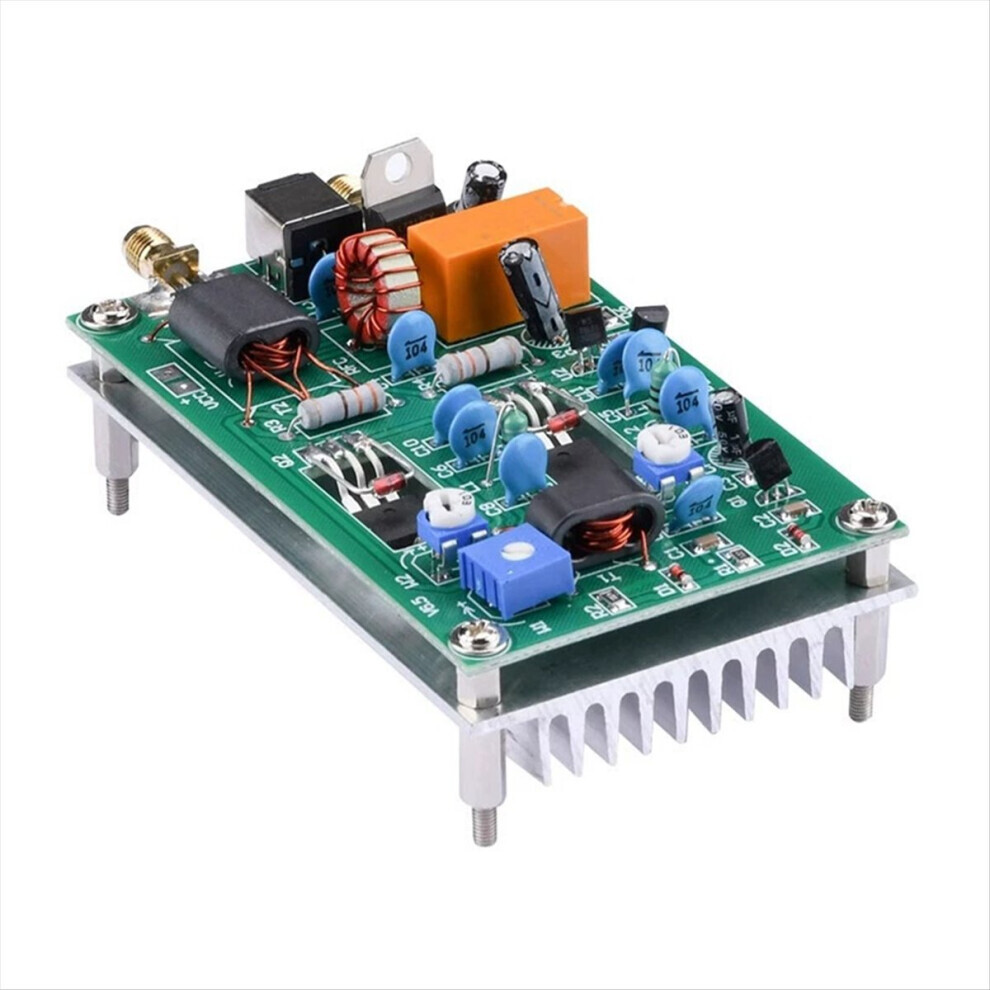

DC 12-13.8V 30W Shortwave Amplifier Board CW SSB Linear HF Power

DC 12-13.8V 30W Shortwave Amplifier Board CW SSB Linear HF Power Description

DC 12-13.8 V 30 Watt Shortwave Amplifier Board CW SSB Linear RF Power Description
1. This product is suitable for single-sideband CW-SSB power amplification in shortwave amateur radio stations. Amateurs and professionals can achieve more efficient and precise SSB-CW signal transmission and reception tasks with it.
2. It features high linearity and a high frequency response, ensuring low distortion and interference during signal transmission.
3. Automatic switching between transmit and receive modes achieves seamless switching with high stability and reliability.
4. The finished amplifier is equipped with heat dissipation fins, effectively solving the problem of heat generation during power amplification.
5. The entire circuit board design is more compact and lighter, providing us with a more convenient, efficient, stable, and reliable wireless communication experience.
Operating Voltage: DC 12-13.8 V
Operating Current: up to approx. 6 A
Power Connector: DC Jack: 5.5 x 2.1 (center positive, outer negative)
Frequency Range: 3-28 MHz
Input Power: 0.1-3 W
Output Power: 30 W (7 MHz) 13.8 V, approx. 15 W at 0.2 W PIXIE and approx. 30 W at 2.5 W Frog Song Kit
Transmit/Receive Switching Method: Automatic
The shortwave power amplifier board can only be used for the Power amplification in single-sideband CW and SSB modes is used in shortwave amateur radio stations and is not suitable for other purposes.
Color: as shown
Material: PC
Package includes:
1 x Amplifier
4 x Screws (Due to different production batches, the circuit board printing may vary slightly, but this does not affect its use)
Only the above package contents, other products are not included.
Note: Light reflections and different displays may cause the color of the item in the picture to differ slightly from the actual product. The allowable measurement error is +/- 1-3 cm.
