DC 5V ULN2003 DIY Stepper Motor Driver Board Infrared Remote Control

DC 5V ULN2003 DIY Stepper Motor Driver Board Infrared Remote Control Description

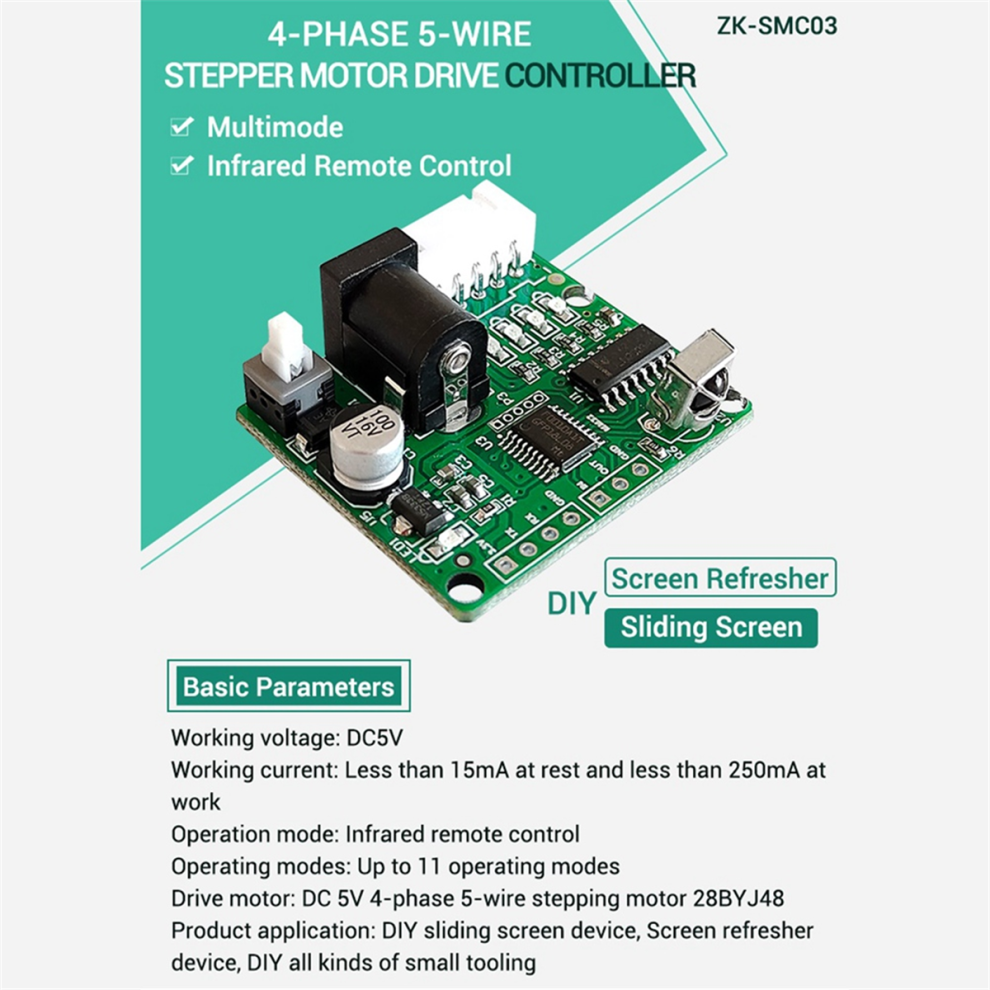

Working voltage: DC5V
Working current: less than 15mA when at rest, less than 250mA when working
Operation mode: infrared remote control
Working mode: up to 11 working modes
Drive motor: DC 5V 4-phase 5-wire stepper motor 28BYJ48 Product use: DIY screen slider, DIY various small tooling

The main function:

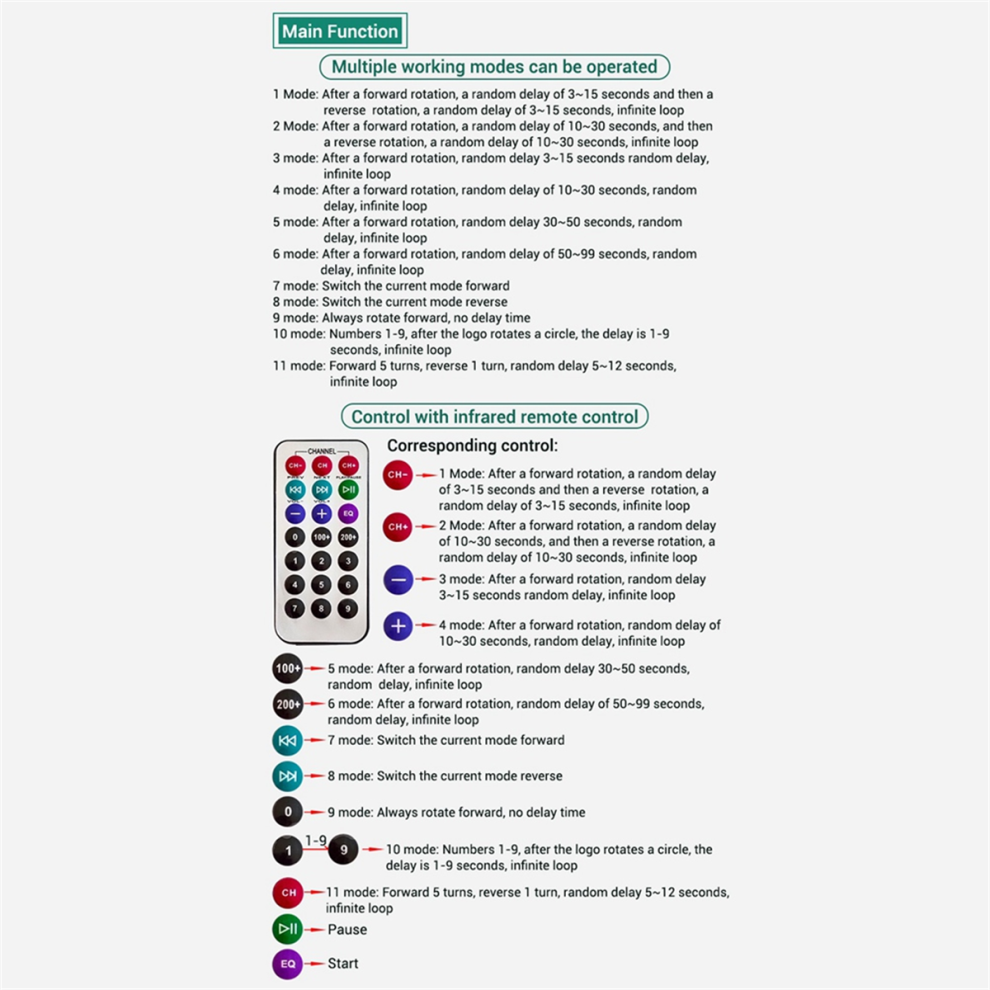

Multiple working modes are available
Mode 1: After a forward rotation, a random delay of 3 to 15 seconds is followed by a reverse rotation, a random delay of 3 to 15 seconds, and an infinite loop.
Mode 2: After a forward rotation, a random delay of 10 to is followed by a reverse rotation, a random delay of 10 to , and an infinite loop.
Mode 3: After one forward rotation, there be a random delay of 3 to 15 seconds, an infinite loop.
Mode 4: After one forward rotation, there be a random delay of 10 to , an infinite loop.
Mode 5: After one forward rotation, there be a random delay of 30 to 50 seconds, an infinite loop.
Mode 6: After one forward rotation, there be a random delay of 50 to 99 seconds, an infinite loop.
mode 7: switch the current mode to forward rotation
Mode 8: Switch the current mode to reverse
Mode 9: forward rotation all the time, no delay time
Mode 10: Numbers 1-9, delay 1-9 seconds after the logo rotates once, infinite loop
Mode 11: 5 forward rotations, 1 reverse rotation, random delay of 5-12 seconds, infinite loop
Colour:As Shown
Material:Plastic

Package Contents:

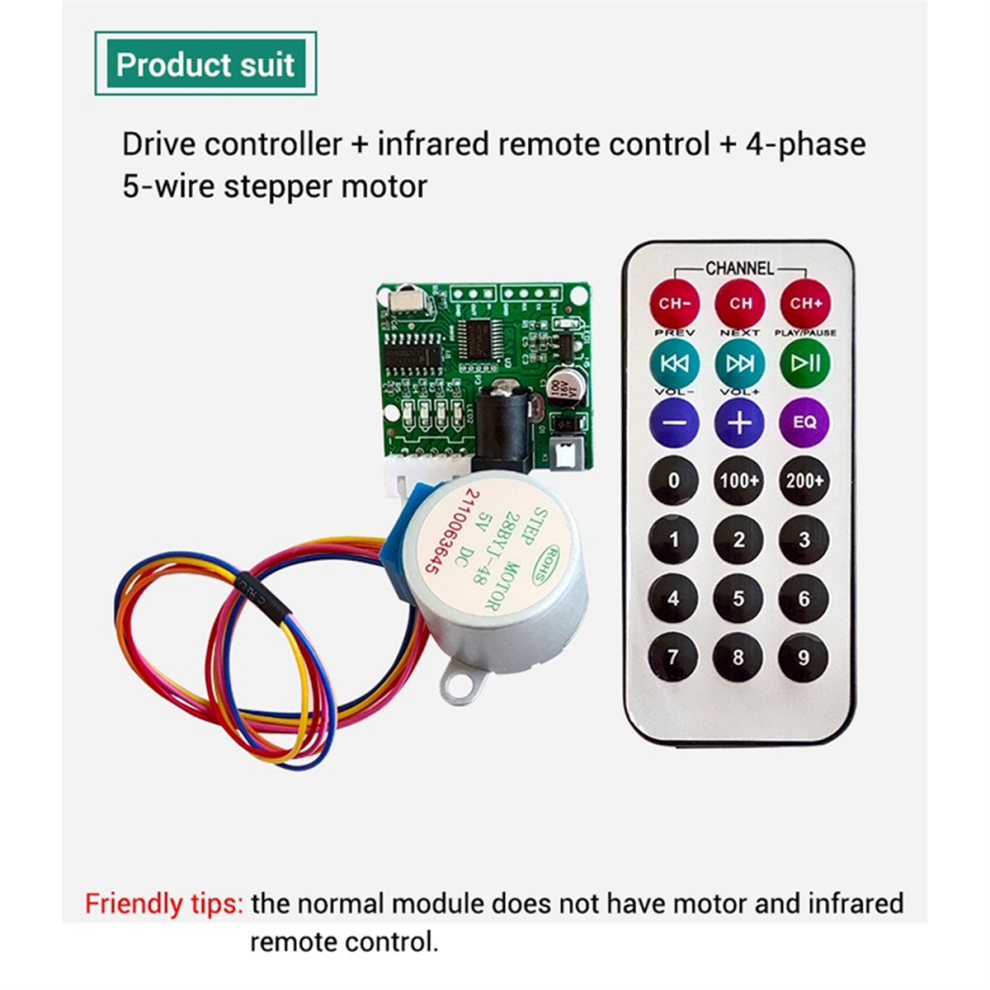

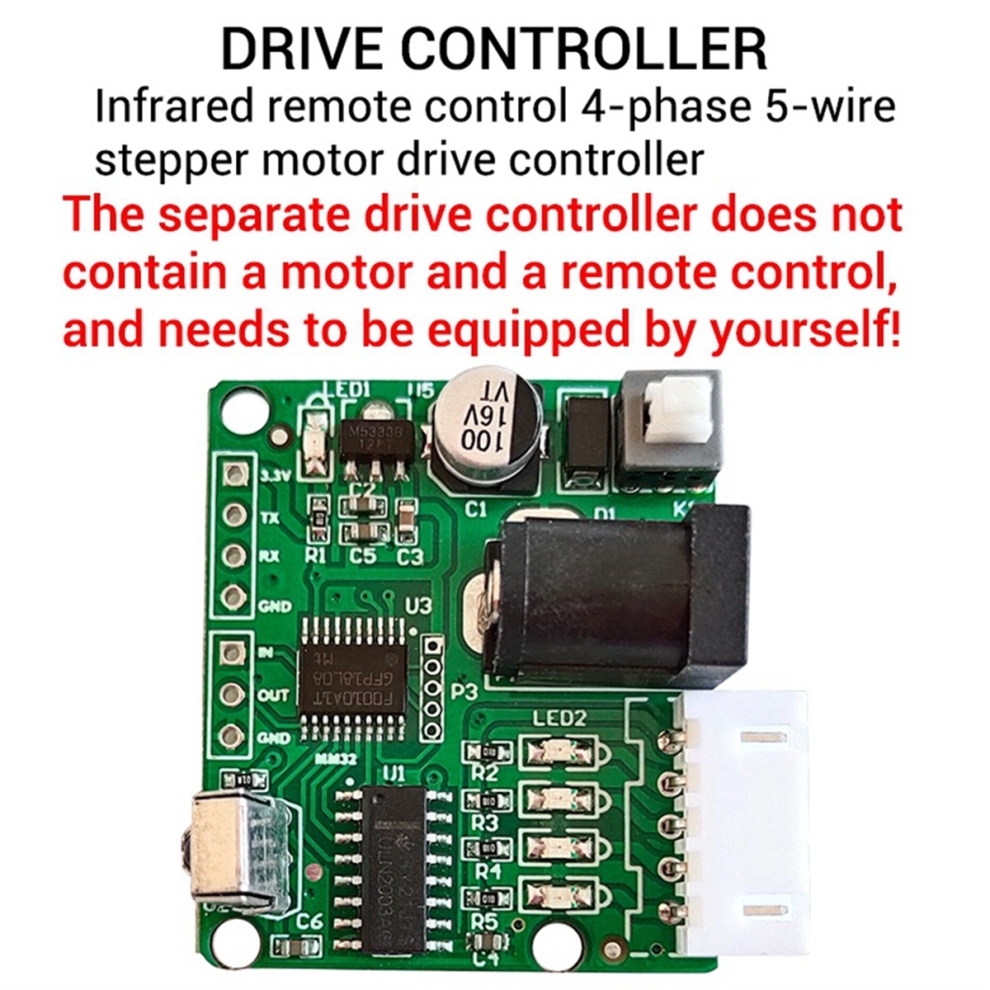

1 * ULN2003 driver board

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
