DC 6-12V 4-Way Motor Driver Module High Performance Drive Extension Development Board for Car Model

DC 6-12V 4-Way Motor Driver Module High Performance Drive Extension Development Board for Car Model Description

1. Using McNamm wheel, the car model body can be translated left and right.
2. Adopting motor drive chip, the continuous drive current can be up to 1.2A, and current up to 3.2A.
3. Power supply voltage 6~12V, 2 large capacity 18650 batteries are available, more to use.
4. The motor driver module can make you car model move forward, backward, left, right, left, right and 360 degree rotation in place.
5. The motor driver module can be used for remote control car, tracking car, obstacle avoidance car, etc.

Product Introduction:

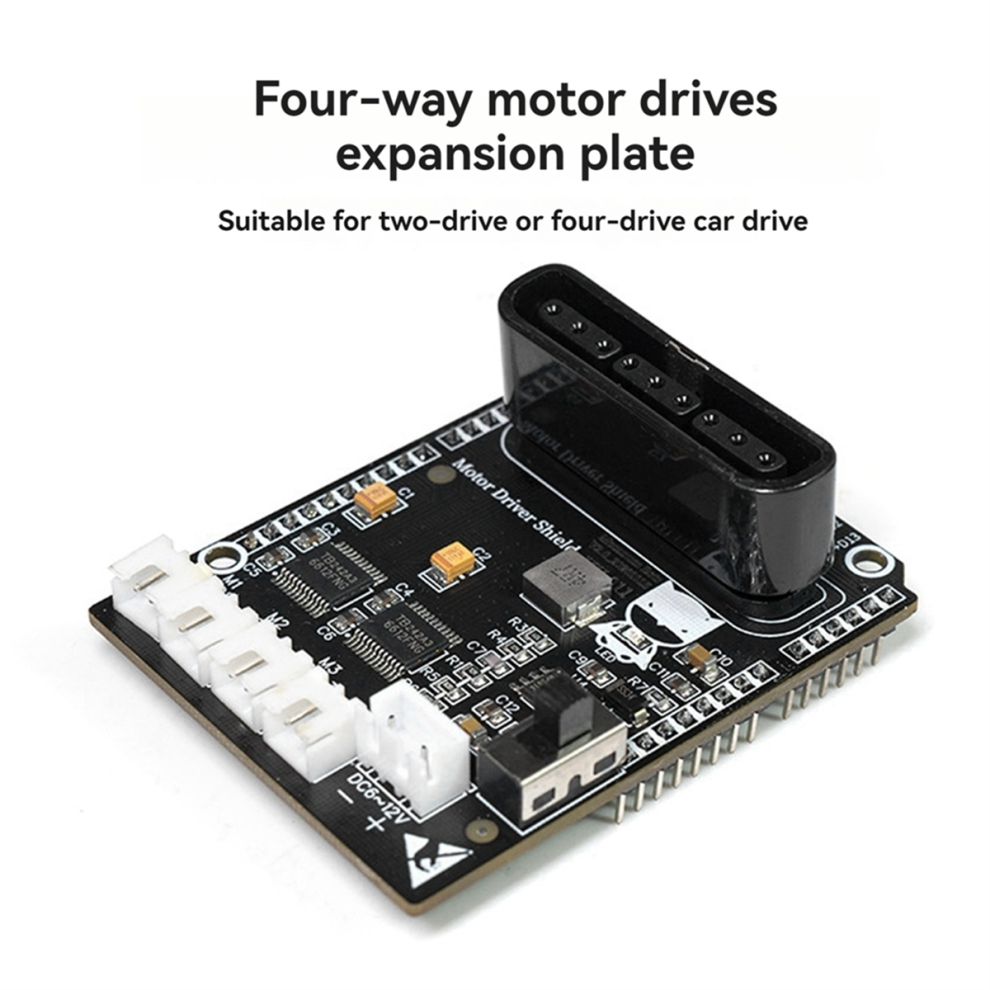

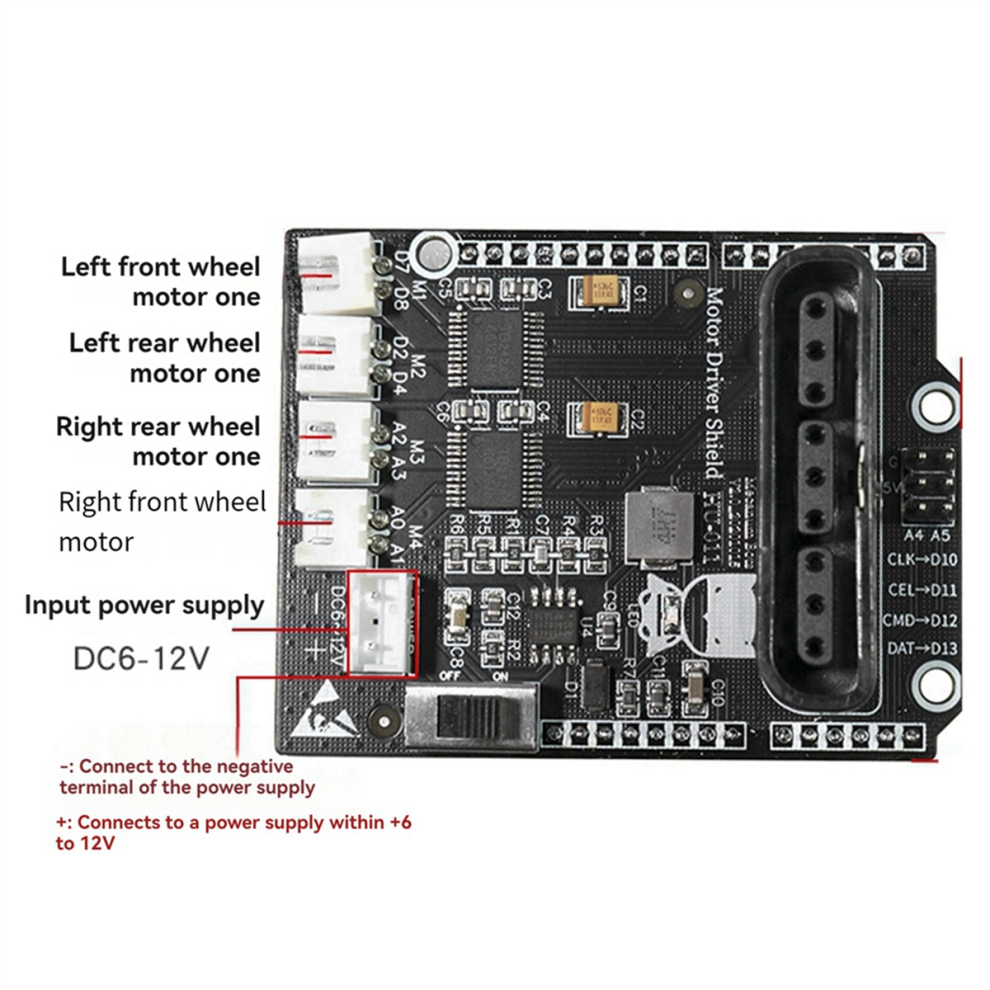

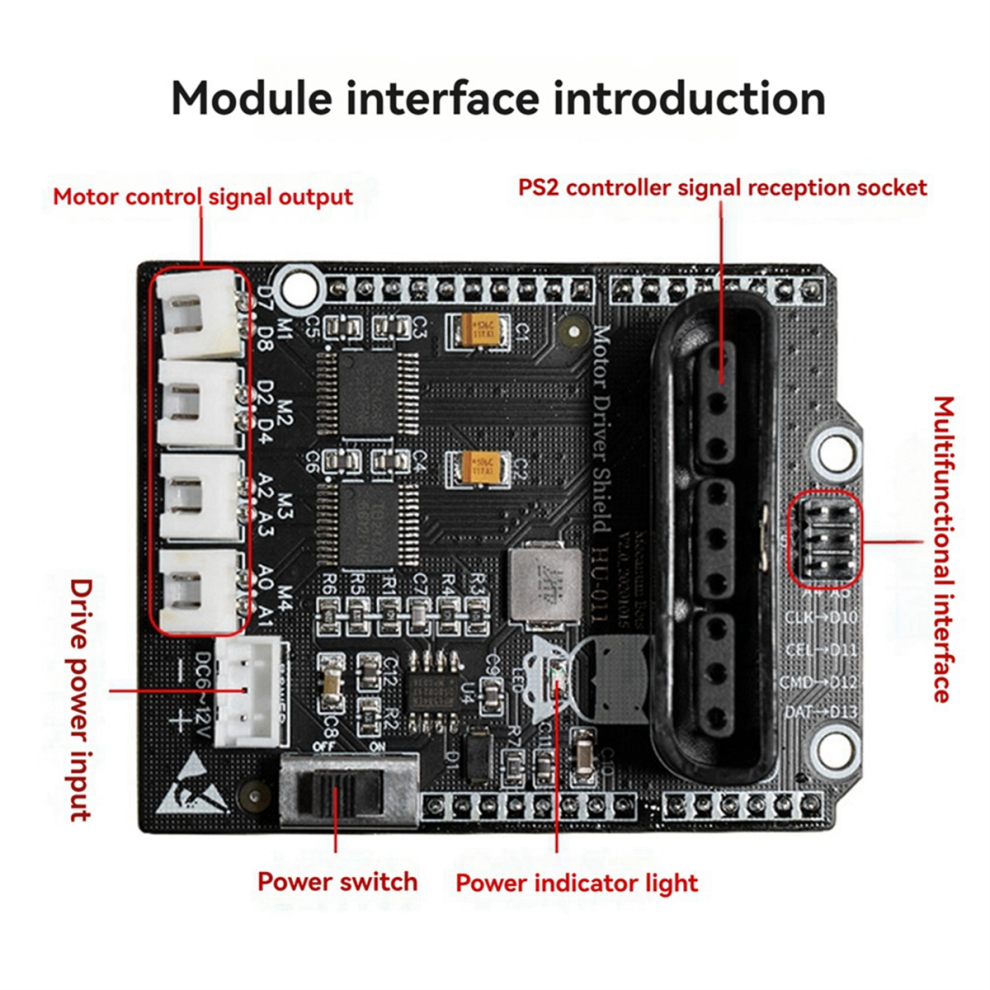

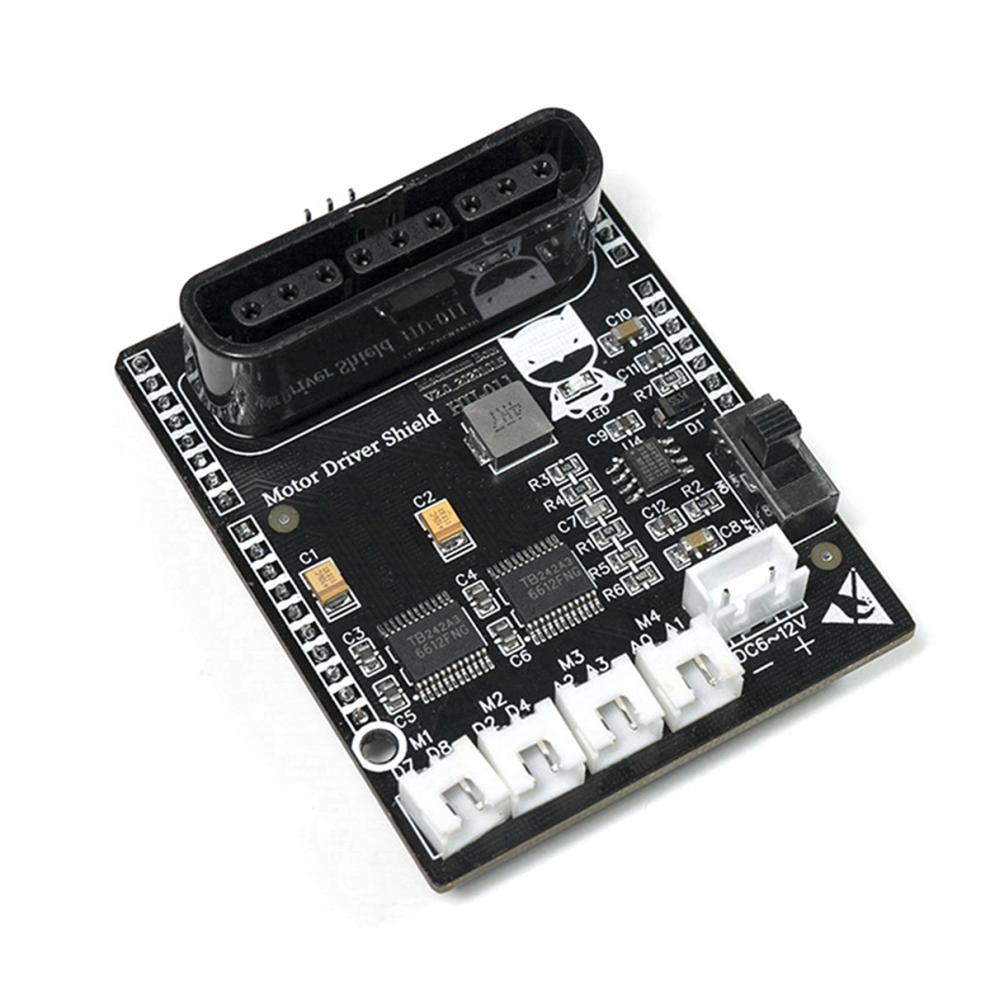

1. -011 four-way motor drive expansion board is designed based on TB6612FNG drive IC, which can realize speed regulation drive of 4-way motor, and can drive most of the miniature DC motor, which is suitable for wide application in fields.
2. The control logic is similar to L298N, and the module is equipped with 5V-Buck buck circuit, which can provide stable and small ripple power for the controller.
3. Compared with the traditional motor drive module, the module has the advantages of high efficiency, small size, less heat, etc., whether it is DIY production, or product development, it is a very ideal choice.
Product parameters:
Working input voltage: DC 6~12V
Working output current: Single channel maximum continuous output 1.2A
Starting current: 2A/3.2A(continuous pulse/monopulse)
Drive motor circuit: 4 channels
Interface: XH.54 terminal /2.54mm pitch
Tips: The product may be updated constantly ,Due To Different Batches, The Actual Product May Have Slight Differences Or Color Differences, Which Does Not Affect Use
Colour:Black
Material:plastic

Package Contents:
1 x 4-Way Motor Driver Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
