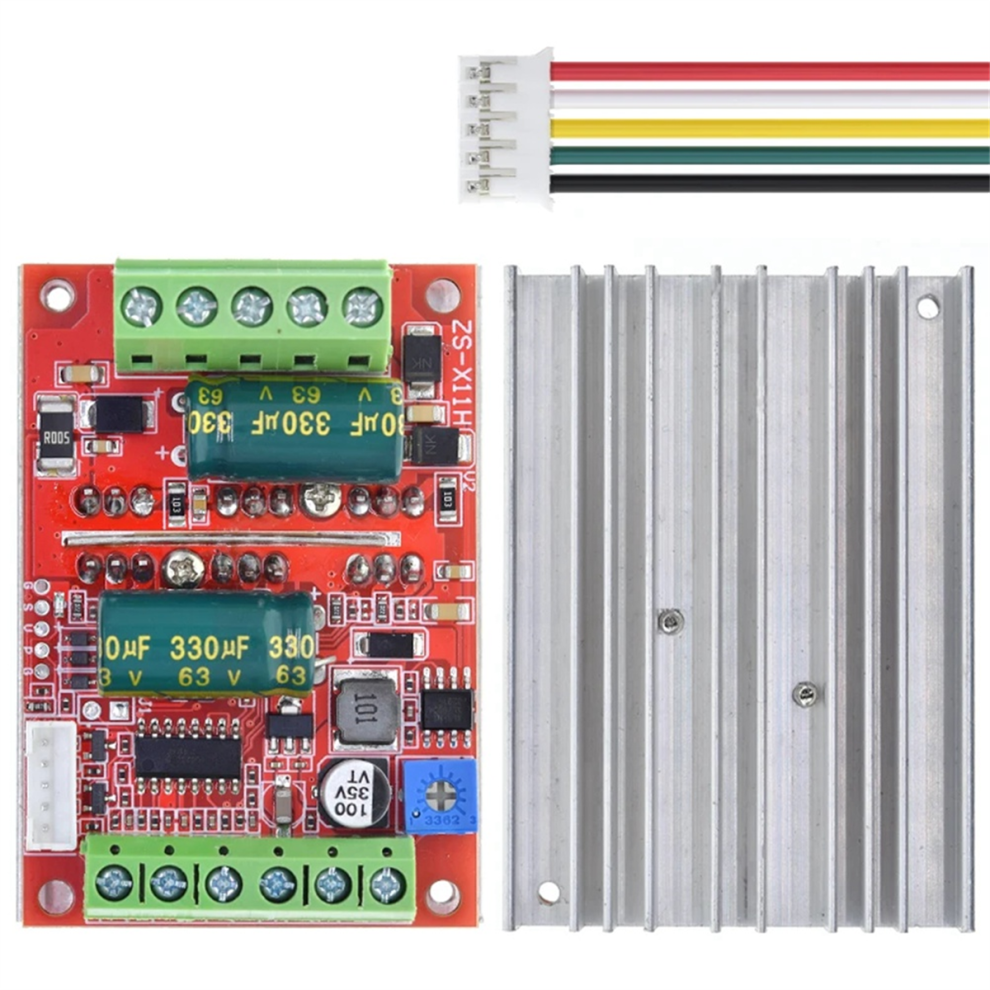

DC 6-60V 400W BLDC Three-Phase Brushless DC Motor Controller

DC 6-60V 400W BLDC Three-Phase Brushless DC Motor Controller Description

DC 6-60V 400W BLDC Three-Phase Brushless DC Motor Controller Description
Operating Voltage: 6-60V (maximum 60V with margin)
Operating Current: Rated 16A, 20A
Power: Rated 200-300W, 350W (taking into account improved heat dissipation when using high power)
Overcurrent Protection: Yes
INTERFACE DESCRIPTION
1. MA MB Phase Line Output connected to motor
2. The 5V GND motherboard is supplied with a 5V power supply (external power supply current must not exceed 50mA)
3. VCC GND Main Power Supply (external DC power supply)
4. SC speed pulse signal output (reserved interface only, no technical support provided)
5. DIR direction control interface for forward and reverse control (effective at low levels and can be connected to ground with external switches)
6. STOP stop control interface (low level effective to ground external switches)
7. Brake control interface (high level, effective for external 5V switch)
8. Speed control, speed control signal input (the speed control with integrated potentiometer can also be connected externally to an analog 0-5V PWM speed control with dual signal input)
9. Ha HB +5V GND Hall signal power supply input interface, generally Hall motors have 5 corresponding wires.
Product Name: 350W Brushless Hall DC Motor
Driver Model: ZS-X11H V2
Color: As shown
Material: Metal + Plastic
Package Contents:
1 Set * Motor Controller
Only the above package content, other products are not included.
Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the actual product. The allowable measurement error is +/- 1-3 cm.
