DC 6-60V BLDC Three-phase brushless motor controller PWM 12V 24V 48V

DC 6-60V BLDC Three-phase brushless motor controller PWM 12V 24V 48V Description

DC 6-60V BLDC Three-Phase Brushless Motor Controller PWM 12V 24V 48V Description
1. MA MB Phase Line Output Connection Motor
2. 5V GND Motherboard supplied with 5V power supply (current does not exceed 30mA)
3. VCC GND Motor Main Power Supply (external DC power supply)
4. SC Speed Pulse Signal Output

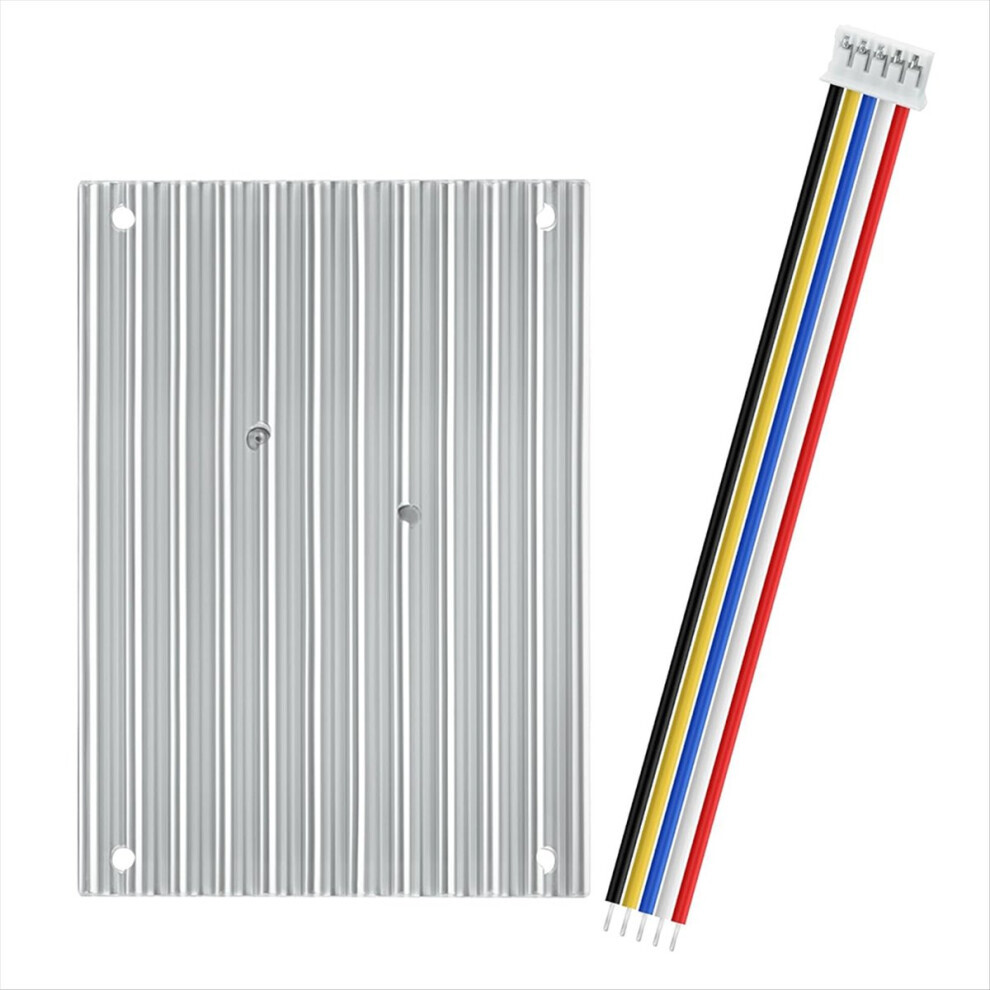

5. Positive and Negative Reverse Control Interface (can also be connected to an external switch). VR Speed Control Signal Input (integrated with potentiometer speed control, can also be connected to an analog 0-5V simulation PWM duty cycle to support dual signal input speed control). Ha Hb +5V GND Hall Signal. Power input, generally with Hall effect motors, has five corresponding lines. Complete patching process. Stable performance with forward/reverse function. Motherboard specifications: Product name: 400W brushless Hall effect DC motor driver. Model number: ZS-X11D1. Operating voltage: 6-60V. Maximum current: Rated 16A, 20A. Power: 400W. Overcurrent protection: Yes. Product size: Length 63 mm x Width 45 mm x Height 31 mm. Weight: Approx. 73 g. Color: As pictured
Material: Metal
Package includes:
1 x Motor controller
Only the above package contents, other products are not included.
Note: Light reflections and different displays may cause the color of the item in the picture to look slightly different from the original. The allowable measurement error is +/- 1-3 cm.
