DC 6-80V BLDC 3-Phase DC Brushless Motor Controller PWM 1600W 20A

DC 6-80V BLDC 3-Phase DC Brushless Motor Controller PWM 1600W 20A Description

DC 6-80V BLDC 3-Phase DC Brushless Motor Controller PWM 1600W 20A Description
Features: The operating voltage is 6-80V, and reverse polarity protection is supported so that the module is not damaged by a reverse polarity connection.
The module is unpowered by default. If the motor is operated with less than 5A, it does not necessarily need heat dissipation, but only normal ventilation. If the current exceeds 5A, heat dissipation is required.

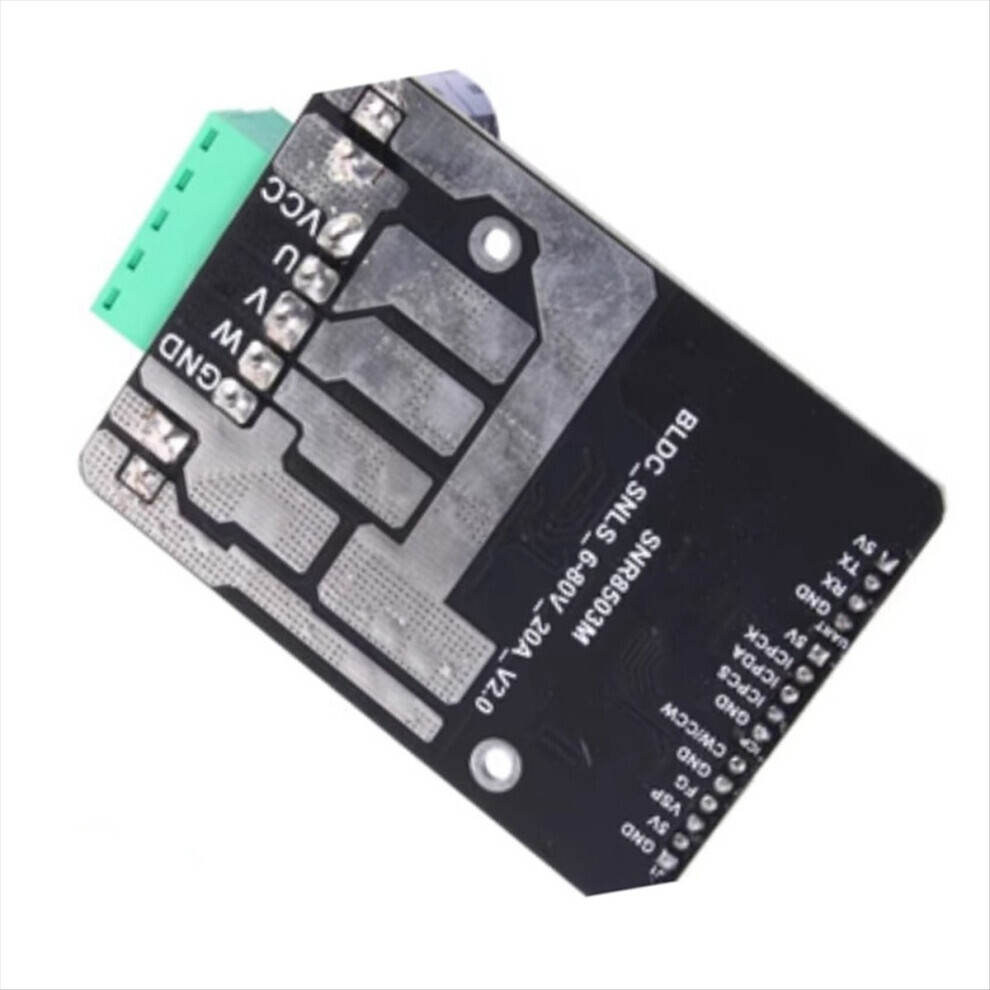

5-pin Hall effect interface on the board, used for accessing the motor's Hall effect signal. Integrated programming interface for updating the programming program. Integrated LED indicators for standby, operation, errors, and other states. Integrated potentiometer (0.5 ~ 5 V), PWM speed control interface (frequency 1 ~ 20 kHz), duty cycle 10 ~ 100%. Integrated FG speed feedback interface; calculation speed RPM = FG frequency Hz x 60 / number of poles. Integrated CW/CCW steering interface; suspended for clockwise rotation, shorted ground for counterclockwise rotation. Integrated serial UART connector. Users can control the module via the serial port protocol.
Specifications:
Operating voltage: 6-80 V
Maximum current: Rated 20 A, 50 A
Maximum power: 1600 W
Overcurrent protection: yes
Motor drive base
Hall start and commutation sublayer
Phase compensation algorithm
Speed control PID algorithm
Current limiting PID algorithm
Wind start algorithm
Applications:
Pumps, compressors of all types, fans/ventilators of all types, electric screwdrivers, electric curtains, automatic doors, hydraulic oil pumps, air pumps, brushless DC compressors for Refrigerators, lawnmowers, sprinklers, underwater thrusters, etc.
Material: PC + Metal
Color: Black
Package Contents:

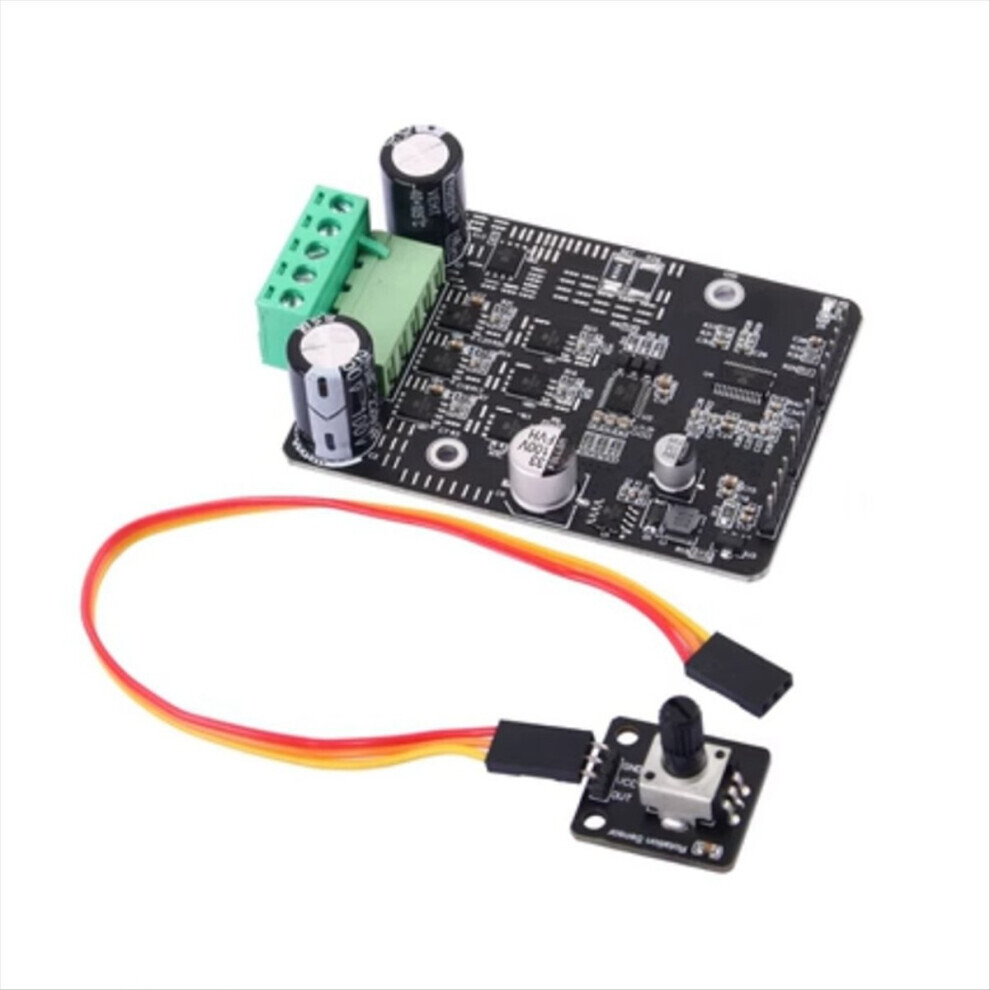

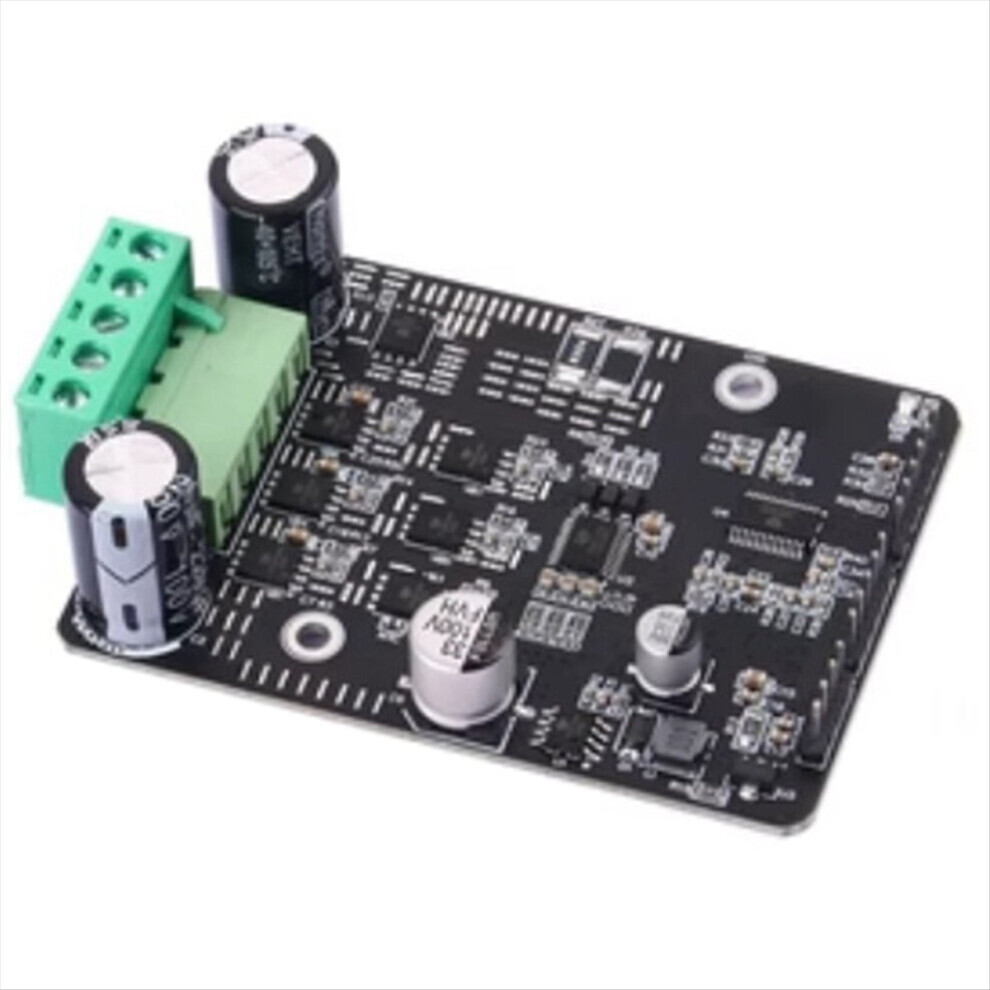

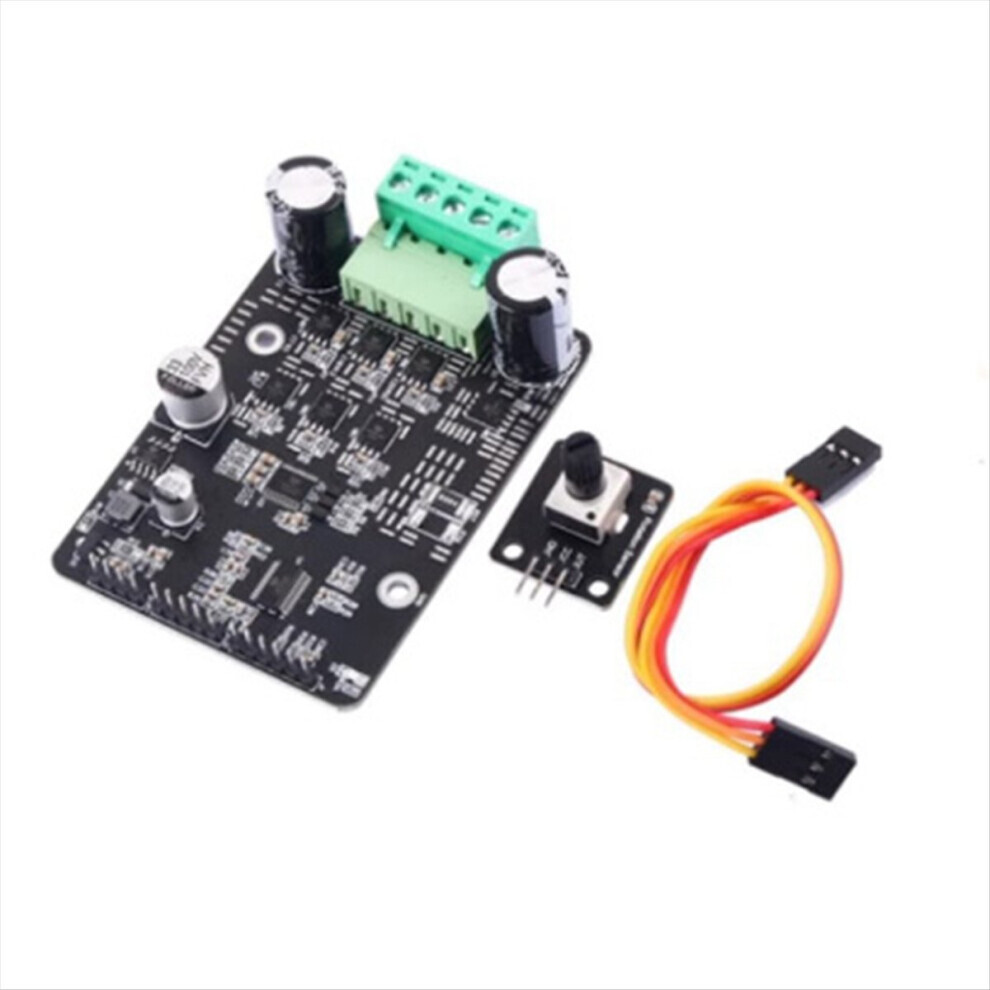

1 x Brushless DC Motor Controller (Due to different production batches, the appearance may vary, which does not affect its use)
Only the above package contents, other products are not included.
Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the actual product. The allowable measurement error is +/- 1-3 cm.
