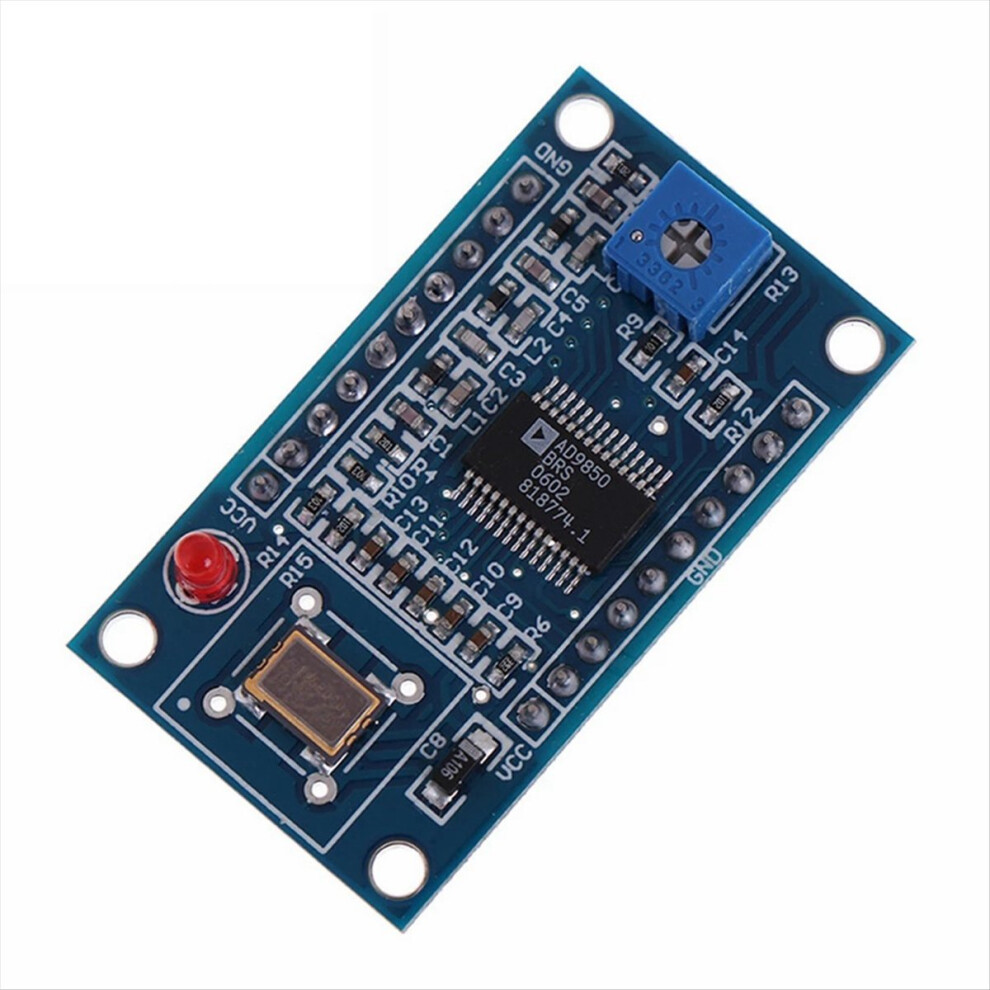

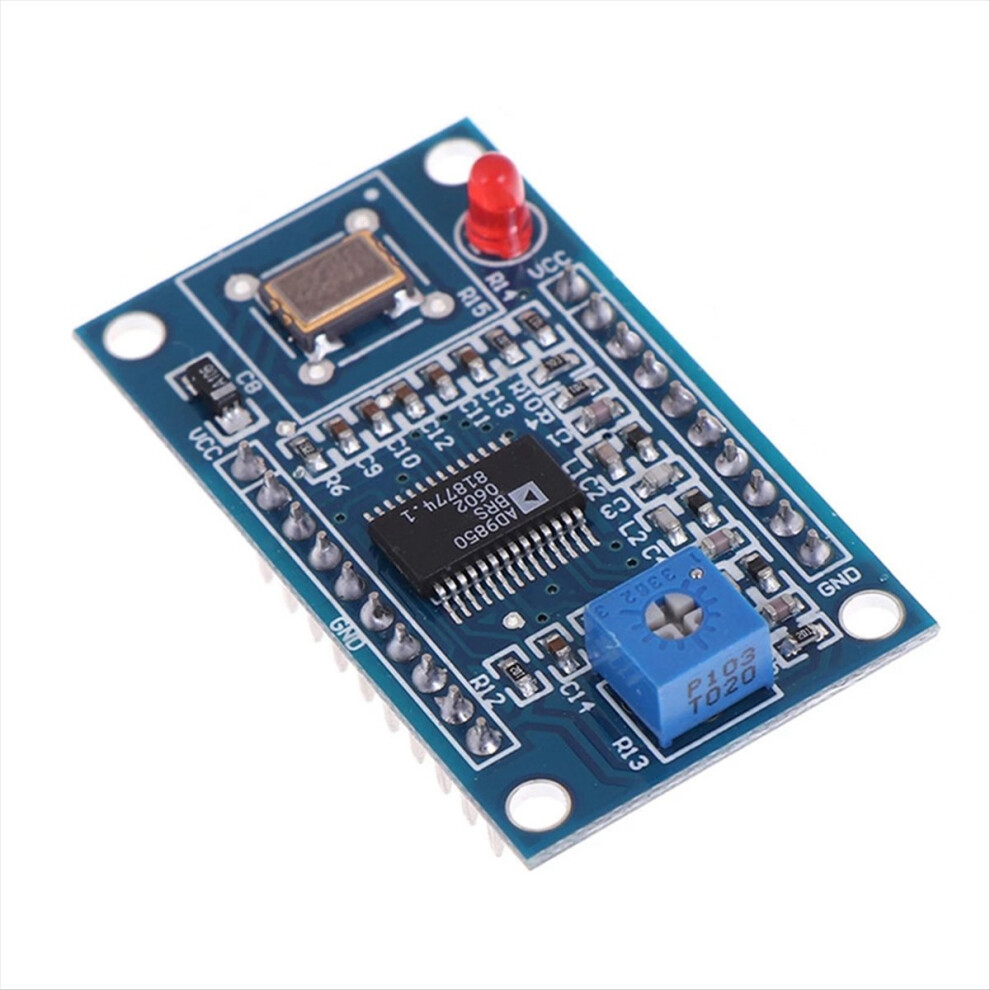

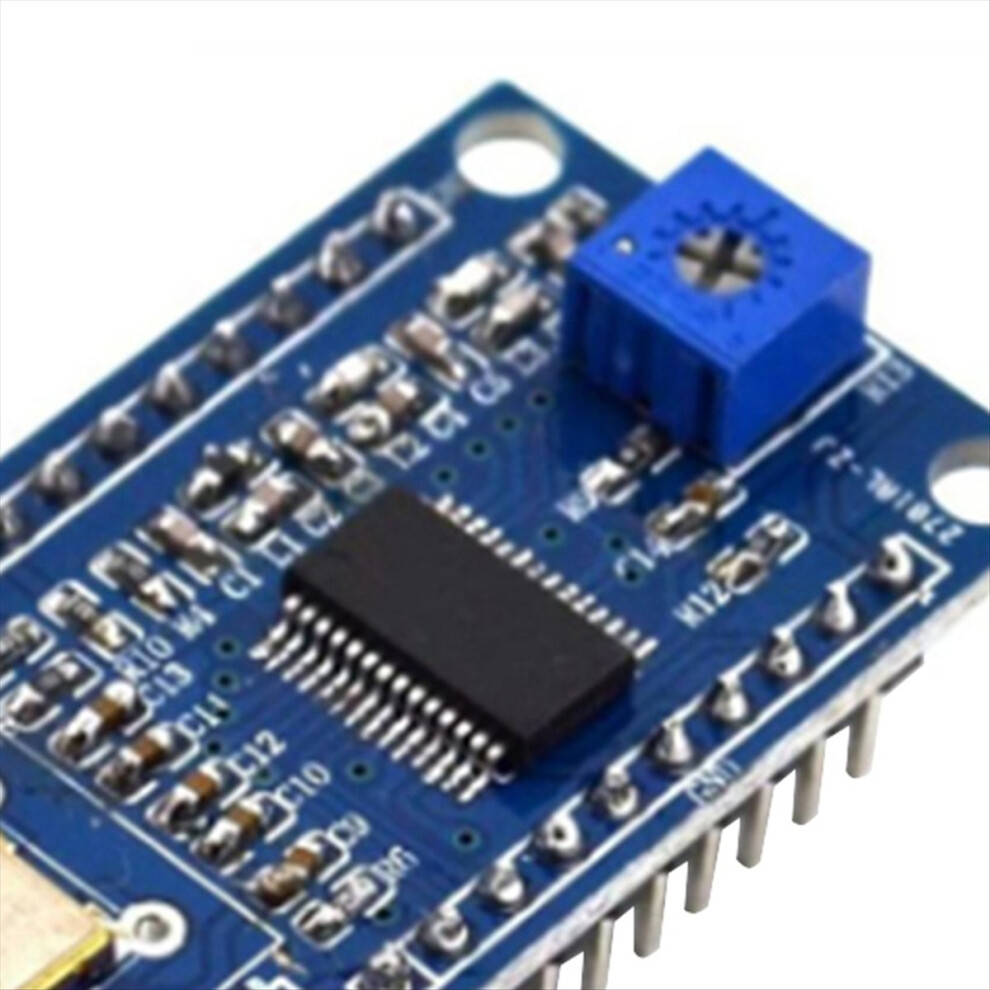

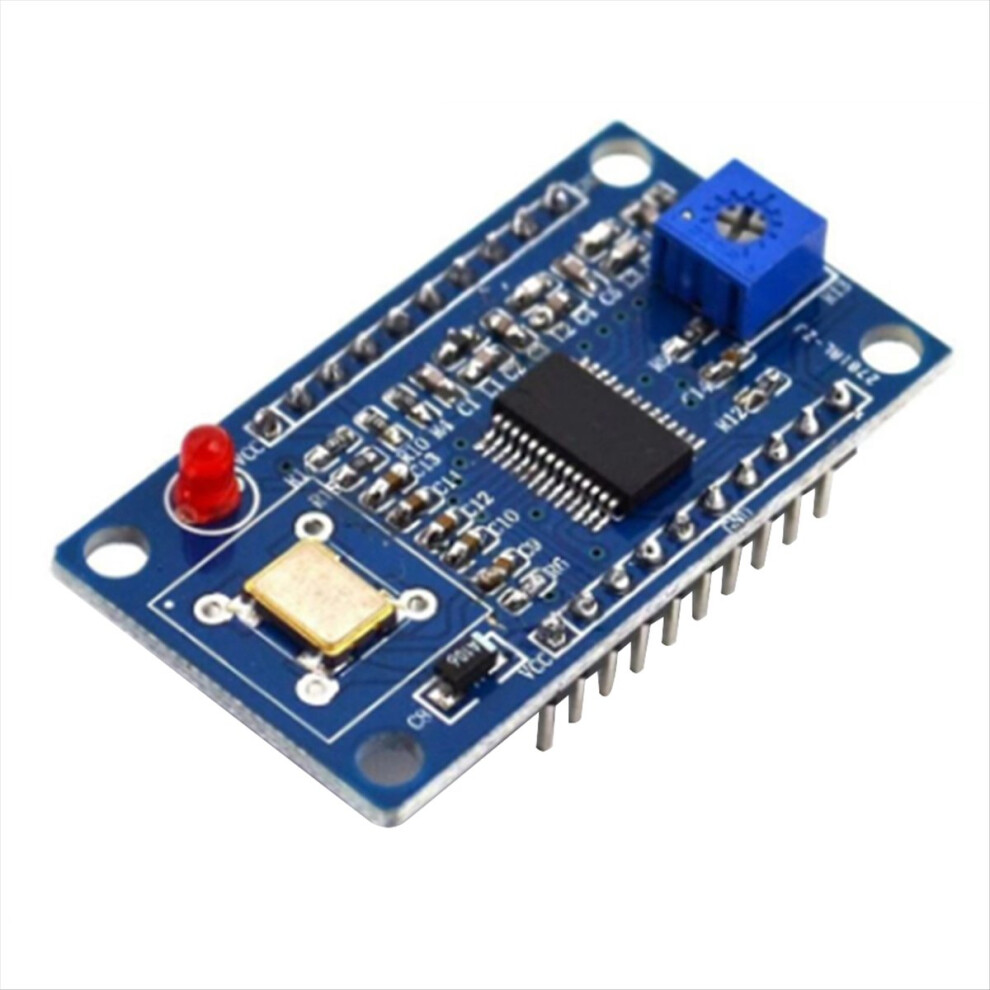

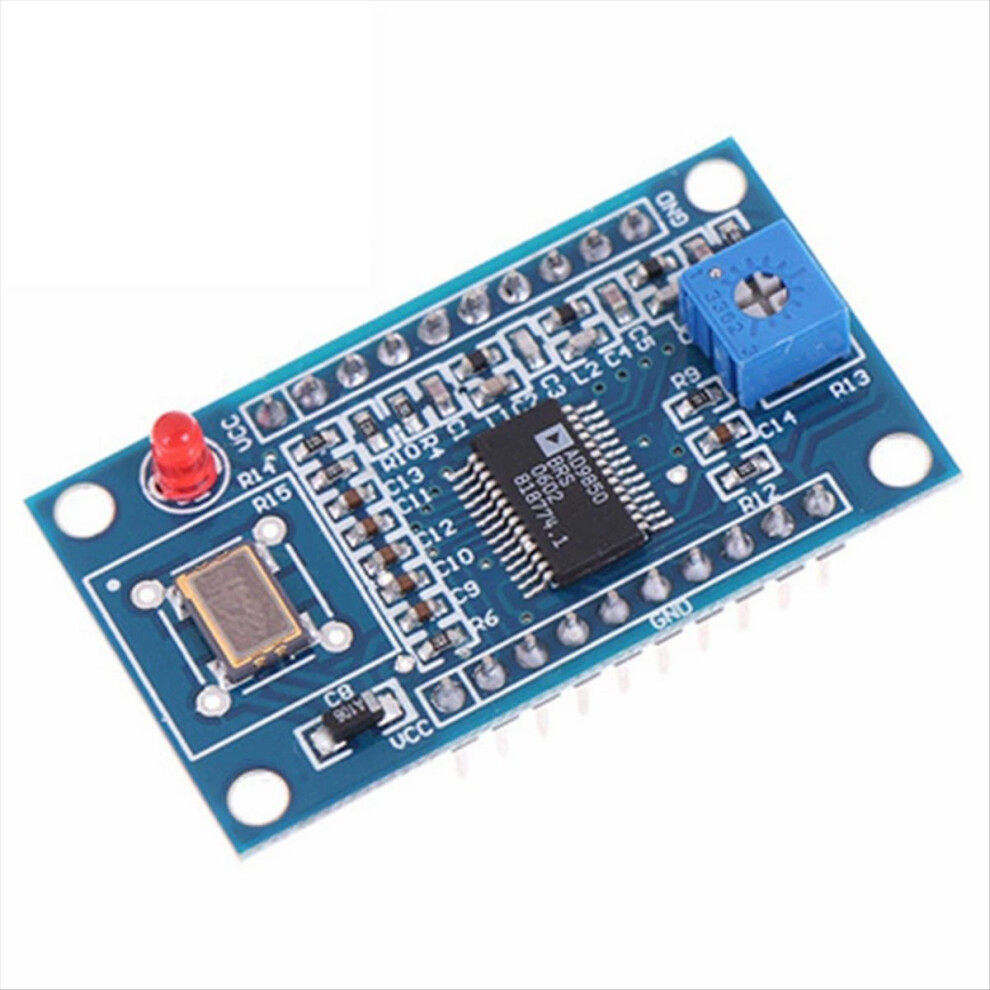

DDS Signal Generator Module Development Board 0-70MHz AD9851 2 Sine Wa

DDS Signal Generator Module Development Board 0-70MHz AD9851 2 Sine Wa Description

The module can output sine wave and square wave, 2 sine wave and 2 square wave output.
AD9851: 0-70MHz
After the frequency is 20-30MHz, the harmonic becomes larger and larger, and the waveform will become more and more unclean.
Square wave: 0-1MHz
Uses a 70MHz low-pass filter to make the waveform's SN ratio better

10-bit DAC, 32-bit frequency control word
The comparator's reference input voltage is generated by a variable resistor. Adjusting this resistor can get different duty cycle square waves.
Note: In the case of outputting a sine wave, connect to the IO port of the square wave output and directly adjust
The blue potentiometer can output a square wave.
AD9851 module uses 30MHZ active crystal
Colour:As Shown
Material:PCB

Package Contents:
1 x Signal Generator Module

Only the above package content, other products are not included.
