Delay Module LED Display Timer Relay 3V 3.7V 4.5V 5V 6V Signal Cycle Timing Multi-Functional Adjustable Description

Low Voltage: This delayed relay module can operate with a low voltage of 3V or more.
Wide Usage: The timer is widely used to control motors, light bulbs, LED belts, motor, small pumps, etc.
Easy Power Supply: 3.7V Lithium Batteries, 5V Power Supplies, Switching Power Supply can be used to power this timer relay card.
Optimal isolation: The isolation of the optical coupling of the module improves the anti-interference ability.
Independent printed circuit board: The module uses a printed circuit board an industrial level and saves the set parameters after a power failure.

Working current: 3V ~ 7V.

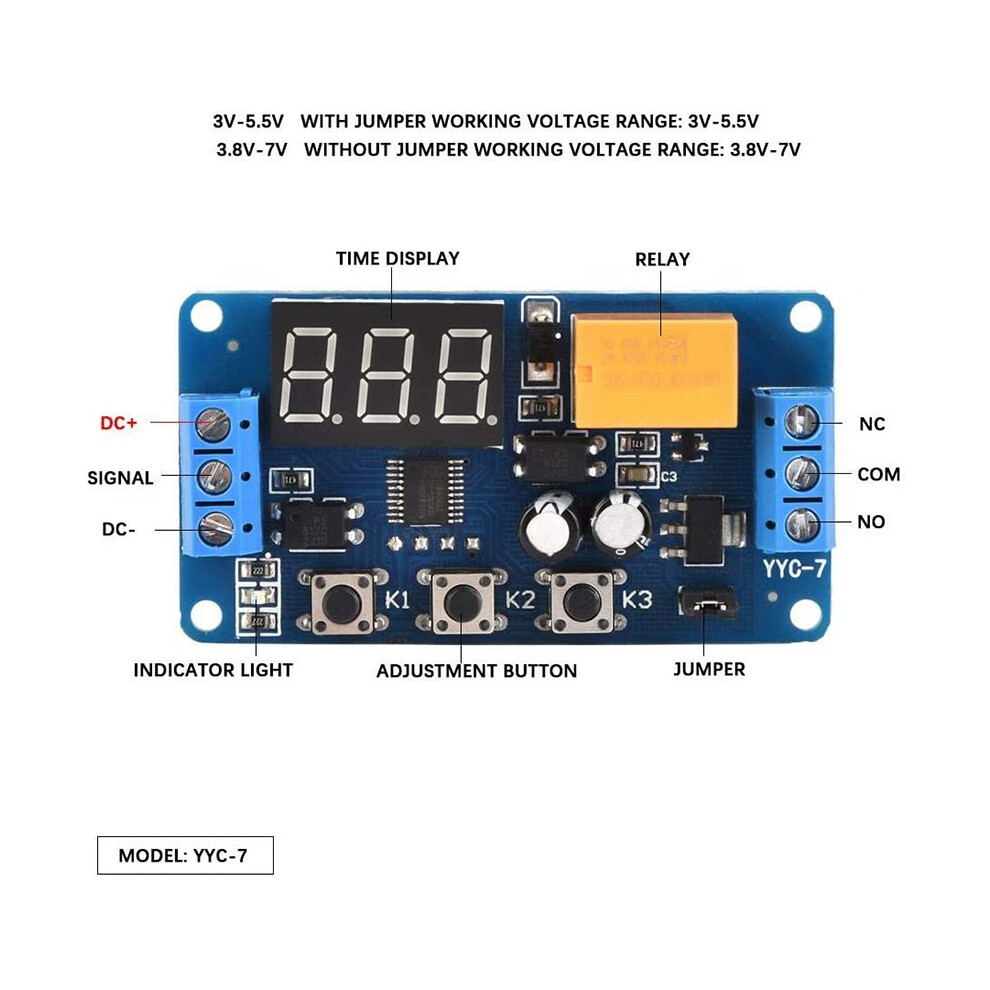

Voltage range with tab: 3 V ~ 5.5 V.
Voltage range without tab: 3.8 V ~ 7 V.
Signal source: 3V ~ 12V (usually use positive trigger, button, PNP sensor, PLC signals, etc.)

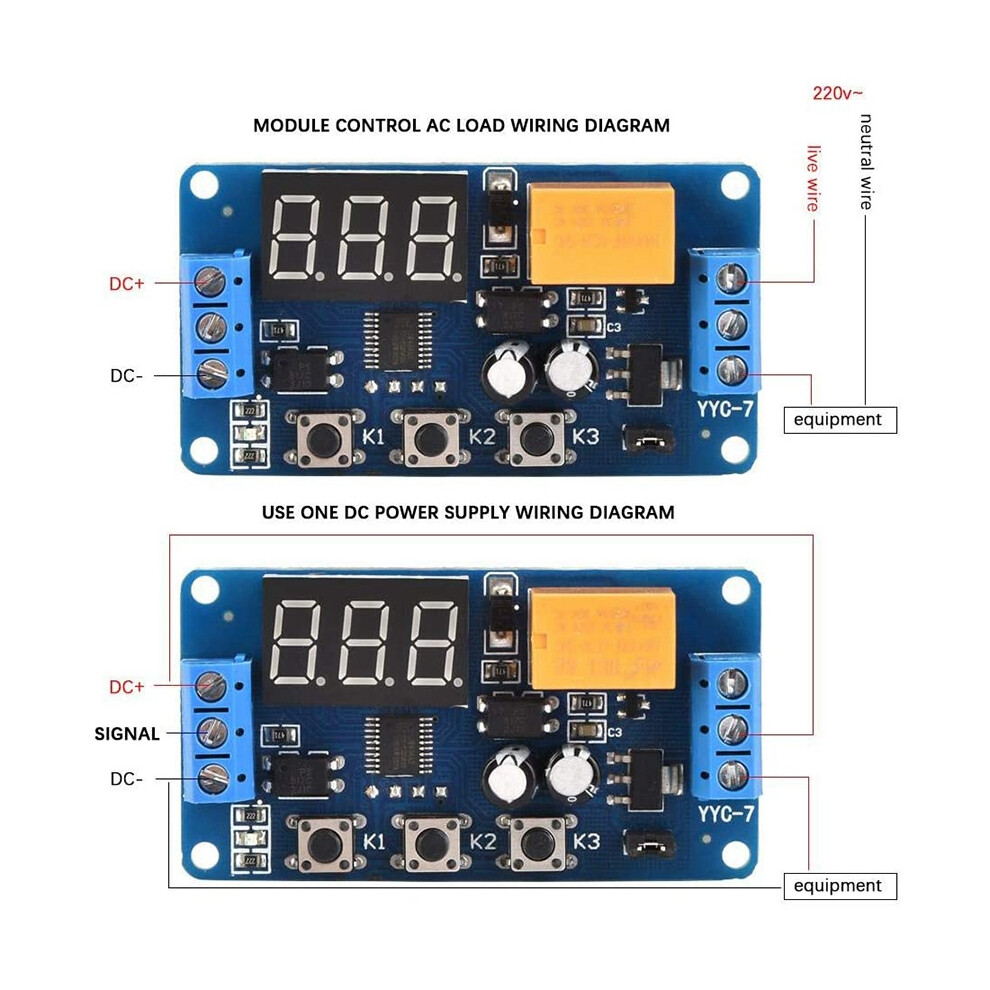

Output Capacity: Can control the devices in 30V 3A or AC 220V 3A.
Quiescent current: 15 mA Working current: 30 mA.
Lifespan:Greater than 100,000 times.
Operating temperature: -40 ~ 85 Celsius.
Tips:
Mode selection: After power , long press K1 for 2 seconds, short press K1 to enter selection mode P1~4 selection, enter mode.
P-1: The signal triggers the relay to pull in. When the is , the relay is disconnected. During the delay period
A: Trigger again is invalid B: Trigger again to re-timing C: Trigger the relay again to reset and terminate timing
P-2: Signal trigger start timing T1, when the is , the relay pull-in T2 is disconnected (reset)
P-3: Recycling use: turn T1, turn off T2, endless loop. T1 and T2, the is adjustable
Colour:
Material:Electronic component
Size:64.2x34.8x15mm

Package Contents:
1 x Delay Module

Only the above package content, other products are not included.
