Development board for minimal system learning

Development board for minimal system learning Description

Minimal Systems Learning Development Board Description
Using Altera's Cyclone IIEP2 Celsius 5T144 fragmented FPGA as a core minimal system, it can be easily embedded into the actual system.
Completely simple logic control, data acquisition, signal processing, mathematical calculations, and other functions.
The core board's FPGA chip pin is omnidirectional. The board can be directly connected to the motherboard. The 5V power supply can be provided by pressing the socket or by sliding out the array. Hardware configuration: Marine EP2 Celsius 5T144 chip. The EPROM chip uses epcs4 with 4 Mbit. Marine 50M active crystal (backside). Uses a high-power socket powered by a 5V supply. There is a power indicator and a reset switch. The 3 SMD LEDs allow you to perform LED test experiments. All I/O connections and clock pin lines allow expansion to any memory and scope. The board uses high-quality tantalum capacitors for power supply filtering. Development support is available. from embedded Niosii CPUs.
Color: blue
Material: PCB
Size: 71.9 x 51.7 mm
Package Contents:

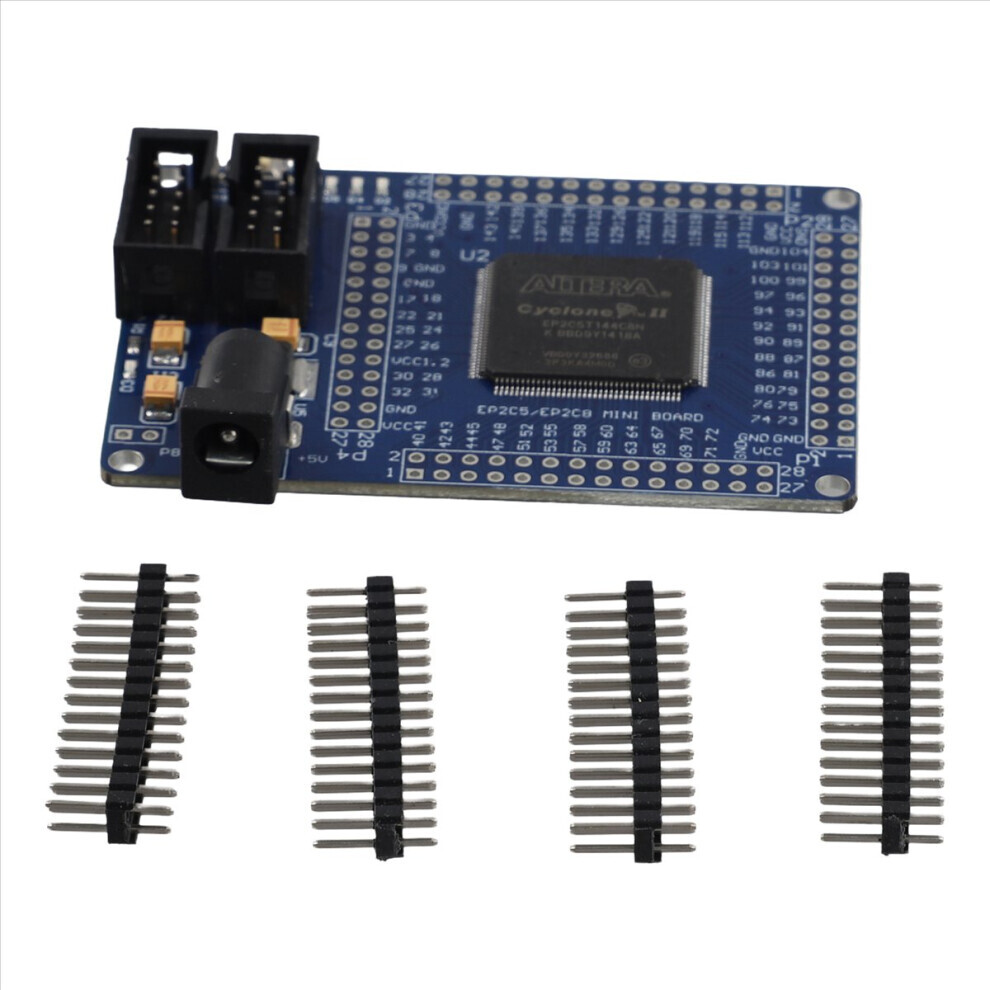

1 x EP2C5T144 Development Board
Only the above package contents, other products are not included.
Note: Light and different displays may cause the color of the item in the picture to be slightly different from the real thing. The allowable measurement error is +/- 1-3 cm.
