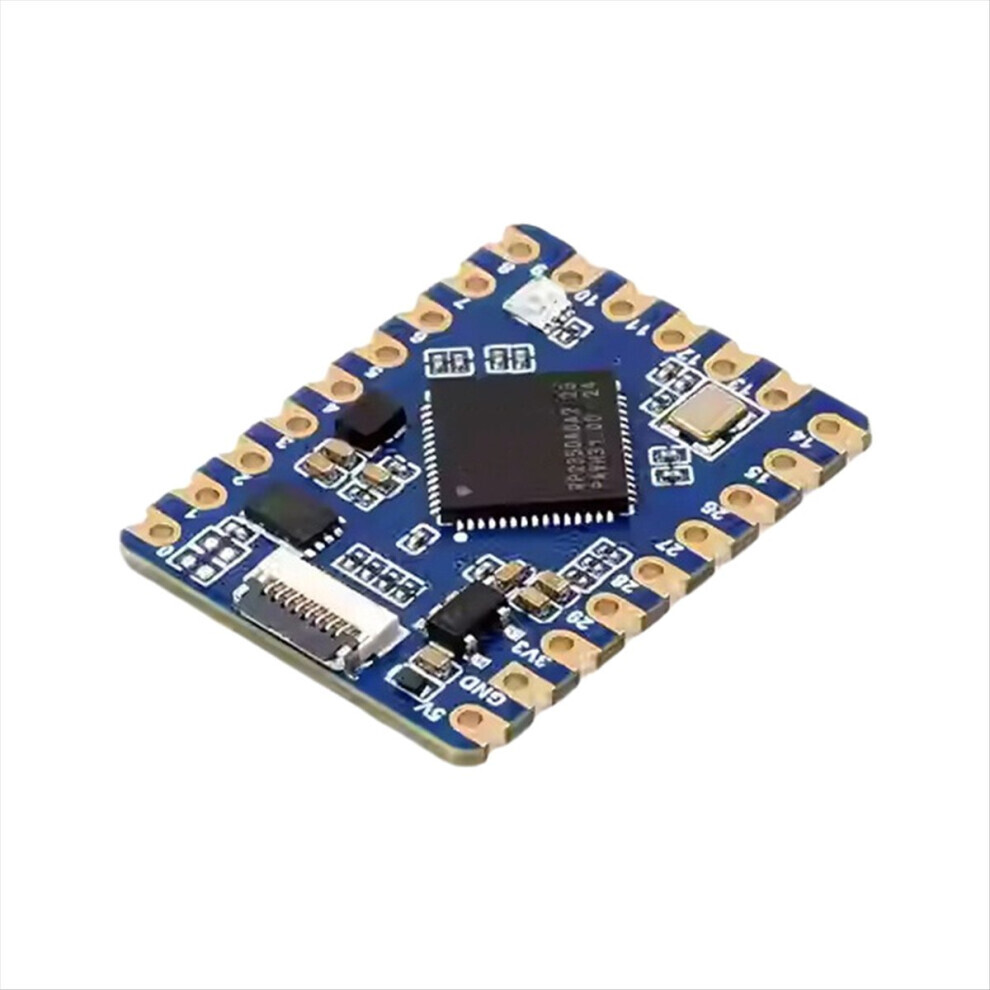

Development board for Raspberry Pi microcontroller RP2350-Tiny

Development board for Raspberry Pi microcontroller RP2350-Tiny Description

Development Board for Raspberry Pi Microcontroller RP2350-Tiny Description
Dual-core, dual architecture, equipped with a dual-core ARM-M3 processor and a dual-core Hazard 3 RISC-V processor, clock speed up to 150 MHz.
Built-in 520 KB and 4 MB on-chip flash.
Onboard FPC 8-pin interface; USB Type-C interface can be brought out via an adapter board.
Puncture-hole design; can be directly soldered and integrated into a self-designed baseboard.
USB 1.1 host and device support.
Supports power saving and sleep mode.
Can be identified via USB as high-capacity storage for programs. via drag & Drop to download.
28 multifunctional GPIO pins exposed (20 can be exposed via pin headers, the rest can only be soldered).
Features.
2 SPI, 2 I2C, 2 UART, 4 12-bit ADCs, 16 controllable PWM channels.
Precise on-chip clock and timer.
Temperature sensor.
On-chip accelerated floating-point library.
12 programmable I/O (PIO) state machines for custom peripheral support.
Color: blue
Material: PCB
The actual product may have slight color variations or differences that do not affect its use. impair.
Package Contents:
1 * Mini Development Board
Only the above package contents, other products are not included.
Note: Light reflections and different displays may cause the color of the item in the picture to be slightly different from the actual product. The allowable measurement error is +/- 1-3 cm.
