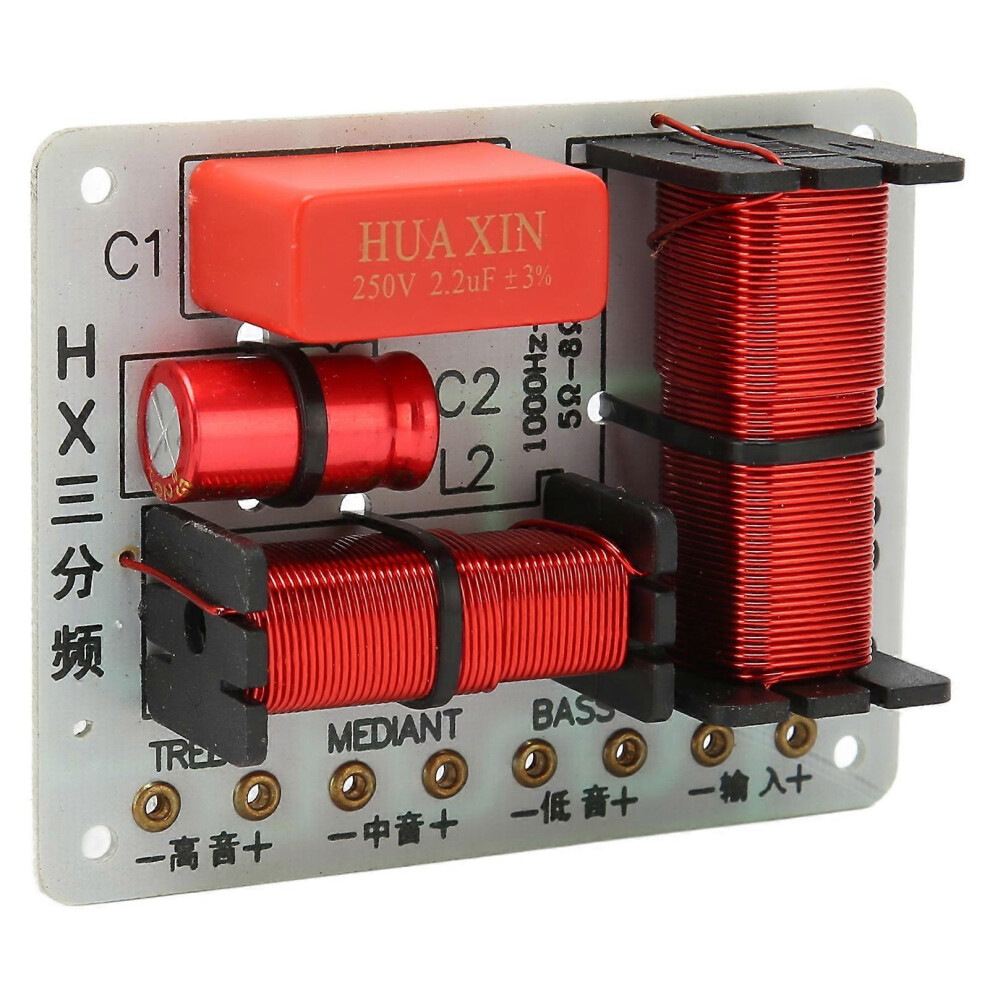

DIY 3 Way HiFi Speaker Crossover Filter Module Treble Bass Divider Distribution Board

DIY 3 Way HiFi Speaker Crossover Filter Module Treble Bass Divider Distribution Board Description

Feature:

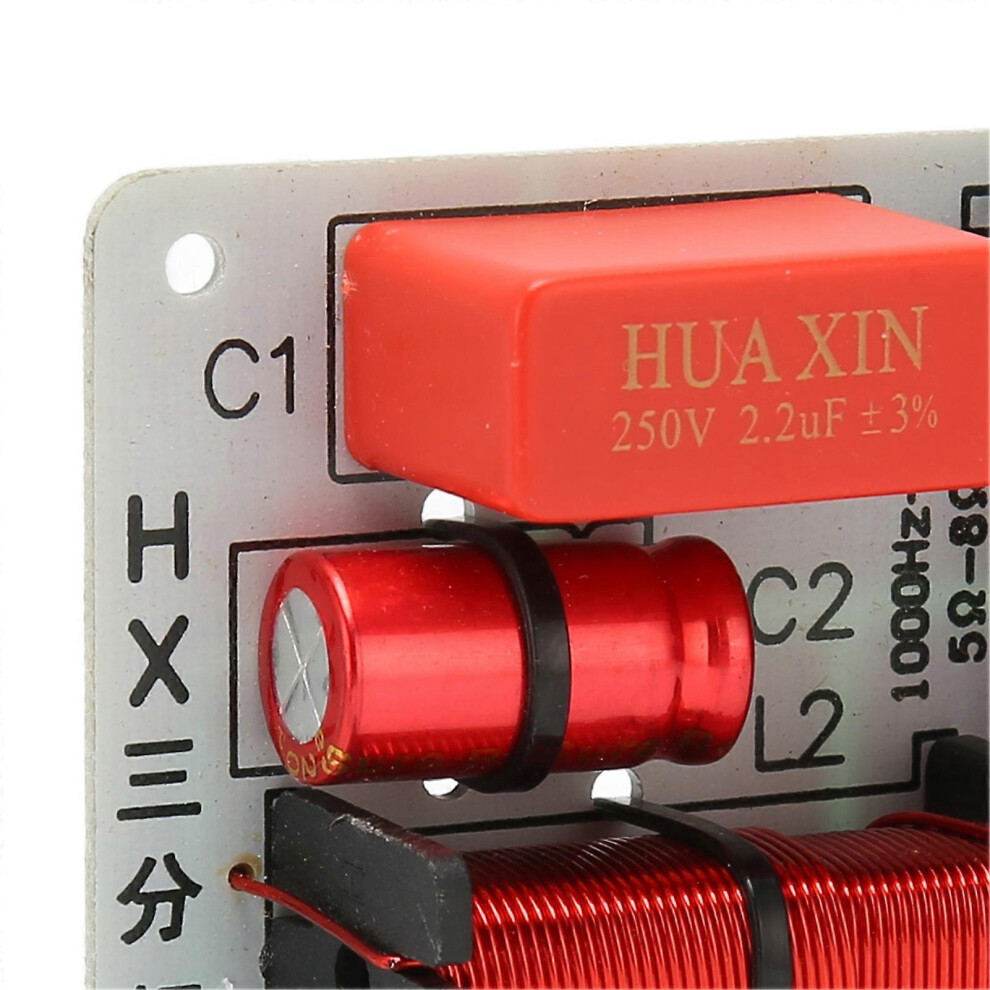

1. PCB BOARD: PCB board back clean, reasonable layout, soldering points large, wiring line thick, corner places using rounded corners design, circuit conductivity is good.
2. PROFESSIONAL: Treble, alto and bass frequency support, helps to transmit the treble signal to the tweeter unit, and divide the bass signal into subwoofer unit.
3. HIFI SOUND QUALITY: Make the treble clear and increase the strength of the bass, freely enjoy clear and natural music.
4. ENHANCE SOUND QUALITY: To separate the mixed audio signal into a treble, alto and bass, and then were sent to the corresponding treble, alto and bass speaker unit in playback, resulting in enhance the sound quality purposes.
5. WIDE APPLICATIONS: Treble, alto and bass frequency dividing, widely used for DIY speakers. Signal in the transmission without obstacles, so that the music details appear!
Specification:
Item Type: Speaker Frequency Divider
Material: PCB
Crossover Point: 1000‑5000Hz
Impedance: 5‑8Ω
Power: 150W
Filter Characteristics: Treble 12db/oct, Bass 12db/oct.
Package List:
1 x Speaker Frequency Divider
